00159ET3H184T-W22 WEG AC Motors
Part#:00159ET3H184T-W22
Manufacturer:WEG
Alt. Part#:7909158679560
Product Lifecycle:Active
Get a quick Quote!

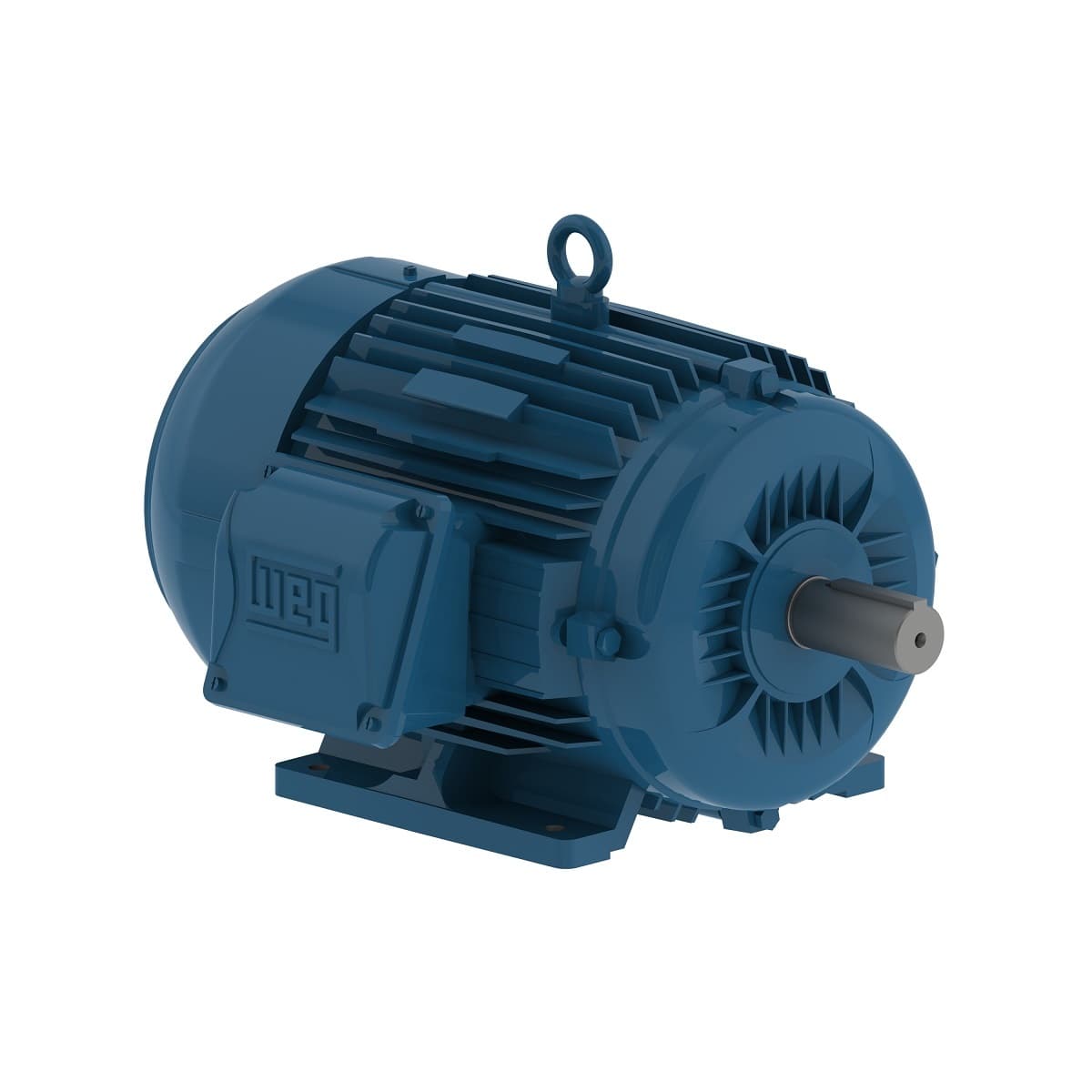

W22 NEMA Premium Efficiency 1.5 HP 8P 182/4T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 00159ET3H184T-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating1.5 HP
- Rated Speed860 rpm
- Number of Poles8 Pole
- Voltage575 V
- Flange TypeWithout
- Frequency 60 Hz
- Breakdown torque 290 %
- Ambient temperature -20°C to +40°C
- Flange Without
- Slip 4.44 %
- Design B
- Duty Cycle Cont.(S1)
- Synchronous speed 900 rpm
- Rated voltage 575 V
- Moment of inertia (J) 0.5766 sq.ft.lb
- Mounting F-1
- Output rating 1.5 HP
- Rated current 2.27 A
- Service factor 1.25
- Enclosure IC411 - TEFC
- Locked rotor time 30s (cold) 17s (hot)
- Temperature rise 80 K
- Standard NEMA MG-1
- Frame 182/4T
- Locked rotor torque 229 %
- Noise level² 50.0 dB(A)
- Voltage 575 V
- Output 1.5 HP (1.1 kW)
- Insulation Class F
- Starting Method Direct On Line
- Approx. weight³ 77.2 lb
- Rated speed 860 rpm
- LRC 5.9x(Code K)
- Rotation¹ Both (CW and CCW)
- L. R. Amperes 13.4 A
- Rated torque 9.16 ft.lb
- Degree of Protection IP55
- Terminal box¹ Left position
- Number of Poles 8
- No load current 1.68 A
- Altitude 1000 m.a.s.l.
- Number of poles 8
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00159ET3H184T-W22 Specs
