00209ET3EBM213T-W22 WEG AC Motors
Part#:00209ET3EBM213T-W22
Manufacturer:WEG
Alt. Part#:7909322215495
Product Lifecycle:Active
Get a quick Quote!

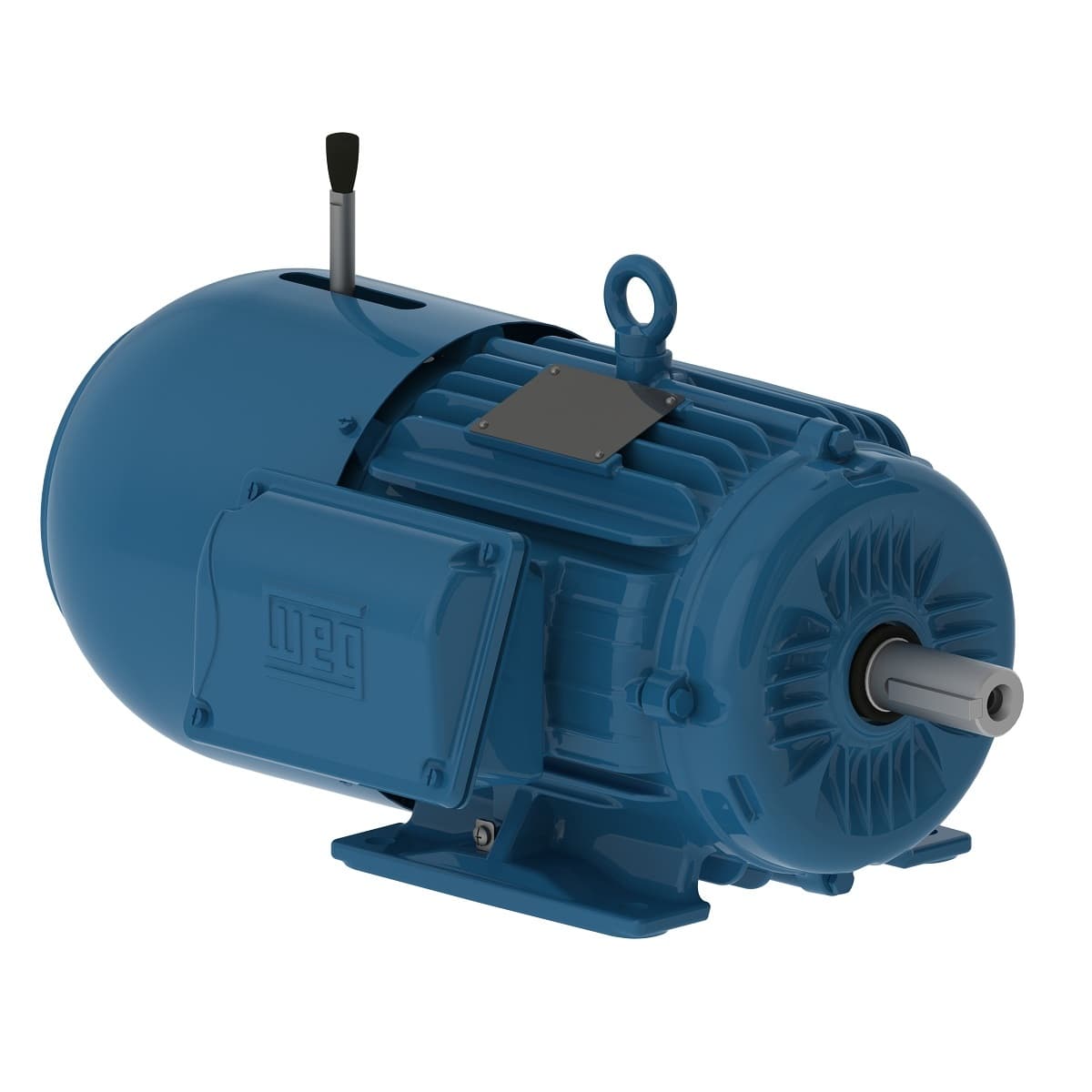

W22 Brake Motor NEMA Premium Efficiency 2 HP 8P 213/5T 3Ph 230/460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 00209ET3EBM213T-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating2 HP
- Rated Speed875 rpm
- Number of Poles8 Pole
- Voltage230/460 V
- Flange TypeWithout
- Frequency 60 Hz
- Ambient temperature -20°C to +40°C
- Number of poles 8
- Slip 2.78 %
- Breakdown torque 290 %
- Starting Method Direct On Line
- Standard NEMA MG-1
- Frame 213/5T
- No load current 4.60/2.30 A
- Insulation Class F
- Approx. weight³ 187 lb
- L. R. Amperes 46.8/23.4 A
- Design B
- Rotation¹ Both (CW and CCW)
- Output 2 HP (1.5 kW)
- LRC 6.9x(Code L)
- Degree of Protection IP55
- Terminal box¹ Left position
- Rated current 6.78/3.39 A
- Temperature rise 80 K
- Voltage 230/460 V
- Number of Poles 8
- Moment of inertia (J) 1.79 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Synchronous speed 900 rpm
- Rated torque 12.0 ft.lb
- Duty Cycle Cont.(S1)
- Noise level² 52.0 dB(A)
- Rated speed 875 rpm
- Locked rotor torque 220 %
- Enclosure IC411 - TEFC
- Output rating 2 HP
- Rated voltage 230/460 V
- Locked rotor time 70s (cold) 39s (hot)
- Mounting F-1
- Flange Without
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00209ET3EBM213T-W22 Specs
1-year warranty
