00209XT3E213T WEG AC Motors
Part#:00209XT3E213T
Manufacturer:WEG
Alt. Part#:7909492269144
Product Lifecycle:Active
Get a quick Quote!

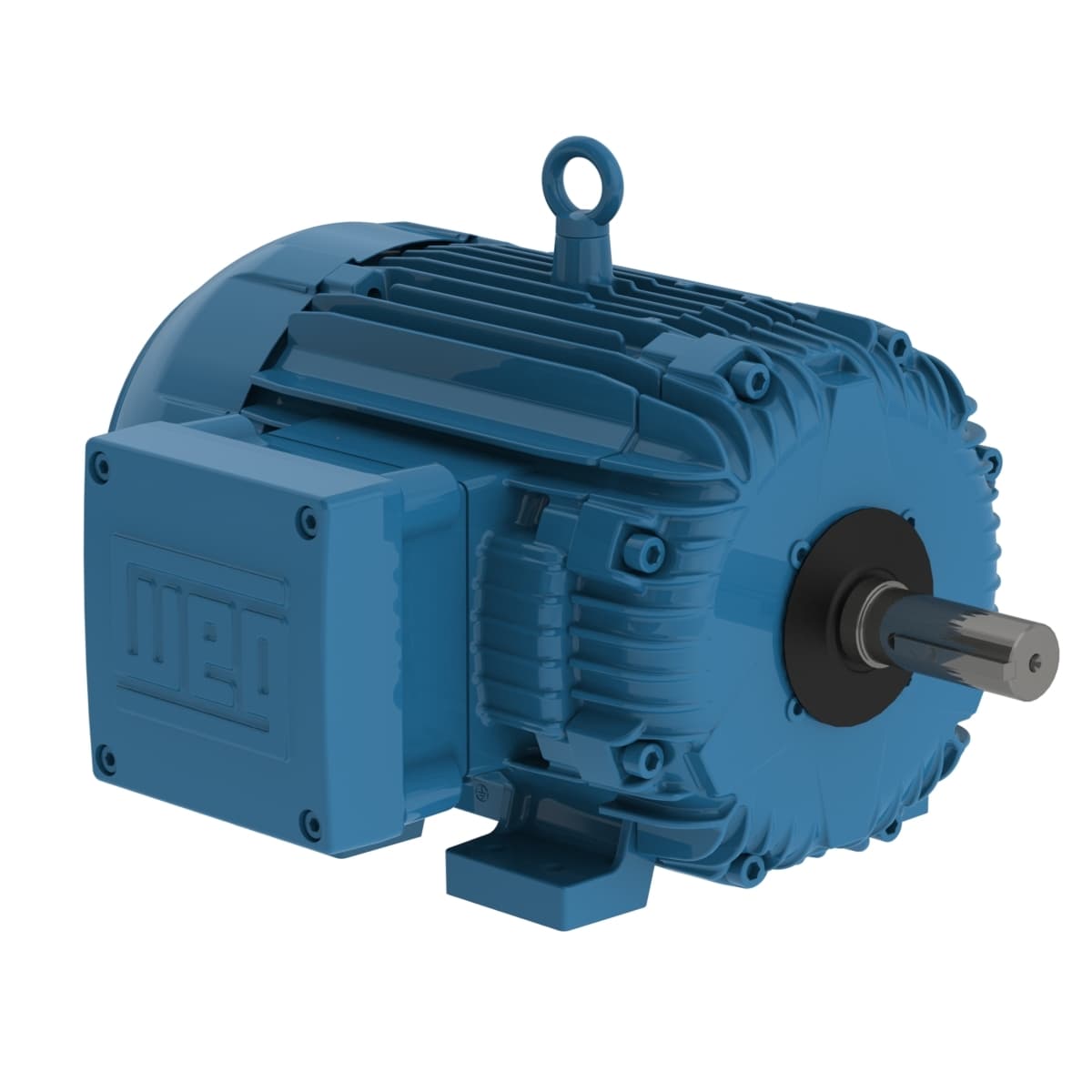

W21 Explosion-proof Motor NEMA Premium Efficiency 2 HP 8P 213/5T 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Check out the 00209XT3E213T WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating2 HP
- Rated Speed875 rpm
- Number of Poles8 Pole
- Voltage230/460 V
- Flange TypeWithout
- Frame 213/5T
- Rated torque 12.0 ft.lb
- Duty Cycle Cont.(S1)
- Noise level² 52.0 dB(A)
- No load current 4.40/2.20 A
- Temperature rise 80 K
- Starting Method Direct On Line
- Flange Without
- Rated current 6.90/3.45 A
- Breakdown torque 280 %
- Rotation¹ Both (CW and CCW)
- Rated voltage 230/460 V
- LRC 7.0x(Code L)
- Mounting F-1
- Synchronous speed 900 rpm
- L. R. Amperes 48.3/24.2 A
- Insulation Class F
- Standard NEMA MG-1
- Output 2 HP (1.5 kW)
- Locked rotor time 63s (cold) 35s (hot)
- Degree of Protection IP55
- Enclosure IC411 - TEFC
- Frequency 60 Hz
- Locked rotor torque 229 %
- Ambient temperature -20°C to +40°C
- Number of poles 8
- Rated speed 875 rpm
- Design B
- Approx. weight³ 181 lb
- Terminal box¹ Left position
- Number of Poles 8
- Moment of inertia (J) 1.31 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Output rating 2 HP
- Slip 2.78 %
- Service factor 1.15
- Voltage 230/460//380 V
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00209XT3E213T Specs
