00336ET3H56CFL-S WEG AC Motors
Part#:00336ET3H56CFL-S
Manufacturer:WEG
Alt. Part#:7909492928072
Product Lifecycle:Active
Get a quick Quote!

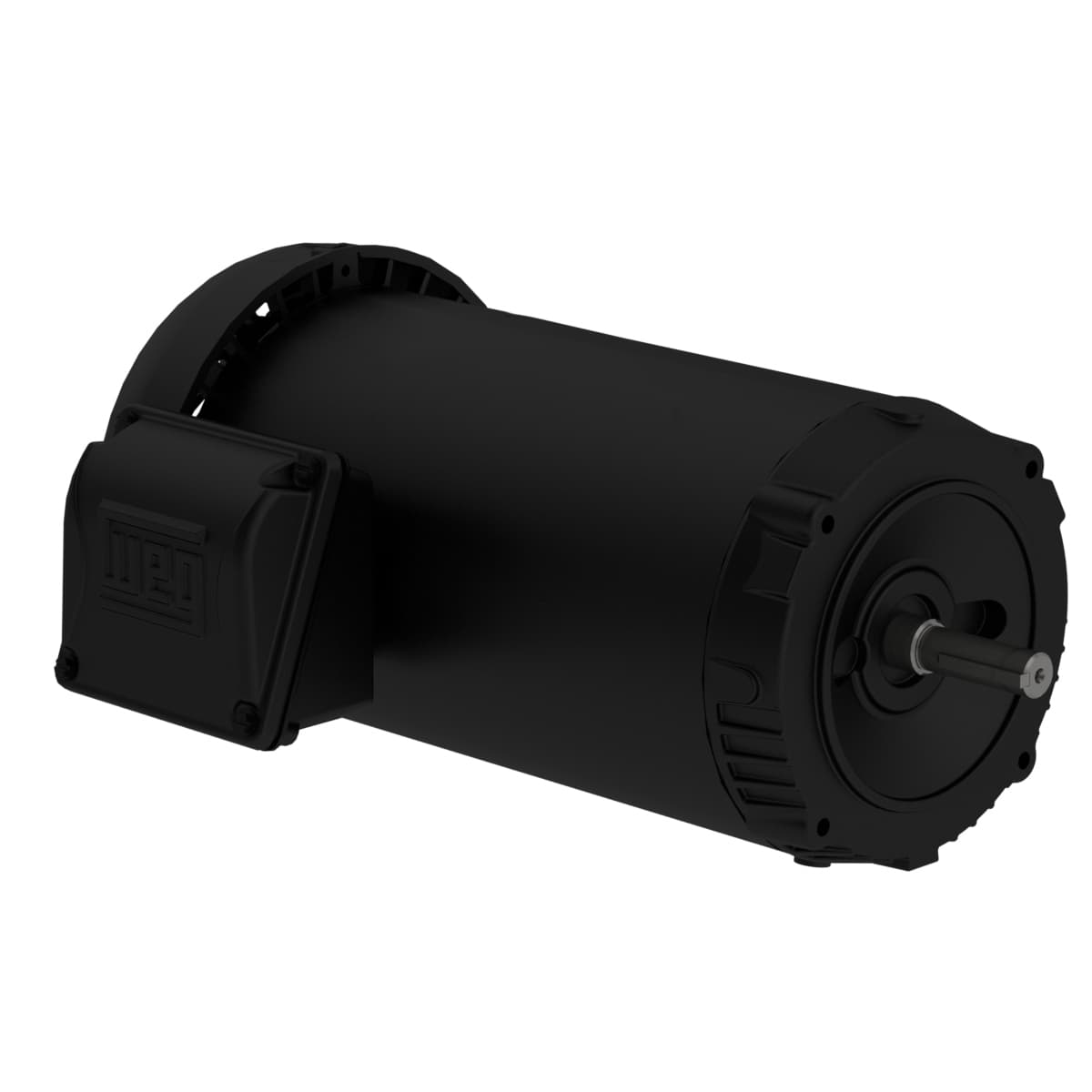

Rolled Steel Premium Efficiency 3 HP 2P 56C 3Ph 575 V 60 Hz IC411 - TEFC - Footless
Check out the 00336ET3H56CFL-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating3 HP
- Rated Speed3505 rpm
- Number of Poles2 Pole
- Voltage575 V
- Flange TypeC
- Rated voltage 575 V
- Ambient temperature -20°C to +40°C
- Mounting F-1
- Output rating 3 HP
- Slip 2.64 %
- Service factor 1.15
- Temperature rise 80 K
- Number of Poles 2
- Breakdown torque 380 %
- Approx. weight³ 45.6 lb
- Rated current 2.94 A
- Locked rotor torque 280 %
- Degree of Protection IP55
- LRC 9.3x(Code L)
- Locked rotor time 18s (cold) 10s (hot)
- Noise level² 68.0 dB(A)
- Number of poles 2
- Frame 56C
- No load current 1.28 A
- Moment of inertia (J) 0.1663 sq.ft.lb
- Standard NEMA MG-1
- Frequency 60 Hz
- Starting Method Direct On Line
- Enclosure IC411 - TEFC
- Synchronous speed 3600 rpm
- Rated speed 3505 rpm
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Left position
- Output 3 HP (2.2 kW)
- Design B
- Duty Cycle Cont.(S1)
- Voltage 575 V
- L. R. Amperes 27.3 A
- Rated torque 4.49 ft.lb
- Altitude 1000 m.a.s.l.
- Flange C
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00336ET3H56CFL-S Specs
