00336OT3E145T-S WEG AC Motors
Part#:00336OT3E145T-S
Manufacturer:WEG
Alt. Part#:7909158413690
Product Lifecycle:Active
Get a quick Quote!

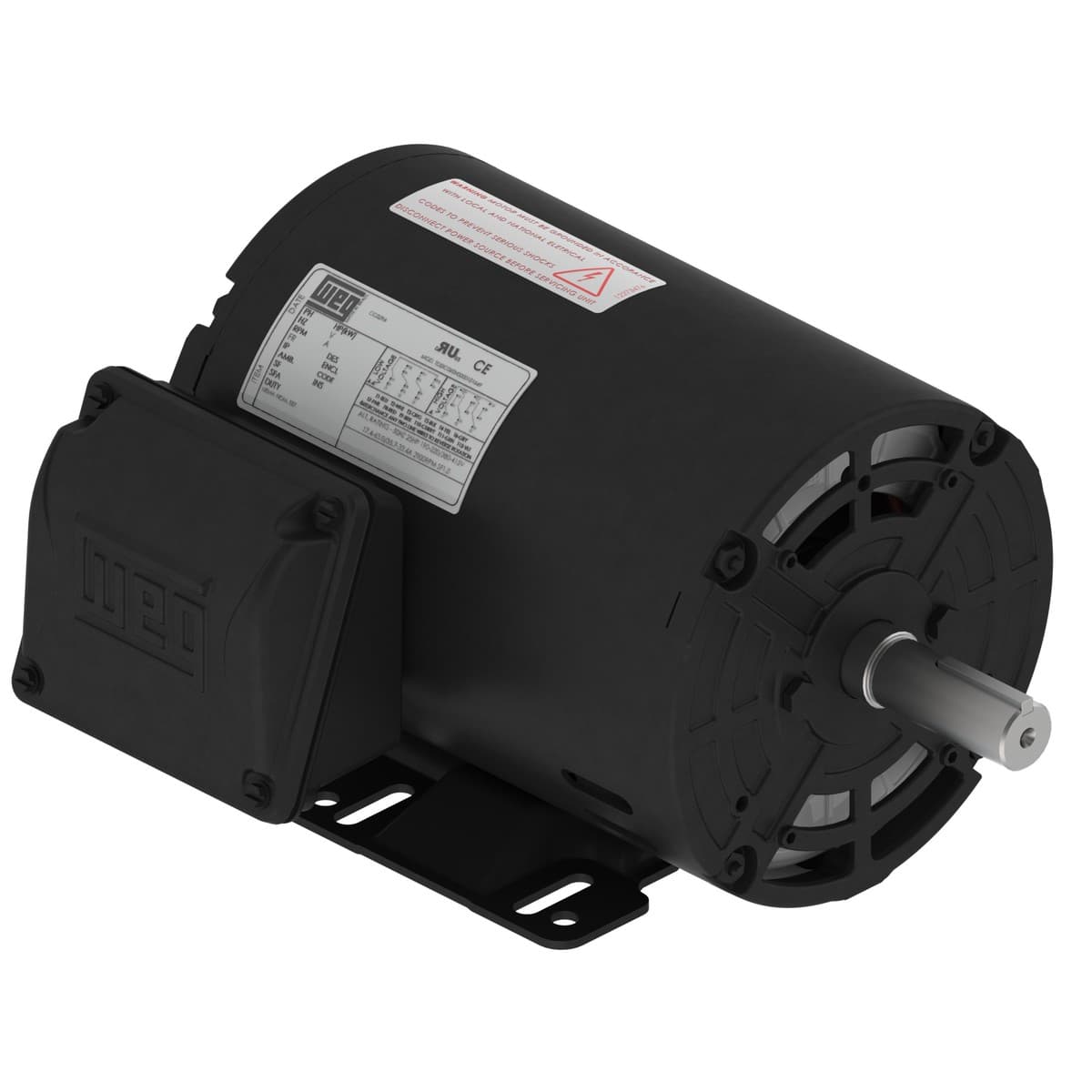

Rolled Steel NEMA Premium Efficiency 3 HP 2P 143/5T 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 00336OT3E145T-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating3 HP
- Rated Speed3480 rpm
- Number of Poles2 Pole
- Voltage230/460 V
- Flange TypeWithout
- Number of Poles 2
- Rated current 7.18/3.59 A
- Temperature rise 80 K
- Noise level² 62.0 dB(A)
- Breakdown torque 300 %
- Service factor 1.15 (1.00 @ 208V)
- Altitude 1000 m.a.s.l.
- Output rating 3 HP
- Frequency 60 Hz
- LRC 8.0x(Code J)
- Enclosure IC01 - ODP
- Voltage 230/460//190-220/380-415 V
- Rated speed 3480 rpm
- Moment of inertia (J) 0.1279 sq.ft.lb
- Design B
- Mounting F-1
- Terminal box¹ Left position
- Output 3 HP (2.2 kW)
- Locked rotor torque 229 %
- Ambient temperature -20°C to +40°C
- L. R. Amperes 57.4/28.7 A
- Rated voltage 230/460 V
- Locked rotor time 16s (cold) 9s (hot)
- Starting Method Direct On Line
- Flange Without
- Frame 143/5T
- Rated torque 4.53 ft.lb
- Rotation¹ Both (CW and CCW)
- Slip 3.33 %
- Insulation Class F
- Number of poles 2
- Synchronous speed 3600 rpm
- No load current 2.60/1.30 A
- Approx. weight³ 40.6 lb
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
