02012OT3H286T-W40 WEG AC Motors
Part#:02012OT3H286T-W40
Manufacturer:WEG
Alt. Part#:7909492247227
Product Lifecycle:Active
Get a quick Quote!

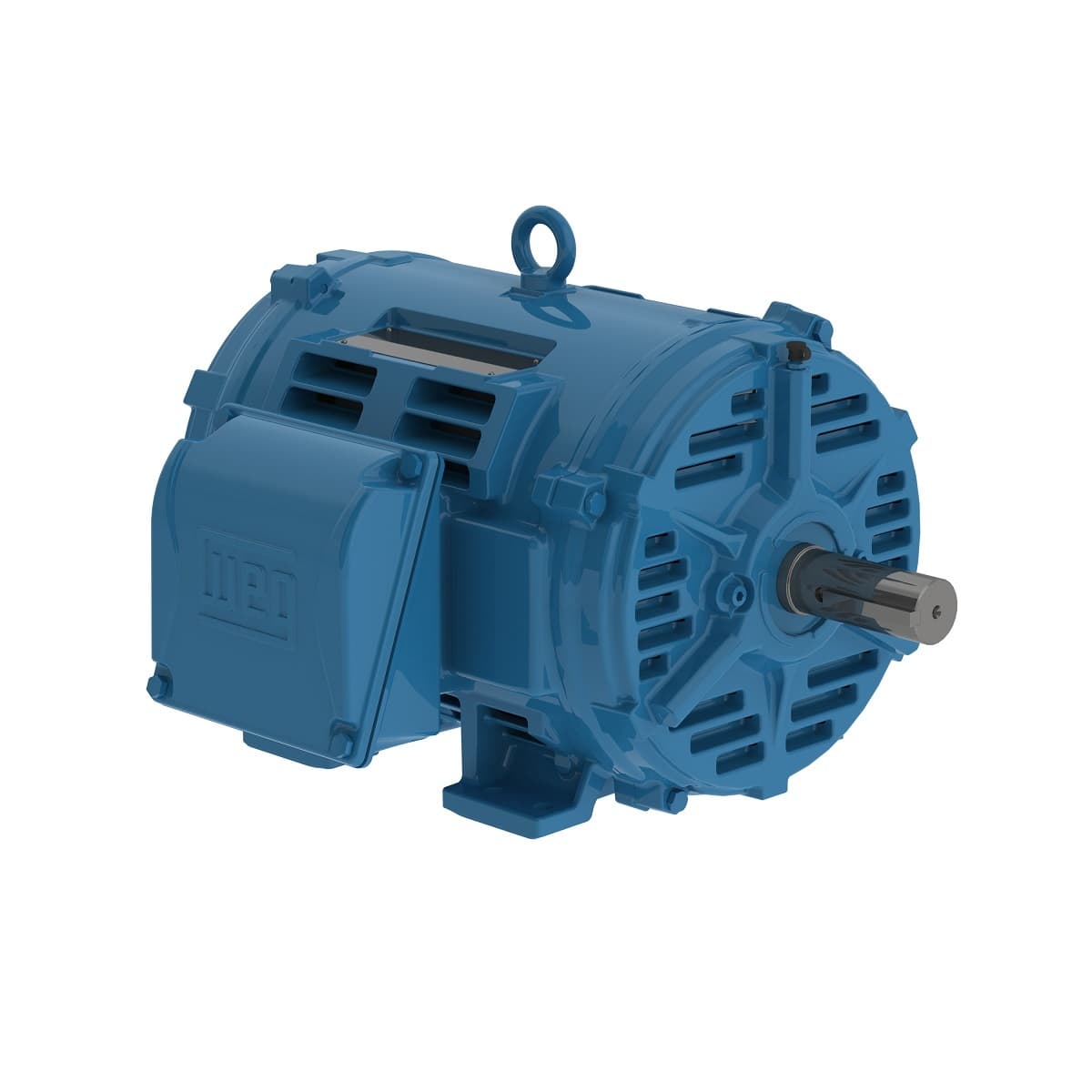

W40 NEMA Premium Efficiency 20 HP 6P 284/6T 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 02012OT3H286T-W40 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating20 HP
- Rated Speed1175 rpm
- Number of Poles6 Pole
- Voltage575 V
- Flange TypeWithout
- Frequency 60 Hz
- No load current 7.20 A
- Service factor 1.25
- Degree of Protection IP23
- Number of poles 6
- Slip 2.08 %
- Locked rotor time 27s (cold) 15s (hot)
- Temperature rise 80 K
- Standard NEMA MG-1
- Output 20 HP (15 kW)
- Insulation Class F
- Enclosure IC01 - ODP
- Terminal box¹ Left position
- Rated voltage 575 V
- Rated torque 89.4 ft.lb
- Starting Method Direct On Line
- Noise level² 59.0 dB(A)
- Flange Without
- LRC 6.4x(Code G)
- Ambient temperature -20°C to +40°C
- Rotation¹ Both (CW and CCW)
- Output rating 20 HP
- Frame 284/6T
- Moment of inertia (J) 6.89 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Voltage 575 V
- Breakdown torque 260 %
- Rated current 19.4 A
- Rated speed 1175 rpm
- Design B
- Mounting F-1
- Synchronous speed 1200 rpm
- L. R. Amperes 124 A
- Number of Poles 6
- Locked rotor torque 229 %
- Duty Cycle Cont.(S1)
- Approx. weight³ 383 lb
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 02012OT3H286T-W40 Specs
1-year warranty
