12676244 WEG AC Motors
Part#:12676244
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

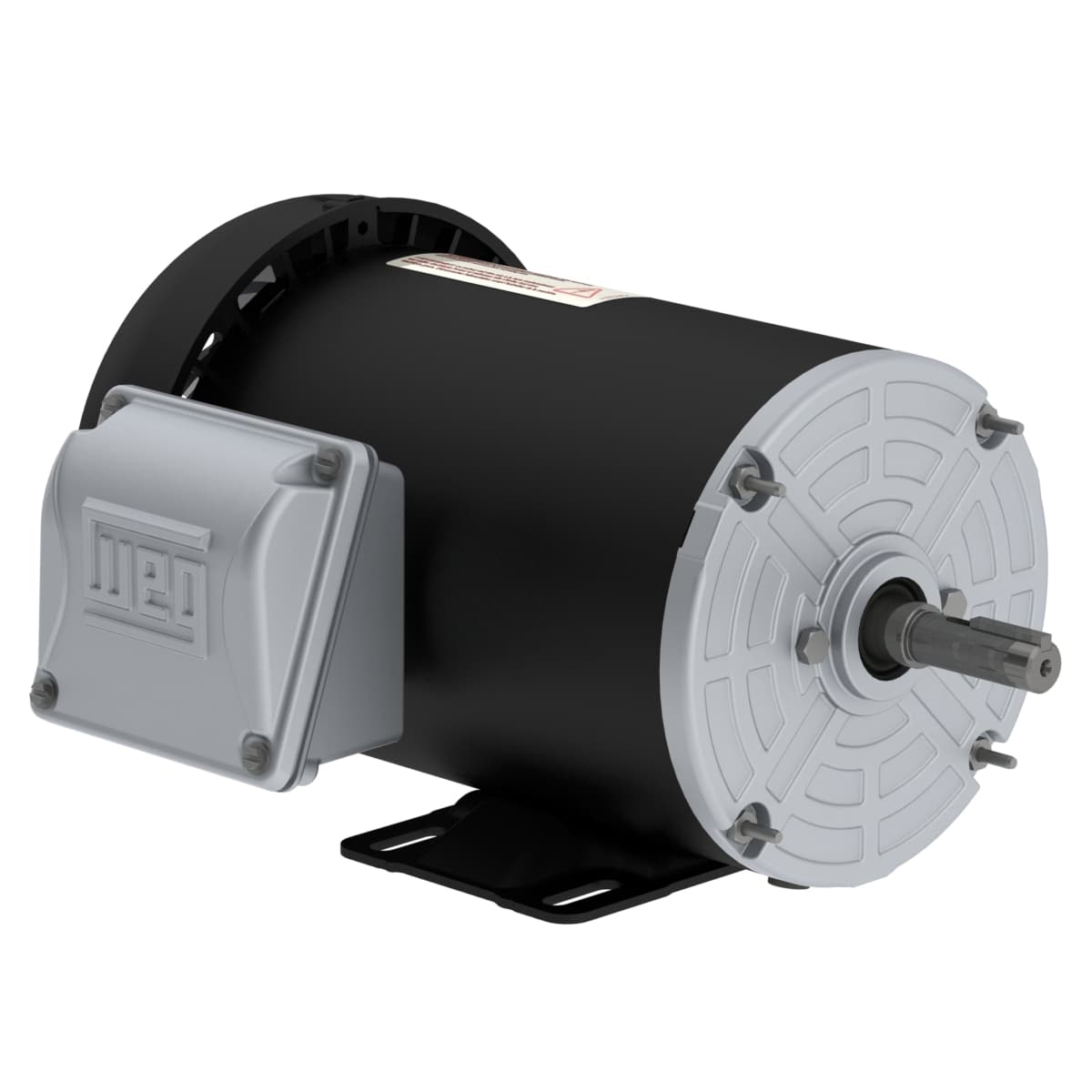

Rolled Steel Standard Efficiency 1.5 HP 2P 56 3Ph 230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 12676244 WEG price in the box on the right side or send a quick quote.
Product Details
- Number of Poles 2
- Temperature rise 80 K
- Frame 56
- Breakdown torque 270 %
- Starting Method Direct On Line
- Output 1.5 HP (1.1 kW)
- Frequency 60 Hz
- Moment of inertia (J) 0.0771 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Output rating 1.5 HP
- LRC 7.2x(Code J)
- No load current 1.63/0.815 A
- Noise level² 68.0 dB(A)
- Flange Without
- Slip 3.89 %
- Service factor 1.15 (1.00 @ 208V)
- Approx. weight³ 26.6 lb
- Terminal box¹ Left position
- L. R. Amperes 28.7/14.3 A
- Locked rotor torque 240 %
- Enclosure IC411 - TEFC
- Rated voltage 230/460 V
- Locked rotor time 21s (cold) 12s (hot)
- Duty Cycle Cont.(S1)
- Number of poles 2
- Rated current 3.98/1.99 A
- Design A
- Rotation¹ Both (CW and CCW)
- Rated speed 3460 rpm
- Insulation Class F
- Ambient temperature -20°C to +40°C
- Standard NEMA MG-1
- Rated torque 2.28 ft.lb
- Mounting F-1
- Degree of Protection IP55
- Synchronous speed 3600 rpm
- Voltage 230/460//190-220/380-415 V
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 12676244 Specs
1-year warranty
