Pneumatic Fittings

130830

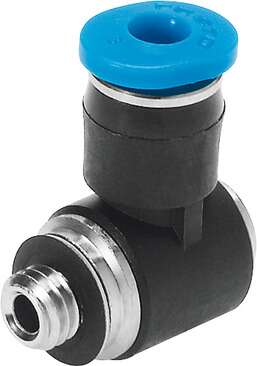

push-in L-fitting QSMLV-M5-3-I 360° orientable, external thread with internal hexagon. Size: Mini, Nominal size: 1,7 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Container size: 10

Festo

133072

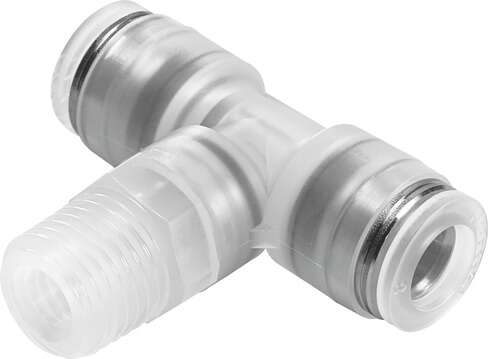

push-in T-fitting NPQP-T-R14-Q4-FD-P10 Size: Standard, Nominal size: 2 mm, Container size: 10, Design structure: Push/pull principle, Temperature dependent operating pressure: -0,95 - 10 bar

Festo

130673

push-in T-connector CRQST-16 Size: Standard, Nominal size: 9,7 mm, Assembly position: Any, Design: T-shaped, Container size: 1

Festo

4469

elbow quick connector LCK-1/8-PK-4 Swivelling with 2 sealing rings. Nominal size: 2,9 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Pneumatic connection, port 1: Male thread G1/8, Pneumatic connection, port 2: for barbed conne

Festo

153176

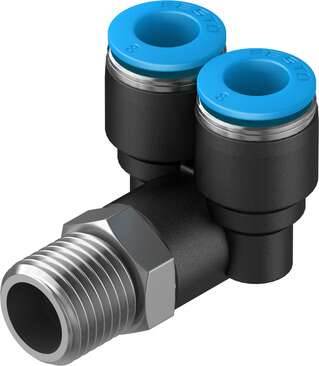

push-in Y-fitting QSYL-1/4-8 360° orientable, male thread with external hexagon. Size: Standard, Nominal size: 7,3 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Container size: 1

Festo

153177

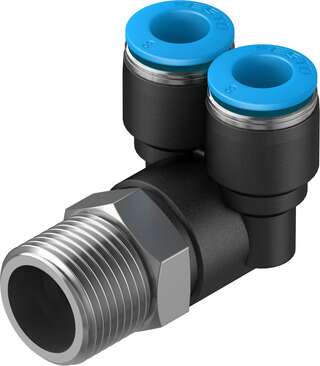

push-in Y-fitting QSYL-3/8-8 360° orientable, male thread with external hexagon. Size: Standard, Nominal size: 7,3 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Container size: 1

Festo

133103

push-in bulkhead connector NPQP-H-Q10-E-FD Size: Standard, Nominal size: 7,1 mm, Container size: 1, Design structure: Push/pull principle, Temperature dependent operating pressure: -0,95 - 10 bar

Festo

153414

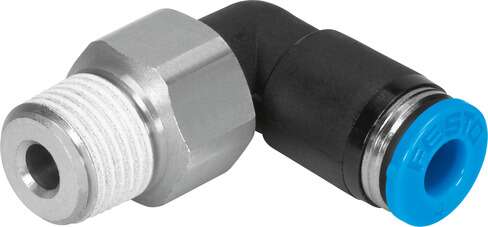

push-in L-fitting, rotatable QSRL-1/4-8 360° rotatable, with ball bearing, male thread with external hexagon. Size: Standard, Nominal size: 4,6 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Container size: 1

Festo

153077

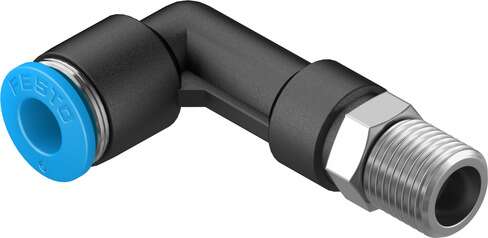

push-in L-fitting, long QSLL-1/8-6 360° orientable, male thread with external hexagon. Size: Standard, Nominal size: 4,3 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Container size: 10

Festo

153146

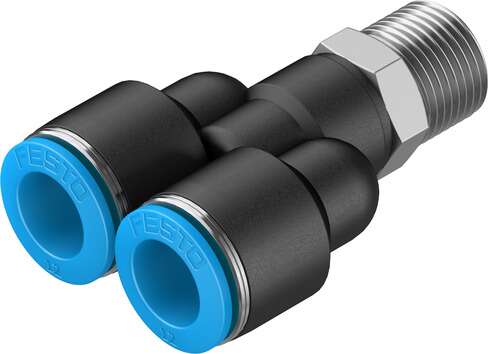

push-in Y-fitting QSY-3/8-12 360° orientable, male thread with external hexagon. Size: Standard, Nominal size: 8,4 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Container size: 10

Festo

153189

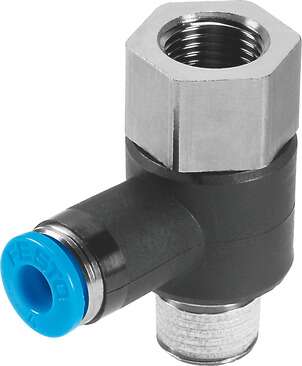

push-in T-fitting QSTF-3/8-10-B 360° orientable, male and female thread with external hexagon. Size: Standard, Nominal size: 8 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Container size: 1

Festo

153355

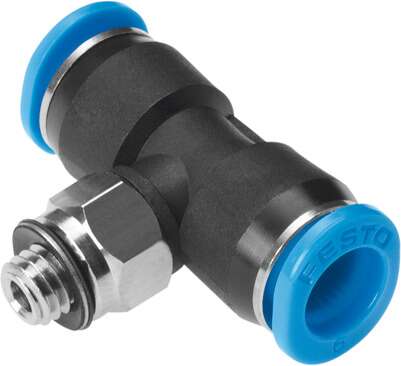

push-in T-fitting QSMT-1/8-4 360° orientable, male thread with external hexagon. Size: Mini, Nominal size: 2,4 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Container size: 10

Festo

153362

push-in T-fitting QSMTL-1/8-4 360° orientable, male thread with external hexagon. Size: Mini, Nominal size: 2,4 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Container size: 10

Festo

130605

push-in fitting QSW-1/2-16 male thread with external hexagon. Size: Standard, Nominal size: 13 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Container size: 1

Festo

153314

push-in fitting QSM-M3-4-I male thread with internal hexagon socket. Size: Mini, Nominal size: 1,5 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Container size: 10

Festo

153226

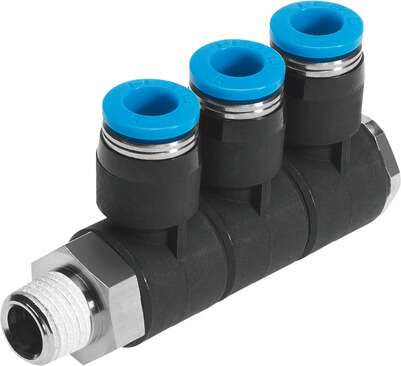

multiple distributor QSLV3-3/8-8 3-fold, 360° orientable. Size: Standard, Nominal size: 4,3 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Design structure: Push/pull principle

Festo

153416

push-in L-fitting, rotatable QSRL-3/8-10 360° rotatable, with ball bearing, male thread with external hexagon. Size: Standard, Nominal size: 6,2 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Container size: 1

Festo

153061

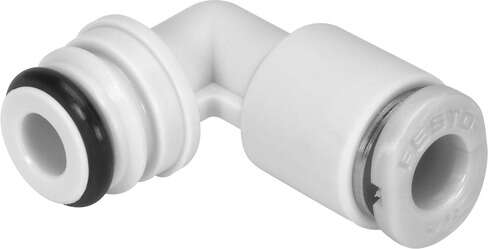

push-in L-connector QSL-6H-4 with push-in sleeve. Size: Standard, Nominal size: 2,4 mm, Assembly position: Any, Container size: 10, Design structure: Push/pull principle

Festo

132854

cartridge QSPLKG10-1/8-U Size: Mini, Nominal size: 1,8 mm, Assembly position: Any, Container size: 10, Design structure: Push/pull principle

Festo

6283

ring piece LK-1/4-PK-6-KU With 2 sealing rings. Operating pressure complete temperature range: 0 - 10 bar, Maritime classification: see certificate, Pneumatic connection, port 2: for barbed connector internal diameter 6 mm with nut, Materials note: (* Fr

Festo
