Pneumatic Fittings

2153

quick coupling plug KS4-N-9 For self-closing quick coupling connectors. Nominal size: 7 mm, Operating pressure complete temperature range: -0,95 - 12 bar, Standard nominal flow rate: 1008 l/min, Operating medium: Compressed air in accordance with ISO8573-

Festo

133137

push-in connector NPQP-D-Q8-S10-FD-P10 Size: Standard, Nominal size: 5,4 mm, Container size: 10, Design structure: Push/pull principle, Temperature dependent operating pressure: -0,95 - 10 bar

Festo

153078

push-in L-fitting, long QSLL-1/4-6 360° orientable, male thread with external hexagon. Size: Standard, Nominal size: 4,3 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Container size: 10

Festo

9423

bulkhead quick connector SCK-PK-9 Metal version. Nominal size: 8 mm, Assembly position: Any, Pneumatic connection, port 1: for barbed connector internal diameter 9 mm with nut, Materials note: (* Free of copper and PTFE, * Conforms to RoHS), Material hou

Festo

132601

cartridge QSPLK10-4 With push-in connector, L-form Size: Mini, Nominal size: 2,3 mm, Type of seal on screw-in stud: O-ring, Assembly position: Any, Container size: 10

Festo

9389

bulkhead quick connector SCK-PK-6-KU Polymeric design. Nominal size: 5,3 mm, Assembly position: Any, Operating pressure complete temperature range: 0 - 10 bar, Ambient temperature: -10 - 60 °C, Pneumatic connection, port 1: for barbed connector internal

Festo

6273

t-distributor FCK-3-PK-3-KU Polymeric design. Nominal size: 2,4 mm, Assembly position: Any, Operating pressure complete temperature range: 0 - 10 bar, Pneumatic connection, port 1: for barbed connector internal diameter 3 mm with nut, Materials note: (*

Festo

2030

quick connector CK-1/4-PK-6 Male thread with sealing ring, metal version. Nominal size: 4,9 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Maritime classification: see certificate, Operating medium: (* Compressed air in accordanc

Festo

2031

quick connector CK-1/4-PK-9 Male thread with sealing ring, metal version. Nominal size: 8 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Maritime classification: see certificate, Operating medium: (* Compressed air in accordance

Festo

2027

quick connector CK-1/8-PK-4 Male thread with sealing ring, metal version. Nominal size: 2,9 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Maritime classification: see certificate, Operating medium: (* Compressed air in accordanc

Festo

132635

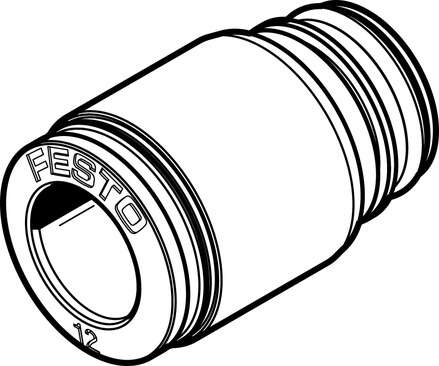

cartridge QSPKG20-12 With push-in connector, straight Size: Standard, Nominal size: 8,3 mm, Type of seal on screw-in stud: O-ring, Assembly position: Any, Container size: 10

Festo

132335

push-in fitting CRQS-3/8-12-I male thread with internal hexagon socket. Size: Standard, Nominal size: 7,6 mm, Assembly position: Any, Design: Straight design, Container size: 1

Festo

9625

adapter AD-1/4NPT-G1/4-I Female thread one one side, male thread on the other. Nominal size: 7,95 mm, Operating pressure complete temperature range: -0,95 - 10 bar, Corrosion resistance classification CRC: 1 - Low corrosion stress, Ambient temperature: -1

Festo

132638

cartridge QSPKG20-1/2-U With push-in connector, straight Size: Standard, Nominal size: 8,5 mm, Assembly position: Any, Container size: 10, Design structure: Push/pull principle

Festo

132604

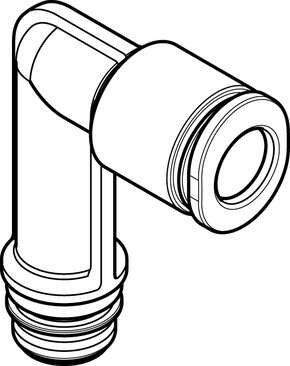

cartridge QSPLLK10-6 With push-in connector, long L-form Size: Mini, Nominal size: 3,5 mm, Type of seal on screw-in stud: O-ring, Assembly position: Any, Container size: 10

Festo

9395

adapter AD-G1/8-1/8NPT-I Female thread one one side, male thread on the other. Nominal size: 5,95 mm, Operating pressure complete temperature range: -0,95 - 10 bar, Corrosion resistance classification CRC: 1 - Low corrosion stress, Ambient temperature: -1

Festo

4475

ring piece LK-M5-PK-3 With 2 sealing rings. Maritime classification: see certificate, Pneumatic connection, port 2: for barbed connector internal diameter 3 mm with nut, Materials note: Conforms to RoHS

Festo

132336

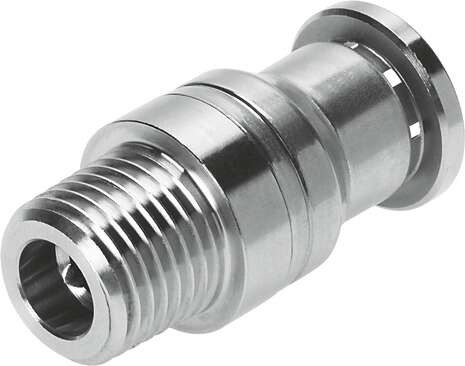

push-in fitting CRQS-1/2-12-I male thread with internal hexagon socket. Size: Standard, Nominal size: 8,1 mm, Assembly position: Any, Design: Straight design, Container size: 1

Festo

133133

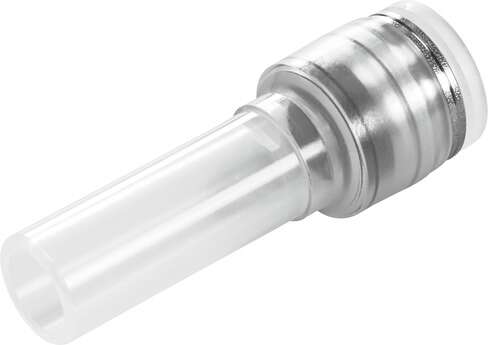

push-in connector NPQP-D-Q4-S6-FD-P10 Size: Standard, Nominal size: 2,5 mm, Container size: 10, Design structure: Push/pull principle, Temperature dependent operating pressure: -0,95 - 10 bar

Festo

9424

bulkhead quick connector QCK-M5-PK-3-B Female thread with sealing ring. Nominal size: 2,4 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Operating medium: Compressed air in accordance with ISO8573-1:2010 [7:-:-], Pneumatic connec

Festo
