Pneumatic Fittings

153771

push-in bulkhead fitting QSSF-1/4-1/4-U with female thread. Size: Standard, Nominal size: 5,3 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Container size: 1

Festo

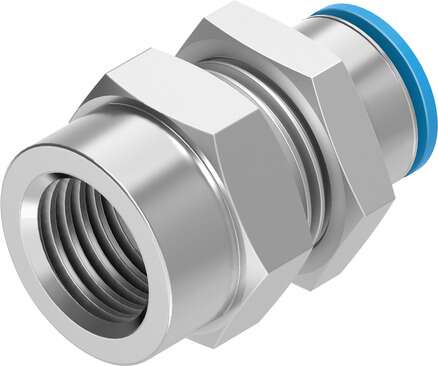

153167

push-in bulkhead fitting QSSF-3/8-8-B with female thread. Size: Standard, Nominal size: 7 mm, Assembly position: Any, Container size: 10, Design structure: Push/pull principle

Festo

4597

ring piece LK-1/8-PK-3 With 2 sealing rings. Maritime classification: see certificate, Pneumatic connection, port 2: for barbed connector internal diameter 3 mm with nut, Materials note: Conforms to RoHS

Festo

9397

adapter AD-G3/8-3/8NPT-I Female thread one one side, male thread on the other. Nominal size: 11,5 mm, Operating pressure complete temperature range: -0,95 - 10 bar, Corrosion resistance classification CRC: 1 - Low corrosion stress, Ambient temperature: -1

Festo

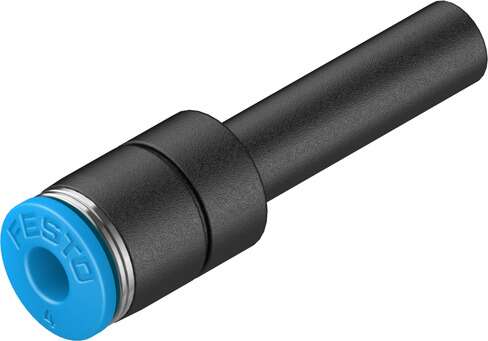

153041

push-in connector QS-6H-4 with push-in sleeve. Size: Standard, Nominal size: 2,5 mm, Assembly position: Any, Container size: 10, Design structure: Push/pull principle

Festo

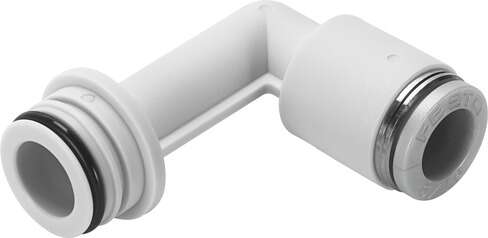

132951

cartridge QSPLLKG18-10 With push-in connector, long L-form Size: Standard, Nominal size: 6,4 mm, Type of seal on screw-in stud: O-ring, Assembly position: Any, Container size: 10

Festo

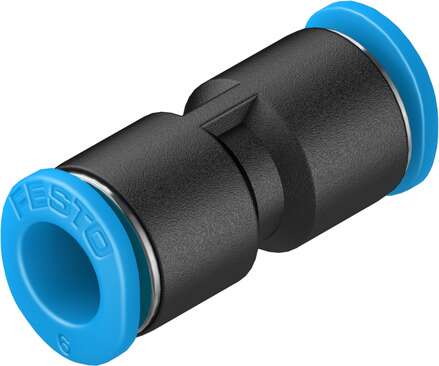

153325

push-in connector QSM-6 Size: Mini, Nominal size: 3,7 mm, Assembly position: Any, Container size: 10, Design structure: Push/pull principle

Festo

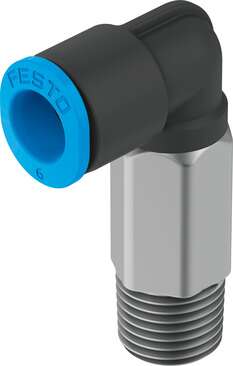

153342

push-in L-fitting, long QSMLL-1/8-6 360° orientable, male thread with external hexagon. Size: Mini, Nominal size: 3,1 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Container size: 10

Festo

132940

cartridge QSPLKG14-1/4-U Size: Mini, Nominal size: 3,5 mm, Assembly position: Any, Container size: 10, Design structure: Push/pull principle

Festo

4097

quick connector CK-3/8-PK-13 Male thread with sealing ring, metal version. Nominal size: 11,7 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Maritime classification: see certificate, Operating medium: (* Compressed air in accorda

Festo

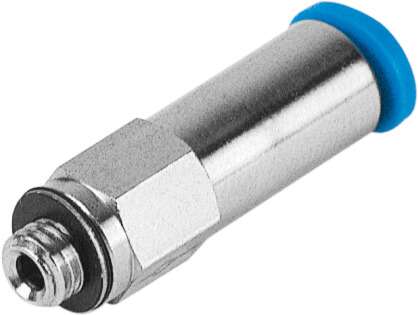

153292

push-in fitting, self-sealing QSK-M5-6 male thread with external hexagon. Size: Standard, Nominal size: 1,7 mm, Approved tubing type: (* PAN-, * PAN-MF-, * PAN-R-, * PAN-V0-, * PEN-, * PFAN-, * PLN-, * PTFEN-, * PUN-, * PUN-CM-, * PUN-DUO-, * PUN-H-, * PU

Festo

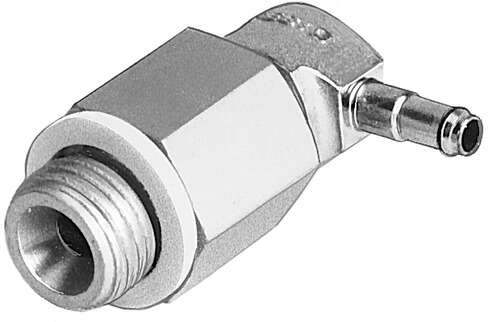

35984

barbed L-fitting LCNH-M5-PK-4 Rotatable, with extended housing, for plastic tubing PAN, PUN, PP, PU, PR, with sealing ring. Nominal size: 2,9 mm, Type of seal on screw-in stud: Sealing ring, Operating pressure complete temperature range: -0,95 - 10 bar, O

Festo

132867

cartridge QSPLLKG20-3/8-U With push-in connector, long L-form Size: Standard, Nominal size: 5,7 mm, Assembly position: Any, Container size: 10, Design structure: Push/pull principle

Festo

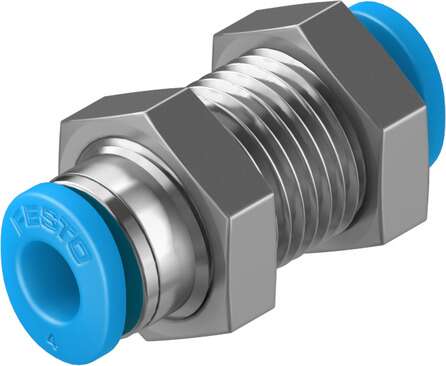

153376

push-in bulkhead connector QSMS-4 Size: Mini, Nominal size: 2,2 mm, Assembly position: Any, Container size: 10, Design structure: Push/pull principle

Festo

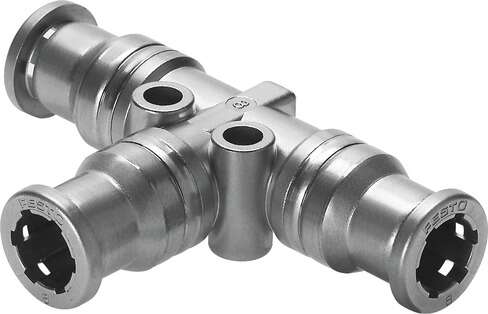

130671

push-in T-connector CRQST-10 Size: Standard, Nominal size: 6,1 mm, Assembly position: Any, Design: T-shaped, Container size: 1

Festo

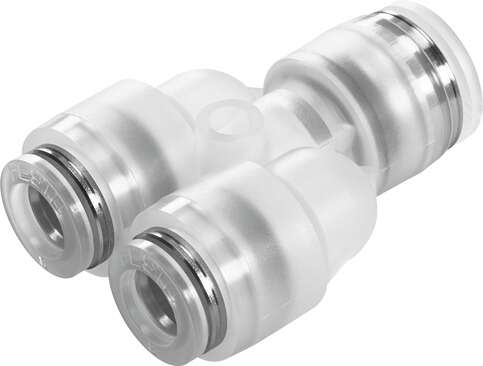

133126

push-in Y-connector NPQP-Y-Q10-Q8-FD-P10 Size: Standard, Nominal size: 4,7 mm, Container size: 10, Design structure: Push/pull principle, Temperature dependent operating pressure: -0,95 - 10 bar

Festo

9421

bulkhead quick connector SCK-PK-4 Metal version. Nominal size: 3,4 mm, Assembly position: Any, Pneumatic connection, port 1: for barbed connector internal diameter 4 mm with nut, Materials note: (* Free of copper and PTFE, * Conforms to RoHS), Material h

Festo

2155

quick coupling plug KS4-3/8-A For self-closing quick coupling connectors. Nominal size: 7,85 mm, Operating pressure complete temperature range: -0,95 - 12 bar, Standard nominal flow rate: 1274 l/min, Operating medium: Compressed air in accordance with ISO

Festo

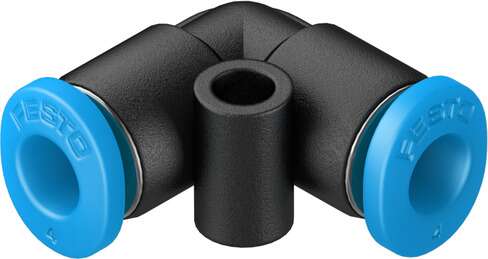

153344

push-in L-connector QSML-4 Size: Mini, Nominal size: 2,5 mm, Assembly position: Any, Container size: 10, Design structure: Push/pull principle

Festo

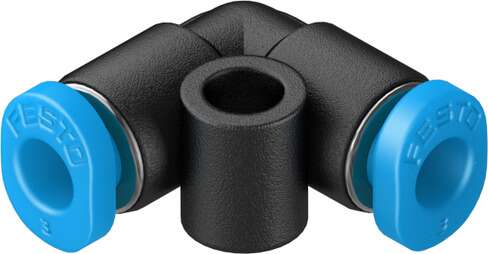

153343

push-in L-connector QSML-3 Size: Mini, Nominal size: 1,7 mm, Assembly position: Any, Container size: 10, Design structure: Push/pull principle

Festo
