Pneumatic Fittings

190707

push-in fitting, self-sealing QSK-10-32-UNF-1/4-U male thread with external hexagon. Size: Standard, Nominal size: 2,3 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Container size: 1

Festo

190773

multiple distributor QSLV2-3/8-3/8-U 2-fold, 360° orientable. Size: Standard, Nominal size: 5,3 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Design structure: Push/pull principle

Festo

160501

push-in fitting QS-V0-1/8-8 male thread with external hexagon. Size: Standard, Nominal size: 6 mm, Material fire test: (* UL94 V-0 (housing), * UL94 V-0 (releasing ring)), Type of seal on screw-in stud: coating, Design structure: Push/pull principle

Festo

190718

push-in fitting, self-sealing QSK-1/2-1/2-U male thread with external hexagon. Size: Standard, Nominal size: 6,4 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Container size: 1

Festo

190832

push-in T-fitting QSTF-3/8-1/2-U 360° orientable, male and female thread with external hexagon. Size: Standard, Nominal size: 8,5 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Container size: 1

Festo

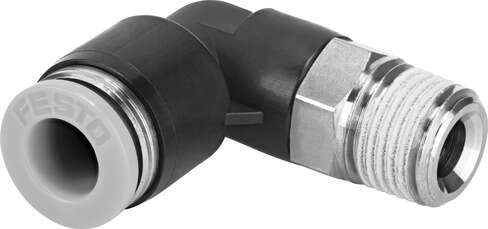

160515

push-in L-fitting QSL-V0-1/4-10 360° orientable, male thread with external hexagon. Size: Standard, Nominal size: 8 mm, Material fire test: (* UL94 V-0 (housing), * UL94 V-0 (releasing ring)), Type of seal on screw-in stud: coating, Design structure: Push

Festo

153800

push-in T-fitting QST3-1/4-5/16-5/32-U 360° orientable, 4 outlets. Size: Standard, Nominal size: 3 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Design structure: Push/pull principle

Festo

153768

push-in bulkhead fitting QSSF-1/8-3/16-U with female thread. Size: Standard, Nominal size: 4 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Container size: 1

Festo

153530

push-in L-fitting, rotatable QSRL-M5-6 360° rotatable, with ball bearing, male thread with external hexagon. Size: Standard, Nominal size: 1,6 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Container size: 1

Festo

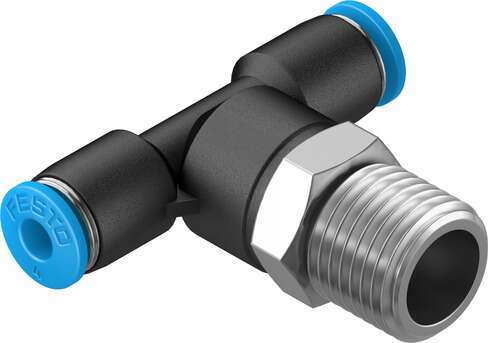

190668

push-in T-fitting QST-1/4-4 360° orientable, male thread with external hexagon. Size: Standard, Nominal size: 2,8 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Container size: 10

Festo

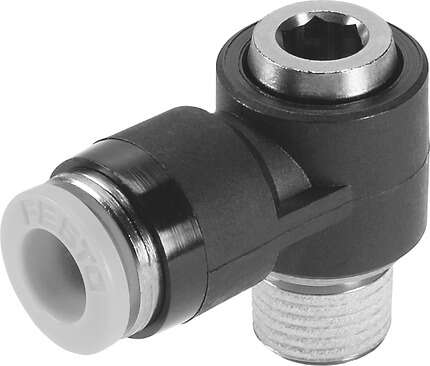

190757

push-in L-fitting QSLV-1/4-1/4-I-U 360° orientable, external thread with internal hexagon. Size: Standard, Nominal size: 3,1 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Container size: 1

Festo

190716

push-in fitting, self-sealing QSK-3/8-3/8-U male thread with external hexagon. Size: Standard, Nominal size: 5,6 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Container size: 1

Festo

190798

multiple distributor QSLV4-3/8-1/2-U 4-fold, 360° orientable. Size: Standard, Nominal size: 6,4 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Design structure: Push/pull principle

Festo

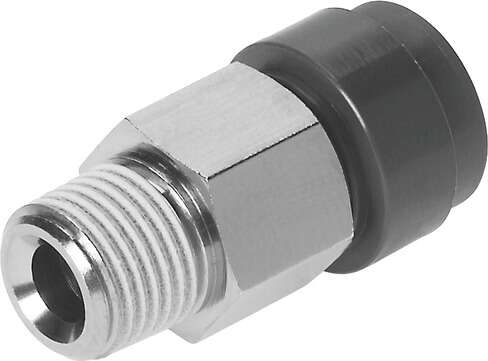

177708

push-in fitting CQ-1/2-15H For high flow rates. Nominal size: 10 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Container size: 1, Design structure: Push/pull principle

Festo

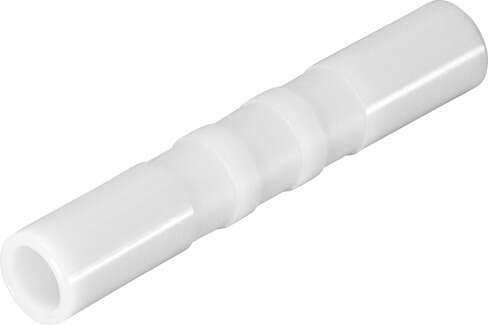

190641

push-in sleeve QSH-5/8-U Assembly position: Any, Container size: 1, Design structure: Push/pull principle, Operating pressure complete temperature range: -0,95 - 10 bar, Maritime classification: see certificate

Festo

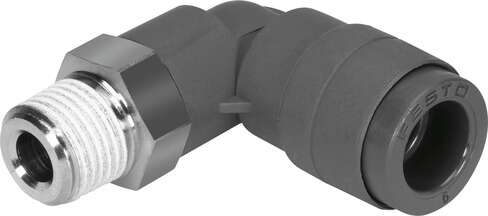

190725

push-in L-fitting QSL-1/2-5/8-U 360° orientable, male thread with external hexagon. Size: Standard, Nominal size: 13 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Container size: 1

Festo

190827

push-in T-fitting QSTF-1/4-1/4-U 360° orientable, male and female thread with external hexagon. Size: Standard, Nominal size: 4,6 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Container size: 1

Festo

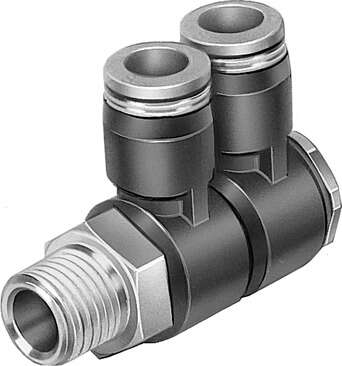

190768

multiple distributor QSLV2-1/8-5/16-U 2-fold, 360° orientable. Size: Standard, Nominal size: 4,2 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Design structure: Push/pull principle

Festo

190784

multiple distributor QSLV3-3/8-5/16-U 3-fold, 360° orientable. Size: Standard, Nominal size: 4,3 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Design structure: Push/pull principle

Festo

130616

push-in T-connector QST-16-12 reducing. Size: Standard, Nominal size: 7,6 mm, Assembly position: Any, Container size: 1, Design structure: Push/pull principle

Festo
