Pneumatic Fittings

157331

adapter AD-M8-1/8 For mounting a vacuum suction cup to a hollow cylinder piston rod.

Festo

157332

adapter AD-M8-1/4 For mounting a vacuum suction cup to a hollow cylinder piston rod.

Festo

157328

adapter AD-M6-M5 For mounting a vacuum suction cup to a hollow cylinder piston rod.

Festo

157334

adapter AD-M10X1,25-1/4 For mounting a vacuum suction cup to a hollow cylinder piston rod.

Festo

160256

adapter AD-M12X1,25-1/4 For mounting a vacuum suction cup to a hollow cylinder piston rod.

Festo

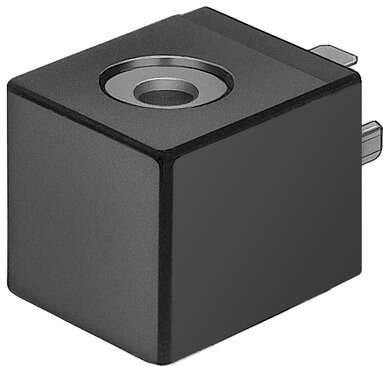

170152

solenoid coil MSN1W-24AC/12DC For AC voltage, without plug socket. Assembly position: Any, Min. pickup time: 10 ms, Duty cycle: 100 %, Power factor cos {phi}: 0,7, Characteristic coil data: (* 12 V DC: 5 W, * 24 V AC: 50 Hz, pick-up power 7.5 VA, holding

Festo

536932

solenoid coil MSFW-24-50/60-EX With knurled nut and spring washer. Assembly position: Any, Min. pickup time: 10 ms, Duty cycle: 100 %, Power factor cos {phi}: 0,7, Characteristic coil data: 24 V AC: 50/60 Hz, pick-up power 9 VA, holding power 7 VA

Festo

174308

blanking plug B-M5-B As per DIN 908, with sealing ring. Container size: 10, Nominal tightening torque: 1,33 Nm, Tolerance for nominal tightening torque: ± 20 %, Product weight: 1 g, Mounting type: Internal hex A/F 2.5

Festo

174309

blanking plug B-M7 As per DIN 908, with sealing ring. Container size: 10, Nominal tightening torque: 3,35 Nm, Tolerance for nominal tightening torque: ± 20 %, Product weight: 2 g, Mounting type: Internal hex A/F 3

Festo

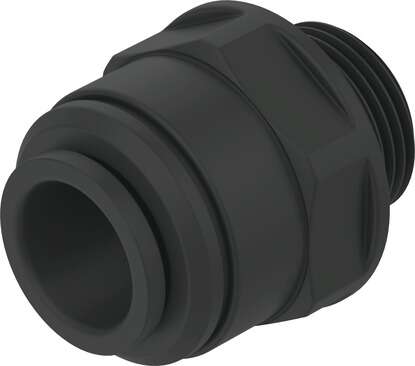

194589

push-in fitting CQ-1-28H For high flow rates. Nominal size: 23 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Container size: 1, Design structure: Push/pull principle

Festo

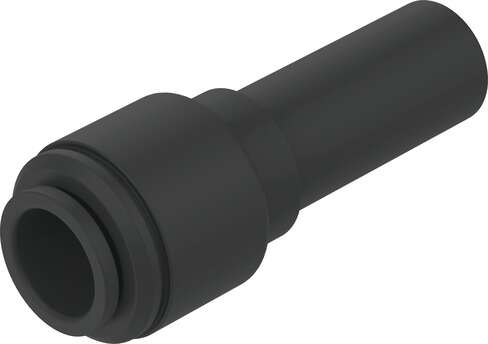

172994

cartridge QSP17-5/16-U With push-in connector, straight Assembly position: Any, Container size: 10, Design structure: Push/pull principle, Operating pressure complete temperature range: -0,95 - 10 bar, Maritime classification: see certificate

Festo

172985

cartridge QSP14-1/4-U With push-in connector, straight Assembly position: Any, Container size: 1, Design structure: Push/pull principle, Operating pressure complete temperature range: -0,95 - 10 bar, Maritime classification: see certificate

Festo

177683

push-in fitting CQ-1/2-12 For high flow rates. Nominal size: 8,65 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Container size: 1, Design structure: Push/pull principle

Festo

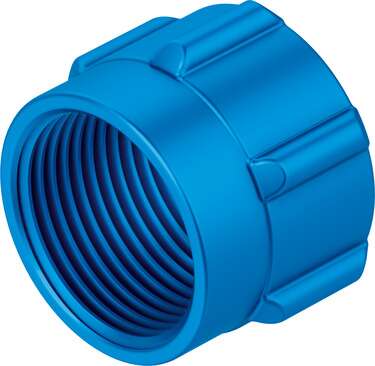

206504

union nut MCK-PK-13 Metal version. Materials note: (* Free of copper and PTFE, * Conforms to RoHS)

Festo

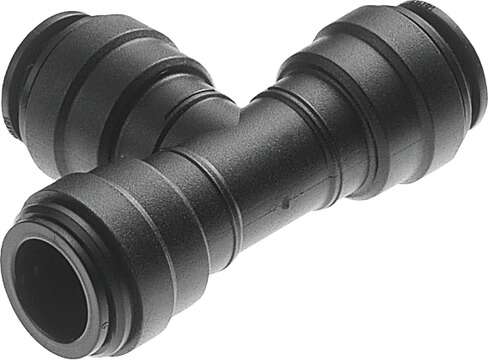

177700

push-in T-connector CQT-22-15 For high flow rates. Nominal size: 12,15 mm, Assembly position: Any, Container size: 1, Design structure: Push/pull principle, Operating pressure complete temperature range: -0,95 - 7 bar

Festo

177702

push-in connector CQ-18H-15 For high flow rates. Nominal size: 12,15 mm, Assembly position: Any, Container size: 1, Design structure: Push/pull principle, Operating pressure complete temperature range: -0,95 - 7 bar

Festo

205254

union nut MCK-PK-3 Metal version. Materials note: Conforms to RoHS

Festo

177684

push-in fitting CQ-1/2-15 For high flow rates. Nominal size: 12 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Container size: 1, Design structure: Push/pull principle

Festo

177686

push-in fitting CQ-3/4-22 For high flow rates. Nominal size: 17 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Container size: 1, Design structure: Push/pull principle

Festo

130647

push-in connector CRQS-8 Size: Standard, Nominal size: 5,8 mm, Assembly position: Any, Design: Straight design, Container size: 1

Festo
