CL50GRXAOSP Banner Signal Towers
Part#:CL50GRXAOSP
Manufacturer:Banner
Alt. Part#:94270
Product Lifecycle:Active
Get a quick Quote!
Column Light: 2-Color Sealed Omnidirectional Continuous Audible Indicator; Voltage: 18-30 V dc; Environ. Rating: IP67; Input: PNP; Colors: Green Red; 2 m (6.5 ft) Integral Cable
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the CL50GRXAOSP Banner price in the box on the right side or send a quick quote.
Product Details
- Weight158.7572 g
- Country Of OriginMX
- Housing Style Base Mount - Tower
- Number of Colors / Segments 2
- Animation Option 2 Solid On
- Number of Input Pins/Conductors 5
- Primary Housing Color Black
- Feature: Hazardous Area No
- Product Size (mm) 50
- Color Option 2 Red
- Max Input Response Time (ms) 10
- Feature: Audible Yes
- Modbus RTU No
- Primary Housing Material ABS/Polycarbonate
- Color Technology Standard LED
- Lumens Color 2 38.0
- Max Audible Intensity (db at 1m) 99
- Max Op. Temperature (°C) 50
- Wireless No
- Power DC
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Multi-Color Device Single Color On
- Mounting Thread M30 x 1.5
- Animation Option 1 Solid On
- Input Type PNP
- Max Current - Audible Alarm (mA) 45
- Power Source DC
- Indication Yes
- Max Current Color (mA) 100
- Audible Operating Frequency (kHz) 2.1
- Min Op. Temperature (°C) -20
- Cable Length (m) 2
- Connection Cable
- Supply Voltage 18-30 V dc
- Environmental Rating IP67
- Pro-Editor Compatible (Discrete) No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Lumens Color 1 72.0
- Audible Alarm Type Continuous
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 182.2
- IO Link No
- Color Option 1 Green
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- NEMA Type and UL Type Rating NEMA and UL 13
- Feature: Chemical Resistant No
- Primary Window Material Polycarbonate Diffused
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
CL50GRXAOSP Description

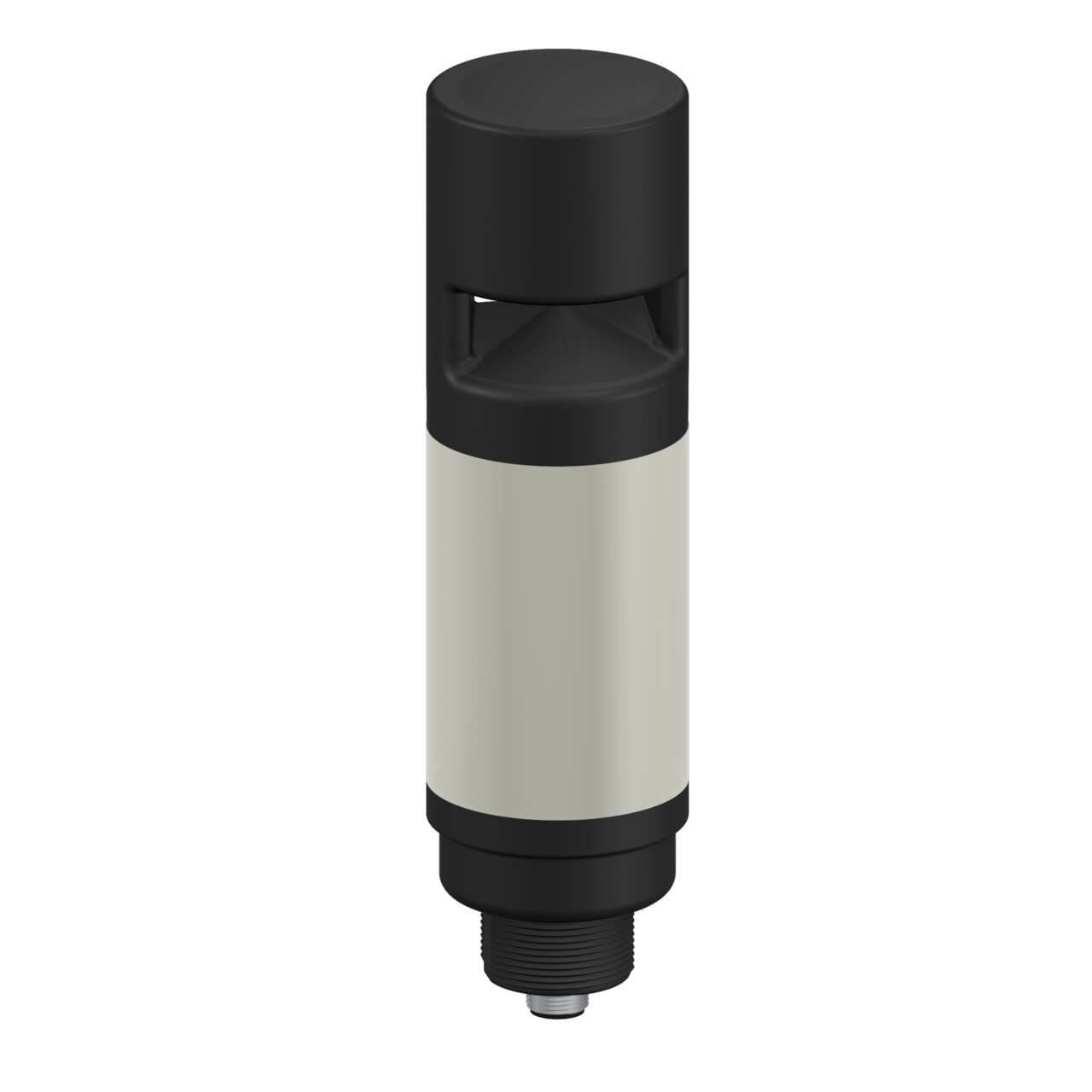

Banner Engineering CL50GRXAOSP is a beacon designed for surface or base pole mounting with an M30 or 1/2" NPSM thread. It features a polycarbonate diffused window and an ABS/polycarbonate housing and base, suitable for ambient air temperatures ranging from -20°C to +50°C. This beacon consumes 100mA of current and offers a degree of protection rated at IP67, NEMA 13, UL type 13. Its cylindrical shape incorporates 2 x digital inputs (18-30Vdc; PNP) for color control and 1 x digital input (18-30Vdc; PNP) for alarm input. The CL50GRXAOSP provides sealed omni-directional audible column light functionality with a continuous sound, 1-tier, 2-color G/R color pattern LED illumination. It connects via a pre-wired 2m / 6.5ft 5-wire cable terminated with bare end flying leads and operates on a supply voltage of 18Vdc-30Vdc (24Vdc nom.). The beacon has a diameter of 50mm / 2" and features a black housing.
Related documents CL50GRXAOSP Specs
