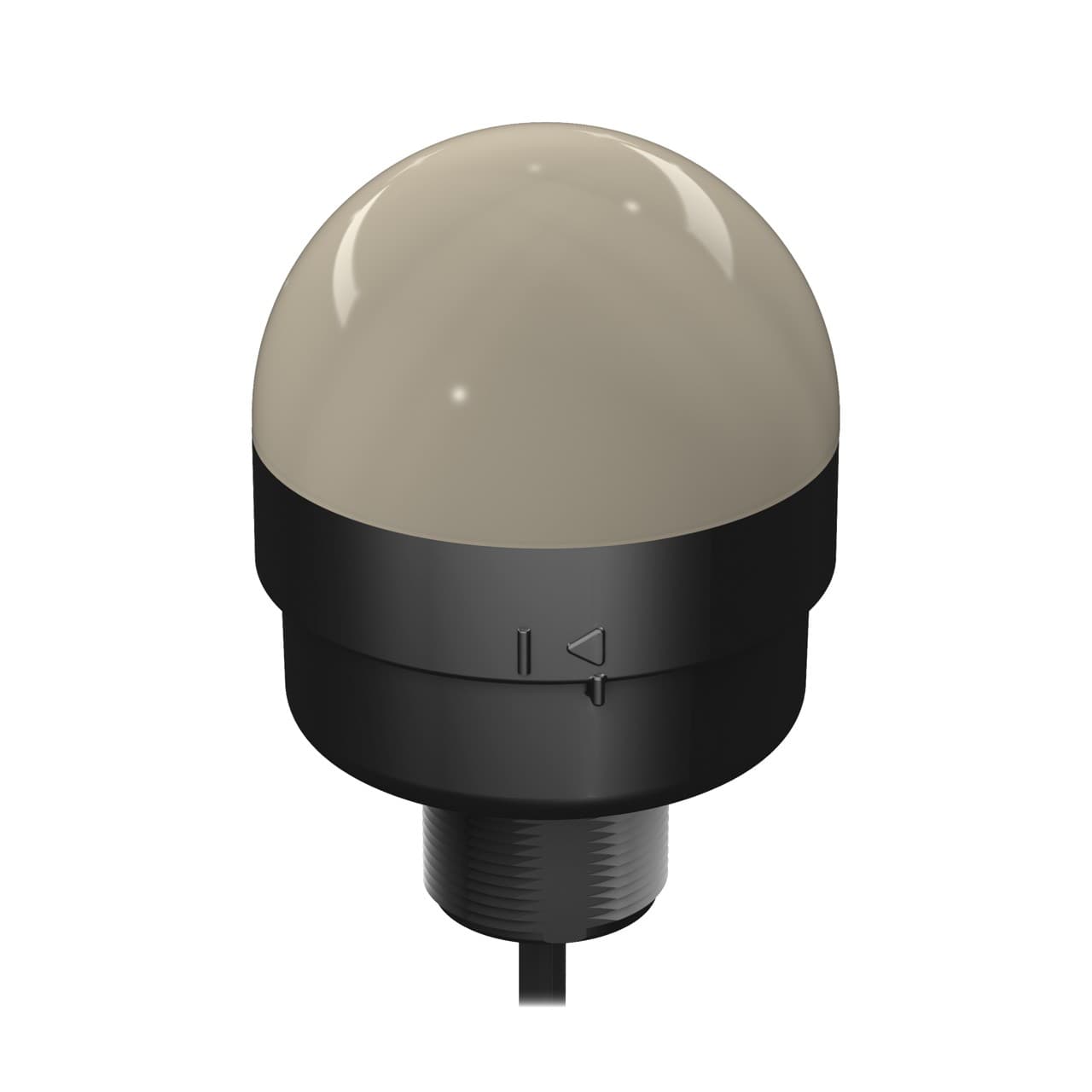

Banner K70LBP Banner Engineering K70LBP, part of the EZ-LIGHT series, is a pilot light designed with a 4-color B/G/Y/R color pattern LED illumination for clear indicator signaling. It features a black housing with a dome window shape, constructed from polycarbonate for both the diffused window and base, ensuring durability. This model is pre-wired with a 6" / 15cm pigtail that terminates with an 8-pin M12 Euro-style quick disconnect (QD) connector, facilitating easy and secure connections. It operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc as the nominal voltage, and can be mounted on a surface, base, or pole with a flush 30mm hole using an M30 thread. The K70LBP has a diameter of 70mm / 2-3/4" for the dome, and it is designed to function within an ambient air temperature range of -40°C to +50°C. It offers a degree of protection rated at IP65, indicating a high level of resistance to dust and water ingress. The current consumption is 200mA, and it includes 4 x digital inputs for color control and 1 x digital input for flash control, all supporting 12-30Vdc PNP signals.
Banner

Part#:K70LBP

Manufacturer:Banner

Product Lifecycle:Active

Get a quick Quote!

Banner Engineering K70LBP, part of the EZ-LIGHT series, is a pilot light designed with a 4-color B/G/Y/R color pattern LED illumination for clear indicator signaling. It features a black housing with a dome window shape, constructed from polycarbonate for both the diffused window and base, ensuring durability. This model is pre-wired with a 6" / 15cm pigtail that terminates with an 8-pin M12 Euro-style quick disconnect (QD) connector, facilitating easy and secure connections. It operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc as the nominal voltage, and can be mounted on a surface, base, or pole with a flush 30mm hole using an M30 thread. The K70LBP has a diameter of 70mm / 2-3/4" for the dome, and it is designed to function within an ambient air temperature range of -40°C to +50°C. It offers a degree of protection rated at IP65, indicating a high level of resistance to dust and water ingress. The current consumption is 200mA, and it includes 4 x digital inputs for color control and 1 x digital input for flash control, all supporting 12-30Vdc PNP signals.

About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the K70LBP Banner price in the box on the right side or send a quick quote.

Product Details

  • Indication
    Yes
  • Number of Input Pins/Conductors
    5
  • Primary Window Material
    Polycarbonate Diffused
  • Housing Style
    Base Mount - Dome Window
  • Connection
    Cable
  • Max Input Response Time (ms)
    75
  • IO Link
    No
  • Number of Colors / Segments
    1
  • Color Technology
    Standard LED
  • Input Type
    PNP
  • Modbus RTU
    No
  • Cable Length (m)
    2
  • Lumens Color 1
    22.0
  • Max Op. Temperature (°C)
    50
  • Pro-Editor Compatible (Discrete)
    No
  • Power
    DC
  • Color Option 1
    Blue
  • Supply Voltage
    12-30 V dc
  • Feature: Quick Disconnect
    No
  • Power Source
    DC
  • Product Size (mm)
    70
  • Primary Housing Color
    Black
  • Feature: Hazardous Area
    No
  • Primary Housing Material
    Polycarbonate
  • Max Current Color (mA)
    200
  • Feature: Chemical Resistant
    No
  • Max Op. Relative Humidity Non-Condensing (%)
    95% @ 50°C
  • Wireless
    No
  • Mounting Thread
    M30 x 1.5
  • Animation Option 1
    Solid On
  • Environmental Rating
    IP65
  • Feature: Audible
    No
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Color 1 - Wavelength/Color Temp/Coordinates
    470 nm
  • Min Op. Temperature (°C)
    -40

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

Related documents K70LBP Specs

K70LBP K70L -- Datasheet-1630954514584.pdf
