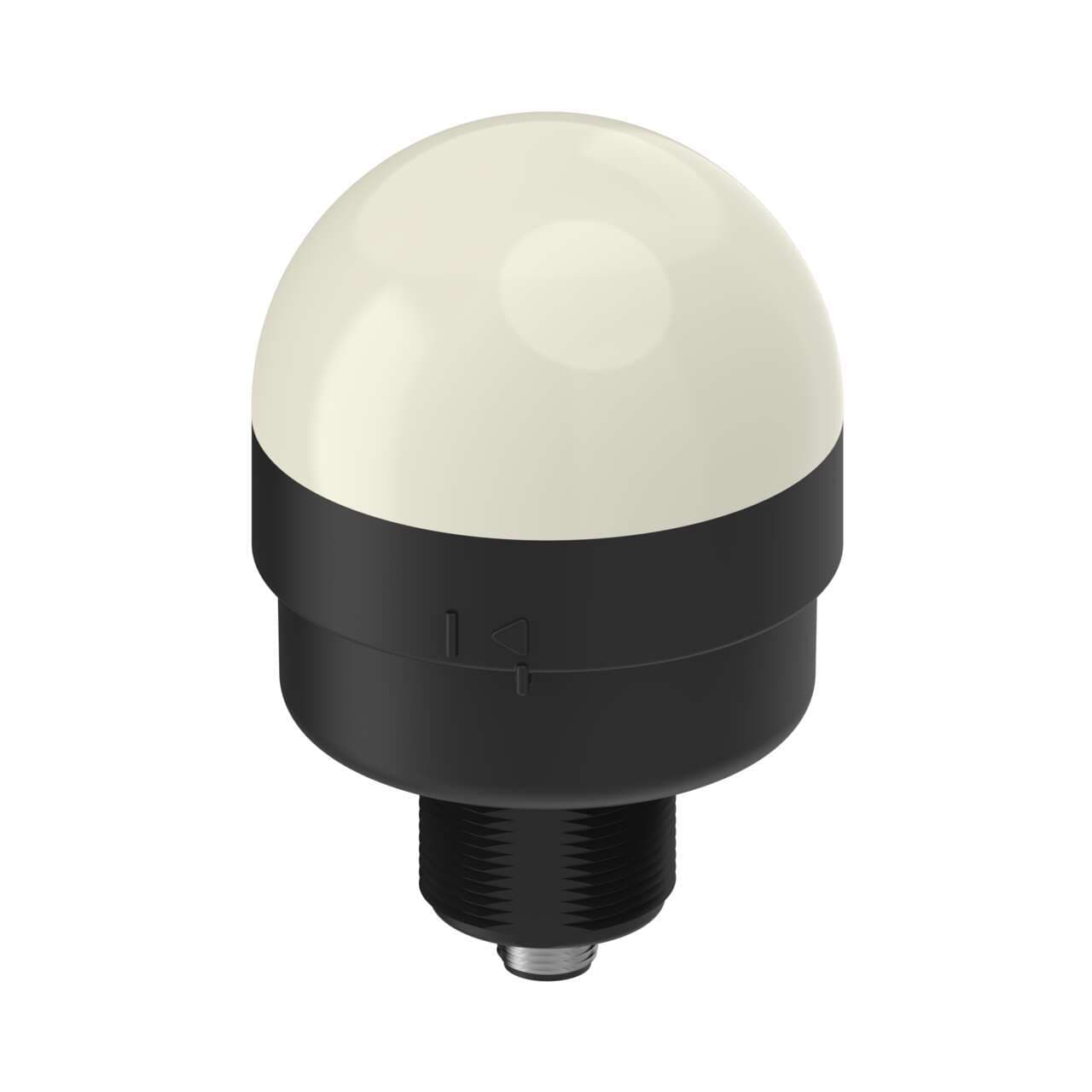

K70LGRPQ Banner Pick-to-Light Sensors

Banner K70LGRPQ K70 Series EZ-LIGHT; 2-Color Indicator; Voltage: 12-30 V dc; Environmental Rating: IP65; Input: PNP; Colors: Green Red; 5-pin M12 Integral QD
Banner

Part#:K70LGRPQ

Manufacturer:Banner

Alt. Part#:97879

Product Lifecycle:Active

Get a quick Quote!

K70 Series EZ-LIGHT; 2-Color Indicator; Voltage: 12-30 V dc; Environmental Rating: IP65; Input: PNP; Colors: Green Red; 5-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the K70LGRPQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight181.4368 g
  • Country Of OriginMX
  • Power
    DC
  • Product Size (mm)
    70
  • Color Option 2
    Red
  • Primary Housing Color
    Black
  • Pro-Editor Compatible (Discrete)
    No
  • Animation Option 1
    Solid On
  • Number of Input Pins/Conductors
    5
  • Feature: Quick Disconnect
    Yes
  • Indication
    Yes
  • Color 1 - Wavelength/Color Temp/Coordinates
    525 nm
  • Max Input Response Time (ms)
    75
  • Feature: Chemical Resistant
    No
  • Power Source
    DC
  • Color Option 1
    Green
  • Color 2 - Wavelength/Color Temp/Coordinates
    625 nm
  • Max Op. Temperature (°C)
    50
  • IO Link
    No
  • Quick Disconnect Type
    M12 (Euro)
  • Supply Voltage
    12-30 V dc
  • Primary Window Material
    Polycarbonate Diffused
  • Housing Style
    Base Mount - Dome Window
  • Color Technology
    Standard LED
  • Lumens Color 2
    34.0
  • Min Op. Temperature (°C)
    -40
  • Wireless
    No
  • Mounting Thread
    M30 x 1.5
  • Connection
    Integral QD
  • Input Type
    PNP
  • Feature: Hazardous Area
    No
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Primary Housing Material
    Polycarbonate
  • Max Current Color (mA)
    200
  • Max Op. Relative Humidity Non-Condensing (%)
    95% @ 50°C
  • Multi-Color Device
    Single Color On
  • Number of Colors / Segments
    2
  • Lumens Color 1
    65.0
  • Environmental Rating
    IP65
  • Feature: Audible
    No
  • Modbus RTU
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

K70LGRPQ Description

Banner Engineering K70LGRPQ is a pilot light from the EZ-LIGHT series designed with a 2-color G/R color pattern LED illumination for indicating status in automation applications. This part features a black housing with a dome window shape, constructed from polycarbonate for both the diffused window and the base. It is pre-wired with a 2m / 6.5ft cable that terminates with bare end flying leads for connectivity. The K70LGRPQ operates on a supply voltage of 12Vdc to 30Vdc, with 24Vdc as nominal. It offers versatile mounting options including surface, base, or pole flush with a 30mm hole and an M30 thread. The dome diameter measures 70mm / 2-3/4". This part is designed to operate in ambient air temperatures ranging from -40°C to +50°C and is rated at IP65 for protection against dust and low-pressure water jets. It has a current consumption of 200mA and includes 2 x digital inputs for color control and 1 x digital input for flash control, all supporting 12-30Vdc PNP.

Related documents K70LGRPQ Specs

K70LGRPQ 192533.pdf

1-year warranty

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

By purchasing this item, you agree to the Terms & Conditions

Quotebeam is NOT an authorized distributor of Banner

Shipping and Delivery Worldwide

calculate costs and time

Secure Payment Processing

with money back guarantee

1 year warranty

on all parts

Responsive Customer Support

we're here to help!

Need more details?

Feel free to chat with us or check our FAQ

Banner Disclaimer:

The product is unused surplus. Quotebeam is not an authorized surplus dealer or affiliate for the Manufacturer of this product. Products may feature older date codes or be from an earlier series than what is currently available from the manufacturer or authorized dealers. Because Quotebeam is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Banner Controls products will have firmware already installed, Quotebeam makes no representation as to whether a Controls product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Quotebeam also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Banner, its distributors, or any other source. Quotebeam also makes no representations as to your right to install any such firmware on the product. Quotebeam will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.
