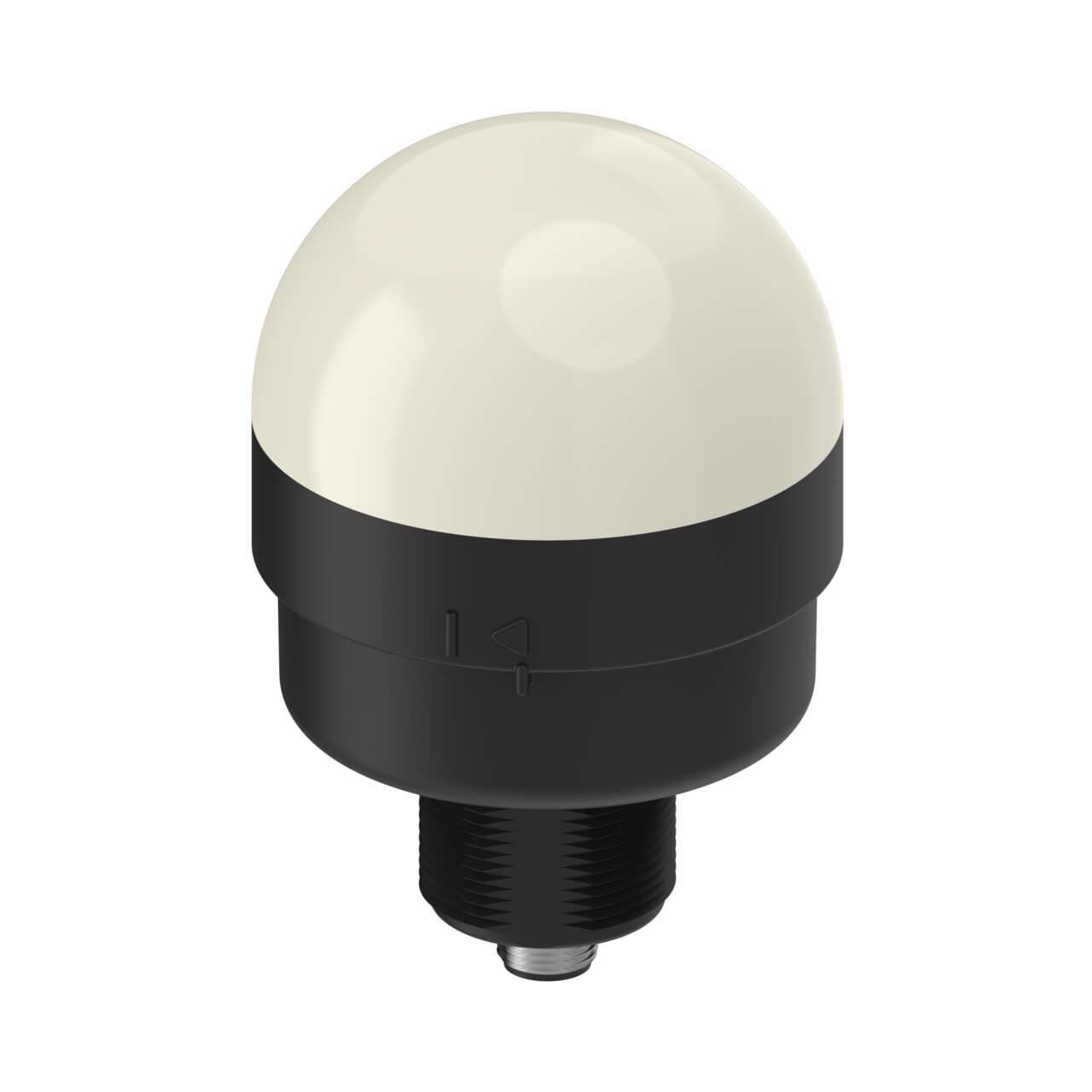

K70LGPQ Banner Pick-to-Light Sensors
Part#:K70LGPQ
Manufacturer:Banner
Alt. Part#:97866
Product Lifecycle:Active
Get a quick Quote!
K70 Series EZ-LIGHT; 1-Color Indicator; Voltage: 12-30 V dc; Environmental Rating: IP65; Input: PNP; Colors: Green; 5-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K70LGPQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight181.4368 g
- Country Of OriginUS
- Feature: Hazardous Area No
- Primary Housing Material Polycarbonate
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Max Input Response Time (ms) 75
- Modbus RTU No
- Power DC
- Power Source DC
- Number of Input Pins/Conductors 5
- Primary Window Material Polycarbonate Diffused
- Housing Style Base Mount - Dome Window
- Color Technology Standard LED
- Supply Voltage 12-30 V dc
- Feature: Audible No
- Indication Yes
- Animation Option 1 Solid On
- Input Type PNP
- Feature: Chemical Resistant No
- Product Size (mm) 70
- Lumens Color 1 65.0
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Feature: Quick Disconnect Yes
- Number of Colors / Segments 1
- Quick Disconnect Type M12 (Euro)
- Min Op. Temperature (°C) -40
- IO Link No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Max Current Color (mA) 200
- Primary Housing Color Black
- Color Option 1 Green
- Environmental Rating IP65
- Pro-Editor Compatible (Discrete) No
- Mounting Thread M30 x 1.5
- Connection Integral QD
- Max Op. Temperature (°C) 50
- Wireless No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
K70LGPQ Description
Banner Engineering K70LGPQ is a pilot light from the EZ-LIGHT series designed with a 1-color blue LED illumination housed in a black casing. It features a dome window shape made from polycarbonate (PC) with a diffused window and a PC base, ensuring durability. This part is equipped with a 5-pin M12 Euro-style quick disconnect (QD) connector for easy installation. It operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc as the nominal voltage, and can be mounted on a surface, base, or pole with a flush 30mm hole using an M30 thread. The K70LGPQ has a diameter of 70mm or approximately 2-3/4 inches for the dome. It is designed to function in ambient air temperatures ranging from -40°C to +50°C and offers a degree of protection rated at IP65. The current consumption is 200mA. For control, it includes 1 x digital input for color control and 1 x digital input for flash control, both accepting 12-30Vdc PNP signals.
Related documents K70LGPQ Specs
