SM30SRLB W/30 Banner Proximity Sensors
Part#:SM30SRLB W/30
Manufacturer:Banner
Alt. Part#:34753
Product Lifecycle:Active
Get a quick Quote!
SM30 Series: Receiver - Frequency B Stainless Stl; Range: 150 m; Input: 10-30 V dc; Output: Bi-Modal: 1 NPN; 1 PNP - LO & DO; 9 m (30 ft) Cable
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SM30SRLB W/30 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight810.115312 g
- Country Of OriginUS
- Power DC
- Max Sensing Distance (mm) 150000
- Connection Cable
- Min Op. Temp. (°C) -40
- Max Op. Relative Humidity [%] 90% @ 50°C
- Housing Style Barrel
- Outputs Bipolar (NPN & PNP)
- Power Supply/Supply Voltage 10-30 V dc
- Primary Housing Material Stainless Steel
- Input/Output Discrete
- Sensing Beam Infrared LED
- Cable Length (m) 9
- Sensing Mode (General) Opposed
- Quick Disconnect Type No QD
- Sensing Mode (Detailed) Receiver
- Max Op. Temp. (°C) 70
- Operation Light/Dark Operate
- Special Feature: Intrinsically Safe No
- Special Feature: Remote Teach No
- Special Feature: Water Detection No
- Repeatability (µs) 1500
- Delay at Power-up (ms) N/A
- NEMA Rating NEMA 6P
- Output response time (ms) 10
- Barrel Diameter (mm) 30
- Feature: Timing (Hold/Delay) No
- Lens Material Acrylic
- IO Link No
- DeviceNet No
- Indicator LEDs
- IP Rating IP67
- Opposed Mode Emitter/Receiver Receiver
- Feature: Chemical Resistant Yes
- Number of Pins 4
- Feature: Hazardous Area No
- Adjustments N/A
- Feature: Encapsulated No
- Feature: Audible No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SM30SRLB W/30 Description

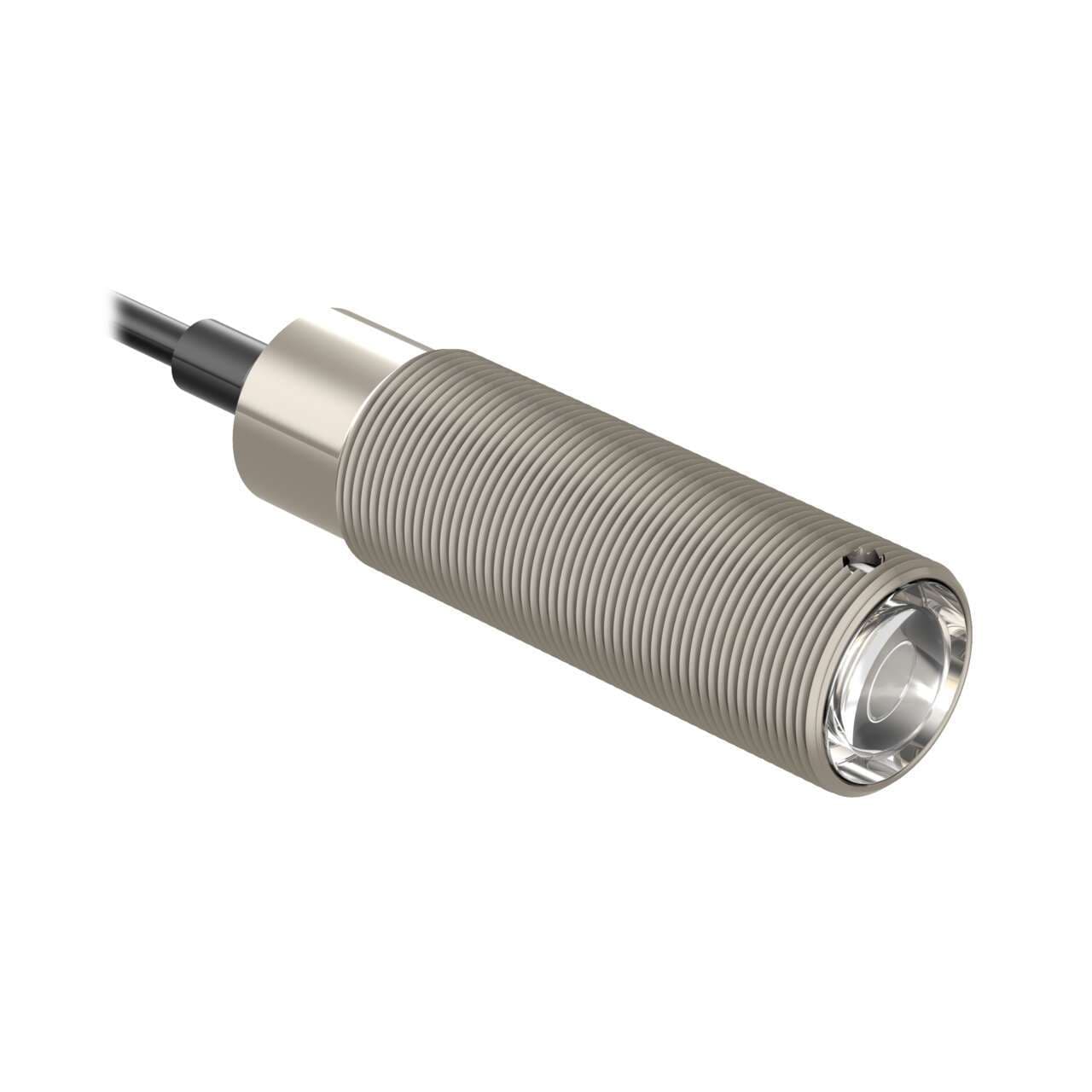

Banner Engineering SM30SRLB W/30 is a photo-electric sensor from the SM30 series designed with a through-beam system and opposed mode "B" modulation frequency. This sensor functions as a receiver alone, encased in a stainless steel housing for durability. It comes pre-wired with a 30ft / 9m cable that terminates with bare end flying leads for easy installation. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc, and can function within an ambient air temperature range of -40 to +70°C. It is rated with a degree of protection of IP67 NEMA 6P, indicating a high level of protection against dust and water ingress. The SM30SRLB W/30 features a M30 cylindrical threaded/barrel shape for mounting, and it offers one digital output (PNP/NPN transistor) for signal processing. It boasts a sensing distance of up to 150m and utilizes infrared light with a wavelength of 880 nm for detection. The sensor's response time is quick at 10ms / 0.01 s, and it supports both Light-ON and Dark-ON operating modes for versatile application.
Related documents SM30SRLB W/30 Specs
