YA26L2TC14E1 Hubbell Electronic Components
Part#:YA26L2TC14E1
Manufacturer:Hubbell
Product Lifecycle:Active
Get a quick Quote!

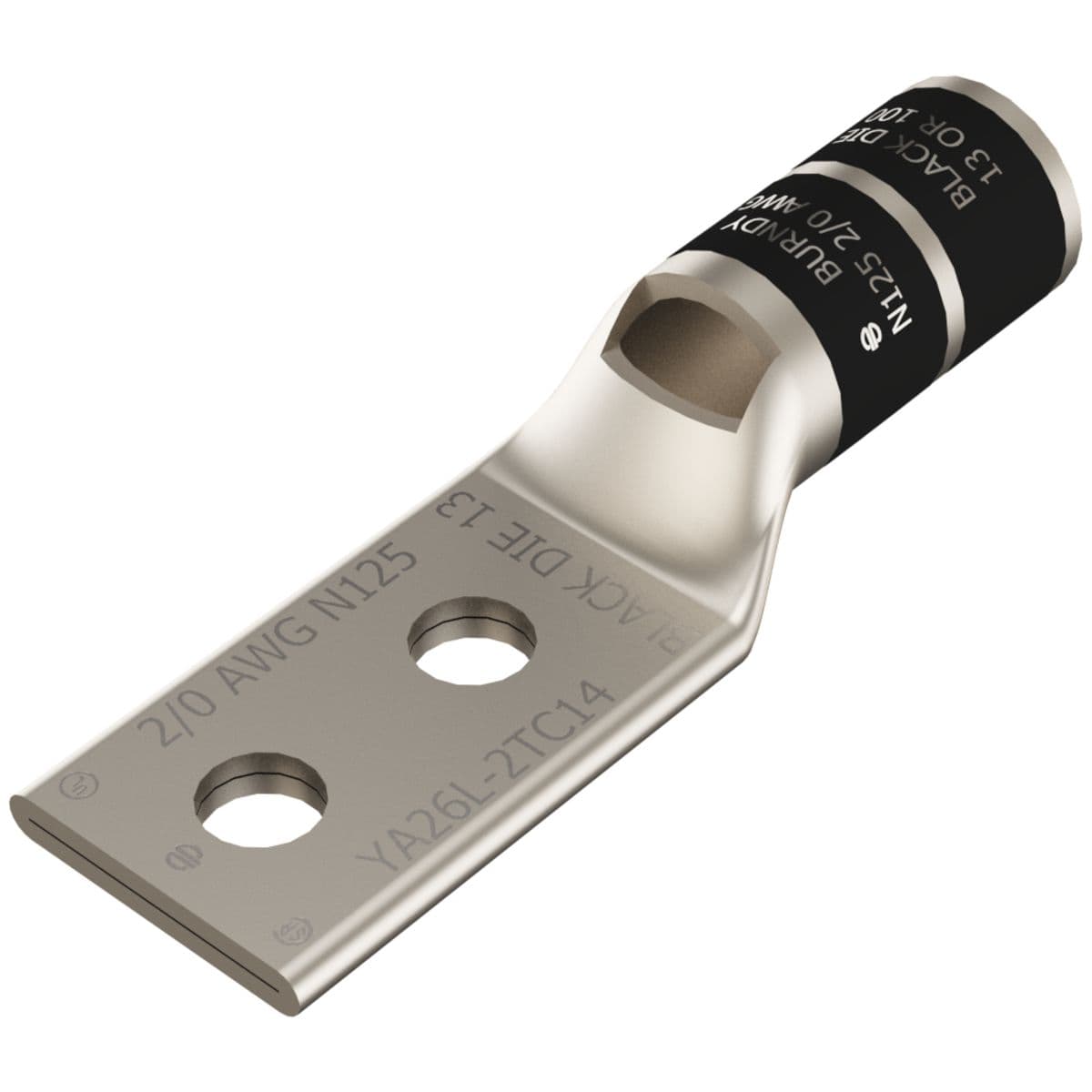

2/0 AWG CU, Two Hole, 1/4 Stud Size, 1 Hole Spacing, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, Black Color Code, 13 Die Index.
About the manufacturer: Hubbell is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Hubbell offers a variety of products that are specifically designed to tackle challenges faced by businesses, increase energy efficiency, enhance safety, perform well in harsh environments, streamline wiring organization, and improve grounding systems in and around buildings.
Check out the YA26L2TC14E1 Hubbell price in the box on the right side or send a quick quote.
Product Details
- Feature - Barrel Style Chamfered ; Skived
- Physical Attribute - Number of Holes 2
- Material Copper
- Application Wire Termination
- Dimension - B Length inch 0.94 in
- Dimension - B Length fraction 15/16 in
- Dimension - Outside Diameter inch 0.56 in
- Voltage - Maximum 35000
- Voltage Rating 35 kV
- Certification - CSA Approved Yes
- Industry Standard(s) UL 486A-486B
- Plating Type Tin - Electro Plated
- UPC 781810262832
- Dimension - D inch 1.64 in
- Color Code Black
- Dimension - Length Overall inch 3.01 in
- Dimension - Stud Size inch 1/4
- Conductor - Copper Str Navy Size 125 (61) Navy
- Certification - UL Recognized No
- UL Listed Yes
- Connector Type Terminal
- Type Standard Barrel, Tin Plated
- Plated Y
- Dimension - L Length Overall mm 76 mm
- Dimension - Bolt Size fraction 1/4
- Dimension - Strip Length inch 1 in
- Dimension - Pad Width inch 0.83 in
- Conductor - Copper Str Size 2/0 AWG
- Conductor - Copper Str Size Range 2/0 AWG
- Minimum Pack Quantity 1
- Standards - RoHS Compliance Status CM
- UPC 12 Digit 7818102628322
- Dimension - Hole Size mm 7 mm
- Dimension - Z inch 0.33 in
- Die Index 13
- Finish Type Tin-Plated
- Conductor - Material Copper
- Standards - Industry Standards Met UL 486A-486B
- Feature - Barrel Type Standard
- Trade Name HYLUG™
- Dimension - Bolt Hole Size inch 0.27 in
- Rating - KVA 35 kV
- Physical Attribute - Tongue Angle Straight
- Conductor - Copper Str Navy Size Range 125 (61) Navy
- Certification - cULus No
- Certification - ETL No
- Dimension - Hole Size inch 0.27 in
- Dimension - N inch 0.31 in
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents YA26L2TC14E1 Specs
1-year warranty
