YA26L2TC14E2 Hubbell Electronic Components
Part#:YA26L2TC14E2
Manufacturer:Hubbell
Product Lifecycle:Active
Get a quick Quote!

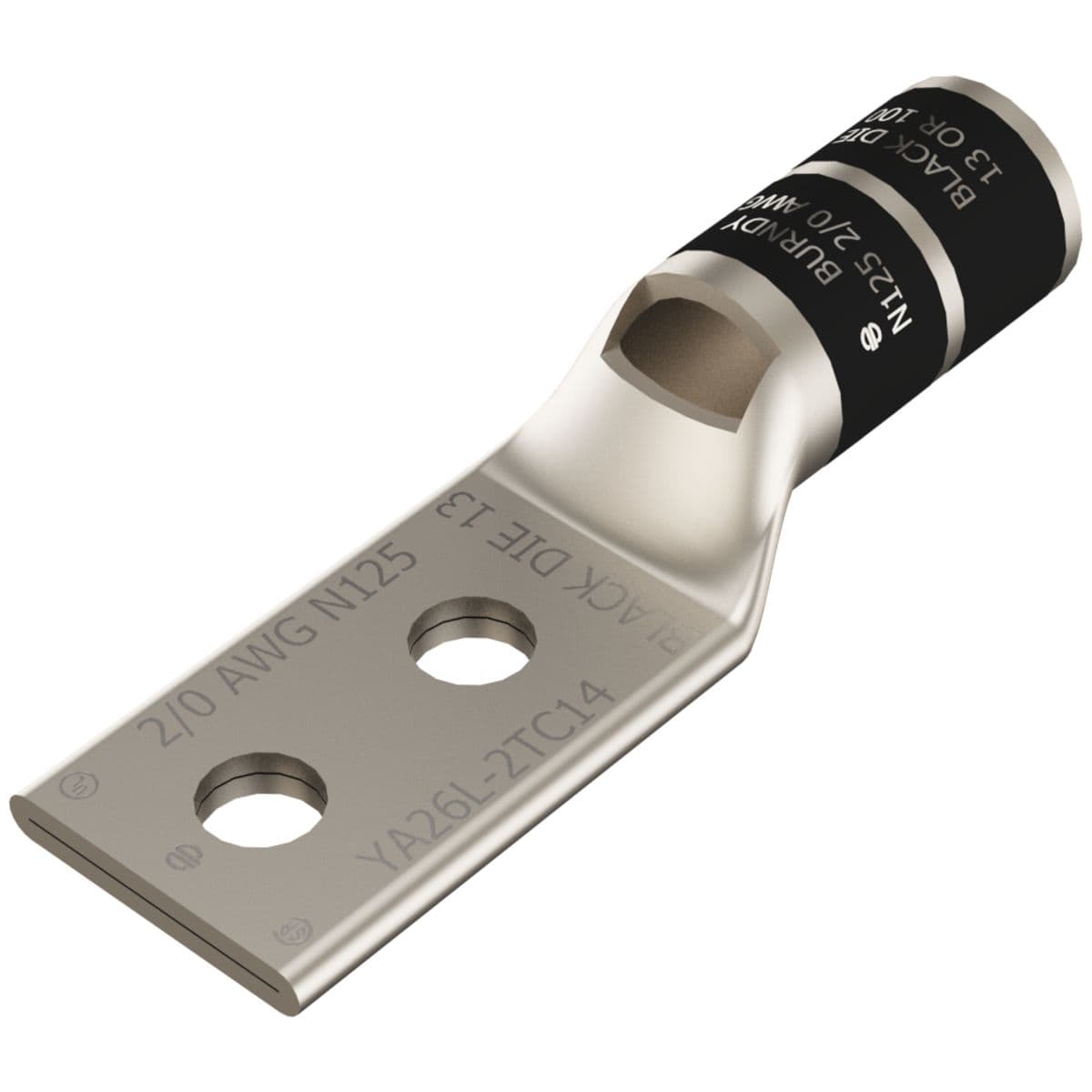

2/0 AWG CU, Two Hole, 1/4 Stud Size, 3/4 Hole Spacing, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, Black Color Code, 13 Die Index.
About the manufacturer: Hubbell is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Hubbell offers a variety of products that are specifically designed to tackle challenges faced by businesses, increase energy efficiency, enhance safety, perform well in harsh environments, streamline wiring organization, and improve grounding systems in and around buildings.
Check out the YA26L2TC14E2 Hubbell price in the box on the right side or send a quick quote.
Product Details
- Feature - Barrel Type Standard
- Color Code Black
- Dimension - B Length inch 0.94 in
- Dimension - Hole Size mm 7 mm
- Dimension - Pad Width inch 0.83 in
- Conductor - Copper Str Size 2/0 AWG
- Voltage Rating 35 kV
- Industry Standard(s) UL 486A-486B
- Die Index 13
- Plated Y
- UPC 12 Digit 7818100183166
- Dimension - Hole Size inch 0.27 in
- Dimension - Outside Diameter inch 0.56 in
- Voltage - Maximum 35000
- Certification - ETL No
- Conductor - Copper Str Navy Size 125 (61) Navy
- Standards - RoHS Compliance Status CM
- Material Copper
- Plating Type Tin - Electro Plated
- UPC 781810018316
- Dimension - Bolt Hole Size inch 0.27 in
- Dimension - L Length Overall mm 70 mm
- Dimension - Strip Length inch 1 in
- Rating - KVA 35 kV
- Conductor - Copper Str Size Range 2/0 AWG
- Certification - UL Recognized No
- Connector Type Terminal
- Physical Attribute - Tongue Type Standard
- Finish Type Tin-Plated
- Dimension - Bolt Size fraction 1/4
- Dimension - Length Overall inch 2.76 in
- Dimension - Z inch 0.33 in
- Physical Attribute - Tongue Angle Straight
- Conductor - Copper Str Navy Size Range 125 (61) Navy
- Dimension - N inch 0.31 in
- Dimension - Stud Size inch 1/4
- Conductor - Material Copper
- Dimension - D inch 1.39 in
- Certification - cULus No
- Minimum Pack Quantity 1
- Application Wire Termination
- Dimension - B Length fraction 15/16 in
- Trade Name HYLUG™
- Type Standard Barrel, Tin Plated
- Feature - Barrel Style Chamfered ; Skived
- Physical Attribute - Number of Holes 2
- Certification - CSA Approved Yes
- Standards - Industry Standards Met UL 486A-486B
- UL Listed Yes
