YA26L6BOX Hubbell Electronic Components
Part#:YA26L6BOX
Manufacturer:Hubbell
Product Lifecycle:Active
In-stock parts: 14
Nov 6, 2025

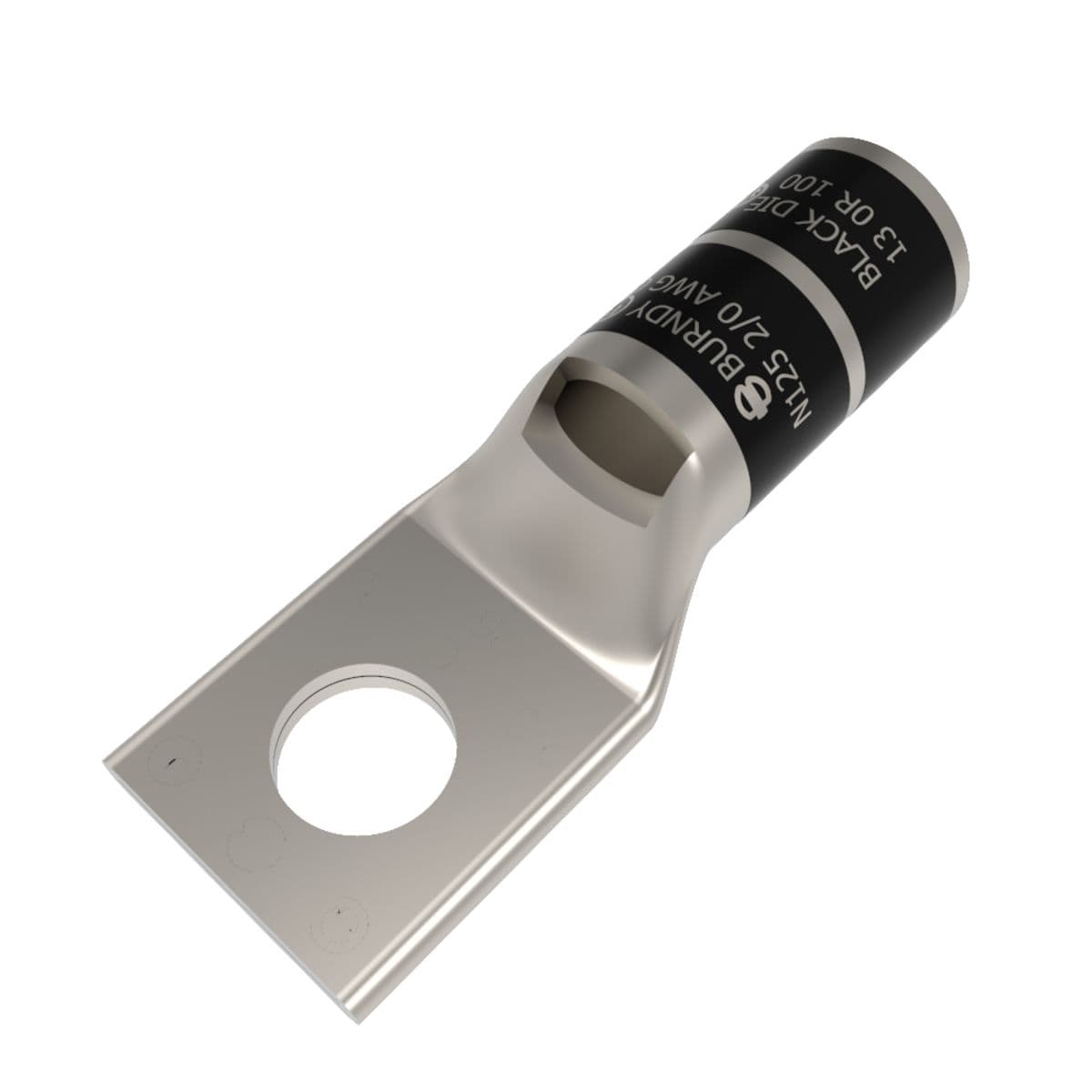

2/0 AWG CU, One Hole, 1/2 Stud Size, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA 90° Up to 35kV, BLACK Color Code, 13 Die Index. ; Features: UL Listed 90 DEG C, 600 V To 35 KV 45 DEG, 90 DEG Angles Are Available, Tools, Die S
About the manufacturer: Hubbell is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Hubbell offers a variety of products that are specifically designed to tackle challenges faced by businesses, increase energy efficiency, enhance safety, perform well in harsh environments, streamline wiring organization, and improve grounding systems in and around buildings.
Check out the YA26L6BOX Hubbell price in the box on the right side or send a quick quote.
Product Details
- Finish Type Tin-Plated
- UPC 781810553770
- Dimension - Bolt Size fraction 1/2
- Dimension - Stud Size fraction 1/2
- Rating - KVA 35 kV
- Conductor - Material Copper
- Certification - UL Recognized No
- Standards - RoHS Compliance Status CM
- Feature - Barrel Style Chamfered ; Skived
- Application Wire Termination
- Physical Attribute - Tongue Type Standard
- Trade Name HYLUG™
- Dimension - Hole Size inch 0.53 in
- Dimension - B Length fraction 15/16 in
- Dimension - Outside Diameter inch 0.56 in
- Connector Type Terminal
- Feature - Barrel Type Standard
- Plating Type Tin - Electro Plated
- Dimension - Bolt Hole Size inch 0.52 in
- UPC 12 Digit 7818105537700
- Dimension - L Length Overall mm 62 mm
- Dimension - Strip Length inch 1 in
- Dimension - Z inch 0.55 in
- Certification - CSA Approved Yes
- EU RoHS Indicator Yes
- Material Copper
- Sub Brand HYLUG
- Color Code Black
- Physical Attribute - Number of Holes 1
- Dimension - D inch 1.08 in
- Dimension - Length Overall inch 2.44 in
- Dimension - N inch 0.53 in
- Voltage - Maximum 35000
- Conductor - Copper Str Navy Size Range 125 (61) Navy
- Minimum Pack Quantity 1
- Die Index 13
- Dimension - B Length inch 0.94 in
- Type Standard Barrel, Tin Plated
- Plated Y
- Dimension - Hole Size mm 13 mm
- Dimension - Pad Width inch 0.83 in
- Physical Attribute - Tongue Angle Straight
- Conductor - Copper Str Size Range 2/0 AWG
- Industry Standard(s) UL 486A-486B
- Voltage Rating 35 kV
- Certification - ETL No
- Dimension - Stud Size inch 1/2
- Certification - cULus No
- Conductor - Copper Str Size 2/0 AWG
- UL Listed Yes
- Conductor - Copper Str Navy Size 125 (61) Navy
