YA45L45 Hubbell Electronic Components
Part#:YA45L45
Manufacturer:Hubbell
Product Lifecycle:Active
Get a quick Quote!

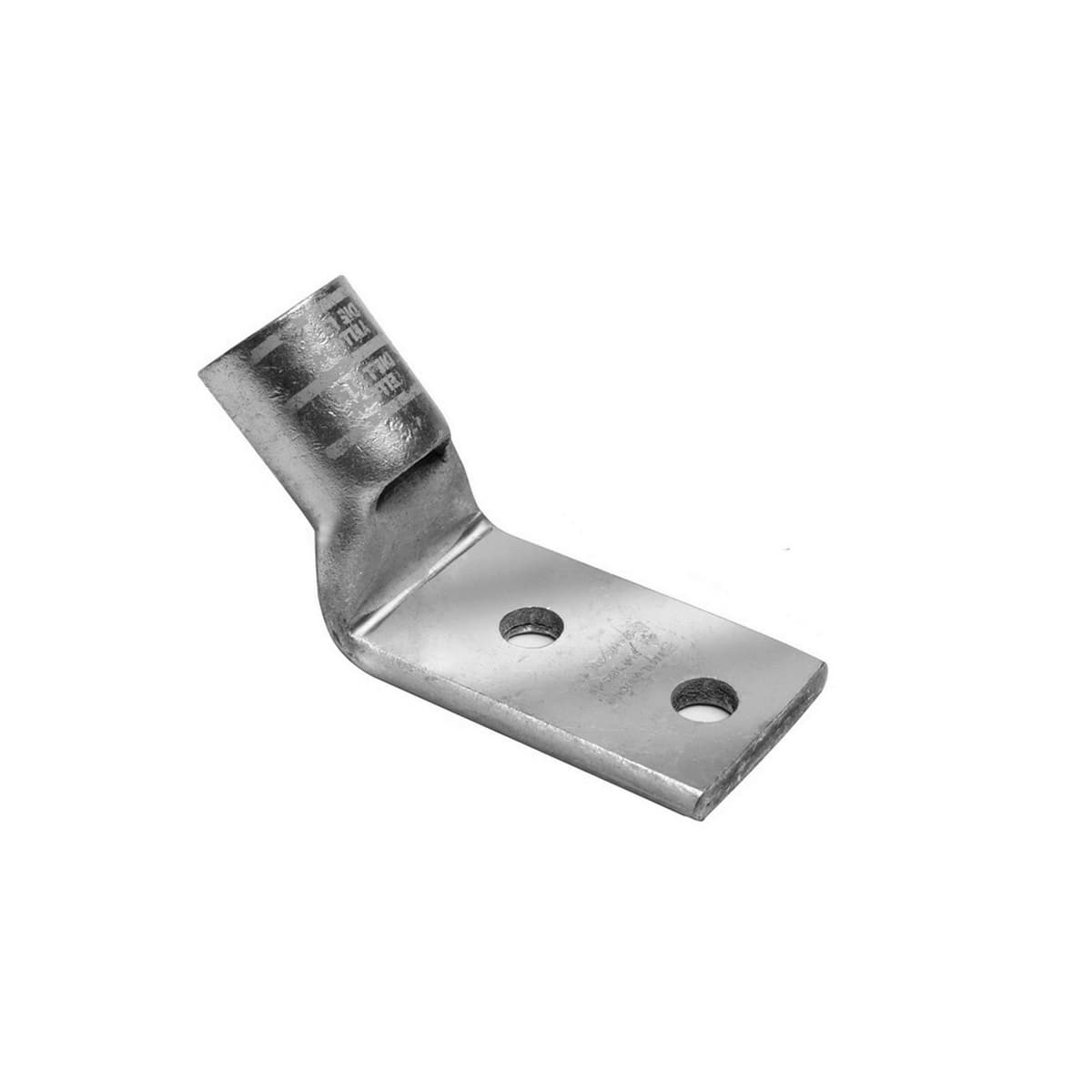

Cu Tubing Compression Terminal, 1 Hole W/O InspWindow,1250 Kcmil, 3/4" Stud, Uninsulated, Standard Barrel.
About the manufacturer: Hubbell is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Hubbell offers a variety of products that are specifically designed to tackle challenges faced by businesses, increase energy efficiency, enhance safety, perform well in harsh environments, streamline wiring organization, and improve grounding systems in and around buildings.
Check out the YA45L45 Hubbell price in the box on the right side or send a quick quote.
Product Details
- Plating Type Electro-tin plated
- Physical Attribute - Number of Holes 1
- Die Index 29
- Dimension - Hole Size inch 0.81 in
- Dimension - N inch 0.75 in
- Dimension - Thread Size 3/4 in
- Conductor - Copper Str Size 1250 Kcmil
- Trade Name HYLUG™
- Voltage Rating 35 kV
- Dimension - B Length inch 2 in
- Dimension - L Length Overall mm 118 mm
- Dimension - Strip Length inch 2-1/16 in
- Conductor - Copper Str Size Range 1250 kcmil
- Color Code Yellow
- UPC 781810312964
- Feature - Barrel Type Standard
- Dimension - Height inch 3.54 in
- Dimension - Outside Diameter inch 1.69 in
- Voltage - Maximum 35000
- Standards - RoHS Compliance Status CM
- Dimension - Bolt Size fraction 3/4
- Dimension - Length Overall inch 4.64 in
- Dimension - Pad Width inch 2.46 in
- Rating - KVA 35 kV
- Dimension - Bolt Hole Size inch 0.81 in
- Dimension - Hole Size mm 21 mm
- Dimension - Stud Size inch 3/4 in
- Dimension - Z inch 0.77 in
- Industry Standard(s) UL 486A-486B
- Feature - Barrel Style Chamfered
- Type Standard Barrel, Electro-Tin Plated
- Physical Attribute - Tongue Type straight
- UPC 12 Digit 7818103129644
- Plated Y
- Connector Type Terminal
- Conductor - Material Copper
- Conductor - Copper Solid Size 1250 Kcmil
- UL Listed Yes
- Physical Attribute - Tongue Angle 45 Degree
- Minimum Pack Quantity 1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents YA45L45 Specs
