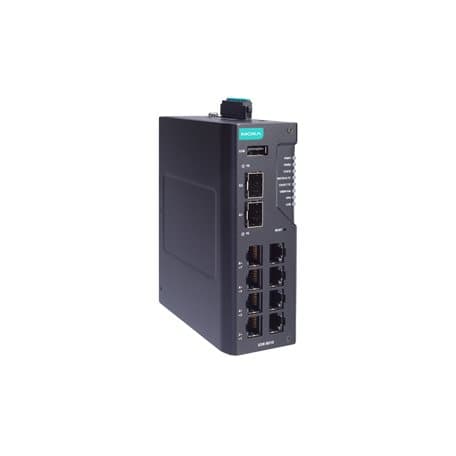

EDR-8010-VPN-2GSFP-CT Moxa Data & Networking Devices
Part#:EDR-8010-VPN-2GSFP-CT
Manufacturer:Moxa
Product Lifecycle:Active
Get a quick Quote!
8 FE copper and 2 GbE SFP multiport industrial secure router with firewall/NAT/VPN, 12/24/48 VDC input voltage, -10 to 60°C operating temperature, conformal coating
Check out the EDR-8010-VPN-2GSFP-CT Moxa price in the box on the right side or send a quick quote.
Product Details
- Digital Input Channels +13 to +30 V for state 1; -30 to +3 V for state 0; Max. input current: 8 mA
- Time Management NTP Server/Client; SNTP
- Unicast Routing OSPF; RIPV1/V2; Static Route
- Stateful Inspection Router firewall; Transparent (bridge) firewall
- Media Local storage; SNMP Trap; Syslog server
- Installation DIN-rail mounting (DNV-certified); Wall mounting (with optional kit)
- Traffic Control NEMA TS2
- Shock IEC 60068-2-27
- Buttons Reset button
- Broadcast Forwarding IP directed broadcast, broadcast forwarding
- Concurrent Connections Max. 120K (based on RFC 3511)
- Technology ARP-Flood; FIN Scan; ICMP-Death; NEWWithout-SYN Scan; NMAP-ID Scan; NMAP-Xmas Scan; Null Scan; SYN/FIN Scan; SYN/RST Scan; SYN-Flood; Xmas Scan
- Concurrent VPN Tunnels Max. 50 IPsec VPN tunnels
- Connection Removable terminal block
- EMS IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV; IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m; IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV; IEC 61000-4-5 Surge: Power: 2 kV; Signal: 4 kV; IEC 61000-4-6 CS: 10 V; IEC 61000-4-8 PFMF
- Vibration IEC 60068-2-6
- Alarm Contact Channels Resistive load: 1 A @ 24 VDC
- Routing Table Max. 4K routing rules
- IGMP Groups 256
- Intrusion Prevention System Requires an additional license.
- Features 1-to-1; N-to-1; Port forwarding; NAT loopback
- Connector USB Type-C
- Weight 520 g (1.15 lb)
- Hazardous Locations ATEX; Class I Division 2; IECEx
- Standards IEEE 802.3 for 10BaseT; IEEE 802.3u for 100BaseT(X); IEEE 802.3z for 1000BaseSX/LX/LHX/ZX; IEEE 802.3x for flow control; IEEE 802.1Q for VLAN Tagging; IEEE 802.1X for authentication; Static Port Trunk
- DMZ User-configurable DMZ ports
- Routing Throughput Max. 50K packets per second / 500 Mbps (based on RFC 2544)
- Redundancy Protocols RSTP; STP; Turbo Ring v2
- Routing Redundancy VRRP
- VLAN ID Range VID 1 to 4094
- Filter IGMP v1/v2/v3
- Console Port RS-232 (TxD, RxD, GND), 3-pin (115200, n, 8, 1)
- Protocols IPsec; L2TP (server); PPTP (client)
- Housing Metal
- Dimensions 45 x 135 x 105 mm (1.77 x 5.31 x 4.13 in)
- Operating Temperature -10 to 60°C (14 to 140°F)
- Safety IEC 62368-1; UL 62368-1
- Freefall IEC 60068-2-32
- Warranty Period 5 years
- Management Back Pressure Flow Control; DDNS; DHCP Server/Client; Web Console (HTTP/HTTPS); LLDP; QoS/CoS/ToS; SNMPv1/v2c/v3; Telnet; TFTP; HTTPS; SSH
- 1000BaseSFP Slots 2
- Connections Per Second Max. Max. 6K (based on RFC 3511)
- Multicast Routing Static Route
- LED Indicators PWR1, PWR2, STATE, MSTR/H.TC, CPLR/T.TC, VRRP/HA, VPN, USB
- Throughput Firewall:; Max. 50K packets per second / 500 Mbps (based on RFC 2544)
- Encryption DES; 3DES; AES-128; AES-192; AES-256
- Event Type Firewall event; VPN event
- Input Current 0.53 A @ 12 VDC; 0.26 A @ 24 VDC; 0.14 A @ 48 VDC
- Ambient Relative Humidity 5 to 95% (non-condensing)
- EMC EN 55032/35
- Time 1,347,225 hrs
- 10/100BaseT(X) Ports (RJ45 connector) 8
- Max. No. of VLANs 16
- Operating Voltage 9.6 to 60 VDC
- Railway EN 50121-4
- Security Secure Boot; IPsec; L2TP (server); RADIUS; Trust access control
- Authentication MD5 and SHA (SHA-256); RSA (key size: 1024-bit, 2048-bit); X.509 v3 certificate
- Reverse Polarity Protection Supported
- Storage Temperature (package included) -40 to 85°C (-40 to 185°F)
- Power Substation IEC 61850-3 Edition 2.0; IEEE 1613
- Deep Packet Inspection Modbus TCP; Modbus UDP; DNP3; IEC 60870-5-104; IEC 61850 MMS; EtherNet/IP; Omron FINS; Siemens S7 Comm.; Additional protocols will be supported through future firmware updates.
- Input Voltage 12/24/48 VDC, redundant dual inputs (DNV-certified for 24 VDC)
- EMI CISPR 32, FCC Part 15B Class A
- Maritime IEC 60945; DNV
