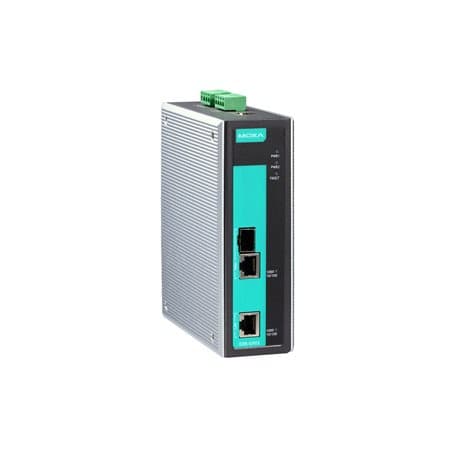

EDR-G902-T Moxa Data & Networking Devices
Part#:EDR-G902-T
Manufacturer:Moxa
Product Lifecycle:Active
Get a quick Quote!
Industrial Gigabit firewall/NAT secure router with 1 WAN port, 10 VPN tunnels, -40 to 75°C operating temperature
Check out the EDR-G902-T Moxa price in the box on the right side or send a quick quote.
Product Details
- Technology ARP-Flood, FIN Scan, ICMP-Death, NEWWithout-SYN Scan, NMAP-ID Scan, NMAP-Xmas Scan, Null Scan, SYN/FIN Scan, SYN/RST Scan, SYN-Flood, Xmas Scan
- Max. No. of VLANs 10
- Stateful Inspection Router firewall; Transparent (bridge) firewall
- Overload Current Protection Supported
- Dimensions 51 x 152 x 131.1 mm (2.01 x 5.98 x 5.16 in)
- Vibration IEC 60068-2-6
- 10/100/1000BaseT(X) Ports (RJ45 connector) 1
- Unicast Routing OSPF, RIPV1/V2, Static Route
- Protocols IPsec, L2TP (server), PPTP (client)
- Event Type Firewall event, System event, VPN event
- IP Rating IP30
- Housing Metal
- Safety UL 508
- Digital Input Channels +13 to +30 V for state 1; -30 to +3 V for state 0; Max. input current: 8 mA
- Deep Packet Inspection Modbus TCP; Modbus UDP
- Inrush Current (Max.) 0.45 A @ 24 VDC
- EMC EN 55032/24
- Buttons Reset button
- Time Management NTP Server/Client, SNTP
- Authentication MD5 and SHA (SHA-256); RSA (key size: 1024-bit, 2048-bit); X.509 v3 certificate
- Media Local storage, SNMP Trap, Syslog server
- EMI CISPR 32, FCC Part 15B Class A
- Time 981,233 hrs
- Alarm Contact Channels 1 relay output with current carrying capacity of 1 A @ 24 VDC
- Routing Throughput: 25,000 packets per second (max. 300 Mbps)
- Reverse Polarity Protection Supported
- Freefall IEC 60068-2-32
- LAN Ports, RJ45 port 1
- Filter DDoS, Ethernet protocols, ICMP, IP address, MAC address, Ports
- Connection Removable terminal block
- Ambient Relative Humidity 5 to 95% (non-condensing)
- Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+) 1
- Security HTTPS/SSL, SSH, IPsec, OpenVPN (client and server), UDP and TCP Tunnel mode (routing) and TAP mode (bridge), L2TP (server), RADIUS
- Input Voltage 12/24/48 VDC
- Storage Temperature (package included) -40 to 85°C (-40 to 185°F)
- EMS IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV; IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m; IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV; IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV; IEC 61000-4-6 CS: 10 V; IEC 61000-4-8 PFMF
- Standards IEEE 802.1Q for VLAN Tagging; IEEE 802.3 for 10BaseT; IEEE 802.3ab for 1000BaseT(X); IEEE 802.3u for 100BaseT(X) and 100BaseFX; IEEE 802.3x for flow control; IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
- Routing Redundancy VRRP
- Encryption 3DES, AES-128, AES-192, AES-256, DES
- Features 1-to-1, bidirectional 1-to-1, N-to-1, Port forwarding
- Weight 1250 g (2.82 lb)
- Shock IEC 60068-2-27
- Maritime DNV-GL
- Management Back Pressure Flow Control, DDNS, DHCP Server/Client, HTTP, LLDP, QoS/CoS/ToS, SMTP, SNMPv1/v2c/v3, Telnet, TFTP, QoS, PPPOE, Traffic prioritization
- Throughput Max. 25000 packets per second (max. 300 Mbps)
- Concurrent VPN Tunnels Max. 50 IPsec VPN tunnels
- Installation DIN-rail mounting, Wall mounting (with optional kit)
- Warranty Period 5 years
- WAN Ports, RJ45/Fiber Combo Port 1
- Quick Automation Profiles DNP, EtherCAT, EtherNet/IP, FOUNDATION Fieldbus, FTP, HTTP, IEC 60870-104, IPsec, L2TP, LonWorks, Modbus TCP, PPTP, PROFINET, RADIUS, SSH, Telnet
- Console Port RS-232
- Operating Temperature -40 to 75°C (-40 to 167°F)
