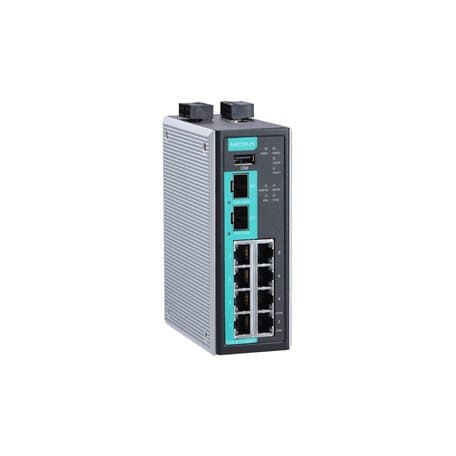

EDR-810-2GSFP Moxa Data & Networking Devices
Part#:EDR-810-2GSFP
Manufacturer:Moxa
Product Lifecycle:Active
Get a quick Quote!
8+2G SFP industrial multiport secure router with Firewall/NAT, -10 to 60°C operating temperature
Check out the EDR-810-2GSFP Moxa price in the box on the right side or send a quick quote.
Product Details
- 10/100BaseT(X) Ports (RJ45 connector) 8
- Redundancy Protocols RSTP; STP; Turbo Ring v2
- Stateful Inspection Router firewall; Transparent (bridge) firewall
- Input Current 0.706 A @ 12 VDC, 0.353 A @ 24 VDC, 0.187 A @ 48 VDC
- Operating Temperature -10 to 60°C (14 to 140°F)
- Time 981,954 hrs
- Buttons Reset button
- Routing Throughput: 10,000 packets per second (max. 100 Mbps)
- Deep Packet Inspection Modbus TCP; Modbus UDP
- Housing Metal
- EMI CISPR 32, FCC Part 15B Class A
- EMS IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV; IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m; IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV; IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV; IEC 61000-4-6 CS: 10 V; IEC 61000-4-8 PFMF
- Shock IEC 60068-2-27
- Digital Input Channels +13 to +30 V for state 1; -30 to +3 V for state 0; Max. input current: 8 mA
- Security HTTPS/SSL; SSH; L2TP (server); RADIUS
- Routing Redundancy VRRP
- Features 1-to-1; N-to-1; Port forwarding
- Weight 830 g (2.10 lb)
- Freefall IEC 60068-2-32
- Vibration IEC 60068-2-6
- Broadcast Forwarding IP directed broadcast, broadcast forwarding
- Unicast Routing OSPF; RIPV1/V2; Static Route
- Filter IGMP v1/v2/v3
- Media Local storage; SNMP Trap; Syslog server
- Ambient Relative Humidity 5 to 95% (non-condensing)
- Warranty Period 5 years
- Management Back Pressure Flow Control; DDNS; DHCP Server/Client; Web Console (HTTP/HTTPS); LLDP; QoS/CoS/ToS; SNMPv1/v2c/v3; Telnet; TFTP
- LED Indicators STATE, PWR1, PWR2, FAULT, 10/100/1000M
- Installation DIN-rail mounting; Wall mounting (with optional kit)
- Industrial Cybersecurity IEC 61162-460
- Alarm Contact Channels Resistive load: 1 A @ 24 VDC
- VLAN ID Range VID 1 to 4094
- Event Type Firewall event
- Connection Removable terminal block
- Storage Temperature (package included) -40 to 85°C (-40 to 185°F)
- Hazardous Locations ATEX; Class I Division 2
- Standards IEEE 802.1Q for VLAN Tagging; IEEE 802.3 for 10BaseT; IEEE 802.3ab for 1000BaseT(X); Static Port Trunk; IEEE 802.3u for 100BaseT(X); IEEE 802.3x for flow control; IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
- Max. No. of VLANs 16
- Quick Automation Profiles DNP; EtherCAT; EtherNet/IP; FOUNDATION Fieldbus; FTP; HTTP; IEC 60870-104; IPsec; L2TP; LonWorks; Modbus TCP; PPTP; PROFINET; RADIUS; SSH; Telnet
- Console Port RS-232 (TxD, RxD, GND), 3-pin (115200, n, 8, 1)
- Safety UL 508
- Railway EN 50121-4
- 100/1000BaseSFP Slots 2
- IGMP Groups 256
- Throughput Max. 10,000 packets per second (max. 100 Mbps)
- Reverse Polarity Protection Supported
- Maritime DNV
- Traffic Control NEMA TS2
- Time Management NTP Server/Client; SNTP
- Technology ARP-Flood; FIN Scan; ICMP-Death; NEWWithout-SYN Scan; NMAP-ID Scan; NMAP-Xmas Scan; Null Scan; SYN/FIN Scan; SYN/RST Scan; SYN-Flood; Xmas Scan
- Dimensions 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
- Multicast Routing DVMRP; PIM-SM; PIM-SSM
- Input Voltage 12 to 48 VDC
- EMC EN 55032/24
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents EDR-810-2GSFP Specs
