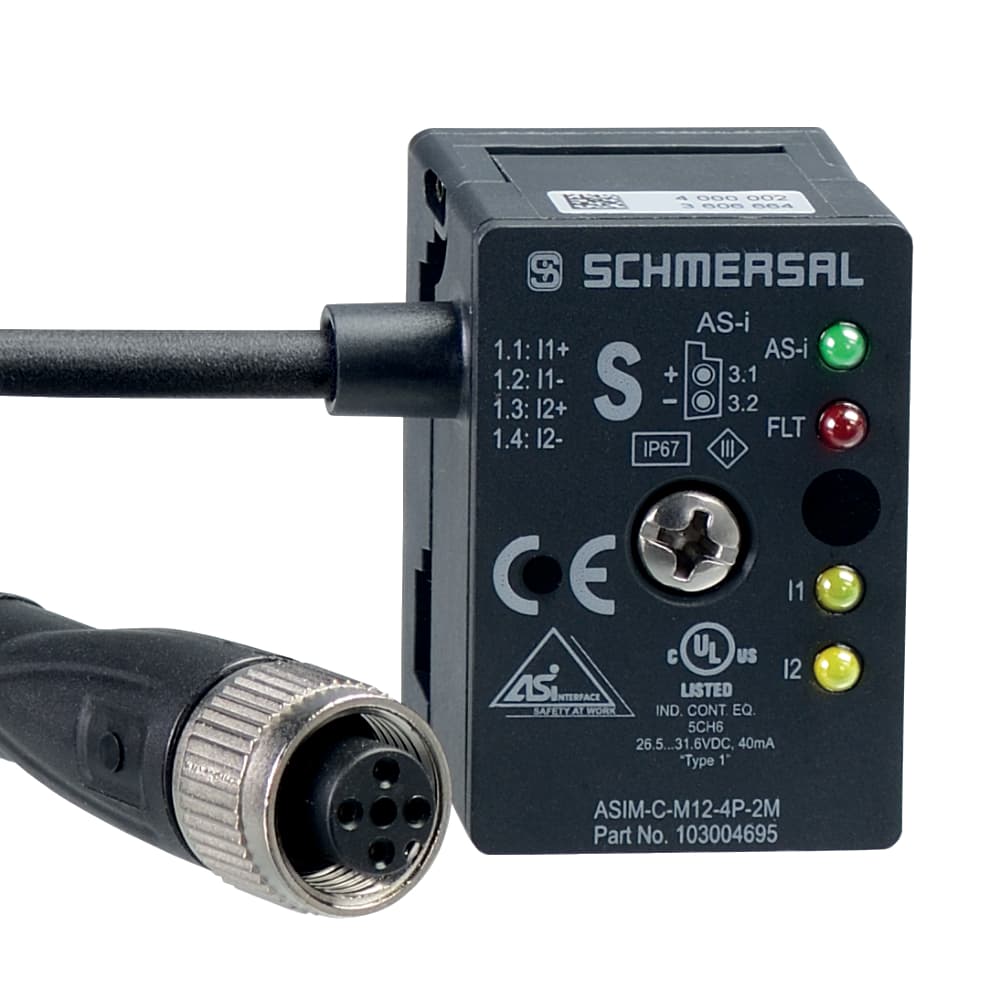

ASIM-C-M12-4P-2M Schmersal Cable Assemblies

Product Details

• Standards
  EN 50295, EN 60204-1, EN 62061
• Storage and transport temperature, maximum
  +80 °C
• Protection rating
  III
• AS-i Input, Channel 2
  Data bits DI 2 / DI 3 = dynamic code transmission
• AS-i Input module address
  0
• Reaction time, maximum
  1 ms
• Duration of risk, maximum
  5 ms
• Depth
  22 mm
• Ambient temperature, maximum
  +60 °C
• Note (Relative humidity)
  non-condensing, non-icing
• Relative humidity, maximum
  95 %
• AS-i Operating voltage, minimum
  26.5 VDC
• AS-i Operating voltage AS-i maximum
  31.6 VDC
• AS-i Outputs, DO 0
  No Function
• AS-i Parameter bits, P1 ... P3
  No function
• Terminal Connector
  Connector, M12, 4-pole, A-coded
• Storage and transport temperature, minimum
  -25 °C
• Rated impulse withstand voltage Uimp
  0.8 kV
• AS-i Input, Channel 1
  Data bits DI 0 / DI 1 = dynamic code transmission
• AS-i Parameter bits, P0
  Communication monitoring AS-i
Gross weight
137 g
Width
27.7 mm
Resistance to vibrations to EN 60068-2-6
10 … 57 Hz, amplitude 0.75 mm
Note (AS-i Operating voltage)
Protection against polarity reversal
Note (AS-i Parameter bits)
Set the parameter outputs to "1111" (0xF)
Integral System Diagnostics, status
Yes
Degree of protection
IP67 to EN 60529
Rated insulation voltage Ui
32 VDC
AS-i Current consumption, maximum
90 mA
Enclosure material
Thermoplastic PBT
Ambient temperature, minimum
-20 °C
Overvoltage category
III
AS-i Profile
S-0.B.F.0
Length of cable
2 m
Safety functions
Yes
Material of the cable
Polyurethane PUR
Height
40.5 mm
Relative humidity, minimum
30 %
Restistance to shock
30 g / 11 ms
Degree of pollution to VDE 0100
3
AS-i Version
V 3.0
AS-i Outputs, DO 1 … DO 3
No Function
Note (AS-i Input module address)
Preset to address 0, can be changed through AS-interface bus master or hand-held programming device

Related documents ASIM-C-M12-4P-2M Specs
