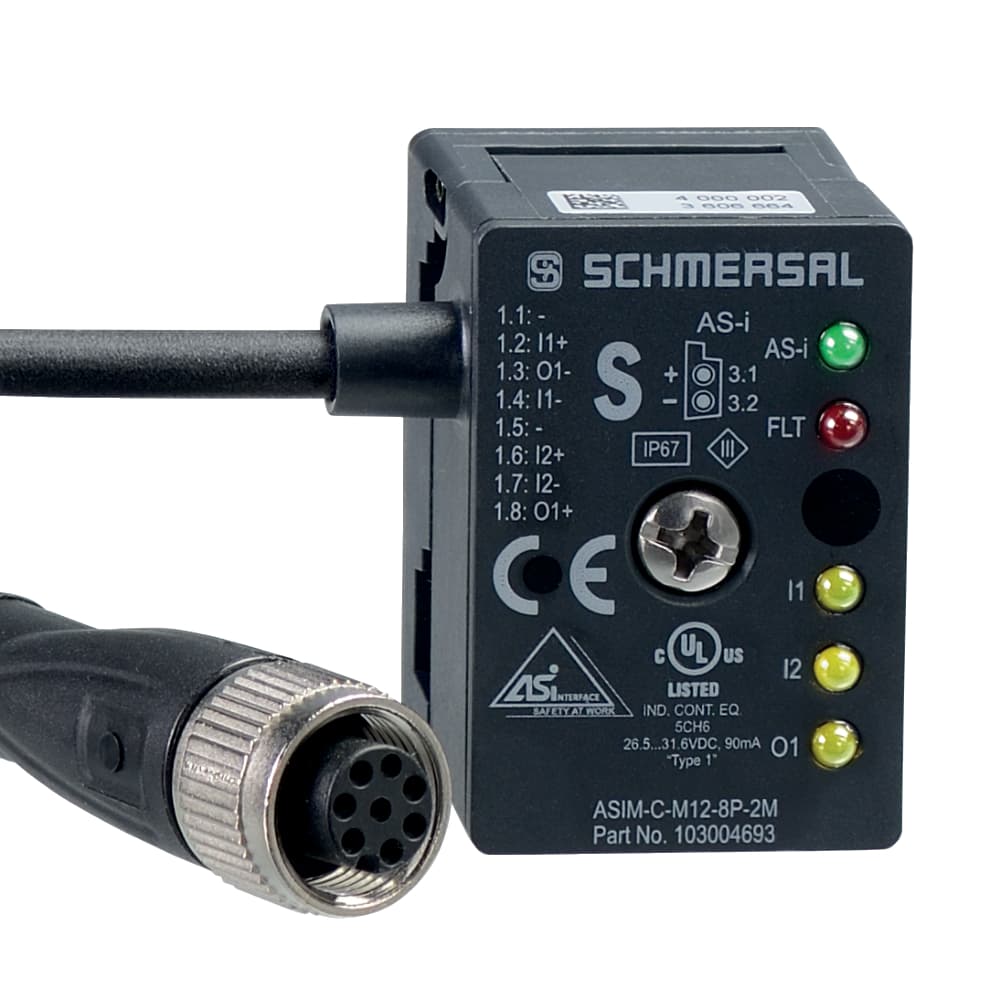

ASIM-C-M12-8P-2M Schmersal Cable Assemblies

Product Details

• Gross weight
  145 g
• Width
  27.7 mm
• Storage and transport temperature, minimum
  -25 °C
• Restistance to shock
  30 g / 11 ms
• AS-i Profile
  S-7.B.F.0
• AS-i Parameter bits, P1 ... P3
  No function
• Length of cable
  2 m
• Degree of protection
  IP67 to EN 60529
• Note (Relative humidity)
  non-condensing, non-icing
• Degree of pollution to VDE 0100
  3
• AS-i Parameter bits, P0
  Communication monitoring AS-i
• Enclosure material
  Thermoplastic PBT
• Ambient temperature, minimum
  -20 °C
• Storage and transport temperature, maximum
  +80 °C
• Overvoltage category
  III
• Note (AS-i Parameter bits)
  Set the parameter outputs to "1111" (0xF)
• Reaction time, maximum
  1 ms
• Ambient temperature, maximum
  +60 °C
• Resistance to vibrations to EN 60068-2-6
  10 … 57 Hz, amplitude 0.75 mm
• AS-i Operating voltage, minimum
  26.5 VDC
AS-i Outputs, DO 1 … DO 3
No Function
Note (AS-i Input module address)
Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
Terminal Connector
Connector, M12, 8-pole, A-coded
Duration of risk, maximum
5 ms
Relative humidity, maximum
95 %
Rated impulse withstand voltage Uimp
0.8 kV
AS-i Outputs, DO 0
LED-Output
Standards
EN 50295, EN 60204-1, EN 62061
Material of the cable
Polyurethane PUR
Protection rating
III
Note (AS-i Operating voltage)
Protection against polarity reversal
AS-i Version
V 3.0
AS-i Input module address
0
Integral System Diagnostics, status
Yes
Height
40.5 mm
Relative humidity, minimum
30 %
AS-i Operating voltage AS-i maximum
31.6 VDC
AS-i Input, Channel 1
Data bits DI 0 / DI 1 = dynamic code transmission
Safety functions
Yes
Depth
22 mm
Rated insulation voltage Ui
32 VDC
AS-i Current consumption, maximum
90 mA
AS-i Input, Channel 2
Data bits DI 2 / DI 3 = dynamic code transmission

Related documents ASIM-C-M12-8P-2M Specs
