BN 65-01Z/V Schmersal Electronic Components
Part#:BN 65-01Z/V
Manufacturer:Schmersal
Alt. Part#:101055831
Product Lifecycle:Active
Get a quick Quote!

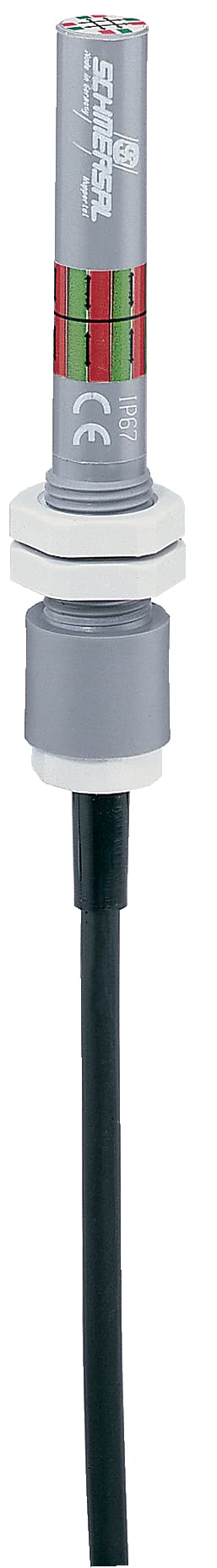

Magnetic reed switch; With pre-wired cable; Actuation from front; with bias magnet; Non-contact principle; Long life; Actuating surface and direction of actuation marked by switch symbol; Construction form Ø 13 mm; Thermoplastic enclosure; Actuating dista
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the BN 65-01Z/V Schmersal price in the box on the right side or send a quick quote.
Product Details
- Actuating panels front side
- Terminal Connector Cable
- Resistance to vibrations to EN 60068-2-6 10 … 55 Hz, amplitude 1 mm
- Bounce duration, maximum 0.6 ms
- Actuating element Magnet
- Mounting central with threated flange
- Wire cross-section 18 AWG
- Ambient temperature, maximum +75 °C
- Gross weight 65 g
- Housing construction form Cylinder smooth
- Switch distance Sn 5 mm … 55 mm, BP 10S = 5 mm, 2 x BP 10S = 10 mm
- Material of the Cable mantle H03VV-F
- Resistant to vibration 30 g, on sine wave oscillation
- Switching element Opener (NC)
- Suitable for elevators Yes
- bias magnet Yes
- Degree of protection IP67 to EN 60529
- Switching capacity, maximum 120 VA
- Enclosure material Glass-fibre, reinforced thermoplastic
- Actuating speed, maximum 18 m/s
- Length of cable 1 m
- Ambient temperature, minimum -25 °C
- Switching voltage, maximum 250 VAC
- Switching frequency 1,080,000 /h
- Active principle Magnetic drive
- Repeat accuracy R R 0.3 mm
- Notice (Switch distance Sn) Actuating distance up to 55 mm depending on actuating magnet and version. The specified switching distances are applicable for the actuation of individually mounted components without ferromagnetic influence. A change of the distance, either positive or n
- Length of sensor 103 mm
- Switching frequency, maximum 300 Hz
- Bounce duration, minimum 0.3 ms
- Number of openers 1
- width across flats 22 BK
- Restistance to shock 30 g, on sine wave oscillation
- Versions Reed contacts
- Mechanical life, minimum 1,000,000,000 Operations
- Tightening torque of nuts, maximum 3 Nm
- Diameter of sensor 13 mm
- Switching current, maximum 3 A
