BN 65-RZ/V Schmersal Electronic Components
Part#:BN 65-RZ/V
Manufacturer:Schmersal
Alt. Part#:101055838
Product Lifecycle:Active
Get a quick Quote!

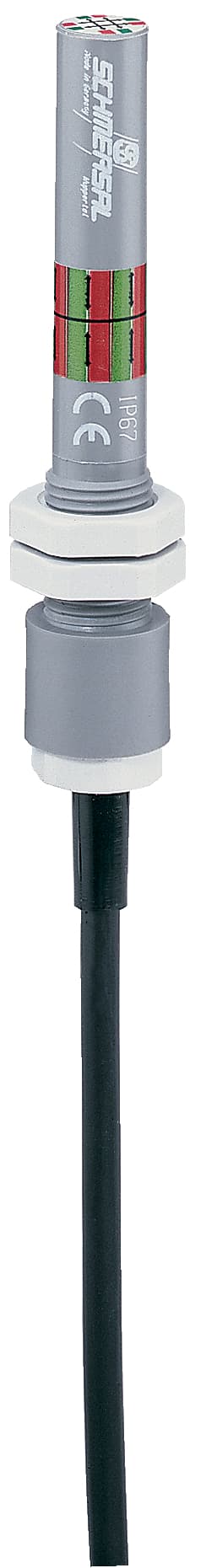

Magnetic reed switch; With pre-wired cable; Actuation from front; with bias magnet; Non-contact principle; Long life; Actuating surface and direction of actuation marked by switch symbol; Construction form Ø 13 mm; Thermoplastic enclosure; Actuating dista
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the BN 65-RZ/V Schmersal price in the box on the right side or send a quick quote.
Product Details
- Mounting central with threated flange
- Actuating element Magnet
- Length of sensor 103 mm
- Switching voltage, maximum 250 VAC
- Switching frequency 720,000 /h
- Enclosure material Glass-fibre, reinforced thermoplastic
- Mechanical life, minimum 1,000,000,000 Operations
- Tightening torque of nuts, maximum 3 Nm
- Notice (Switch distance Sn) Actuating distance up to 45 mm depending on actuating magnet and version. The specified switching distances are applicable for the actuation of individually mounted components without ferromagnetic influence. A change of the distance, either positive or n
- Material of the Cable mantle H03VV-F
- Degree of protection IP67 to EN 60529
- Resistant to vibration 15 g, on sine wave oscillation
- Restistance to shock 15 g, on sine wave oscillation
- Versions Reed contacts
- bias magnet Yes
- Repeat accuracy R R 0.3 mm
- Ambient temperature, maximum +75 °C
- Switching frequency, maximum 300 Hz
- Gross weight 70 g
- Housing construction form Cylinder smooth
- Actuating speed, maximum 18 m/s
- Length of cable 1 m
- Resistance to vibrations to EN 60068-2-6 10 … 55 Hz, amplitude 1 mm
- Bounce duration, maximum 0.6 ms
- Suitable for elevators Yes
- Number of snap-in contacts 1
- width across flats 22 BK
- Wire cross-section 18 AWG
- Bounce duration, minimum 0.3 ms
- Switching capacity, maximum 120 VA
- Latching Yes
- Switch distance Sn 3 mm … 45 mm, 2 x BP 10 = 3 mm, BP 34 = 15 mm
- Diameter of sensor 13 mm
- Switching current, maximum 3 A
- Actuating panels front side
- Active principle Magnetic drive
- Terminal Connector Cable
- Ambient temperature, minimum -25 °C
- Switching element bistable contact
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents BN 65-RZ/V Specs
