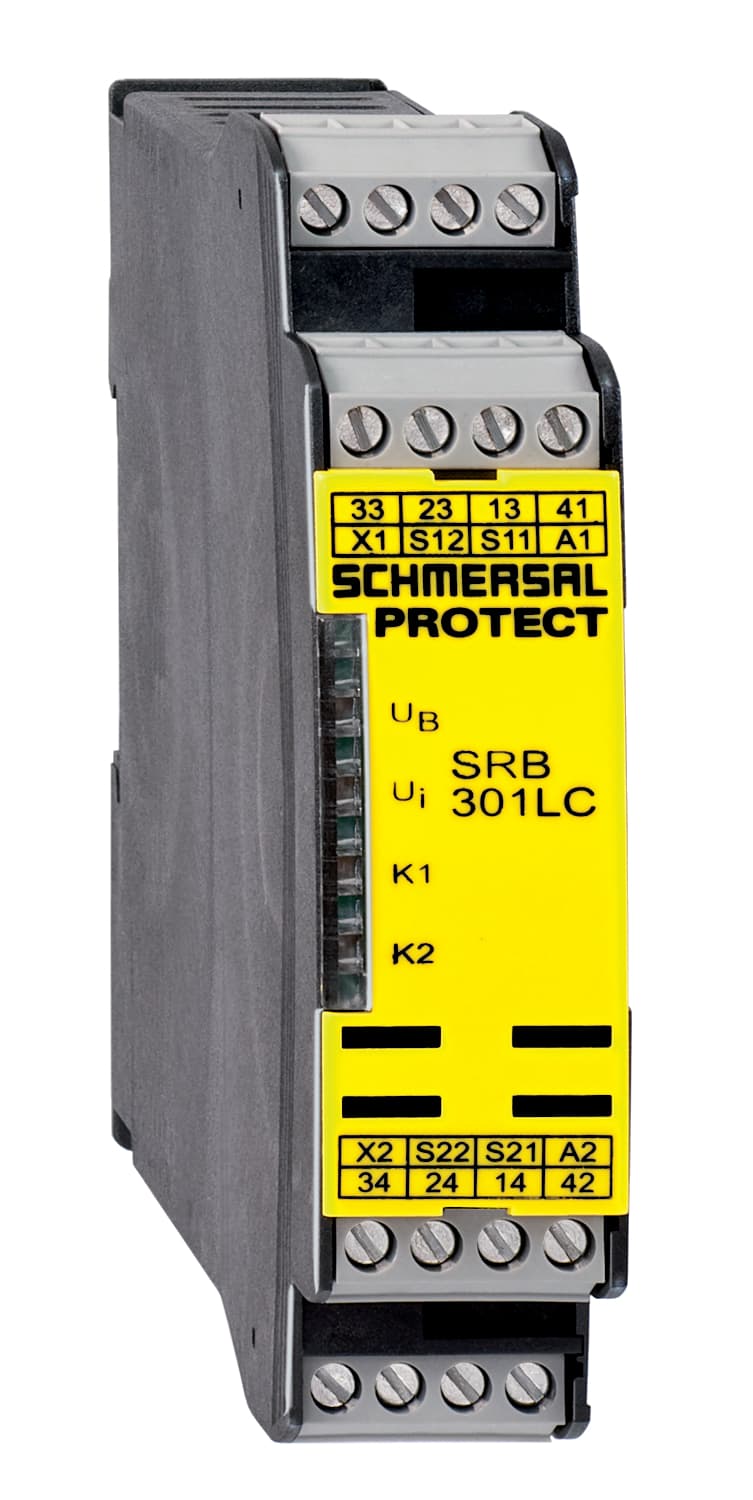

SRB301LC-24V Schmersal Electronic Components
Part#:SRB301LC-24V
Manufacturer:Schmersal
Alt. Part#:101163475
Product Lifecycle:Active
Get a quick Quote!
Safety-monitoring modules; Stop category 0; 3 safety contacts, STOP 0; 1 Signalling output; Suitable for the signal processing of outputs with contact sensors
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the SRB301LC-24V Schmersal price in the box on the right side or send a quick quote.
Product Details
- Gross weight 250 g
- Number of safety contacts 3
- Width 22.5 mm
- Storage and transport temperature, maximum +85 °C
- Frequency range 50 Hz, 60 Hz
- Rated control voltage at DC, maximum 28.8 VDC
- Pull-in delay at automatic start, maximum, typically 100 ms
- Material of the contacts, electrical AgSn0. self-cleaning, positive drive
- Number of auxiliary contacts 1
- Tightening torque of Clips 0.6 Nm
- Ambient temperature, minimum -25 °C
- Rated impulse withstand voltage Uimp 4 kV
- Rated control voltage at AC 60 Hz, maximum 26.4 VAC
- Drop-out delay in case of emergency, typically 20 ms
- Enclosure material Glass-fibre reinforced thermoplastic, ventilated
- Integral System Diagnostics, status Yes
- Terminal Connector Screw connection, rigid or flexible
- Degree of protection of the enclosure IP40
- Ambient temperature, maximum +45 °C
- Rated control voltage at AC 50 Hz, maximum 26.4 VAC
- Contact resistance, maximum 0.1 Ω
- Current, Utilisation category DC13 6 A
- Feedback circuit Yes
- Stop-Category 0
- Mechanical life, minimum 10,000,000 Operations
- Cable section, maximum 2.5 mm²
- Storage and transport temperature, minimum -40 °C
- Overvoltage category III
- Electrical power consumption 1.9 VA
- Start input Yes
- Automatic reset function Yes
- Mounting Snaps onto standard DIN rail to EN 60715
- Height 100 mm
- Resistance to vibrations to EN 60068-2-6 10...55 Hz, Amplitude 0.35 mm, ± 15 %
- Rated AC voltage for controls, 50 Hz, minimum 20.4 VAC
- Voltage, Utilisation category AC15 230 VAC
- Number of openers 2
- Depth 121 mm
- Short-circuit recognition Yes
- Wire breakage detection Yes
- Rated operating voltage 24 VAC -15% / +10%, 24 VDC -15%/+20%, residual ripple max. 10%
- Standards IEC 61508, IEC/EN 60204-1, EN 60947-5-1
- Number of LEDs 4
- Cable section, minimum 0.25 mm²
- Degree of protection of clips or terminals IP20
- Restistance to shock 30 g / 11 ms
- Rated AC voltage for controls, 60 Hz, minimum 20.4 VAC
- Note (Contact resistance) in new state
- Voltage, Utilisation category DC13 24 VDC
- Climatic stress EN 60068-2-78
- Earth connection detection Yes
- Terminal designations IEC/EN 60947-1
- Degree of protection of the mounting space IP54
- Degree of pollution to IEC/EN 60664-1 2
- Rated AC voltage for controls at DC minimum 20.4 VDC
- Pull-in delay at RESET, typically 20 ms
- Conduction resistance, maximum 40 Ω
- Switching capacity, maximum 2 A
- Current, Utilisation category AC-15 6 A
- Switching capacity, minimum 10 mA
- Drop-out delay in case of power failure, typically 80 ms
- Voltage, Utilisation category DC12 24 VDC
- Current, Utilisation category DC12 0.1 A
- EMC rating EMC-Directive
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents SRB301LC-24V Specs
1-year warranty
