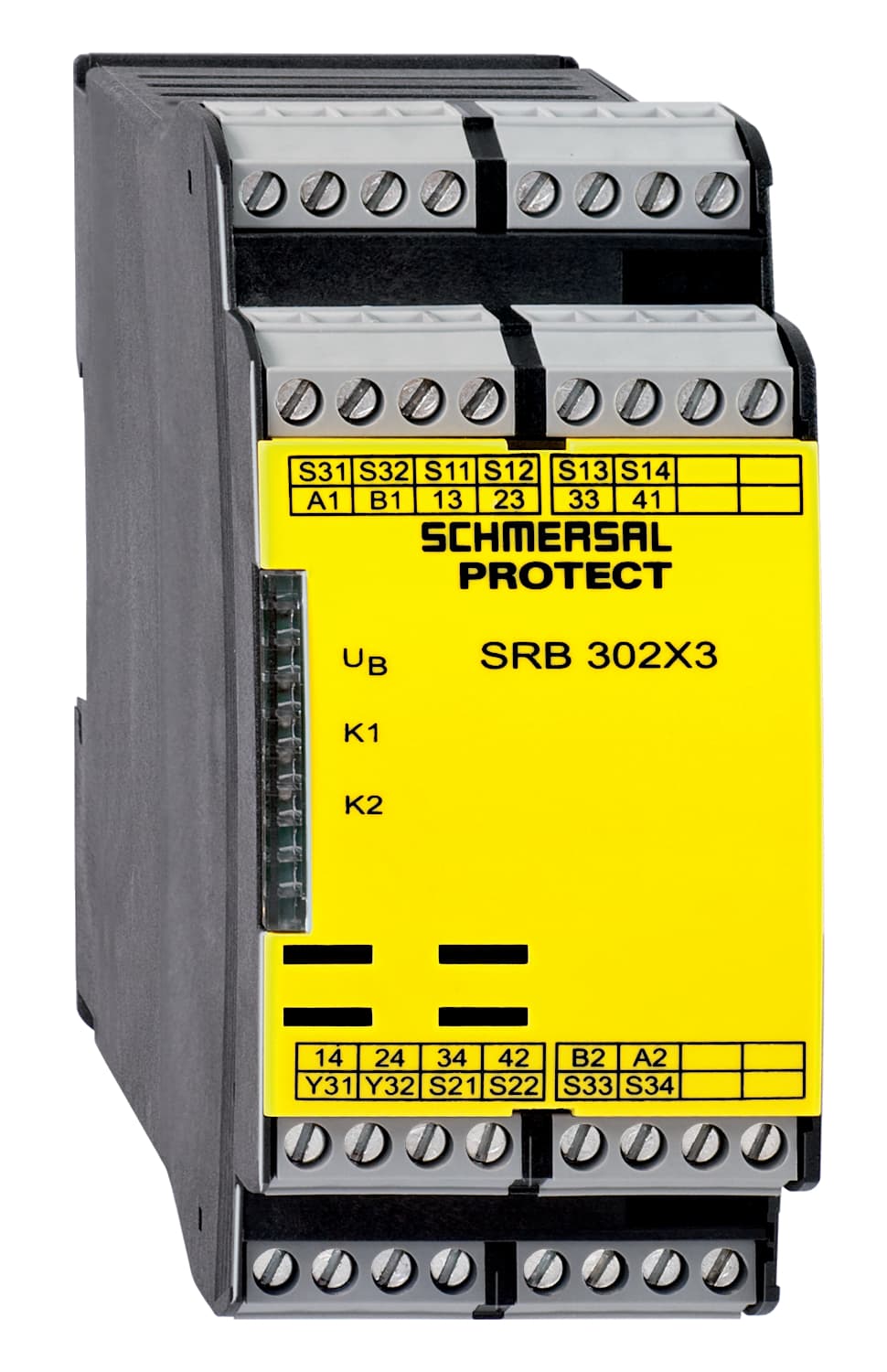

SRB302X3-24/115V Schmersal Electronic Components
Part#:SRB302X3-24/115V
Manufacturer:Schmersal
Alt. Part#:101183197
Product Lifecycle:Active
Get a quick Quote!
Guard door monitors and Safety control modules for Emergency Stop applications (Archive); Suitable for the signal processing of outputs with contact sensors; Suitable for signal processing of outputs connected to potentials (AOPDs), e.g. safety light grid
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the SRB302X3-24/115V Schmersal price in the box on the right side or send a quick quote.
Product Details
- Material of the contacts, electrical AgSn0. self-cleaning, positive drive
- Integral System Diagnostics, status Yes
- Width 45 mm
- Resistance to vibrations to EN 60068-2-6 10 ... 55 Hz, Amplitude 0.35 mm
- Frequency range 50 Hz, 60 Hz
- Utilisation category DC-13 6 A
- Drop-out delay in case of power failure, typically 60 ms
- Electronic Fuse Yes
- Number of openers 2
- Cable section, maximum 2.5 mm²
- Degree of protection of the mounting space IP54
- Rated control voltage at AC 50 Hz, maximum 126.5 VAC, 97.8 VAC
- Enclosure material Glass-fibre reinforced thermoplastic, ventilated
- Start input Yes
- Earth connection detection Yes
- Mechanical life, minimum 10,000,000 Operations
- Height 100 mm
- Ambient temperature, maximum +60 °C
- Restistance to shock 30 g / 11 ms
- Rated AC voltage for controls, 60 Hz, minimum 20.4 VAC, 26.4 VAC
- Rated AC voltage for controls at DC minimum 20.4 VDC
- Conduction resistance, maximum 40 Ω
- Contact resistance, maximum 0.1 Ω
- Storage and transport temperature, minimum -40 °C
- Degree of pollution to VDE 0110 2
- Gross weight 520 g
- Standards IEC 61508, IEC/EN 60204-1, EN 60947-5-1
- Number of auxiliary contacts 2
- Mounting Snaps onto standard DIN rail to EN 60715
- Depth 121 mm
- Storage and transport temperature, maximum +85 °C
- Rated impulse withstand voltage Uimp 4 kV
- Rated control voltage at AC 60 Hz, maximum 126.5 VAC, 97.8 VAC
- Electrical power consumption 5 VA
- Climatic stress EN 60068-2-78
- Automatic reset function Yes
- Number of safety contacts 3
- Cable section, minimum 0.25 mm²
- Ambient temperature, minimum -25 °C
- Overvoltage category III
- Utilisation category AC-15 6 A
- Drop-out delay in case of emergency stop, maximum 20 ms
- Short-circuit recognition Yes
- Feedback circuit Yes
- Terminal designations IEC/EN 60947-1
- Degree of protection of clips or terminals IP20
- Rated operating voltage 24 VAC -15% / +10%, 24 VDC -15%/+20%, residual ripple max. 10%, 115 VAC -15% / +10%
- Rated control voltage at DC, maximum 28.8 VDC
- Note (Contact resistance) in new state
- Stop-Category 0
- Number of LEDs 3
- Degree of protection of the enclosure IP40
- Tightening torque of Clips 0.6 Nm
- Rated AC voltage for controls, 50 Hz, minimum 20.4 VAC, 26.4 VAC
- Pull-in delay at RESET, typically 20 ms
- Reset edge detection Yes
- Terminal Connector Screw connection, rigid or flexible
- Wire breakage detection Yes
- EMC rating EMC-Directive
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents SRB302X3-24/115V Specs
