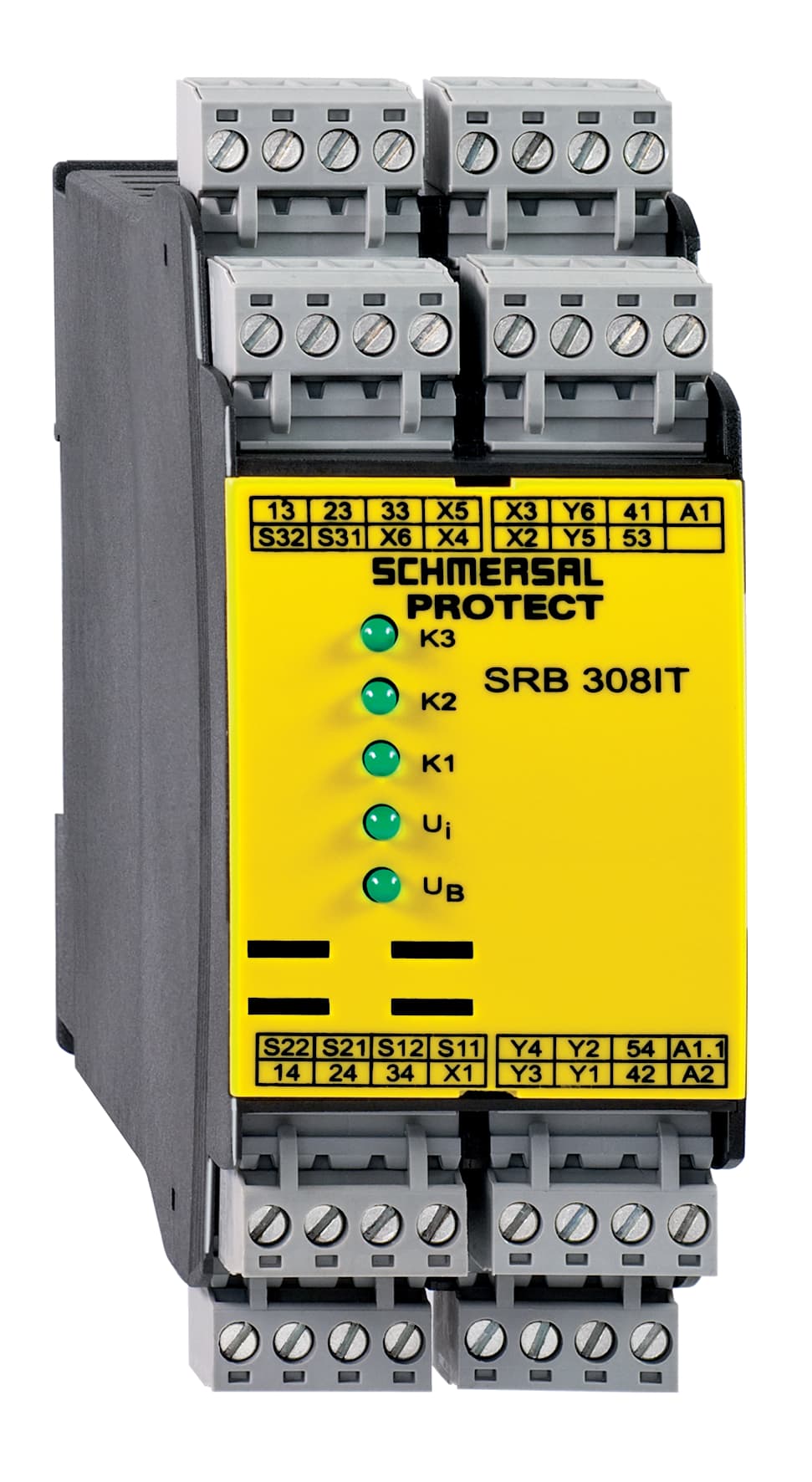

SRB308IT-230VAC Schmersal Electronic Components
Part#:SRB308IT-230VAC
Manufacturer:Schmersal
Alt. Part#:101158202
Product Lifecycle:Active
Get a quick Quote!
Guard door monitors and Safety control modules for Emergency Stop applications (Archive); Level 1: Reset without edge detection, Optional Automatic reset function, Short-circuit recognition, Level 2: / Opener (NC) Normally open contact (NO); Multifunction
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the SRB308IT-230VAC Schmersal price in the box on the right side or send a quick quote.
Product Details
- Electronic Fuse Yes
- Short-circuit recognition Yes
- Climatic stress EN 60068-2-78
- Gross weight 480 g
- Standards IEC 61508, IEC/EN 60204-1, EN 60947-5-1
- Mechanical life, minimum 10,000,000 Operations
- Cable section, minimum 0.25 mm²
- Cable section, maximum 2.5 mm²
- Degree of protection of the mounting space IP54
- Rated impulse withstand voltage Uimp 4 kV
- Enclosure material Glass-fibre reinforced thermoplastic, ventilated
- Earth connection detection Yes
- Number of undelayed semi-conductor outputs with signaling function 6
- Degree of protection of the enclosure IP40
- Frequency range 50 Hz, 60 Hz
- Material of the contacts, electrical AgSn0, Ag-Ni, self-cleaning, positive drive
- Number of auxiliary contacts 2
- Number of signalling outputs 6
- Height 100 mm
- Wire breakage detection Yes
- Removable Terminals Yes
- Reset edge detection Yes
- Start input Yes
- Number of openers 2
- Terminal Connector Screw connection, rigid or flexible
- Automatic reset function Yes
- Integral System Diagnostics, status Yes
- Number of safety contacts 3
- Tightening torque of Clips 0.6 Nm
- Width 45 mm
- EMC rating EMC-Directive
- Pull-in delay at RESET, typically 200 ms
- Stop-Category 0
- Feedback circuit Yes
- Number of LEDs 5
- Mounting Snaps onto standard DIN rail to EN 60715
- Depth 121 mm
- Storage and transport temperature, maximum +85 °C
- Rated AC voltage for controls, 50 Hz, minimum 215 VAC
- Pull-in delay at automatic start, maximum, typically 60 ms
- Conduction resistance, maximum 40 Ω
- Resistance to vibrations to EN 60068-2-6 10 ... 55 Hz, Amplitude 0.35 mm
- Rated AC voltage for controls, 60 Hz, minimum 215 VAC
- Contact resistance, maximum 0.1 Ω
- Electrical power consumption 3 W
- Ambient temperature, minimum -25 °C
- Ambient temperature, maximum +45 °C
- Overvoltage category III
- Rated operating voltage 230 VAC -15% / + 10%
- Restistance to shock 30 g / 11 ms
- Utilisation category AC-15 230 VAC
- Degree of protection of clips or terminals IP20
- Utilisation category DC-13 1.2 A
- Terminal designations IEC/EN 60947-1
- Operating current 125 mA
- Storage and transport temperature, minimum -40 °C
- Rated control voltage at AC 50 Hz, maximum 253 VAC
- Drop-out delay in case of emergency stop, maximum 15 ms
- Degree of pollution to VDE 0110 2
- Rated control voltage at AC 60 Hz, maximum 253 VAC
- Note (Contact resistance) in new state
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents SRB308IT-230VAC Specs
