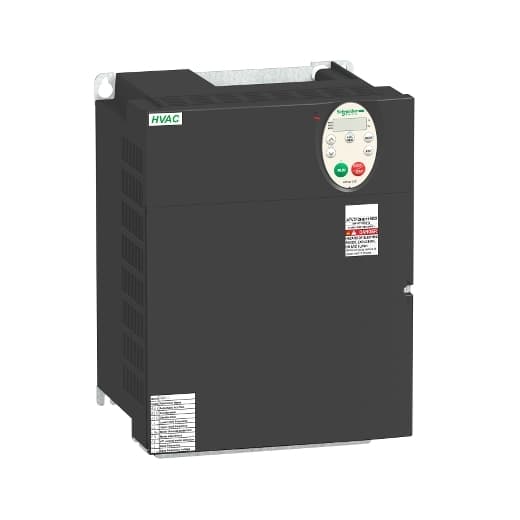

ATV212HD18M3X Schneider Electric Industrial Automation Components

Product Details

• Supply Voltage Limits
  170…264 V
• Speed Accuracy
  +/- 10 % of nominal slip 0.2 Tn to Tn
• Product Or Component Type
  Variable speed drive
• Prospective Line Isc
  22 kA
• Torque Accuracy
  +/- 15 %
• Phase
  3 phase
• [Us] Rated Supply Voltage
  200...240 V - 15...10 %
• Output Voltage
  <= power supply voltage
• Product Destination
  Asynchronous motors
• EMC Filter
  Without EMC filter
• Motor Power Kw
  18.5 kW
• Continuous Output Current
  74.8 A 230 V
• Transient Overtorque
  120 % of nominal motor torque +/- 10 % 60 s
• Device Short Name
  ATV212
• Supply Frequency
  50...60 Hz - 5...5 %
• Nominal Switching Frequency
  8 kHz
• Assembly Style
  With heat sink
• Apparent Power
  28.5 kVA 240 V
• Speed Range
  1…10
• Isolation
  Electrical between power and control
Physical Interface
2-wire RS 485
Net Weight
25.46 lb(US) (11.55 kg)
Product Specific Application
Pumps and fans in HVAC
Discrete Output Number
2
Insulation Resistance
>= 1 mOhm 500 V DC for 1 minute
Minimum Switching Current
3 mA 24 V DC configurable relay logic
Operating Position
Vertical +/- 10 degree
Motor Power Range AC-3
15…25 kW 200…240 V 3 phase
Range Of Product
Altivar 212
Maximum Horse Power Rating
25 hp
Maximum Transient Current
82.3 A 60 s
Regulation Loop
Adjustable PI regulator
Analogue Input Number
2
Speed Drive Output Frequency
0.5…200 Hz
Local Signalling
for DC bus energized 1 LED (red)
Transmission Rate
9600 bps or 19200 bps
Option Card
Communication card LonWorks
IP Degree Of Protection
IP21
Air Flow
63138.25 Gal/hr(US) (239 m3/h)
Number Of Addresses
1…247
Power Dissipation In W
698 W
Analogue Output Number
1
Transmission Frame
RTU
Specific Application
HVAC
Braking To Standstill
By DC injection
Data Format
8 bits, 1 stop, odd even or no configurable parity
Height
12.99 in (330 mm)
Motor Starter Type
Variable speed drive
Width
9.65 in (245 mm)
Type Of Polarization
No impedance
Depth
7.48 in (190 mm)
Acceleration And Deceleration Ramps
Automatic based on the load Linear adjustable separately from 0.01 to 3200 s
Frequency Resolution
Display unit 0.1 Hz Analog input: 0.024/50 Hz
Supply
Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 A overload and short-circuit protection Internal supply 24 V DC 21…27 V), <200 A overload and short-circuit protection
Switching Frequency
6...16 kHz adjustable 8...16 kHz with derating factor
Tightening Torque
5.31 lbf.in (0.6 N.m) VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES) 39.83 lbf.in (4.5 N.m), 40 lb.in L1/R, L2/S, L3/T)
Electrical Connection
VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES terminal 0.00 in² (2.5 mm²) / AWG 14 L1/R, L2/S, L3/T terminal 0.04 in² (25 mm²) / AWG 3
Dielectric Strength
2830 V DC between earth and power terminals 4230 V DC between control and power terminals
Line Current
55.8 A 240 V 67.3 A 200 V
Analogue Output Type
FM switch-configurable voltage 0...10 V DC 7620 Ohm 10 bits FM switch-configurable current 0...20 mA 970 Ohm 10 bits
Connector Type
1 RJ45 1 open style
Discrete Input Logic
Positive logic (source) F, R, RES), <= 5 V, >= 11 V Negative logic (sink) F, R, RES), >= 16 V, <= 10 V
Type Of Cable
Without mounting kit 1 IEC cable 113 °F (45 °C), copper 90 °C / XLPE/EPR Without mounting kit 1 IEC cable 113 °F (45 °C), copper 70 °C / PVC With UL Type 1 kit 3 UL 508 cable 104 °F (40 °C), copper 75 °C / PVC
Linearity Error
VIA +/- 0.15 % of maximum value input VIB +/- 0.15 % of maximum value input FM +/- 0.2 % output
Motor Slip Compensation
Not available in voltage/frequency ratio motor control Automatic whatever the load Adjustable
Accuracy
+/- 0.6 % VIA) for a temperature variation 60 °C +/- 0.6 % VIB) for a temperature variation 60 °C +/- 1 % FM) for a temperature variation 60 °C
Discrete Output Type
Configurable relay logic FLA, FLC) NO - 100000 cycles Configurable relay logic FLB, FLC) NC - 100000 cycles Configurable relay logic RY, RC) NO - 100000 cycles
Variable Speed Drive Application Selection
Building - HVAC Compressor for scroll Building - HVAC Fan Building - HVAC Pump
Discrete Input Type
F programmable 24 V DC level 1 PLC 4700 Ohm R programmable 24 V DC level 1 PLC 4700 Ohm RES programmable 24 V DC level 1 PLC 4700 Ohm
Response Time
FM 2 ms +/- 0.5 ms analog FLA, FLC 7 ms +/- 0.5 ms discrete FLB, FLC 7 ms +/- 0.5 ms discrete RY, RC 7 ms +/- 0.5 ms discrete
Maximum Switching Current
5 A 250 V AC resistive cos phi = 1 L/R = 0 ms FL, R) 5 A 30 V DC resistive cos phi = 1 L/R = 0 ms FL, R) 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms FL, R) 2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms FL, R)
Analogue Input Type
VIA switch-configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits VIB configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits VIB configurable PTC probe 0...6 probes 1500 Ohm VIA switch-configurable current 0...20 mA 250 Ohm 10 bit
Sampling Duration
2 ms +/- 0.5 ms F discrete 2 ms +/- 0.5 ms R discrete 2 ms +/- 0.5 ms RES discrete 3.5 ms +/- 0.5 ms VIA analog 22 ms +/- 0.5 ms VIB analog
Asynchronous Motor Control Profile
Voltage/frequency ratio, 5 points Voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo) Voltage/frequency ratio - Energy Saving, quadratic U/f Flux vector control without sensor, standard Voltage/frequency ratio, 2 po
Communication Port Protocol
METASYS N2 Modbus BACnet LonWorks APOGEE FLN
Communication Service
Write multiple registers (16) 2 words maximum Read holding registers (03) 2 words maximum Read device identification (43) Monitoring inhibitable Time out setting from 0.1 to 100 s Write single register (06)
Protection Type
Overheating protection drive Thermal power stage drive Short-circuit between motor phases drive Input phase breaks drive Overcurrent between output phases and earth drive Overvoltages on the DC bus drive Break on the control
