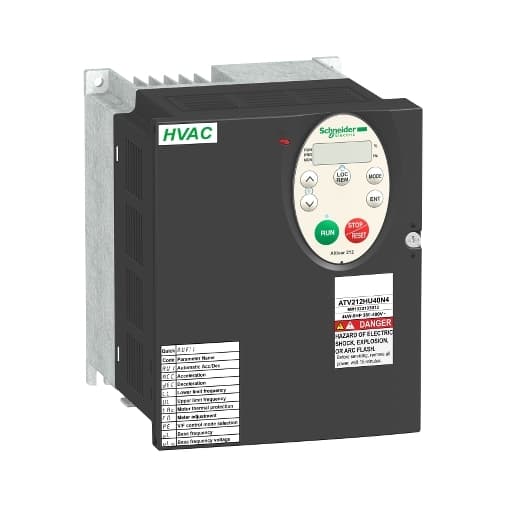

ATV212HU40N4 Schneider Electric Industrial Automation Components

Product Details

• Range Of Product
  Altivar 212
• Assembly Style
  With heat sink
• Product Or Component Type
  Variable speed drive
• Braking To Standstill
  By DC injection
• Operating Position
  Vertical +/- 10 degree
• Motor Power Kw
  4 kW
• Regulation Loop
  Adjustable PI regulator
• Type Of Polarization
  No impedance
• Width
  5.59 in (142 mm)
• Motor Starter Type
  Variable speed drive
• Device Short Name
  ATV212
• Supply Voltage Limits
  323…528 V
• Specific Application
  HVAC
• Product Specific Application
  Pumps and fans in HVAC
• Prospective Line Isc
  5 kA
• Analogue Input Number
  2
• Discrete Output Number
  2
• Product Destination
  Asynchronous motors
• Speed Drive Output Frequency
  0.5…200 Hz
• Torque Accuracy
  +/- 15 %
Insulation Resistance
>= 1 mOhm 500 V DC for 1 minute
Option Card
Communication card LonWorks
IP Degree Of Protection
IP21
Phase
3 phase
Apparent Power
6.9 kVA 380 V
Nominal Switching Frequency
12 kHz
Output Voltage
<= power supply voltage
Transmission Frame
RTU
Net Weight
7.39 lb(US) (3.35 kg)
Maximum Horse Power Rating
5 hp
Transient Overtorque
120 % of nominal motor torque +/- 10 % 60 s
Isolation
Electrical between power and control
Transmission Rate
9600 bps or 19200 bps
Functionality
Mid
[Us] Rated Supply Voltage
380...480 V - 15...10 %
Maximum Transient Current
10 A 60 s
Minimum Switching Current
3 mA 24 V DC configurable relay logic
Power Dissipation In W
176 W
Supply Frequency
50...60 Hz - 5...5 %
Speed Range
1…10
Local Signalling
for DC bus energized 1 LED (red)
Physical Interface
2-wire RS 485
Depth
5.91 in (150 mm)
EMC Filter
Class C2 EMC filter integrated
Speed Accuracy
+/- 10 % of nominal slip 0.2 Tn to Tn
Analogue Output Number
1
Number Of Addresses
1…247
Air Flow
15850.61 Gal/hr(US) (60 m3/h)
Height
7.24 in (184 mm)
Data Format
8 bits, 1 stop, odd even or no configurable parity
Tightening Torque
11.51 lbf.in (1.3 N.m), 11.5 lb.in L1/R, L2/S, L3/T) 5.31 lbf.in (0.6 N.m) VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES)
Switching Frequency
6...16 kHz adjustable 12...16 kHz with derating factor
Frequency Resolution
Display unit 0.1 Hz Analog input: 0.024/50 Hz
Line Current
6.4 A 480 V 8.1 A 380 V
Acceleration And Deceleration Ramps
Linear adjustable separately from 0.01 to 3200 s Automatic based on the load
Continuous Output Current
9.1 A 380 V 9.1 A 460 V
Dielectric Strength
3535 V DC between earth and power terminals 5092 V DC between control and power terminals
Connector Type
1 open style 1 RJ45
Analogue Output Type
FM switch-configurable voltage 0...10 V DC 7620 Ohm 10 bits FM switch-configurable current 0...20 mA 970 Ohm 10 bits
Supply
Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 A overload and short-circuit protection Internal supply 24 V DC 21…27 V), <200 A overload and short-circuit protection
Motor Power Range AC-3
4…6 kW 380…440 V 3 phase 4…6 kW 480…500 V 3 phase
Electrical Connection
VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES terminal 0.00 in² (2.5 mm²) / AWG 14 L1/R, L2/S, L3/T terminal 0.01 in² (6 mm²) / AWG 10
Discrete Input Logic
Positive logic (source) F, R, RES), <= 5 V, >= 11 V Negative logic (sink) F, R, RES), >= 16 V, <= 10 V
Discrete Output Type
Configurable relay logic FLA, FLC) NO - 100000 cycles Configurable relay logic FLB, FLC) NC - 100000 cycles Configurable relay logic RY, RC) NO - 100000 cycles
Accuracy
+/- 0.6 % VIA) for a temperature variation 60 °C +/- 0.6 % VIB) for a temperature variation 60 °C +/- 1 % FM) for a temperature variation 60 °C
Variable Speed Drive Application Selection
Building - HVAC Compressor for scroll Building - HVAC Fan Building - HVAC Pump
Discrete Input Type
F programmable 24 V DC level 1 PLC 4700 Ohm R programmable 24 V DC level 1 PLC 4700 Ohm RES programmable 24 V DC level 1 PLC 4700 Ohm
Type Of Cable
Without mounting kit 1 IEC cable 113 °F (45 °C), copper 90 °C / XLPE/EPR Without mounting kit 1 IEC cable 113 °F (45 °C), copper 70 °C / PVC With UL Type 1 kit 3 UL 508 cable 104 °F (40 °C), copper 75 °C / PVC
Motor Slip Compensation
Automatic whatever the load Adjustable Not available in voltage/frequency ratio motor control
Linearity Error
VIA +/- 0.15 % of maximum value input VIB +/- 0.15 % of maximum value input FM +/- 0.2 % output
Analogue Input Type
VIA switch-configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits VIB configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits VIB configurable PTC probe 0...6 probes 1500 Ohm VIA switch-configurable current 0...20 mA 250 Ohm 10 bit
Maximum Switching Current
5 A 250 V AC resistive cos phi = 1 L/R = 0 ms FL, R) 5 A 30 V DC resistive cos phi = 1 L/R = 0 ms FL, R) 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms FL, R) 2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms FL, R)
Response Time
FM 2 ms +/- 0.5 ms analog FLA, FLC 7 ms +/- 0.5 ms discrete FLB, FLC 7 ms +/- 0.5 ms discrete RY, RC 7 ms +/- 0.5 ms discrete
Communication Port Protocol
METASYS N2 BACnet APOGEE FLN Modbus LonWorks
Sampling Duration
2 ms +/- 0.5 ms F discrete 2 ms +/- 0.5 ms R discrete 2 ms +/- 0.5 ms RES discrete 3.5 ms +/- 0.5 ms VIA analog 22 ms +/- 0.5 ms VIB analog
Asynchronous Motor Control Profile
Voltage/frequency ratio - Energy Saving, quadratic U/f Voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo) Voltage/frequency ratio, 2 points Voltage/frequency ratio, 5 points Flux vector control without sensor, stan
Communication Service
Write multiple registers (16) 2 words maximum Time out setting from 0.1 to 100 s Read device identification (43) Monitoring inhibitable Read holding registers (03) 2 words maximum Write single register (06)
Protection Type
Overheating protection drive Thermal power stage drive Short-circuit between motor phases drive Input phase breaks drive Overcurrent between output phases and earth drive Overvoltages on the DC bus drive Break on the control
