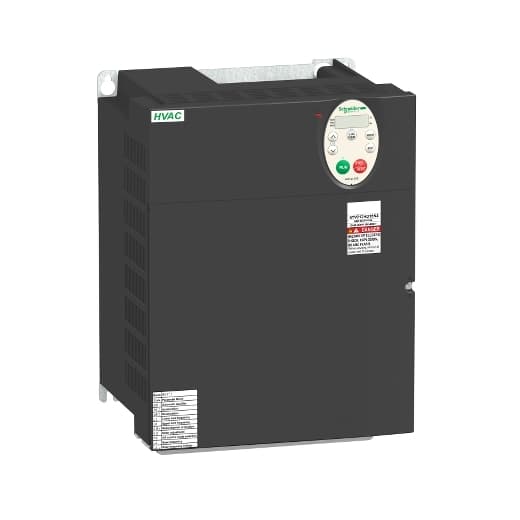

ATV212HD22N4S Schneider Electric Industrial Automation Components

Product Details

• Speed Accuracy
  +/- 10 % of nominal slip 0.2 Tn to Tn
• Isolation
  Electrical between power and control
• Phase
  3 phase
• Maximum Transient Current
  47.9 A 60 s
• Assembly Style
  With heat sink
• Prospective Line Isc
  22 kA
• Speed Range
  1…10
• Maximum Horse Power Rating
  30 hp
• EMC Filter
  Class C2 EMC filter integrated
• Transmission Rate
  9600 bps or 19200 bps
• Device Short Name
  ATV212
• Torque Accuracy
  +/- 15 %
• Output Voltage
  <= power supply voltage
• Range Of Product
  Altivar 212
• Transient Overtorque
  120 % of nominal motor torque +/- 10 % 60 s
• Physical Interface
  2-wire RS 485
• Height
  12.99 in (330 mm)
• Product Destination
  Asynchronous motors
• Apparent Power
  27.3 kVA 380 V
• Discrete Output Number
  2
Motor Power Kw
22 kW
Supply Frequency
50...60 Hz - 5...5 %
Regulation Loop
Adjustable PI regulator
Analogue Output Number
1
Data Format
8 bits, 1 stop, odd even or no configurable parity
Braking To Standstill
By DC injection
Product Or Component Type
Variable speed drive
[Us] Rated Supply Voltage
380...480 V - 15...10 %
Speed Drive Output Frequency
0.5…200 Hz
Analogue Input Number
2
Product Specific Application
Pumps and fans in HVAC
Supply Voltage Limits
323…528 V
Nominal Switching Frequency
8 kHz
Local Signalling
for DC bus energized 1 LED (red)
Net Weight
25.68 lb(US) (11.65 kg)
Operating Position
Vertical +/- 10 degree
Minimum Switching Current
3 mA 24 V DC configurable relay logic
Width
9.65 in (245 mm)
Insulation Resistance
>= 1 mOhm 500 V DC for 1 minute
Motor Starter Type
Variable speed drive
Depth
7.48 in (190 mm)
Number Of Addresses
1…247
Air Flow
56533.83 Gal/hr(US) (214 m3/h)
Option Card
Communication card LonWorks
Power Dissipation In W
723 W
Type Of Polarization
No impedance
Transmission Frame
RTU
Analogue Output Type
FM switch-configurable voltage 0...10 V DC 7620 Ohm 10 bits FM switch-configurable current 0...20 mA 970 Ohm 10 bits
Frequency Resolution
Display unit 0.1 Hz Analog input: 0.024/50 Hz
Continuous Output Current
43.5 A 380 V 43.5 A 460 V
Discrete Input Logic
Positive logic (source) F, R, RES), <= 5 V, >= 11 V Negative logic (sink) F, R, RES), >= 16 V, <= 10 V
Line Current
41.1 A 380 V 32.6 A 480 V
Electrical Connection
VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES terminal 0.00 in² (2.5 mm²) / AWG 14 L1/R, L2/S, L3/T terminal 0.04 in² (25 mm²) / AWG 3
Switching Frequency
6...16 kHz adjustable 8...16 kHz with derating factor
Tightening Torque
5.31 lbf.in (0.6 N.m) VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES) 39.83 lbf.in (4.5 N.m), 40 lb.in L1/R, L2/S, L3/T)
Supply
Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 A overload and short-circuit protection Internal supply 24 V DC 21…27 V), <200 A overload and short-circuit protection
Connector Type
1 open style 1 RJ45
Acceleration And Deceleration Ramps
Linear adjustable separately from 0.01 to 3200 s Automatic based on the load
Motor Power Range AC-3
15…25 kW 380…440 V 3 phase 15…25 kW 480…500 V 3 phase
Dielectric Strength
3535 V DC between earth and power terminals 5092 V DC between control and power terminals
Motor Slip Compensation
Adjustable Automatic whatever the load Not available in voltage/frequency ratio motor control
Discrete Output Type
Configurable relay logic FLA, FLC) NO - 100000 cycles Configurable relay logic FLB, FLC) NC - 100000 cycles Configurable relay logic RY, RC) NO - 100000 cycles
Linearity Error
VIA +/- 0.15 % of maximum value input VIB +/- 0.15 % of maximum value input FM +/- 0.2 % output
Type Of Cable
Without mounting kit 1 IEC cable 113 °F (45 °C), copper 90 °C / XLPE/EPR Without mounting kit 1 IEC cable 113 °F (45 °C), copper 70 °C / PVC With UL Type 1 kit 3 UL 508 cable 104 °F (40 °C), copper 75 °C / PVC
Discrete Input Type
F programmable 24 V DC level 1 PLC 4700 Ohm R programmable 24 V DC level 1 PLC 4700 Ohm RES programmable 24 V DC level 1 PLC 4700 Ohm
Variable Speed Drive Application Selection
Building - HVAC Compressor for scroll Building - HVAC Fan Building - HVAC Pump
Accuracy
+/- 0.6 % VIA) for a temperature variation 60 °C +/- 0.6 % VIB) for a temperature variation 60 °C +/- 1 % FM) for a temperature variation 60 °C
Analogue Input Type
VIA switch-configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits VIB configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits VIB configurable PTC probe 0...6 probes 1500 Ohm VIA switch-configurable current 0...20 mA 250 Ohm 10 bit
Response Time
FM 2 ms +/- 0.5 ms analog FLA, FLC 7 ms +/- 0.5 ms discrete FLB, FLC 7 ms +/- 0.5 ms discrete RY, RC 7 ms +/- 0.5 ms discrete
Maximum Switching Current
5 A 250 V AC resistive cos phi = 1 L/R = 0 ms FL, R) 5 A 30 V DC resistive cos phi = 1 L/R = 0 ms FL, R) 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms FL, R) 2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms FL, R)
Asynchronous Motor Control Profile
Voltage/frequency ratio, 2 points Voltage/frequency ratio, 5 points Voltage/frequency ratio - Energy Saving, quadratic U/f Voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo) Flux vector control without sensor, stan
Communication Port Protocol
APOGEE FLN Modbus LonWorks METASYS N2 BACnet
Sampling Duration
2 ms +/- 0.5 ms F discrete 2 ms +/- 0.5 ms R discrete 2 ms +/- 0.5 ms RES discrete 3.5 ms +/- 0.5 ms VIA analog 22 ms +/- 0.5 ms VIB analog
Communication Service
Read device identification (43) Monitoring inhibitable Time out setting from 0.1 to 100 s Read holding registers (03) 2 words maximum Write multiple registers (16) 2 words maximum Write single register (06)
Protection Type
Overheating protection drive Thermal power stage drive Short-circuit between motor phases drive Input phase breaks drive Overcurrent between output phases and earth drive Overvoltages on the DC bus drive Break on the control
