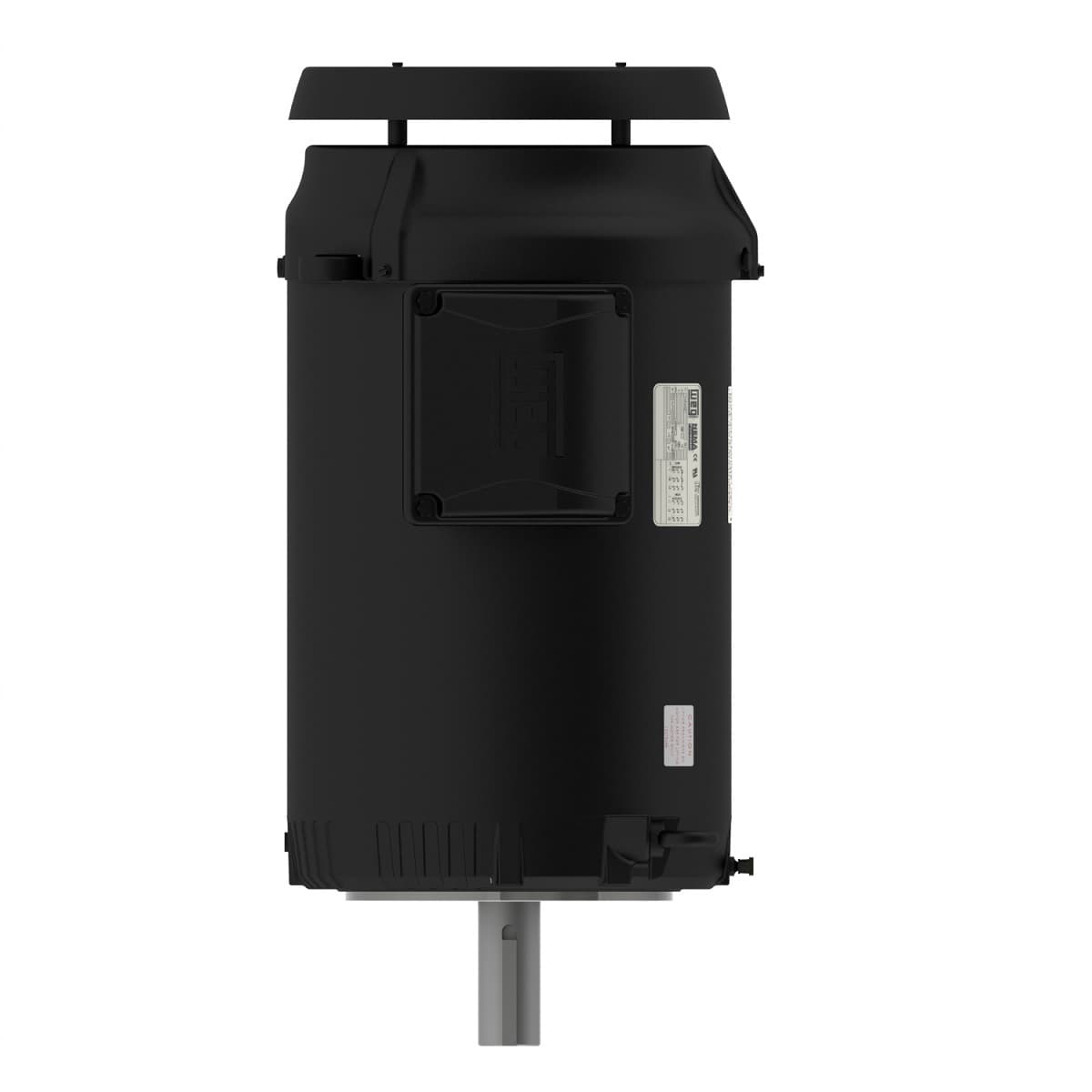

02018ET3ER256TC-S WEG AC Motors
Part#:02018ET3ER256TC-S
Manufacturer:WEG
Alt. Part#:7894171331192
Product Lifecycle:Active
Get a quick Quote!
Rolled Steel NEMA Premium Efficiency 20 HP 4P 254/6TC 3Ph 230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Footless
Check out the 02018ET3ER256TC-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating20 HP
- Rated Speed1765 rpm
- Number of Poles4 Pole
- Voltage230/460 V
- Flange TypeC
- Slip 1.94 %
- Temperature rise 80 K
- Mounting W-6
- Rated current 49.4/24.7 A
- LRC 6.7x(Code H)
- Approx. weight³ 258 lb
- Synchronous speed 1800 rpm
- Frame 254/6TC
- Insulation Class F
- Degree of Protection IP55
- Number of poles 4
- Rated speed 1765 rpm
- Starting Method Direct On Line
- Output 20 HP (15 kW)
- Breakdown torque 300 %
- Duty Cycle Cont.(S1)
- Voltage 230/460//190-220/380-415 V
- Rated voltage 230/460 V
- Design B
- Ambient temperature -20°C to +40°C
- Flange C
- L. R. Amperes 331/165 A
- Locked rotor torque 270 %
- Rotation¹ Both (CW and CCW)
- Standard NEMA MG-1
- Number of Poles 4
- No load current 22.2/11.1 A
- Altitude 1000 m.a.s.l.
- Noise level² 68.0 dB(A)
- Rated torque 59.5 ft.lb
- Moment of inertia (J) 2.64 sq.ft.lb
- Frequency 60 Hz
- Locked rotor time 28s (cold) 16s (hot)
- Enclosure IC411 - TEFC
- Output rating 20 HP
- Terminal box¹ Left position
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
