02018ET3PCT256TF1-W2 WEG AC Motors
Part#:02018ET3PCT256TF1-W2
Manufacturer:WEG
Alt. Part#:7909018319278
Product Lifecycle:Active
Get a quick Quote!

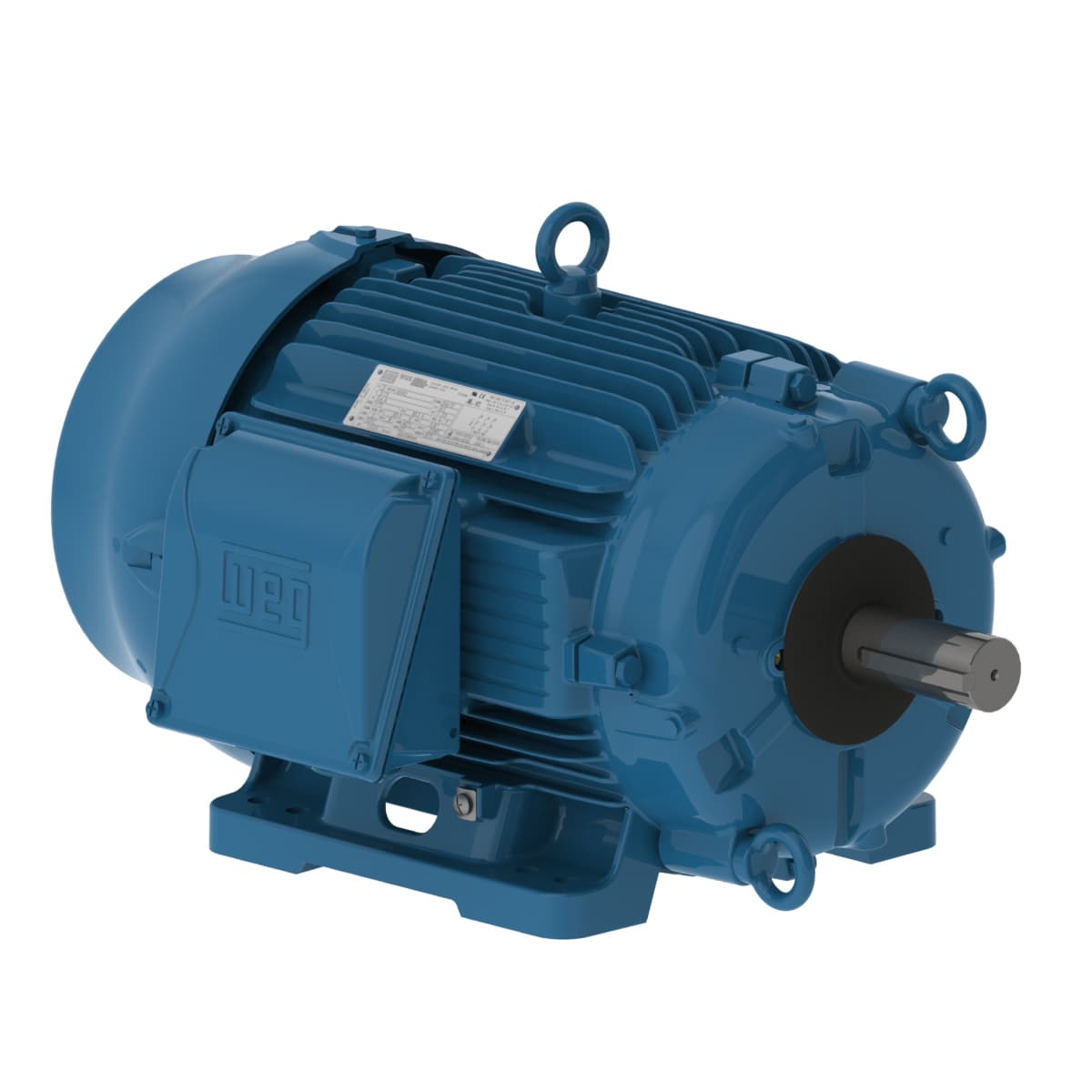

W22 Cooling Tower NEMA Premium Efficiency 20 HP 4P 254/6T 3Ph 200 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 02018ET3PCT256TF1-W2 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating20 HP
- Rated Speed1770 rpm
- Number of Poles4 Pole
- Voltage200 V
- Flange TypeWithout
- Rated torque 59.3 ft.lb
- L. R. Amperes 382 A
- Mounting F-1
- Terminal box¹ Left position
- Rated speed 1770 rpm
- Moment of inertia (J) 3.10 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Flange Without
- Rated current 55.4 A
- Design B
- Degree of Protection IP55
- Locked rotor time 54s (cold) 30s (hot)
- Rated voltage 200 V
- Duty Cycle Cont.(S1)
- Voltage 200 V
- Output 20 HP (15 kW)
- Breakdown torque 260 %
- Rotation¹ Both (CW and CCW)
- Output rating 20 HP
- Frame 254/6T
- LRC 6.9x(Code H)
- Approx. weight³ 336 lb
- Starting Method Direct On Line
- Frequency 60 Hz
- Insulation Class F
- Enclosure IC411 - TEFC
- Synchronous speed 1800 rpm
- Number of Poles 4
- Service factor 1.25
- Ambient temperature -20°C to +40°C
- Standard NEMA MG-1
- Locked rotor torque 240 %
- Temperature rise 80 K
- Noise level² 64.0 dB(A)
- No load current 22.1 A
- Slip 1.67 %
- Number of poles 4
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
