AC/DC Power Supplies

ML50.100

PULS ML50.100 is a power supply unit (PSU) / converter designed for AC/DC applications with DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and features a NEC Class 2 DC-OK relay contact output. The unit provides a rated current of 2.1A at 24Vdc and utilizes spring-clamp connections for connectivity. It supports a wide supply voltage range from 85Vac to 264Vac (with specific nominal values including 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, 240Vac; 47-63Hz), a turn-ON voltage of 65Vac, and a shutdown voltage of 55Vac. Additionally, it can operate with DC supply voltages between 82Vdc and 380Vdc, with nominal values such as 100Vdc, 110Vdc, 120Vdc, 127Vdc, 200Vdc, 220Vdc, and 250Vdc. The PSU's housing is made from a PC / ABS blend, and it is compatible with single-phase (1AC) or DC networks. Its dimensions are W45mm x H75mm x D91mm, and it has a net width of 45 mm. The rated power is 50W, and the output voltage is adjustable between 24Vdc and 28Vdc, with a 400mV turn-ON overshoot. It features protection functions including an NTC (input inrush current limiter) and boasts efficiencies of 0.89 (230Vac input), 0.884 (120Vac input), and 0.875 (100Vac input). The current consumption can reach up to 17A max. inrush at 120Vac input and 35A peak max. inrush at 230Vac input. The PSU has a 32ms start-up delay for 100-230Vac input, a rise time of 33-48ms under nominal input with a constant full current load and 0mF load capacitance, and a rise time of 45-60ms under the same conditions with 2mF load capacitance. Power dissipation/losses are calculated at 6.2 W, and the electrical durability is rated at a minimum of 54kh (54,000 hours) at +40°C. The ripple is specified as 50mVpp (20Hz...20MHz; 50Ω), and the output stage capacitance is 1600 µF.

Puls

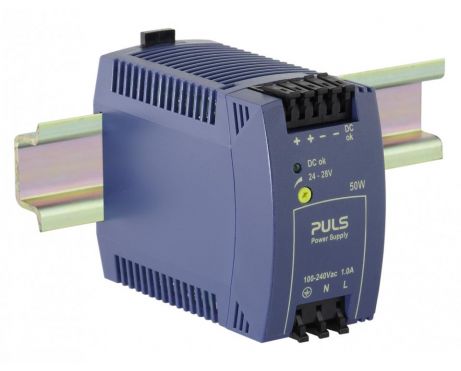

ML50.101

PULS ML50.101 is a power supply unit (PSU) / converter designed for AC/DC applications with DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and is optimized for parallel use with a DC-OK relay contact output. This unit has a rated current of 2.1A at 24Vdc and utilizes spring-clamp connections for connectivity. It supports a wide supply voltage range from 85Vac to 264Vac (with specific nominal values across 100Vac to 240Vac; 47-63Hz), including a 65Vac turn-ON voltage and a 55Vac shutdown voltage, as well as a DC supply voltage range from 88Vdc to 375Vdc. The ML50.101 features a PC / ABS blend housing, is compatible with single-phase (1AC) or DC networks, and has dimensions of W45mm x H75mm x D91mm. It offers a rated power of 50W and an adjustable output voltage range from 24Vdc to 28Vdc. Protection functions include an NTC for input inrush current limiting. The efficiency is rated at 0.885 with a 230Vac input, and it has a maximum current consumption of 17A inrush at 120Vac input and 35A peak max. inrush at 230Vac input. The unit exhibits a 32ms start-up delay, a rise time of 33-48ms under nominal input with a constant full current load and 0mF load capacitance, and a 45-60ms rise time with 2mF load capacitance. Power dissipation/losses are calculated at 6.8W, with a ripple of 50mVpp across 20Hz to 20MHz at 50Ω, and an output stage capacitance of 1600μF.

Puls

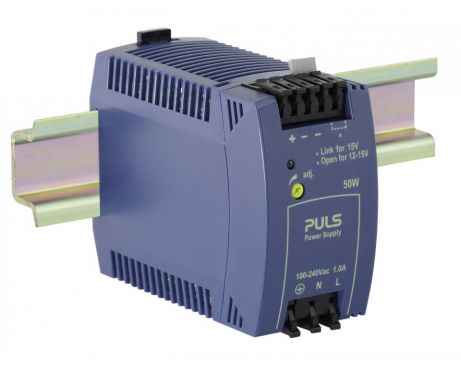

ML50.102

PULS ML50.102 is a power supply unit (PSU) / converter designed for AC/DC applications with DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and adheres to NEC Class 2 design specifications. This unit provides a rated current of 4.2A at 12Vdc and features spring-clamp connections for secure installation. It supports a wide supply voltage range from 85Vac to 264Vac (with specific nominal values across 100Vac to 240Vac at 47-63Hz, including a 65Vac turn-ON voltage and a 55Vac shutdown voltage) and from 88Vdc to 375Vdc (with nominal values from 100Vdc to 250Vdc). The ML50.102 is housed in a PC / ABS blend, measures 45mm in width, 75mm in height, and 91mm in depth, and is suitable for single-phase (1AC) or DC networks. It offers a rated power of 50W and an adjustable output voltage range from 12Vdc to 15Vdc, with a 400mV turn-ON overshoot. Protection is provided by an NTC (input inrush current limiter), and the unit boasts an efficiency of 0.9 at 230Vac input. Maximum current consumption is 17A at 120Vac input and 35A peak at 230Vac input, with a 32ms start-up delay and 48ms rise time under nominal conditions. Power dissipation/losses are rated at 6W, and the output stage features a ripple of 100mVpp across 20Hz to 20MHz at 50Ω, with a capacitance of 1600μF.

Puls

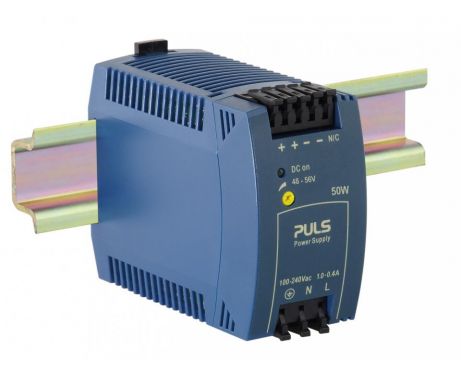

ML50.105

PULS ML50.105 is a power supply unit (PSU) / converter designed for AC/DC applications with DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and is classified under NEC Class 2 design. The unit provides a rated current of 1.05A at 48Vdc with a power derating from 1.3W at +60°C to +70°C. It features spring-clamp connections for secure and reliable connectivity. The supply voltage ranges from 85Vac to 264Vac for AC input (with specific nominal values including 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac at a frequency of 47-63Hz, a turn-ON voltage of 65Vac, and a shutdown voltage of 55Vac) and from 88Vdc to 375Vdc for DC input (with nominal values such as 100Vdc, 110Vdc, 120Vdc, 127Vdc, 200Vdc, 220Vdc, and 250Vdc). The housing is made from a PC / ABS blend, ensuring durability within its specified environment. This unit is compatible with single-phase (1AC) or DC networks, has a net width of 45 mm, and offers a rated power of 50W. The output voltage is adjustable between 48Vdc and 56Vdc, with a 400mV turn-ON overshoot. It boasts an efficiency of 0.9 with a 230Vac input, a maximum inrush current consumption of 17A at 120Vac input and 35A peak at 230Vac input, and includes a 32s start-up delay for 100-230Vac input with a 48ms rise time under nominal input conditions. Power dissipation/losses are rated at 6W, with a ripple of 200mVpp across a frequency range of 20Hz to 20MHz at 50Ω, and an output stage capacitance of 1600 µF.

Puls

ML50.109

PULS ML50.109 is a power supply unit designed for AC/DC conversion and is suitable for DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and features a NEC Class 2 conformal coating with a DC-OK relay contact output. The unit provides a rated current of 2.1A at 24Vdc and utilizes spring-clamp connections for connectivity. It supports a wide supply voltage range from 85Vac to 264Vac for AC (with specific nominal values and a 65Vac turn-ON voltage and 55Vac shutdown voltage) and from 82Vdc to 380Vdc for DC, accommodating various network configurations including single-phase (1AC) or DC. The ML50.109 measures 45mm in width, 75mm in height, and 91mm in depth, and is housed in a PC/ABS blend material. It delivers a rated power of 50W with an adjustable output voltage range of 24Vdc to 28Vdc. The unit is designed with protection functions including an NTC for input inrush current limiting and boasts an efficiency of up to 0.89 depending on the input voltage. It has a maximum current consumption of 17A at 120Vac input and 35A peak at 230Vac input, with a power dissipation/loss of 6.2W. The electrical durability of the ML50.109 is rated at a minimum of 54,000 hours at +40°C, and it features a ripple of 50mVpp across a frequency range of 20Hz to 20MHz. The output stage capacitance is 1600µF, ensuring stable operation across its service life.

Puls

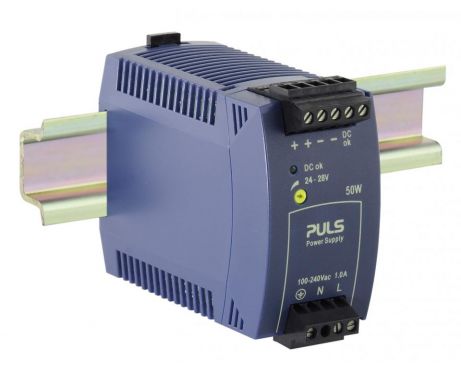

ML50.111

PULS ML50.111 is a power supply unit (PSU) / converter designed for AC/DC applications with DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and features a plug connector NEC Class 2 optimized for parallel use, including a DC-OK relay contact output. The unit has a rated current of 2.1A at 24Vdc and utilizes screw-clamp connections for secure installation. It supports a wide supply voltage range from 85Vac to 264Vac (with specific nominal values across 100Vac to 240Vac; 47-63Hz), including a 65Vac turn-ON voltage and a 55Vac shutdown voltage, as well as a DC supply voltage range from 88Vdc to 375Vdc. The ML50.111 is housed in a PC / ABS blend, measuring 45mm in width, 75mm in height, and 91mm in depth. It is compatible with single-phase (1AC) or DC networks, has a rated power of 50W, and provides an adjustable output voltage from 24Vdc to 28Vdc with a 400mV turn-ON overshoot. Protection is ensured by an NTC (input inrush current limiter), and the unit boasts an efficiency of 0.885 at 230Vac input. Maximum current consumption is 17A at 120Vac input and 35A peak at 230Vac input, with power dissipation/losses at 6.8W and a ripple of 50mVpp across 20Hz to 20MHz at 50Ω. The output stage capacitance is 1600µF.

Puls

ML60.121

PULS ML60.121 is a power supply unit (PSU) / converter designed for AC/DC applications with DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and adheres to NEC Class 2 design specifications. This unit provides a rated current of 4.5A at 12Vdc and features screw-clamp connections for secure installation. It supports a wide supply voltage range from 85Vac to 264Vac (with specific nominal values across 100Vac to 240Vac at 47-63Hz, including a 75Vac turn-ON voltage and a 65Vac shutdown voltage) and 88Vdc to 375Vdc (with nominal values from 100Vdc to 250Vdc), making it versatile for various electrical environments. The ML60.121 measures 45mm in width, 75mm in height, and 91mm in depth, housed in a PC / ABS blend for durability. It is compatible with single-phase (1AC) or DC networks, offering a rated power of 54W and an adjustable output voltage range from 12Vdc to 15Vdc, with a 200mV turn-ON overshoot. Protection is provided by an NTC (input inrush current limiter), and the unit boasts an efficiency of 0.872 at 230Vac input, 0.853 at 120Vac input, and 0.835 at 100Vac input. Current consumption peaks at 16A max inrush (at 120Vac input) and 32A peak max inrush (at 230Vac input), with a 90-120ms start-up delay and a 40-50ms/90-110ms rise time under nominal input conditions. Power dissipation/losses are calculated at 7.9 W, with an electrical durability of 56,000 hours at +40°C. The output stage ripple is 50mVpp (20Hz to 20MHz; 50Ω), and the capacitance at the output stage is 3000µF.

Puls

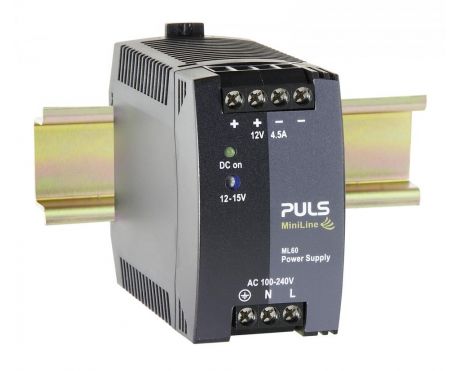

ML60.122

PULS ML60.122 is a power supply unit (PSU) / converter designed for AC/DC applications with DIN rail mounting. It operates within an ambient air temperature range of -40 to +70°C and is designed for NEC Class 2 operation in cold environments down to -40°C. This unit has a rated current of 4.5A at 12Vdc and utilizes screw-clamp connections for connectivity. It supports a wide range of supply voltages from 85Vac to 264Vac (with specific nominal values listed) and from 88Vdc to 375Vdc, featuring a turn-ON voltage of 75Vac and a shutdown voltage of 65Vac. The ML60.122 measures 45mm in width, 75mm in height, and 91mm in depth, housed in a PC / ABS blend. It is compatible with single-phase (1AC) or DC networks, has a rated power of 54W, and offers an adjustable output voltage range of 12Vdc to 15Vdc with a 200mV turn-ON overshoot. The unit's protection functions include an active input inrush current limiter. Efficiency rates vary based on input voltage, with 0.876 at 230Vac, 0.858 at 120Vac, and 0.841 at 100Vac. It features a peak current consumption of 6A at 230Vac input, with specific time delays for start-up and rise times under different conditions. Power dissipation is noted at 7.6W, and the electrical durability is rated at a minimum of 56,000 hours at +40°C. The ripple is specified at 50mVpp across a 20Hz to 20MHz range with a 50Ω load, and the output stage capacitance is 3000µF.

Puls

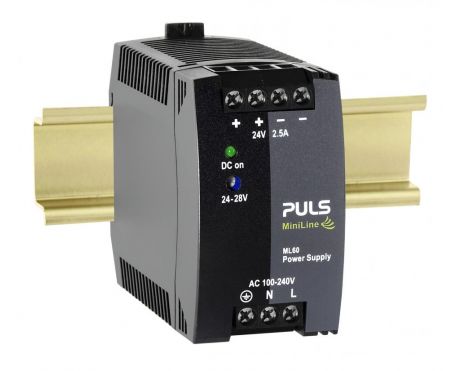

ML60.241

PULS ML60.241 is a power supply unit designed for AC/DC conversion with DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and is designed according to NEC Class 2 standards. This unit provides a rated current of 2.5A at 24Vdc and features screw-clamp connections for secure installation. It supports a wide supply voltage range from 85Vac to 264Vac (with specific nominal values across 100Vac to 240Vac at 47-63Hz, including a 75Vac turn-ON voltage and a 65Vac shutdown voltage) and 88Vdc to 375Vdc for DC supply, accommodating single-phase (1AC) or DC networks. The ML60.241 measures 45mm in width, 75mm in height, and 91mm in depth, housed in a PC/ABS blend for durability. It delivers a rated power of 60W with an adjustable output voltage range of 24Vdc to 28Vdc, featuring a 200mV turn-ON overshoot. Protection is provided by an NTC for input inrush current limiting. Efficiency rates vary by input voltage, achieving 0.897 at 230Vac, 0.878 at 120Vac, and 0.865 at 100Vac. It has a maximum inrush current consumption of 16A at 120Vac input and 32A peak at 230Vac input. The unit exhibits a 170ms start-up delay, with rise times of 50-60ms under nominal input and constant full current load without load capacitance, and 110-140ms with 2.5mF load capacitance. Power dissipation is noted at 6.9W, and it has an electrical durability of at least 128,000 hours at +40°C. Ripple is maintained at 50mVpp across 20Hz to 20MHz at 50Ω, with an output stage capacitance of 1600µF.

Puls

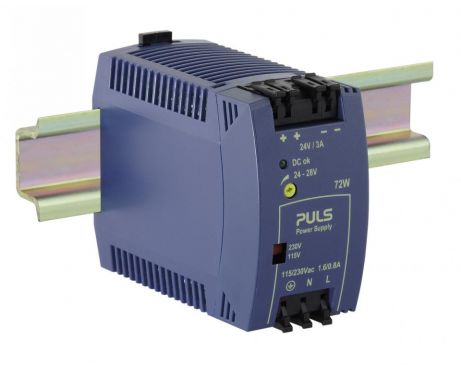

ML70.100

PULS ML70.100 is a power supply unit designed for AC/DC conversion and is suitable for DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and adheres to NEC Class 2 design specifications. This unit offers a rated current of 3A at 24Vdc and features spring-clamp connections for ease of installation. It supports a supply voltage range of 85Vac-132Vac / 184Vac-264Vac for AC (with manual selection) and 213Vdc-377Vdc for DC, accommodating various network configurations including single-phase (1AC) or DC. The ML70.100 measures 45mm in width, 75mm in height, and 91mm in depth, and is housed in a PC / ABS blend for durability. It provides a rated power of 72W and an adjustable output voltage range of 24Vdc-28Vdc. Protection is ensured through an NTC for input inrush current limiting. The unit boasts an efficiency of 0.915 with a 230Vac input and has a maximum inrush current consumption of 26A at 120Vac input and 30A peak at 230Vac input. Power dissipation is calculated at 8.7W, and it maintains a ripple of 50mVpp across a frequency range of 20Hz to 20MHz at 50Ω.

Puls

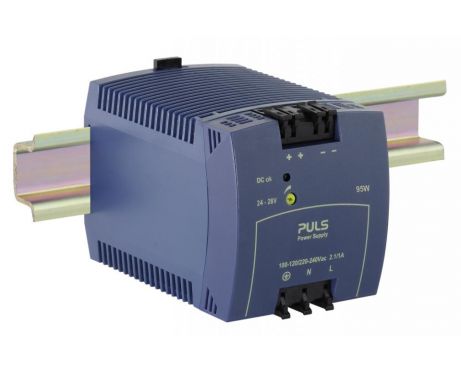

ML95.100

PULS ML95.100 is a power supply unit (PSU) / converter designed for AC/DC applications with DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and is designed according to NEC Class 2 standards. This unit offers a rated current of 3.9A at 24Vdc and features spring-clamp connections for ease of installation. It supports a wide supply voltage range, accepting AC inputs from 85Vac to 132Vac or 184Vac to 264Vac (auto-select based on 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, 240Vac nominal; 47-63Hz) and DC inputs from 213Vdc to 377Vdc (220Vdc, 250Vdc nominal). The ML95.100 is housed in a PC / ABS blend, measuring 73mm in width, 75mm in height, and 103mm in depth. It is suitable for single-phase (1AC) or DC networks, with a rated power of 95W and an adjustable output voltage range of 24Vdc to 28Vdc. It includes protection functions such as NTC for input inrush current limiting, achieves an efficiency of 0.9 with a 230Vac input, and has a maximum inrush current consumption of 22A at 120Vac input and 37A peak at 230Vac input. Power dissipation/losses are rated at 10.5W, and it features a ripple of 50mVpp across a frequency range of 20Hz to 20MHz at 50Ω.

Puls

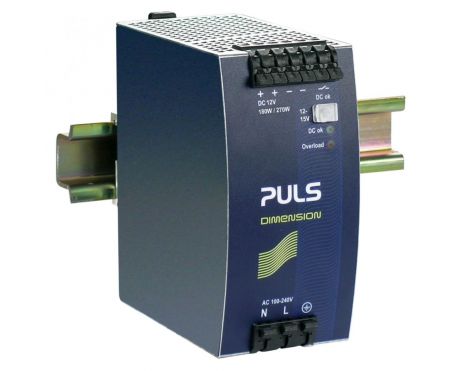

QS10.121

PULS QS10.121 is a power supply unit designed for AC/DC conversion with a 50% power reserve. It features DIN rail mounting and operates within an ambient air temperature range of -25 to +70°C. The unit is equipped with a DC-OK relay contact output and offers a rated current of 15A at 12Vdc and 13.5A at 15Vdc, utilizing spring-clamp connections for connectivity. It supports a supply voltage range of 85Vac-264Vac for AC and 88Vdc-188Vdc for DC, with specific nominal values across a wide spectrum. The QS10.121, part of the Q-series, measures 60mm in width, 124mm in height, and 117mm in depth, housed in an aluminium casing. It is compatible with single-phase (1AC) or DC networks, delivering a rated power of 203W at 15V, 180W at 12V, and can momentarily supply up to 270W for 4 seconds. The output voltage is adjustable between 12Vdc and 15Vdc, featuring comprehensive protection functions including overvoltage and overload/short-circuit protection. The unit allows for series or parallel operation to increase output power and is designed to handle back-feeding loads without malfunctioning. Efficiency rates vary with input voltage, achieving up to 0.918 at 230Vac. It exhibits a peak current consumption of 10A, with a start-up delay between 340-800ms and a hold time of 32ms at nominal input conditions. Power dissipation stands at approximately 16.1W to 16.7W under full load conditions, and the electrical durability ranges significantly based on operating conditions, with up to 215000 hours at 25°C and 30A output with 1AC 230Vac input. The output stage capacitance is 7000µF, and ripple is maintained at 50mVpp across a 20Hz to 20MHz range.

Puls

QS10.121-A1

Power Supply, 180W, 100-240VAC 1PH, 12-15VDC, 15-12A with ATEX Approval

Puls

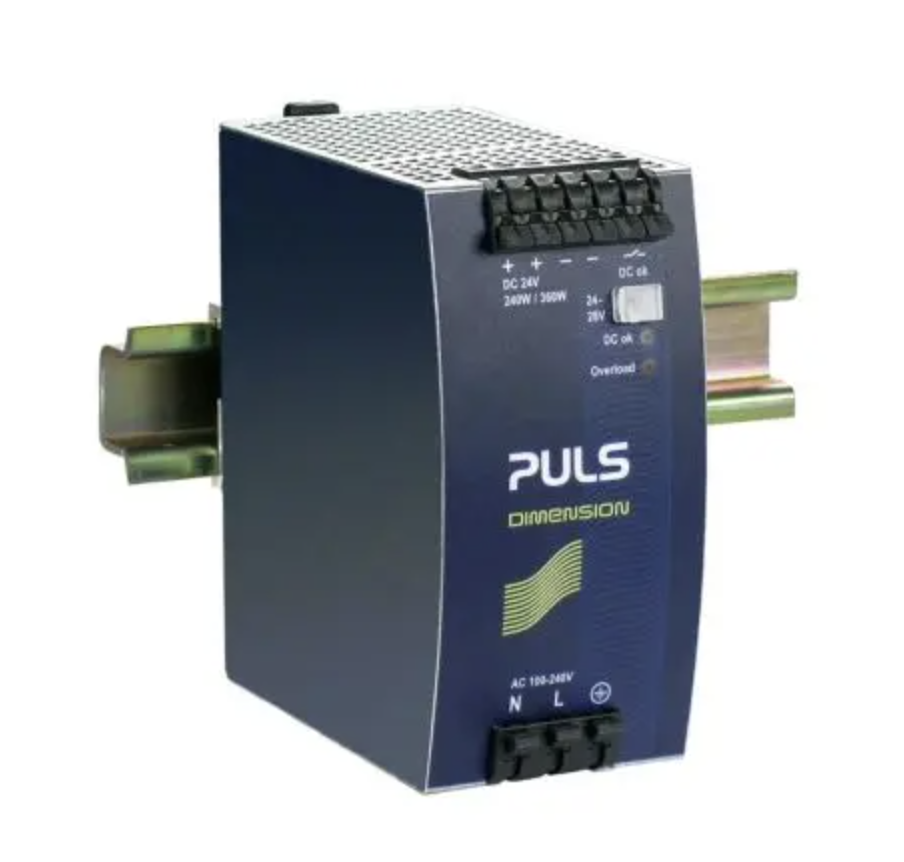

QS10.241-A1

PULS QS10.241-A1 is a power supply unit designed for DIN rail mounting, featuring AC/DC conversion with a 50% power reserve. It operates within an ambient air temperature range of -25 to +70°C and boasts ATEX approval and conformal coating for enhanced durability in harsh environments. The unit provides a rated current of 10A at 24Vdc and 9A at 28Vdc, with spring-clamp connections for secure wiring. It supports a wide supply voltage range from 85Vac to 264Vac across various nominal values and from 88Vdc to 188Vdc, ensuring flexibility across different power networks. The QS10.241-A1, part of the Q-series, measures 60mm in width, 124mm in height, and 117mm in depth, housed in an aluminium casing for robustness. It delivers a rated power of 240W at 24V and 252W at 28V, with a short-term capacity of 360W for up to 4 seconds. The output voltage is adjustable between 24Vdc and 28Vdc, featuring comprehensive protection functions including overvoltage and overload/short-circuit protection. It allows for series or parallel operation to scale output power as needed, with an efficiency up to 93.5% depending on the input voltage. The unit's electrical durability is rated up to 200,000 hours at 25°C with a 10A output, showcasing its longevity.

Puls

QS10.241-C1

PULS QS10.241-C1 is a power supply unit designed for DIN rail mounting, featuring AC/DC conversion with a 50% power reserve. It operates within an ambient air temperature range of -25 to +70°C and is equipped with a conformal coating for enhanced durability in harsh environments. The unit provides a rated current of 10A at 24Vdc and 9A at 28Vdc, with spring-clamp connections for secure wiring. It supports a supply voltage range of 85Vac-264Vac for AC and 88Vdc-188Vdc for DC, with specific turn-on and shutdown voltages detailed for various conditions. The QS10.241-C1, part of the Q-series, measures 60mm in width, 124mm in height, and 117mm in depth, housed in an aluminium casing. It is compatible with single-phase AC or DC networks and offers a rated power of 240W at 24V and 252W at 28V, with a short-term capacity of 360W for up to 4 seconds. The output voltage is adjustable between 24Vdc and 28Vdc, featuring overvoltage protection and capabilities for parallel operation to increase output power. Efficiency rates vary with input voltage, and the unit showcases specific current consumption, time delay, hold time, power dissipation, and electrical durability metrics. Ripple is maintained at 50mVpp, and the output stage capacitance is 7000µF.

Puls

QS10.241-D1

PULS QS10.241-D1 is a power supply unit designed for DIN rail mounting, featuring AC/DC conversion with a 50% power reserve. It operates within an ambient air temperature range of -25 to +70°C and includes an extended DC input for the same power reserve, along with a DC-OK relay contact output. The unit provides a rated current of 10A at 24Vdc and 9A at 28Vdc, utilizing spring-clamp connections for secure attachment. It supports a wide supply voltage range from 85Vac to 264Vac across various nominal values and from 88Vdc to 188Vdc, ensuring flexibility across different power networks. The QS10.241-D1, part of the Q-series, measures 60mm in width, 124mm in height, and 117mm in depth, housed in an aluminium casing for durability. It is compatible with single-phase (1AC) or DC networks, offering a rated power of 240W at 24V, 252W at 28V, and a short-term capacity of 360W for up to 4 seconds. The output voltage is adjustable between 24Vdc and 28Vdc, with comprehensive protection functions against overvoltage, overload, and short-circuit conditions. Efficiency rates vary with input voltage, achieving up to 0.935 at 230Vac. The unit exhibits a start-up delay between 340-800ms, with a hold time of 28ms at 230Vac input, and demonstrates electrical durability up to 200,000 hours at 25°C with a 10A output and 1AC 230Vac input. Output ripple is maintained at 50mVpp, with an output stage capacitance of 7000µF.

Puls

QS10.301

PULS QS10.301 is a power supply unit designed for DIN rail mounting, featuring AC/DC conversion capabilities with a 50% power reserve. It operates within an ambient air temperature range of -25 to +70°C and offers a design that includes a DC-OK relay contact output. The unit provides a rated current of 8.6A at 28Vdc, 8A at 30Vdc, and 7.5A at 32Vdc, with spring-clamp connections for secure attachment. It supports a supply voltage range of 85Vac-264Vac for AC and 88Vdc-188Vdc for DC, accommodating various network types including single-phase (1AC) or DC. The QS10.301 is housed in an aluminium casing, measuring 60mm in width, 124mm in height, and 117mm in depth. It delivers an adjustable output voltage of 28Vdc-32Vdc, with a rated power of 240W and a short-term capacity of 360W for up to 4 seconds. Protection features include output overvoltage protection and active input inrush current limiting, with overload and short-circuit protection ensuring operational stability. The unit is designed for series or parallel operation to increase output power, with a high efficiency of up to 0.935 depending on the input voltage. It exhibits a peak current consumption of 10A, a start-up delay of 340-800ms, and a hold time of 23ms at 230Vac input. Power dissipation is noted at 16.7W for 230Vac input under full load. The QS10.301 demonstrates electrical durability with operational lifespans ranging up to 200,000 hours under specific conditions, and features a ripple of 50mVpp across a wide frequency range, with an output stage capacitance of 7000µF.

Puls

QS10.481

PULS QS10.481 is a power supply unit designed for AC/DC conversion with a 50% power reserve. It features DIN rail mounting and operates within an ambient air temperature range of -25 to +70°C. The unit is equipped with a DC-OK relay contact output and offers a rated current of 5A at 48Vdc, 4.3A at 56Vdc, and experiences derating from 6W at +60°C to +70°C. Connection is facilitated through spring-clamp connections. The supply voltage ranges from 85Vac to 264Vac for AC (with specific nominal values and shutdown voltages provided) and from 88Vdc to 188Vdc for DC. It is housed in an aluminium casing and is suitable for single-phase (1AC) or DC networks, measuring 60mm in width, 124mm in height, and 117mm in depth. The rated power is 240W, with a short-term capacity of 360W for up to 4 seconds. The output voltage is adjustable between 48Vdc and 56Vdc. Protection functions include output overvoltage protection and overload/short-circuit protection, with the capability for series or parallel operation to increase output power. Efficiency rates vary with input voltage, and the unit has specific current consumption, time delay, hold time, power dissipation/losses, electrical durability, ripple, and capacitance specifications.

Puls

QS10.481-A1

Power Supply, 240W, 100-240VAC 1PH, 48-56VDC, 5-4.3A with ATEX Approval

Puls

QS10.481-D1

PULS QS10.481-D1 is a power supply unit designed for DIN rail mounting, featuring AC/DC conversion with a 50% power reserve. It operates within an ambient air temperature range of -25 to +70°C and includes an extended DC input for enhanced versatility. The unit provides a rated current of 5A at 48Vdc and 4.3A at 56Vdc, with a derating of 6W from +60°C to +70°C. Connection is facilitated through spring-clamp connections. It supports a supply voltage range of 85Vac-264Vac for AC and 88Vdc-188Vdc for DC, with specific nominal values across a broad spectrum. The QS10.481-D1, part of the Q-series, measures 60mm in width, 124mm in height, and 117mm in depth, and is housed in aluminium for durability. It is compatible with single-phase AC or DC networks and offers a rated power of 240W, with a short-term capacity of 360W for up to 4 seconds. The output voltage is adjustable between 48Vdc and 56Vdc. Protection features include output overvoltage protection and overload/short-circuit protection, with capabilities for series or parallel operation for increased output power. Efficiency rates vary by input voltage, achieving up to 0.92 at 230Vac. The unit exhibits a peak inrush current consumption of 10A, with a start-up delay between 340-800ms and a hold time of 28ms at 230Vac input. Power dissipation is noted at 20.9W for 230Vac input under full load. Electrical durability spans up to 228000 hours under specific conditions, with a ripple of 100mVpp and an output stage capacitance of 3000µF.

Puls
