AC/DC Power Supplies

XT40.242

PULS XT40.242 is a power supply unit part of the X-series, designed to function as an AC/DC PSU/converter with a semi-regulated 25% power reserve and a DC-OK relay contact output. It operates on a supply voltage of 3x432-528Vac (with nominal values of 440Vac, 480Vac, 500Vac, 525Vac; frequency 47-63Hz), a turn-on voltage of 3 x 390Vac, and a shutdown voltage of 3 x 355Vac. The unit is housed in aluminium, measures W96mm x H124mm x D159mm, and features screw-clamp connections for installation. It is rated for a current of 40A at 24Vdc and is designed for DIN rail mounting in a 3-phase (3AC) network. The ambient air temperature for operation ranges from -25 to +70°C. The XT40.242 has a peak inrush current consumption of 4A (at 3x480Vac input), a rated power of 960W at 24Vdc (1200W for typ. 15s), and includes protection functions such as output overvoltage protection (29.9Vdc max.) and overload/short-circuit current protection. It is not suitable for parallel operation to increase output power but supports 1+1 redundancy for higher system availability. The unit's efficiency is rated at 0.955 (at 3x480Vac input), with a 350ms start-up delay, and output voltage fixed at 24Vdc. The hold time is 2ms (at 3x480Vdc input), and power dissipation/losses are 45.2W (at full output load). Its electrical durability is rated at 51000 hours (at 40°C; 40A output; 3AC 480Vdc input) and 142000 hours (at 25°C; 40A output; 3AC 480Vdc input), with an output stage capacitance of 20000µF and a ripple of 1500mVpp.

Puls

XT40.361

PULS XT40.361 is a power supply unit part of the X-series, designed to function as an AC/DC PSU/converter with a semi-regulated 25% power reserve and a DC-OK relay contact output. It operates with a supply voltage of 3x360-440Vac (380Vac / 400Vac / 415Vac nominal; 47-63Hz), a turn-ON voltage of 3 x 325Vac, and a shutdown voltage of 3 x 295Vac. The unit is housed in an aluminium casing, measures W96mm x H124mm x D159mm, and features screw-clamp connections for installation. It is designed for DIN rail mounting in a 3-phase (3AC) network environment. The XT40.361 operates efficiently within an ambient air temperature range of -25 to +70°C, has a net width of 96 mm, and a peak inrush current consumption of 4A (at 3x400Vac input). It offers a rated current of 26.6A (at 36Vdc), with a rated power of 960W (at 36 Vdc) and 1200W for a typical 15s, adjusting to 24W/+60°C...+70°C (derating). Protection features include output overvoltage protection (42.5Vdc max.), active input inrush current limiter, and overload/short-circuit current protection—typically 115A at load impedance. The unit is not designed for series or parallel operation to increase output power but supports 1+1 redundancy for higher system availability. It can handle back-feeding loads up to 41.1V without malfunctioning. The XT40.361 boasts an efficiency of 0.955 (with 3x400Vac input), a 400ms start-up delay, and a rise time of 40ms (nominal input; constant full current load; 0mF load capacitance) to 70ms (nominal input; constant full current load; 27mF load capacitance). The fixed output voltage is 36Vdc with a 700mV turn-ON overshoot, and it offers a hold time of 2.6ms (buffer time at 3x400Vdc input). Power dissipation/losses are calculated at 45.2 W (3x400Vdc input; full output load), and the electrical durability is rated at 55000 hours (at 40°C; 26.6A output; 3AC 400Vdc input) to 156000 hours (at 25°C; 26.6A output; 3AC 400Vdc input). The output stage capacitance is 11100 µF, with a ripple of 2000mVpp (20Hz...2KHz; 50Ω).

Puls

XT40.362

PULS XT40.362 is a power supply unit part of the X-series, designed to convert AC to DC power with a semi-regulated 25% power reserve. It features a DC-OK relay contact output and operates on a supply voltage of 3x432-528Vac (440Vac / 480Vac / 500Vac / 525Vac nominal; 47-63Hz), with a turn-on voltage of 3 x 390Vac and a shutdown voltage of 3 x 355Vac. The unit is housed in an aluminium casing, measures W96mm x H124mm x D159mm, and uses screw-clamp connections for installation. It is rated for a current of 26.6A at 36Vdc and is designed for DIN rail mounting in a 3-phase (3AC) network. The ambient air temperature for operation ranges from -25 to +70°C. The XT40.362 has a peak inrush current consumption of 4A (at 3x480Vac input), a rated power of 960W at 36 Vdc (1200W for typ. 15s with derating applicable from +60°C to +70°C), and includes protection functions such as output overvoltage protection (42.5Vdc max.), active input inrush current limiter, and overload/short-circuit current protection. It is not suitable for parallel operation to increase output power but supports 1+1 redundancy for higher system availability. The unit is resistant to back-feeding loads up to 41.1V, has an efficiency of 0.955 (at 3x480Vac input), a start-up delay of 350ms, and a rise time of 40ms (70ms with 27mF load capacitance) at nominal input. The fixed output voltage is 36Vdc with a 700mV turn-ON overshoot, a hold time of 2.6ms at 3x480Vdc input, and power dissipation/losses of 45.2W at full output load. Its electrical durability is rated at 55000 hours (at 40°C; 26.6A output; 3AC 480Vdc input), with higher durability at reduced loads or temperatures. The output stage capacitance is 11100µF, and the ripple is 2000mVpp (20Hz...2KHz; 50Ω).

Puls

XT40.481

PULS XT40.481 is a power supply unit part of the X-series, designed to function as an AC/DC PSU/converter with a semi-regulated 25% power reserve and a DC-OK relay contact output. It operates on a supply voltage of 3x360-440Vac (380Vac / 400Vac / 415Vac nominal; 47-63Hz), with a turn-ON voltage of 3 x 325Vac and a shutdown voltage of 3 x 295Vac. The unit is housed in aluminium, featuring screw-clamp connections for secure installation and is designed for DIN rail mounting. It supports a 3-phase (3AC) network type and can operate within an ambient air temperature range of -25 to +70°C. The XT40.481 has a net width of 96mm and dimensions of W96mm x H124mm x D159mm. It is rated for a current of 20A at 48Vdc, with a peak inrush current consumption of 4A (at 3x400Vac input). The rated power is 960W at 48Vdc, with a derating to 24W between +60°C and +70°C, and can momentarily support up to 1200W for approximately 15 seconds. Protection features include output overvoltage protection (57.2Vdc max.), active input inrush current limiter, and overload/short-circuit current protection, typically 90A at load impedance. It is not designed for series or parallel operation to increase output power but supports 1+1 redundancy for higher system reliability. The unit is resistant to back-feeding loads up to 55.1V. It boasts an efficiency of 0.96 (at 3x400Vac input), with a 400ms start-up delay, a rise time of 40ms (at nominal input with 0mF load capacitance) to 70ms (with 20mF load capacitance), and a fixed output voltage of 48Vdc with a 1V turn-ON overshoot. The hold time is 3.1ms at 3x400Vdc input, with power dissipation/losses at 40W (full output load). Its electrical durability is rated at 77000 hours (at 40°C; 20A output; 3AC 400Vdc input) to 15 years / 131400 hours (at 25°C; 20A output; 3AC 400Vdc input). The output stage capacitance is 7600µF, with a ripple of 2500mVpp (20Hz...2KHz; 50Ω).

Puls

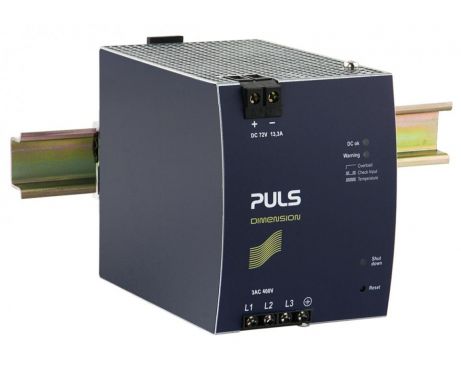

XT40.721

PULS XT40.721 is a power supply unit part of the X-series, designed to function as an AC/DC PSU/converter with a semi-regulated 25% power reserve and a DC-OK relay contact output. It operates on a supply voltage of 3x360-440Vac (with nominal values of 380Vac, 400Vac, 415Vac; 47-63Hz), featuring a turn-ON voltage of 3 x 325Vac and a shutdown voltage of 3 x 295Vac. The unit is encased in an aluminium housing, measures W96mm x H124mm x D159mm, and uses screw-clamp connections for installation. It is rated for a current of 13.3A at 72Vdc and is designed for DIN rail mounting in a 3-phase (3AC) network. The XT40.721 can operate in ambient air temperatures ranging from -25 to +70°C. It has a peak inrush current consumption of 4A (at 3x400Vac input), a rated power of 24W/+60°C...+70°C (derating) to 960W (at 72Vdc) and 1200W for typical 15s. Protection features include output overvoltage protection (91.1Vdc max.), active input inrush current limiter, and overload/short-circuit current protection. It supports series operation but not parallel operation for increased output power, though 1+1 redundancy for higher system availability and reliability is possible. The unit is resistant to back-feeding loads up to 87.9V. It boasts an efficiency of 0.955 (with 3x400Vac input), a 400ms start-up delay, and a rise time of 40ms to 70ms depending on load capacitance. The output voltage is fixed at 72Vdc with a 1.4V turn-ON overshoot, a hold time of 3.6ms at 3x400Vdc input, power dissipation/losses of 45.2W (at 3x400Vdc input; full output load), an output stage capacitance of 4050 µF, and a ripple of 3000mVpp (20Hz...2KHz; 50Ω).

Puls

XT40.722

PULS XT40.722 is a power supply unit part of the X-series, designed to function as an AC/DC PSU/converter with a semi-regulated 25% power reserve and a DC-OK relay contact output. It operates on a supply voltage of 3x432-528Vac (440Vac / 480Vac / 500Vac / 525Vac nominal; 47-63Hz), with a turn-on voltage of 3 x 390Vac and a shutdown voltage of 3 x 355Vac. The unit's dimensions are W96mm x H124mm x D159mm, and it is encased in an aluminium housing with screw-clamp connections for installation. It has a rated current of 13.3A at 72Vdc and is designed for DIN rail mounting in a 3-phase (3AC) network. The ambient air temperature for operation ranges from -25 to +70°C. The XT40.722 has a net width of 96 mm and a peak current consumption of 4A max. inrush at 3x480Vac input. Its rated power is 24W/+60°C...+70°C (derating) 960W at 72Vdc and 1200W for a typical 15s, with protection functions including output overvoltage protection (91.1Vdc max.), active input inrush current limiter, and overload/short-circuit current protection. It is not designed for series or parallel operation to increase output power but supports 1+1 redundancy for higher system availability. The unit is resistant to back-feeding loads up to 87.9V. It has an efficiency of 0.955 at 3x480Vac input, with a 350ms start-up delay, 40ms rise time at nominal input and full current load without load capacitance, and 70ms with 13.3mF load capacitance. The output voltage is fixed at 72Vdc with a 1.4V turn-ON overshoot, a hold time of 3.6ms at 3x480Vdc input, power dissipation/losses of 45.2W at full output load, an output stage capacitance of 4050µF, and a ripple of 3000mVpp at 20Hz...2KHz with a 50Ω load.

Puls

DR-4512

AC-DC Industrial DIN rail power supply; Output 12Vdc at 3.5A; plastic case; DR-4512 is succeeded by HDR-60-12.

MEAN WELL

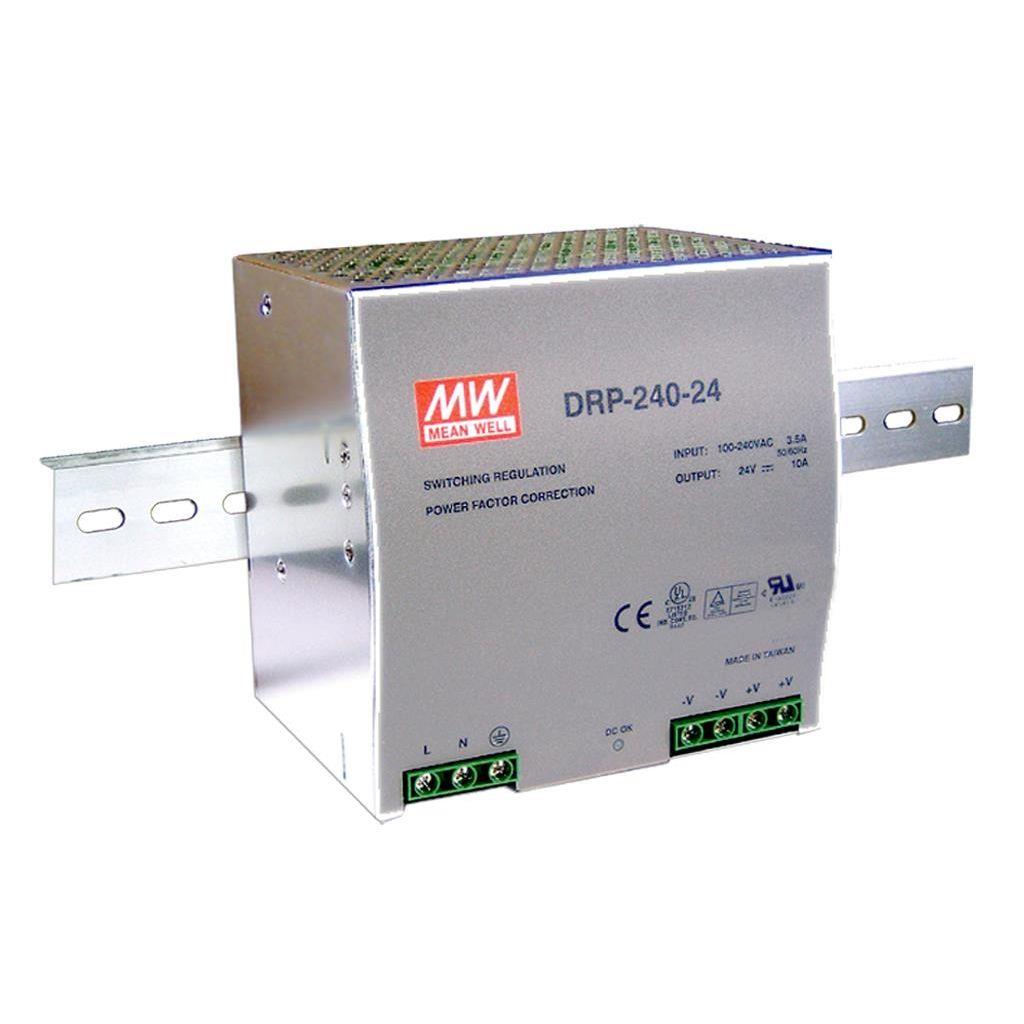

DRP-240-24

AC-DC Industrial DIN rail power supply; Output 24Vdc at 10A; metal case; DRP-240-24 is succeeded by NDR-240-24.

MEAN WELL

DRP-240-48

AC-DC Industrial DIN rail power supply; Output 48Vdc at 5A; metal case; DRP-240-48 is succeeded by NDR-240-48.

MEAN WELL

SP-240-48

AC-DC Enclosed power supply; Output 48Vdc at 5A; PFC; forced air cooling; SP-240-48 is succeeded by RSP-200-48.

MEAN WELL

FLEX17024A

Sprecher + Schuh FLEX17024A - Adel Flex Power Supply, Selectable Input 115/230V AC-24V DC, 7.5A, 1 Phase

Sprecher + Schuh

FLEX28024A

Sprecher + Schuh FLEX28024A - Adel Flex Power Supply, Selectable Input 115/230V AC-24V DC, 14A, 1 Phase

Sprecher + Schuh

FLEX50024A

Sprecher + Schuh FLEX50024A - Adel Flex Power Supply, Bridge only jumper 115/230V AC-24V DC, 25A, 1 Phase

Sprecher + Schuh

FLEX6024A

Sprecher + Schuh FLEX6024A - Adel Flex Power Supply, Automatic Input 115-230V AC-24V DC, 2A, 1 Phase

Sprecher + Schuh

FLEX9024A

Sprecher + Schuh FLEX9024A - Adel Flex Power Supply, Selectable Input 115/230V AC-24V DC, 5A, 1 Phase

Sprecher + Schuh

FLEX17024B

Sprecher + Schuh FLEX17024B - Adel Flex Power Supply, Selectable Input 230/400-500V AC-24V DC, 7.5A, 2 Phase

Sprecher + Schuh

FLEX28024B

Sprecher + Schuh FLEX28024B - Adel Flex Power Supply, Selectable Input 230/400-500V AC-24V DC, 14A, 2 Phase

Sprecher + Schuh
