AC/DC Power Supplies

SL20.115

Power Supply, 480W, 100-120 / 200-240VAC 1PH, 24-28VDC, 20-18A

Puls

SL20.300

Power Supply, 480W, 380-400VAC 3PH, 24-28VDC, 20-18A

Puls

SL20.301

Power Supply, 480W, 480VAC 3PH, 24-28VDC, 20-18A

Puls

SL20.303

Power Supply, 480W, 380-400VAC 3PH, 48-56VDC, 10-9A

Puls

SL20.310

Power Supply, 480W, 380-480VAC 3PH, 24-28VDC, 20-18A

Puls

SL30.100

Power Supply, 720W, 200-240VAC 1PH, 24-28VDC, 30-26A

Puls

SL30.300

Power Supply, 720W, 380-480VAC 3PH, 24-28VDC, 30-26A

Puls

SL4.100

Power Supply, 96W, 100-120 / 200-240VAC 1PH, 24VDC, 4A

Puls

SL40.300

Power Supply, 960W, 380-480VAC 3PH, 24-28VDC, 40-35A

Puls

SL40.301

Power Supply, 960W, 380-480VAC 3PH, 24-28VDC, 40-35A with Signaling

Puls

SL5.100

PULS SL5.100 is a power supply unit designed with an EMC filter and DC-OK relay contact output. This AC/DC power supply unit (PSU) / converter is capable of a power boost up to 6A and features screw-clamp connections for secure installation. It has dimensions of W64mm x H124mm x D102mm and supports a wide range of supply voltages including AC: 85Vac-132Vac / 176Vac-264Vac and DC: 300Vdc, with a rated current of 5A at 24Vdc. The SL5.100 is designed for DIN rail mounting and can operate in ambient air temperatures ranging from 0 to +70°C. It has a net width of 64 mm and consumes 2.6A (with a 115V input) or 1.4A (with a 230V input), with a maximum inrush of 15A at 264Vac input. This unit is suitable for single-phase (1AC) or DC networks and includes protection functions against output overvoltage, short-circuit, and overload without switching off. The output voltage is fixed at 24Vdc, with an efficiency of 0.9 at 230Vac input. The rated power is 120W, with a hold time of 37ms at 196Vac input, and power dissipation/losses of 13.3W at full output load with a 230Vac input. It also features a 100ms start-up delay and a 5-20ms rise time under nominal input with a constant full current load, and a ripple of 50mVpp at 20Hz to 20MHz.

Puls

SL5.102

Power Supply, 120W, 100-120 / 200-240VAC 1PH, 24-28VDC, 5-4.3A

Puls

SL5.105

Power Supply, 120W, 100-120 / 200-240VAC 1PH, 24-28VDC, 5-4.3A with PFC

Puls

SL5.300

Power Supply, 120W, 380-480VAC 3PH, 24-28VDC, 5-4.3A

Puls

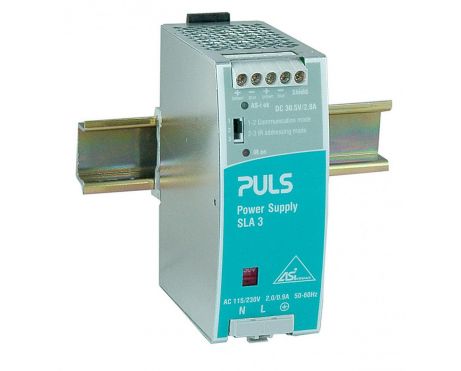

SLA3.100

PULS SLA3.100 is a power supply unit designed with NEC Class 2 and ATEX approval, compliant with EN 61000-3-2 PFC norm, featuring a DC-OK relay contact output. It serves as an AS-Interface power supply unit (PSU) encased in a robust metal housing. This unit offers screw-clamp connections for secure installation and measures W49mm x H124mm x D102mm. It supports a wide range of supply voltages, including AC options from 85Vac to 264Vac and a DC option from 230Vdc to 375Vdc, with a rated current of 2.8A at 30.6Vdc. Designed for DIN rail mounting, it operates within an ambient air temperature range of -10 to +70 °C. The SLA3.100 experiences a peak inrush current consumption of 49.7A at 230Vac input and 44.7A at 120Vac input. It is suitable for single-phase (1AC) or DC networks and includes protection functions such as output overvoltage protection (up to 55Vdc max.), NTC for input inrush current limiting, and overload/short-circuit protection. The output voltage is fixed at 30.6Vdc, with an efficiency of 0.905 at 230Vac input, a hold time of 26ms at 100Vac input, power dissipation/losses of 9.1W at full output load, and a ripple of 50mVpp across 20Hz to 20MHz at 50Ω.

Puls

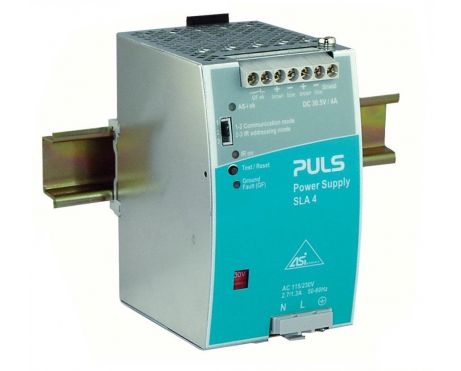

SLA4.100

PULS SLA4.100 is a power supply unit designed with a PFC compliant to EN 61000-3-2 standards, featuring a DC-OK relay contact output. It serves as an AS-Interface power supply unit (PSU) encased in a robust metal housing. This unit offers screw-clamp connections for secure installation and measures W73mm x H124mm x D102mm. It supports a wide range of supply voltages, including AC inputs from 85Vac-132Vac / 187Vac-264Vac across various nominal values and a DC input range of 240Vdc-300Vdc, with a rated current of 4A at 30.5Vdc. Designed for DIN rail mounting, it operates efficiently within an ambient air temperature range of -10...+70 °C. The SLA4.100 experiences a peak inrush current consumption of 49.7A at 230Vac input and 44.7A at 120Vac input, suitable for single-phase (1AC) or DC networks. It incorporates multiple protection functions, including output overvoltage protection up to 55Vdc max., NTC for input inrush current limiting, and overload/short-circuit protection with a current range of min. 4.2A to max. 6.5A, though it does not support series or parallel operation or ground-fault monitoring. The output voltage is fixed at 30.5Vdc, with an efficiency of 0.9 at 230Vac input, a hold time of 30ms at 100Vac input, power dissipation/losses at 13.5 W under full output load at 230Vac input, and a ripple of 50mVpp across 20Hz to 20MHz at 50Ω.

Puls

SLA8.100

PULS SLA8.100 is a power supply unit designed with a DC-OK relay contact output and functions as an AS-Interface PSU. It is encased in a robust metal housing and utilizes screw-clamp connections for secure installation. The dimensions of this unit are W91mm x H124mm x D102mm. It supports a wide range of supply voltages, including AC inputs from 85Vac to 132Vac and 187Vac to 264Vac, as well as DC inputs from 230Vdc to 375Vdc, with manual selection available for specific nominal voltages. The rated current is 8A at 30.6Vdc, with a derating at 6W/+60°C to +70°C. Designed for DIN rail mounting, it operates efficiently within an ambient air temperature range of -10 to +70 °C. The SLA8.100 experiences a peak inrush current consumption of 27A at 240Vac input and 14A at 120Vac input. It is compatible with single-phase (1AC) or DC networks and incorporates protection functions against output overvoltage (up to 55Vdc max.), with an active input inrush current limiter and overload/short-circuit protection ranging from min. 12A to max. 25A. However, series or parallel operation is not supported. The output voltage is fixed at 30.6Vdc, with an efficiency of 0.92 at 230Vac input. The hold time is 10ms at 100Vac input, with power dissipation/losses at 21.2W under full output load at 230Vac input. Ripple is maintained at 50mVpp across a frequency range of 20Hz to 20MHz at 50Ω.

Puls

SLA8.300

AS-Interface Power Supply, 240W, 380-480VAC 3PH, 30.5VDC, 8A

Puls

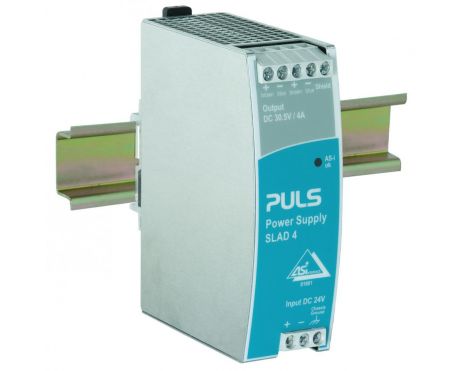

SLAD4.100

PULS SLAD4.100 is a power supply unit designed with a PFC compliant to EN 61000-3-2 standards, featuring a DC-OK relay contact output. It serves as an AS-Interface power supply unit (PSU) and DC/DC-Converter, encased in a robust metal housing. This unit offers screw-clamp connections for secure installation and measures W40mm x H124mm x D102mm. It operates on a supply voltage range of 18Vdc-31.4Vdc, with a nominal 24Vdc, and delivers a rated current of 4A at 30.6Vdc, incorporating a derating curve from 3W/+60°C to +70°C. Designed for DIN rail mounting, it can function within an ambient air temperature range of -25°C to +70°C. The SLAD4.100 has a net width of 40 mm and a peak inrush current consumption of 1.8A. It is compatible with DC networks only and includes protection functions against output overvoltage (up to 36Vdc max.), with an active input inrush current limiter, and overload/short-circuit conditions (min. 5A/max. 12A current). Series or parallel operation is not supported. The output voltage is fixed at 30.6Vdc, with an efficiency of 0.905 at 24Vdc input. Power dissipation/losses are 12.7W at 24Vdc input with full output load. The unit features a 650ms start-up delay, a 100ms rise time under nominal input with constant full current load and 0mF load capacitance, and a 200ms rise time with 5mF load capacitance. Ripple is maintained at 50mVpp across a frequency range of 20Hz to 20MHz at 50Ω.

Puls

XT40.241

PULS XT40.241 is a power supply unit part of the X-series, designed to function as an AC/DC PSU/converter with a semi-regulated 25% power reserve and a DC-OK relay contact output. It operates on a supply voltage of 3x360-440Vac (380Vac / 400Vac / 415Vac nominal; 47-63Hz), with a turn-ON voltage of 3 x 325Vac and a shutdown voltage of 3 x 295Vac. The unit's dimensions are W96mm x H124mm x D159mm, and it is encased in an aluminium housing with screw-clamp connections for installation. It has a rated current of 40A at 24Vdc and is designed for DIN rail mounting in a 3-phase (3AC) network. The ambient air temperature for operation ranges from -25 to +70°C. The XT40.241 has a net width of 96 mm and a peak current consumption of 4A max. inrush at 3x400Vac input. Its rated power is 24W/+60°C...+70°C (derating) 960W at 24Vdc and 1200W for a typical 15s. Protection functions include output overvoltage protection (29.9Vdc max.), active input inrush current limiter, and overload/short-circuit current protection. It supports 1+1 redundancy for higher system availability and is resistant to back-feeding loads up to 28.9V. The efficiency is rated at 0.955 with a 3x400Vac input, and it features a 400ms start-up delay, 40ms rise time with nominal input at constant full current load without load capacitance, and 70ms with 40mF load capacitance. The output voltage is fixed at 24Vdc with a 480mV turn-ON overshoot, and it has a 2ms buffer time at 3x400Vdc input. Power dissipation/losses are 45.2 W at full output load with 3x400Vdc input. Electrical durability is rated at 51000 hours at 40°C and 142000 hours at 25°C, with a 40A output and 3AC 400Vdc input. The output stage capacitance is 20000 µF, and the ripple is 1500mVpp (20Hz...2KHz; 50Ω).

Puls
