AC/DC Power Supplies

CP10.361

PULS CP10.361 is a DIN rail mounting power supply unit with an aluminium housing designed for a wide range of industrial applications. It features a net width of 39 mm and operates within an ambient air temperature range of -25 to +70°C. The unit has a current consumption of 11A peak max. inrush at 230Vac input and 7A peak max. inrush at 120Vac input. Its efficiency rates are 0.954 at 230Vac input, 0.938 at 120Vac input, and 0.931 at 100Vac input. The dimensions of the CP10.361 are W39mm x H124mm x D117mm. It includes a time delay of 240-300ms for start-up and a rise time of 60ms under nominal input with a constant full current load without load capacitance, and 120ms with 7mF load capacitance. The unit is equipped with protection functions including output overvoltage protection and overload/short-circuit protection, with the capability for series or parallel operation for increased output voltages or power. It can handle back-feeding loads up to 50V without malfunctioning. Power dissipation/losses are 11.6W at full output load with 230Vac input and 15.9W with 120Vac input. The output stage capacitance is 1500µF. Electrical durability varies with conditions, reaching up to 553000 hours at 25°C with 3.35A output and 1AC 230Vac input. The ripple is 50mVpp across a 20Hz to 20MHz range. This AC/DC power supply unit offers a 20% power reserve and includes ATEX approval, DC-OK relay contact output, and screw-clamp connections. It supports a supply voltage range of 88Vdc-180Vdc and 85Vac-264Vac, with a rated current of 6.7A at 36Vdc, and provides an adjustable output voltage of 36Vdc-42Vdc. The hold time is 38ms at both 120/230Vac input.

Puls

CP10.241-C1

PULS CP10.241-C1 is a DIN rail mounting power supply unit with an aluminium housing designed for a wide range of industrial applications. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 39mm. The unit consumes 1.13A at 230Vac input, 2.15A at 120Vac input, 2.6A at 100Vac input, and 2.35A at 110Vdc input for a 24Vdc / 10A output, with peak inrush currents of 11A at 230Vac input and 7A at 120Vac input. It offers an efficiency of 0.952 at 230Vac input and 0.936 at 120Vac input. The CP10.241-C1 features IP20 degree of protection and is resistant to harsh environments due to its conformal coated PCB. Its dimensions are W39mm x H124mm x D117mm. The unit has a start-up delay of 240-300ms and a rise time of 30ms to 160ms depending on the load capacitance. It includes protection functions such as output overvoltage, overload/short-circuit, and over-temperature protection with automatic restart. The power supply supports series/parallel operation for increased output voltages or power, and 1+1 redundancy with a redundancy module. It can handle back-feeding loads up to 35V without malfunctioning. Power dissipation/losses are 12.1W at 230Vac input and 16.4W at 120Vac input, with an output stage capacitance of 4400µF. Electrical durability ranges from 39,000 to 499,000 hours depending on the operating conditions. The ripple is 50mVpp across a 20Hz to 20MHz range. This AC/DC power supply unit is part of the CP-series, featuring ATEX approval, conformal coating, 20% power reserve, and a DC-OK relay contact output. It uses screw-clamp connections and accepts a supply voltage of 88Vdc-180Vdc or 85Vac-264Vac, with specific tolerances for overvoltage and shutdown voltages. The rated current is 12A at 48Vdc in temperatures up to +45°C, decreasing to 7.5A at 24Vdc at +70°C. It is suitable for single-phase (1AC) or DC networks, providing a rated power of 288W at -25 to +45°C, 240W at -25 to +60°C, and 180W at +70°C, with a linear derating between +60°C and +70°C. The output voltage is adjustable from 24Vdc to 28Vdc, with a 200mV turn-ON overshoot and a hold time of 37ms at 120/230Vac input.

Puls

AP486.112

19" Rack Power Supply, 130W

Puls

QS40.484

PULS QS40.484 is a power supply unit designed for DIN rail mounting, featuring AC/DC conversion with a 50% power reserve. It operates within an ambient air temperature range of -25 to +70°C and offers a design that includes a DC-OK relay contact output. The unit provides a rated current of 20A at 48Vdc and 17.8A at 54Vdc, with a power derating applicable from 24W at +60°C to +70°C. Connection is facilitated through screw-clamp connections, and it supports a supply voltage range of 180Vac to 264Vac, accommodating various nominal voltages within this range at a frequency of 47-63Hz. The QS40.484, part of the Q-series, measures 125mm in width, 124mm in height, and 127mm in depth, housed in an aluminium casing. It is designed for single-phase network operation and delivers a rated power of 960W, with a short-term capacity of 1440W for up to 4 seconds. The output voltage is adjustable between 48Vdc and 54Vdc. Protection features include output overvoltage protection and overload/short-circuit protection, with capabilities for series or parallel operation to increase output power. Efficiency is rated at 0.95 with a 230Vac input, and the unit exhibits a peak current consumption of 18A. Start-up and rise times are specified as 750ms and 18-35ms respectively, with a hold time of 30ms at 230Vac input. Power dissipation losses are detailed for both 230Vac and 120Vac inputs, and the electrical durability spans from 65,000 to 345,000 hours under various conditions. Ripple is maintained at 150mVpp across a 20Hz to 20MHz range, with an output stage capacitance of 3700µF.

Puls

QS40.481

PULS QS40.481 is a power supply unit designed for DIN rail mounting, featuring AC/DC conversion with a 50% power reserve. It operates within an ambient air temperature range of -25 to +70°C and is equipped with ATEX approval, a DC-OK relay contact output, and screw-clamp connections. This unit supports a supply voltage range of 85Vac-264Vac across various nominal voltages and frequencies, with specific turn-ON and shutdown voltages. It belongs to the Q-series and is housed in an aluminium casing with dimensions of W125mm x H124mm x D127mm. The QS40.481 is designed for single-phase networks, offering a rated current of 20A at 48Vdc and 17.8A at 54Vdc, with a derating power of 24W at temperatures ranging from +60°C to +70°C. Its rated power is 960W, with a short-term capacity of 1440W for up to 4 seconds, and an adjustable output voltage between 48Vdc and 54Vdc. Protection features include output overvoltage protection and overload/short-circuit protection, with capabilities for series or parallel operation to increase output power. The unit demonstrates high efficiency rates across various input voltages and has specific inrush current, time delay, hold time, power dissipation/losses, and electrical durability metrics. It also features a ripple of 150mVpp and an output stage capacitance of 3700µF.

Puls

QS40.361

PULS QS40.361 is a power supply unit designed for AC/DC conversion with a 50% power reserve. It features DIN rail mounting and operates within an ambient air temperature range of -25 to +70°C. This unit is ATEX approved and includes a DC-OK relay contact output. It provides a rated current of 26.7A at 36Vdc and 22.9A at 42Vdc, with screw-clamp connections for installation. The supply voltage ranges from 85Vac to 264Vac across various nominal voltages, with specific turn-ON and shutdown voltages. Part of the Q-series, it measures 125mm in width, 124mm in height, and 127mm in depth, housed in aluminium. Designed for single-phase networks, it offers a rated power of 960W, extendable to 1440W for short-term applications, and an adjustable output voltage between 36Vdc and 42Vdc. Protection features include output overvoltage protection and active input inrush current limiting, with capabilities for overload, short-circuit protection, and series/parallel operation. Efficiency rates vary with input voltage, and it has specific current consumption, time delay, hold time, power dissipation, and electrical durability metrics. The ripple is 130mVpp, and the output stage capacitance is 4700µF.

Puls

ML30.102

PULS ML30.102 is a power supply unit (PSU) / converter designed for AC/DC applications with DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and features a NEC Class 2 design for very low output noise. The unit provides a rated current of 2.5A at 12Vdc and utilizes spring-clamp connections for connectivity. It supports a wide supply voltage range from 85Vac to 264Vac (with specific nominal values across 100Vac to 240Vac at 47-63Hz, including a 46Vac turn-ON voltage and a 44Vac shutdown voltage) and from 88Vdc to 375Vdc (with nominal values including 100Vdc to 250Vdc). The ML30.102 is housed in a PC / ABS blend and is suitable for single-phase (1AC) or DC networks. It measures 45mm in width, 75mm in height, and 91mm in depth. The rated power is 30W, and the output voltage is adjustable between 10-12Vdc, with a 250mV turn-ON overshoot. It includes protection functions such as NTC for input inrush current limiting. The efficiency is rated at 0.84 with a 230Vac input, and it has a current consumption of 17A max. inrush at 120Vac input and 35A peak max. inrush at 230Vac input. Power dissipation/losses are calculated at 5.8W, and the ripple is specified at 10mVpp over a frequency range of 20Hz to 20MHz at 50Ω.

Puls

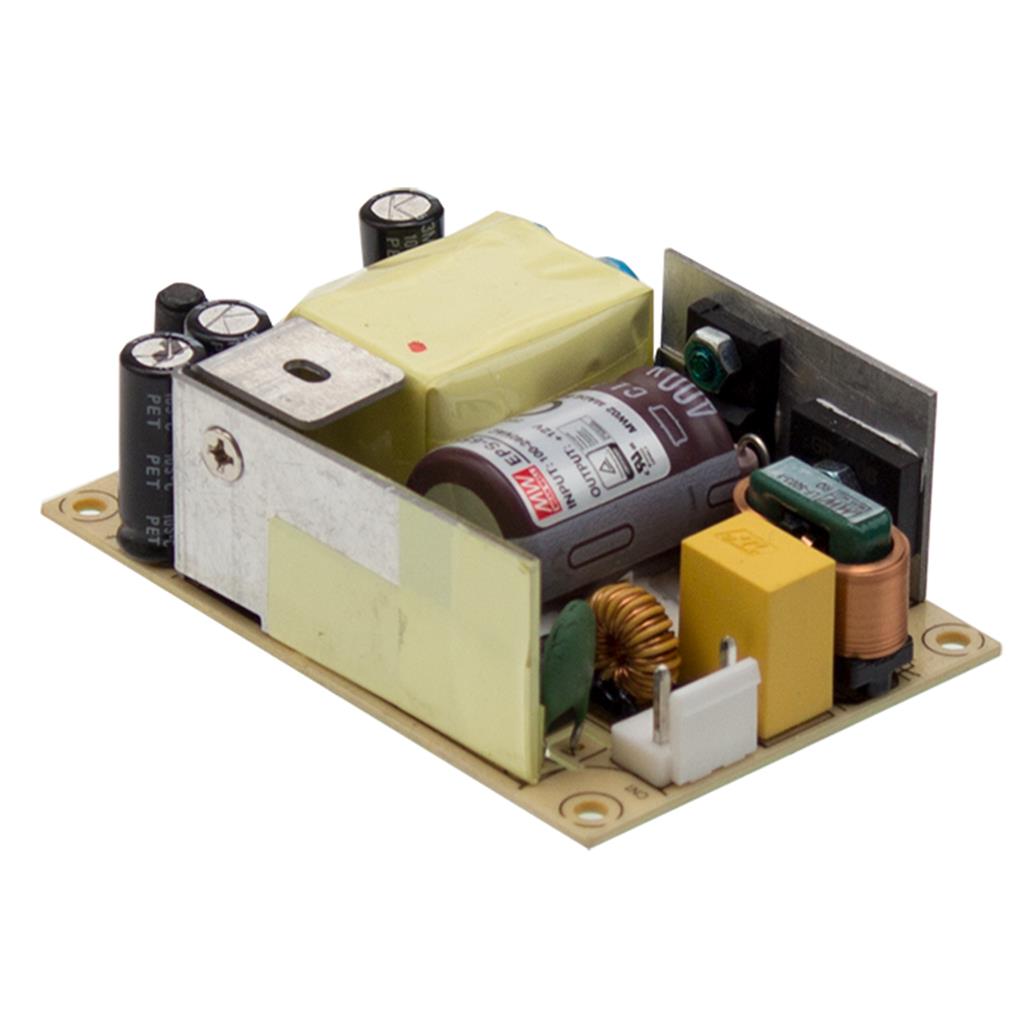

EPS-65-36

AC-DC Single output Open frame power supply; Output 36Vdc at 1.81A

MEAN WELL

QS40.241

PULS QS40.241 is a power supply unit designed for DIN rail mounting, featuring AC/DC conversion with a 50% power reserve. It operates within an ambient air temperature range of -25 to +70°C and has ATEX approval. The unit provides a rated current of 40A at 24Vdc and 34.3A at 28Vdc, with screw-clamp connections for installation. It supports a supply voltage range of 85Vac-264Vac across various nominal voltages and frequencies, with specific turn-ON and shutdown voltages. Part of the Q-series, it measures 125mm in width, 124mm in height, and 127mm in depth, housed in aluminium. Designed for single-phase networks, it offers a rated power of 960W, extendable to 1440W for short-term applications, and an adjustable output voltage between 24Vdc and 28Vdc. The unit includes protection against overvoltage, with active input inrush current limitation and overload/short-circuit protection. It allows for series or parallel operation for increased output power, with specific conditions for back-feeding loads. The efficiency rates vary with input voltage, and it features specific current consumption, time delay, and hold time values. Power dissipation/losses are detailed alongside electrical durability metrics under various conditions. The output ripple is specified at 100mVpp, with an output stage capacitance of 10200µF.

Puls

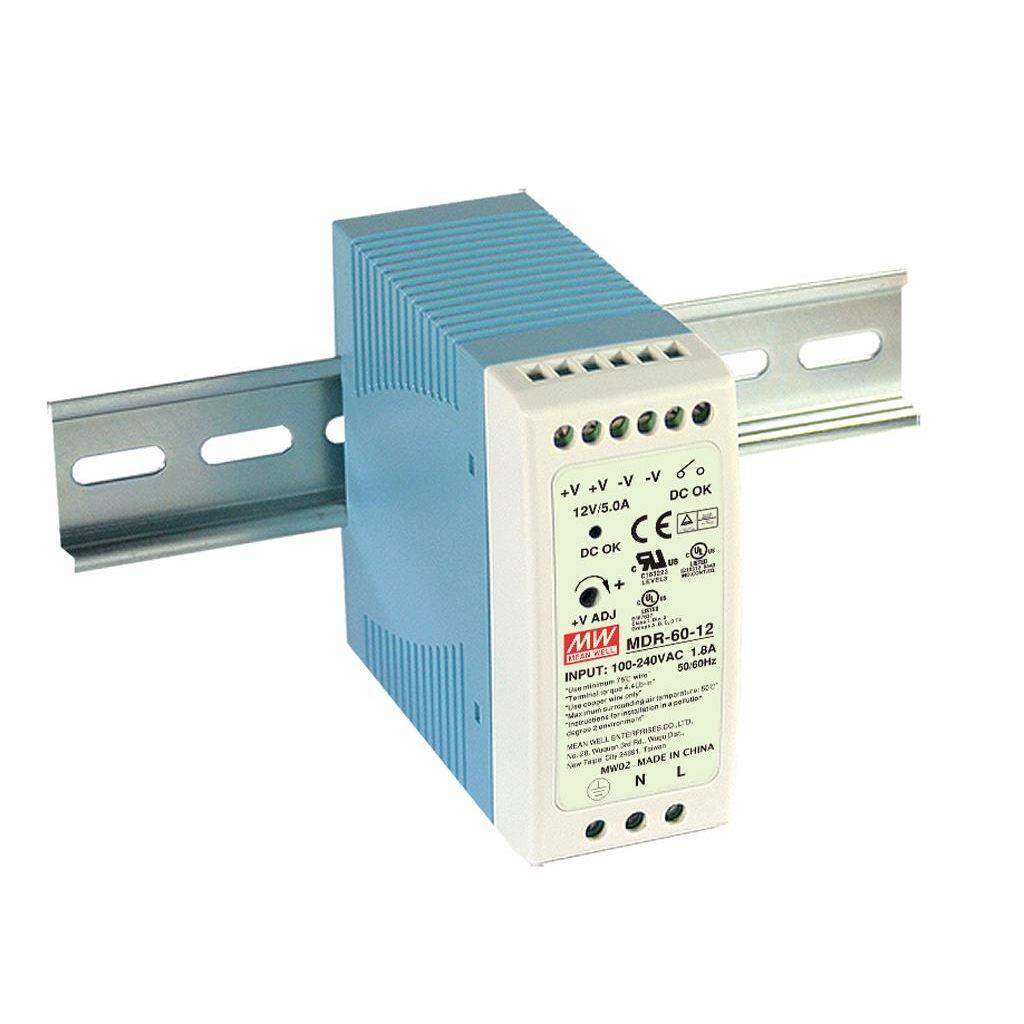

MDR-60-12

AC-DC Industrial DIN rail power supply; Output 12Vdc at 5A; plastic case

MEAN WELL

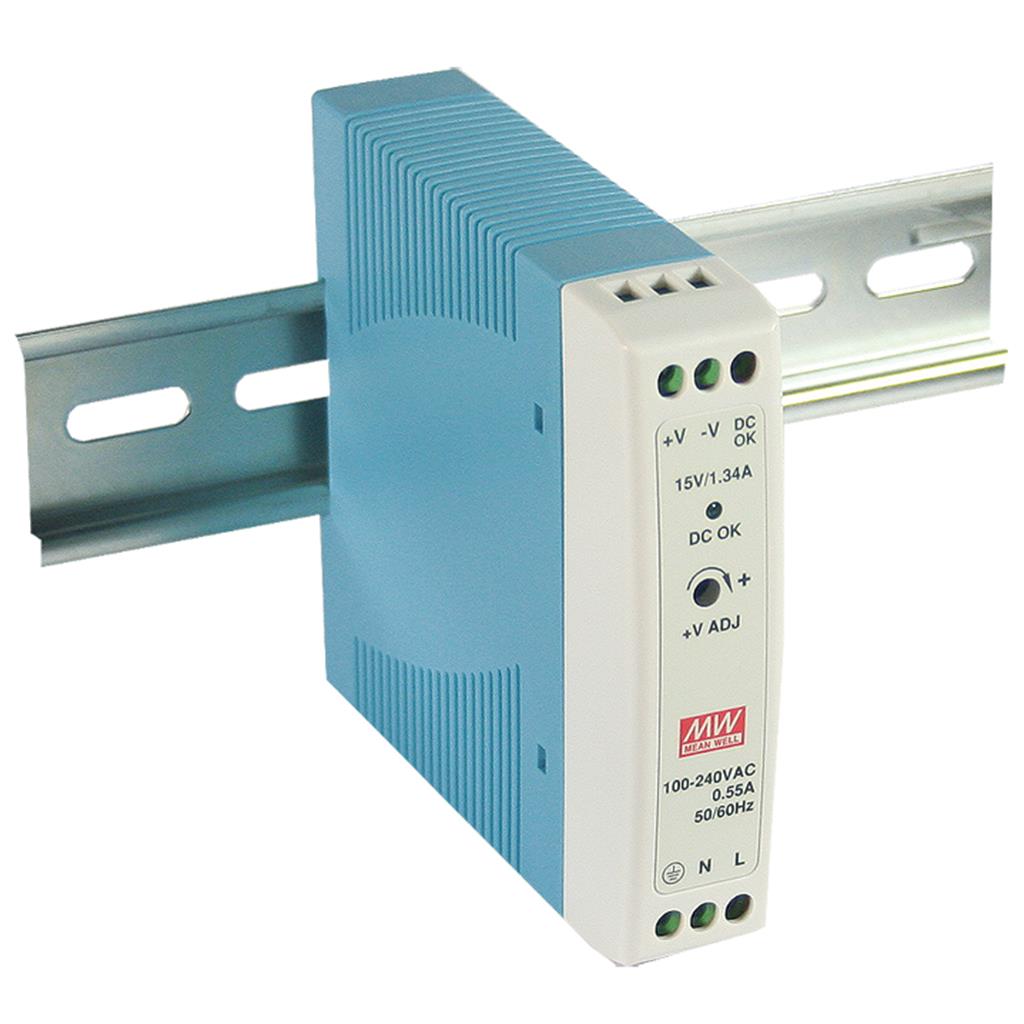

MDR-20-12

AC-DC Industrial DIN rail power supply; Output 12Vdc at 1.67A; plastic case

MEAN WELL

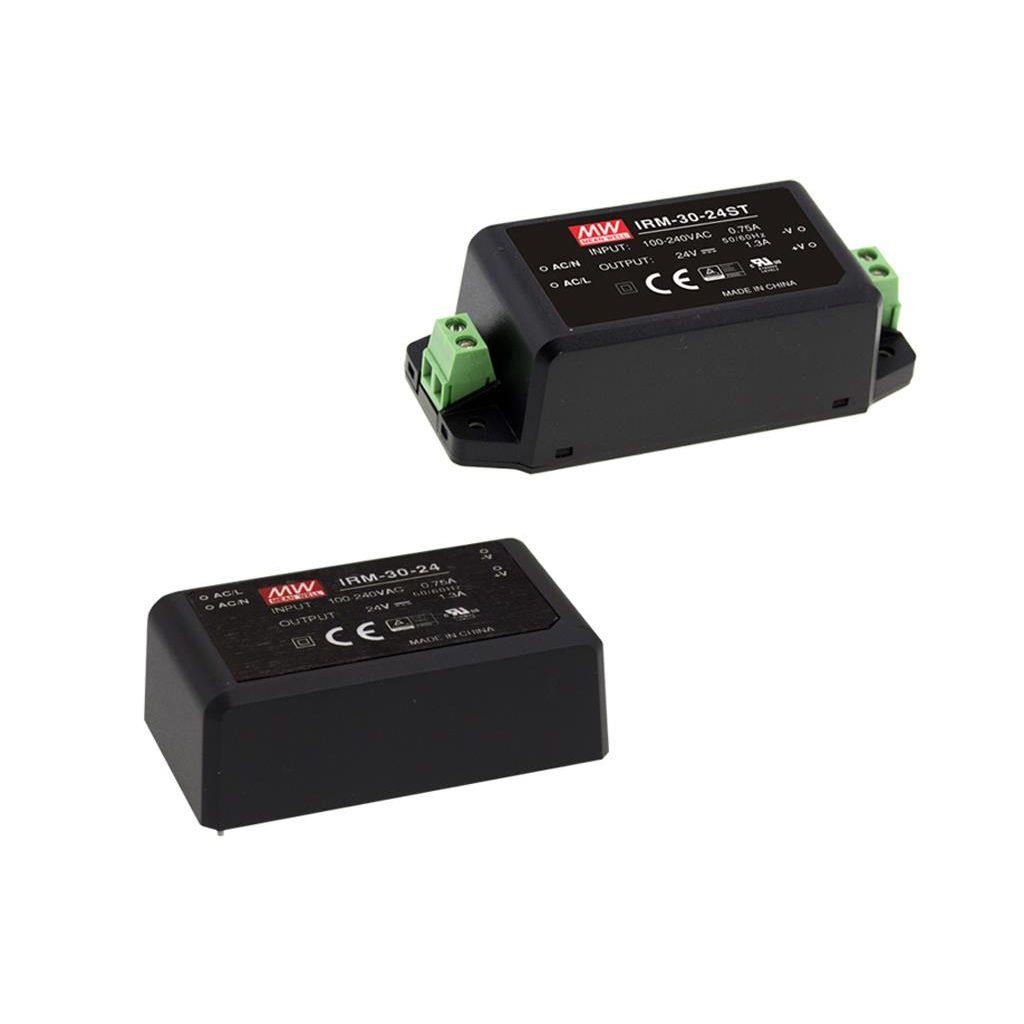

IRM-30-12

AC-DC Single output Encapsulated power supply; PCB mount; Input 85-264VAC; Output 12VDC at 2.5A; Compact size

MEAN WELL

S8VK-C06024

Power Supply, 60watt (2.5amp) @ DC24v, I

Omron

QS3.241

PULS QS3.241 is a power supply unit designed for DIN rail mounting, featuring AC/DC conversion with a 50% power reserve. It operates within an ambient air temperature range of -25 to +70°C and offers a design that includes a DC-OK relay contact output. The unit provides a rated current of 3.4A at 24Vdc and 3A at 28Vdc, with spring-clamp connections for ease of installation. It supports a supply voltage range of 85Vac-264Vac for AC and 88Vdc-375Vdc for DC, accommodating various network configurations including single-phase (1AC) or DC. The QS3.241, part of the Q-series, measures 32mm in width, 124mm in height, and 102mm in depth, housed in an aluminium casing. It delivers a rated power of 80W at 24V, 84W at 28V, and can handle up to 120W short-term for 4 seconds. The output voltage is adjustable between 24Vdc and 28Vdc, with comprehensive protection functions against overvoltage, overload, and short-circuit conditions. Efficiency rates vary by input voltage, achieving up to 0.9 at 230Vac. The unit exhibits a start-up delay of 330-360ms, with a hold time of 174ms at 230Vac input. Power dissipation is noted at 9.1W for 230Vac input under full load. Electrical durability spans up to 224000 hours, depending on conditions, and the output stage capacitance is 1500µF, with a ripple of 50mVpp across a 20Hz to 20MHz range.

Puls

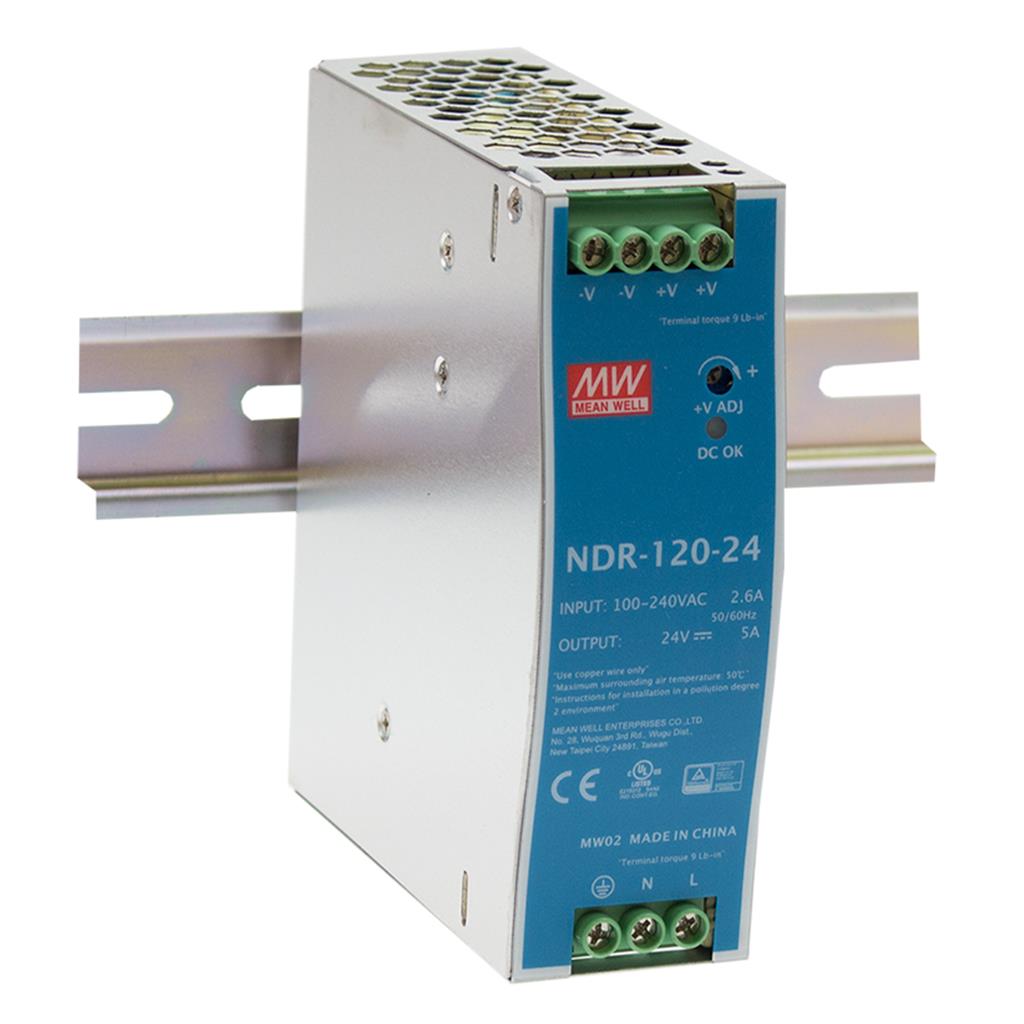

NDR-120-12

AC-DC Single output Industrial DIN rail power supply; Output 12Vdc at 10A; metal case

MEAN WELL

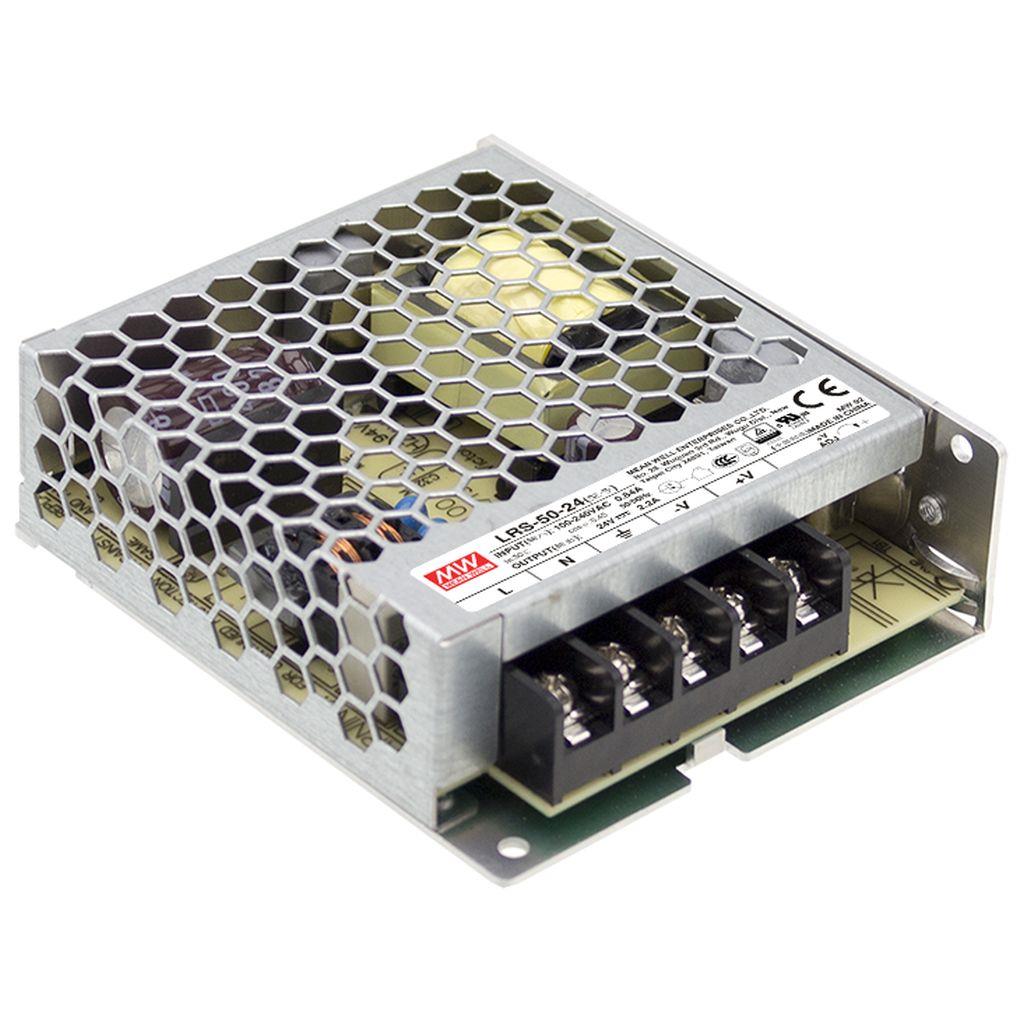

LRS-50-24

AC-DC Single output enclosed power supply; Universal AC input; Output 24Vdc at 2.2A; Up to 5G vibration; 1U low profile

MEAN WELL

S8JX-P30024C

S8JXP Switch Mode Power Supply

Omron

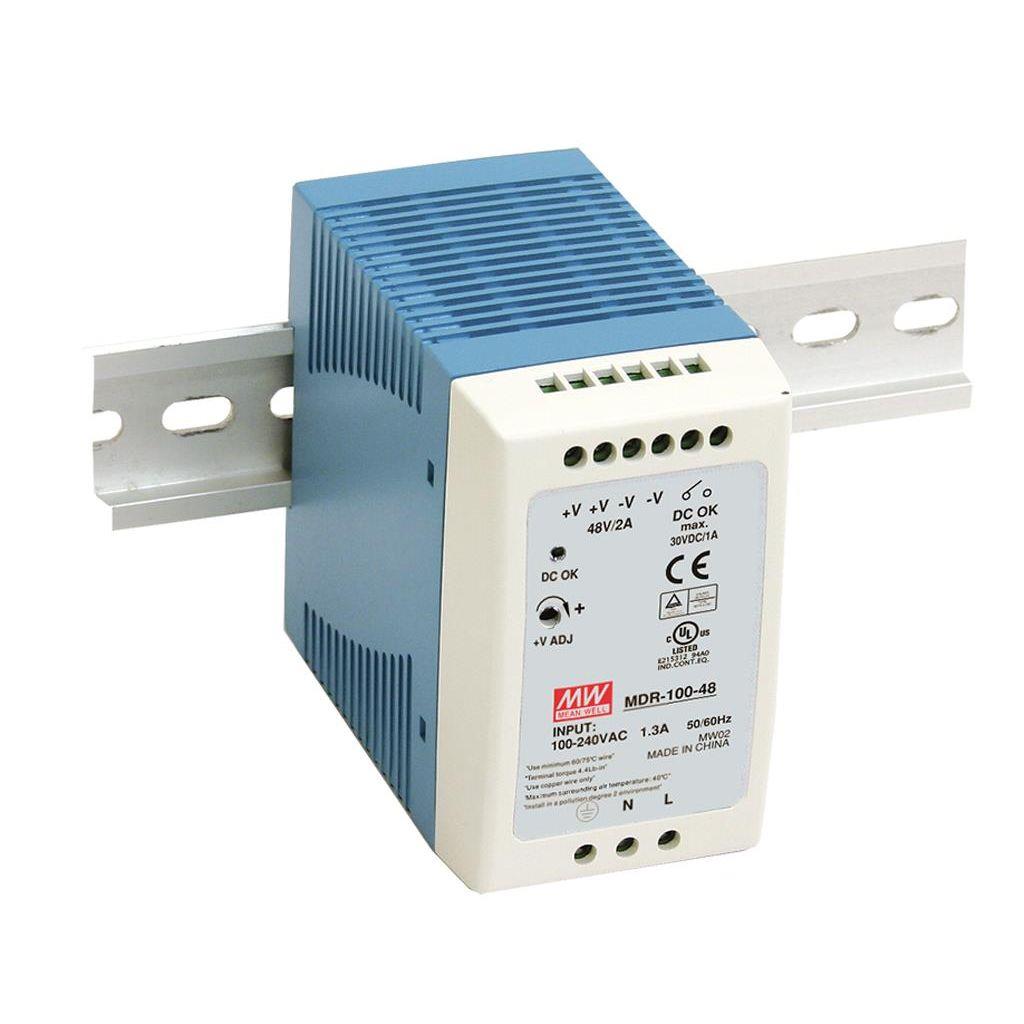

MDR-100-12

AC-DC Industrial DIN rail power supply; Output 12Vdc at 7.5A; plastic case

MEAN WELL

HDR-15-24

AC-DC Ultra slim DIN rail power supply; Input range 85-264VAC; Output 24VDC at 0.63A; Pass LPS

MEAN WELL

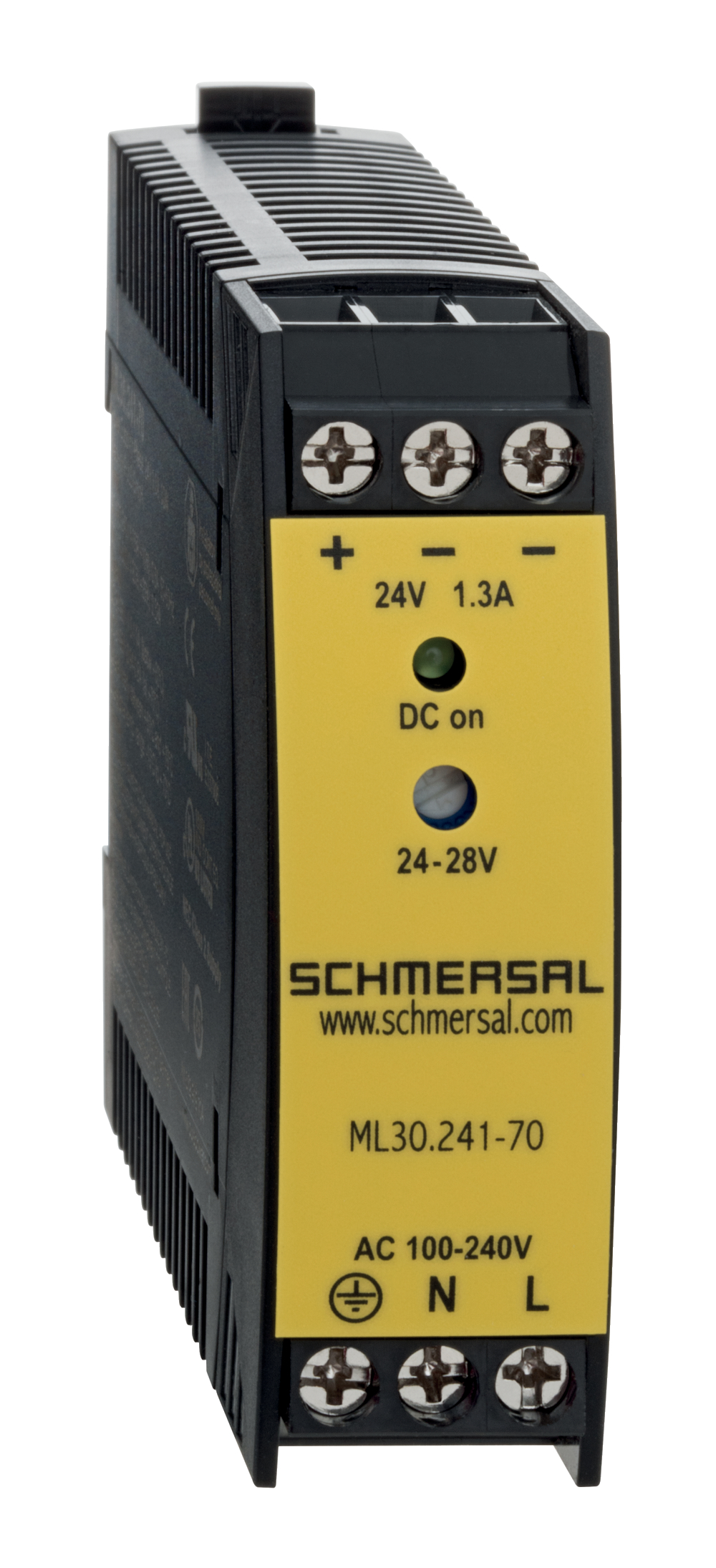

ML30.241-70

ML30.241-70 Schmersal - 1-phase DIN rail power supplies; AC 100-240V Wide-range input; DC Output 24-28VDC / 1,3-1,1A / 30W; Efficiency up to 89,4%; Width only 22,5mm

Schmersal
