AC/DC Power Supplies

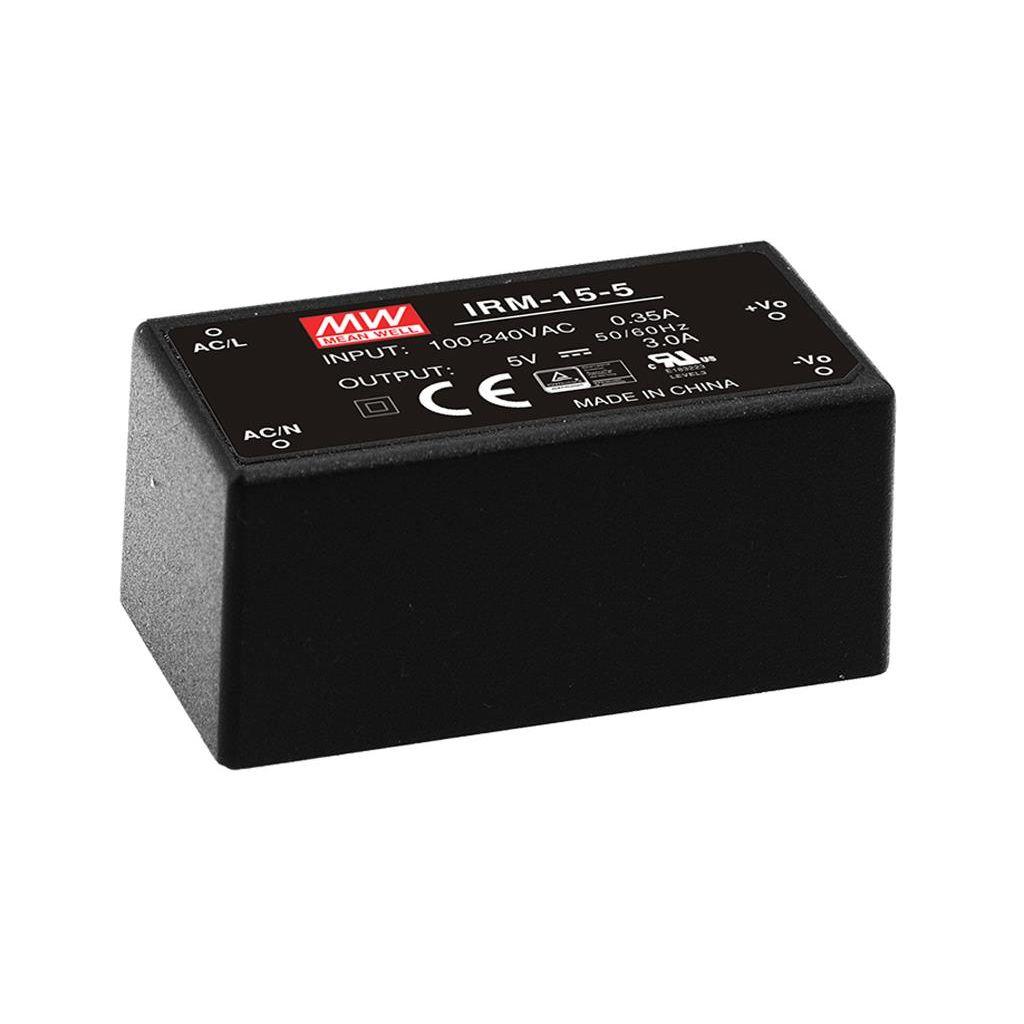

IRM-15-12

AC-DC Single output Encapsulated power supply; Input 85-264Vac; Output 12Vdc at 1.25A; PCB mount; miniature size

MEAN WELL

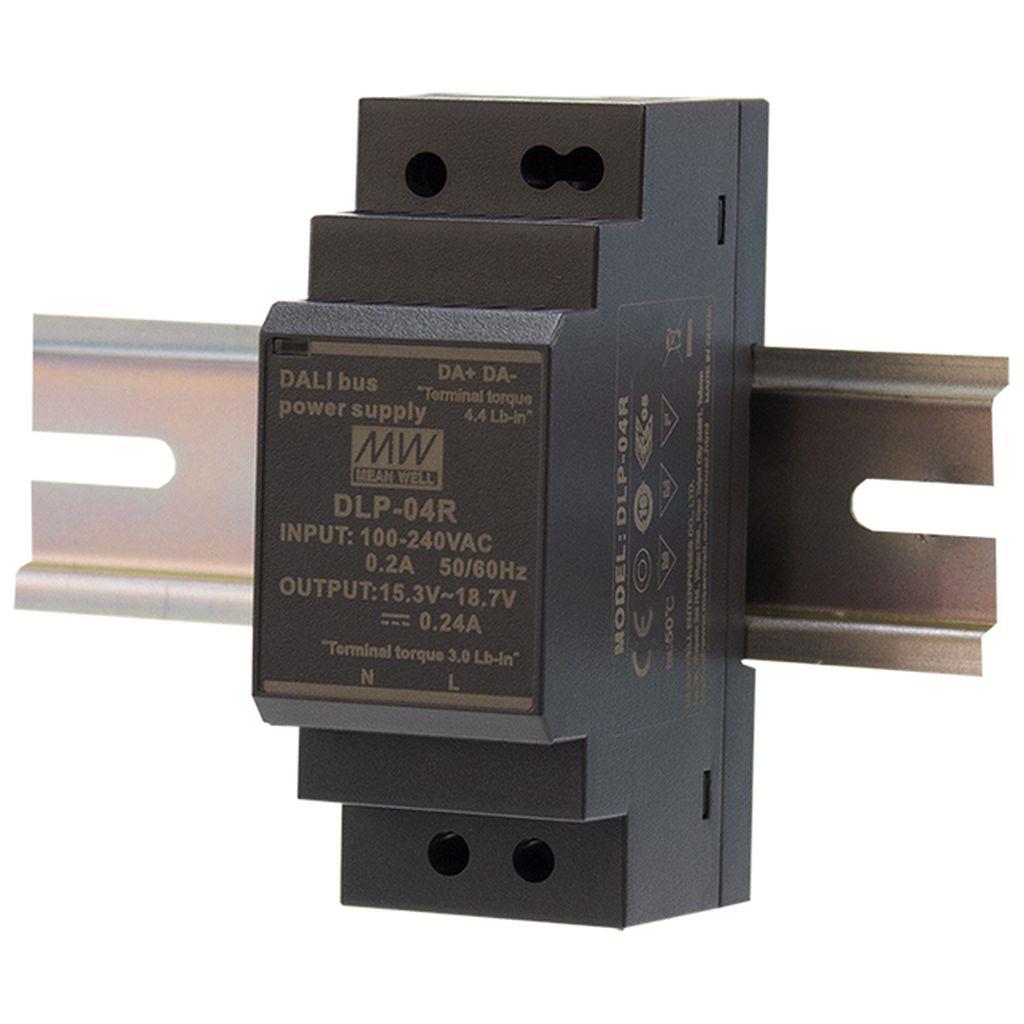

DLP-04R

DALI Ultra Slim Bus Power Supply; Output 18.7VDC at 0.24A; Rail type

MEAN WELL

QS3.241

PULS QS3.241 is a power supply unit designed for DIN rail mounting, featuring AC/DC conversion with a 50% power reserve. It operates within an ambient air temperature range of -25 to +70°C and offers a design that includes a DC-OK relay contact output. The unit provides a rated current of 3.4A at 24Vdc and 3A at 28Vdc, with spring-clamp connections for ease of installation. It supports a supply voltage range of 85Vac-264Vac for AC and 88Vdc-375Vdc for DC, accommodating various network configurations including single-phase (1AC) or DC. The QS3.241, part of the Q-series, measures 32mm in width, 124mm in height, and 102mm in depth, housed in an aluminium casing. It delivers a rated power of 80W at 24V, 84W at 28V, and can handle up to 120W short-term for 4 seconds. The output voltage is adjustable between 24Vdc and 28Vdc, with comprehensive protection functions against overvoltage, overload, and short-circuit conditions. Efficiency rates vary by input voltage, achieving up to 0.9 at 230Vac. The unit exhibits a start-up delay of 330-360ms, with a hold time of 174ms at 230Vac input. Power dissipation is noted at 9.1W for 230Vac input under full load. Electrical durability spans up to 224000 hours, depending on conditions, and the output stage capacitance is 1500µF, with a ripple of 50mVpp across a 20Hz to 20MHz range.

Puls

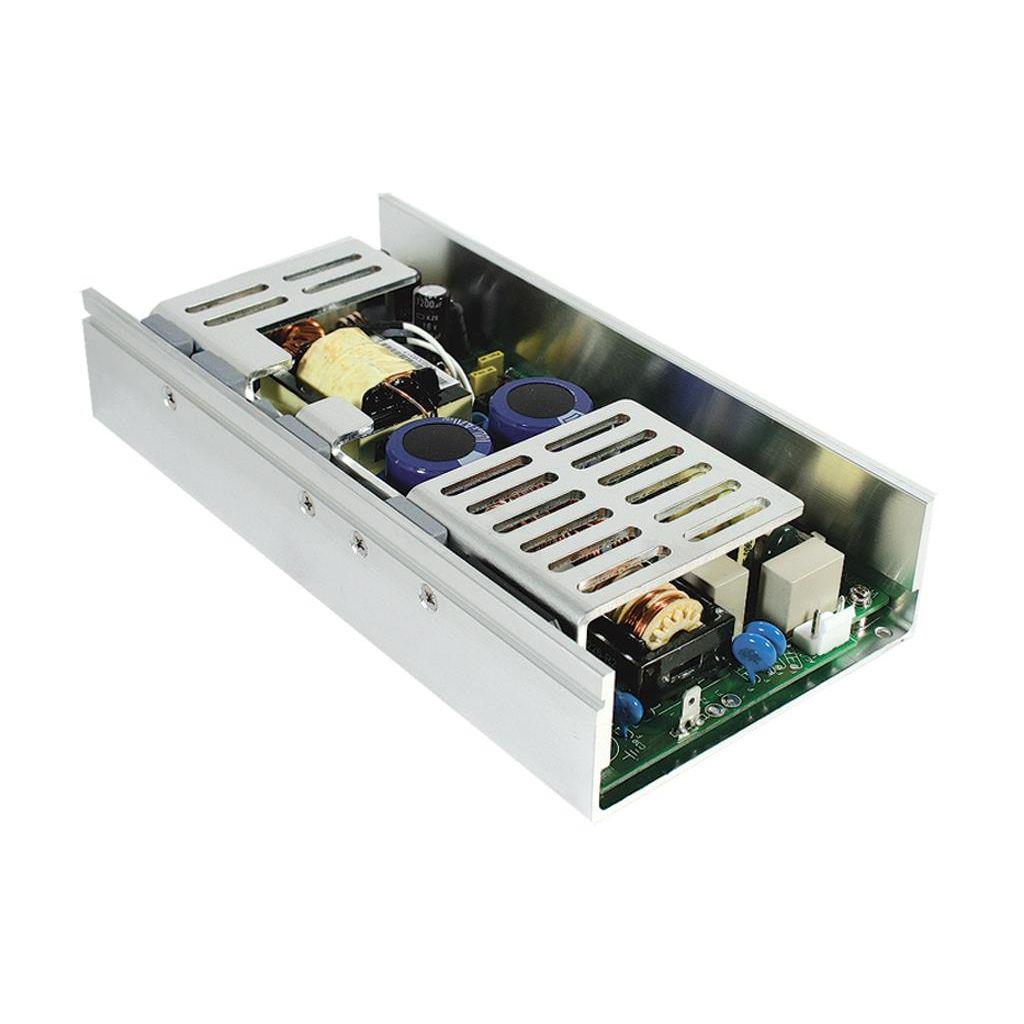

USP-225-15

AC-DC Single output power supply; Output 15Vdc at 15A; U-bracket low profile format 38mm; USP-225-15 is succeeded by UHP-200-15.

MEAN WELL

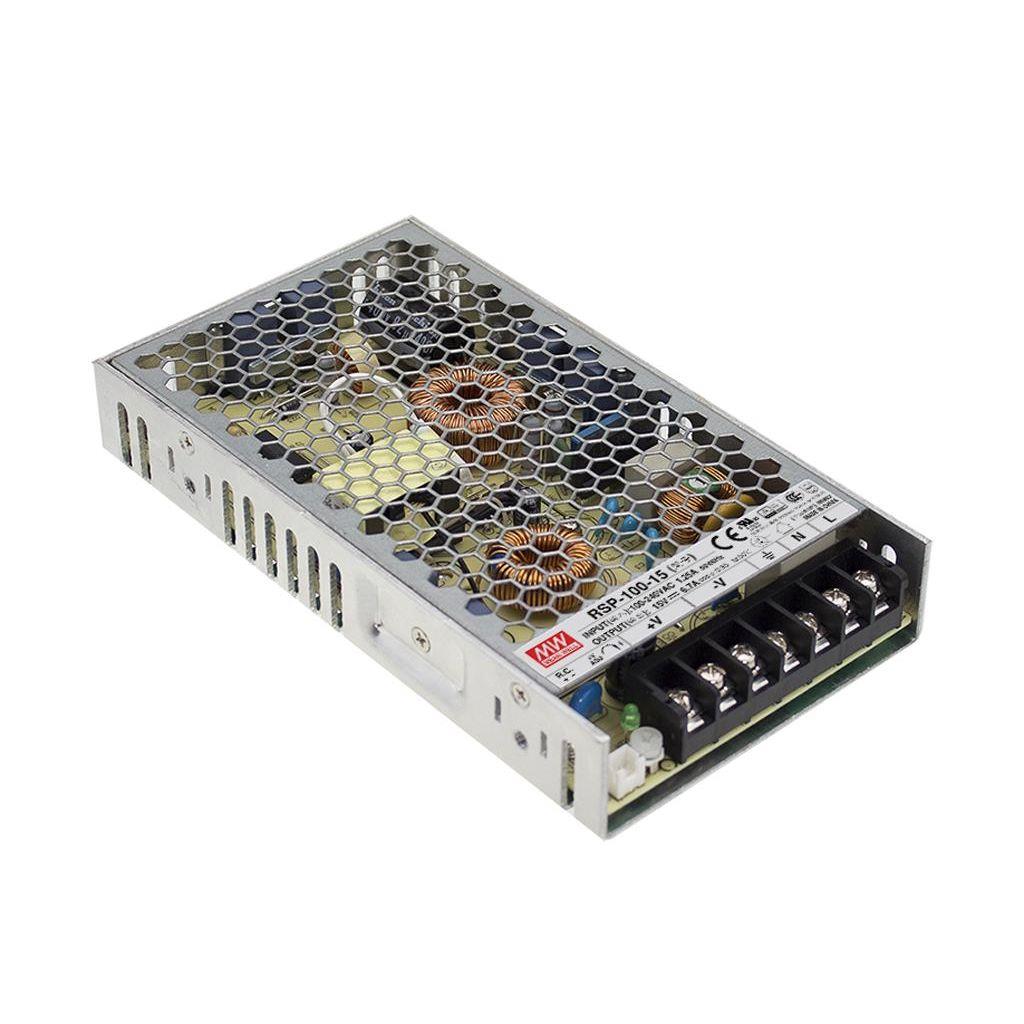

RSP-100-5

AC-DC Single Output Enclosed power supply; Output 5VDC Single Output at 20A; PFC; free air convection; Ultra low profile 30mm

MEAN WELL

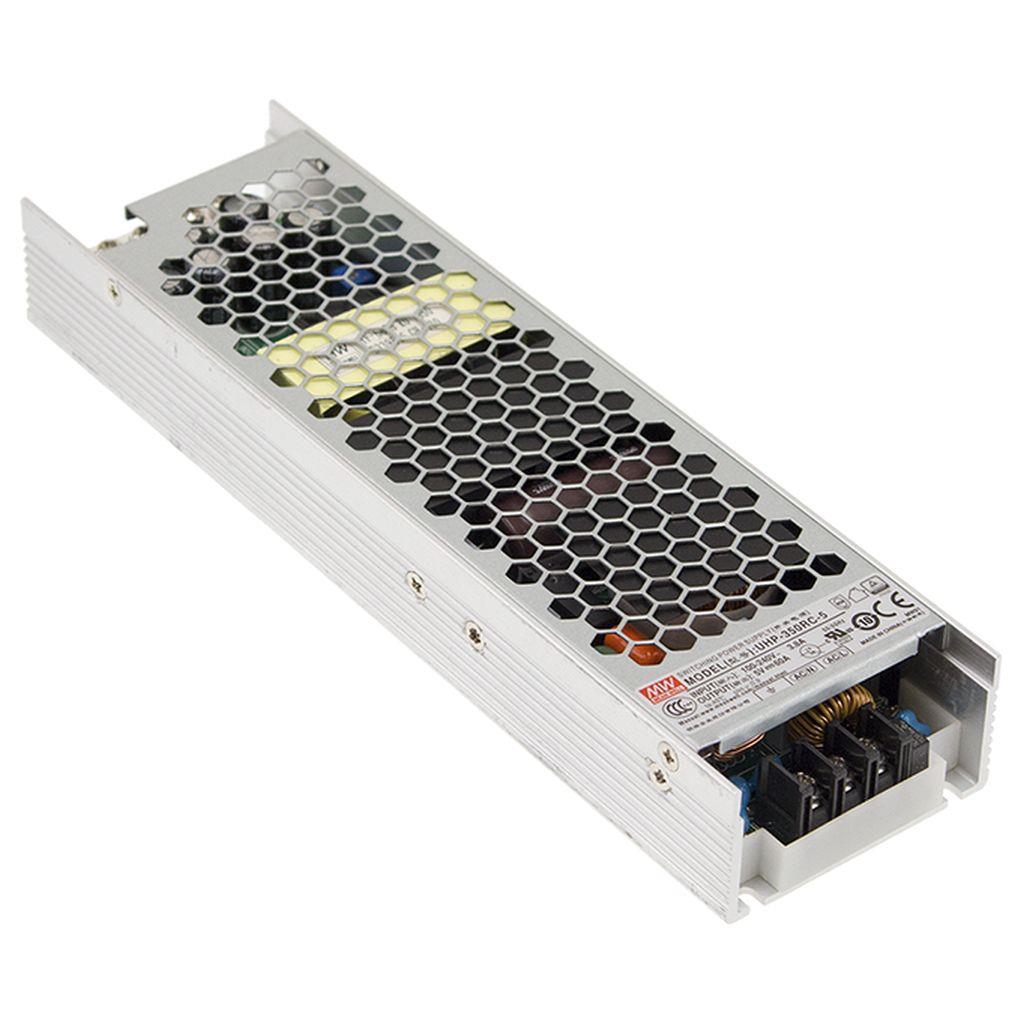

UHP-350-24

AC-DC Slim Single output enclosed power supply with PFC; Output 24VDC at 14.6A

MEAN WELL

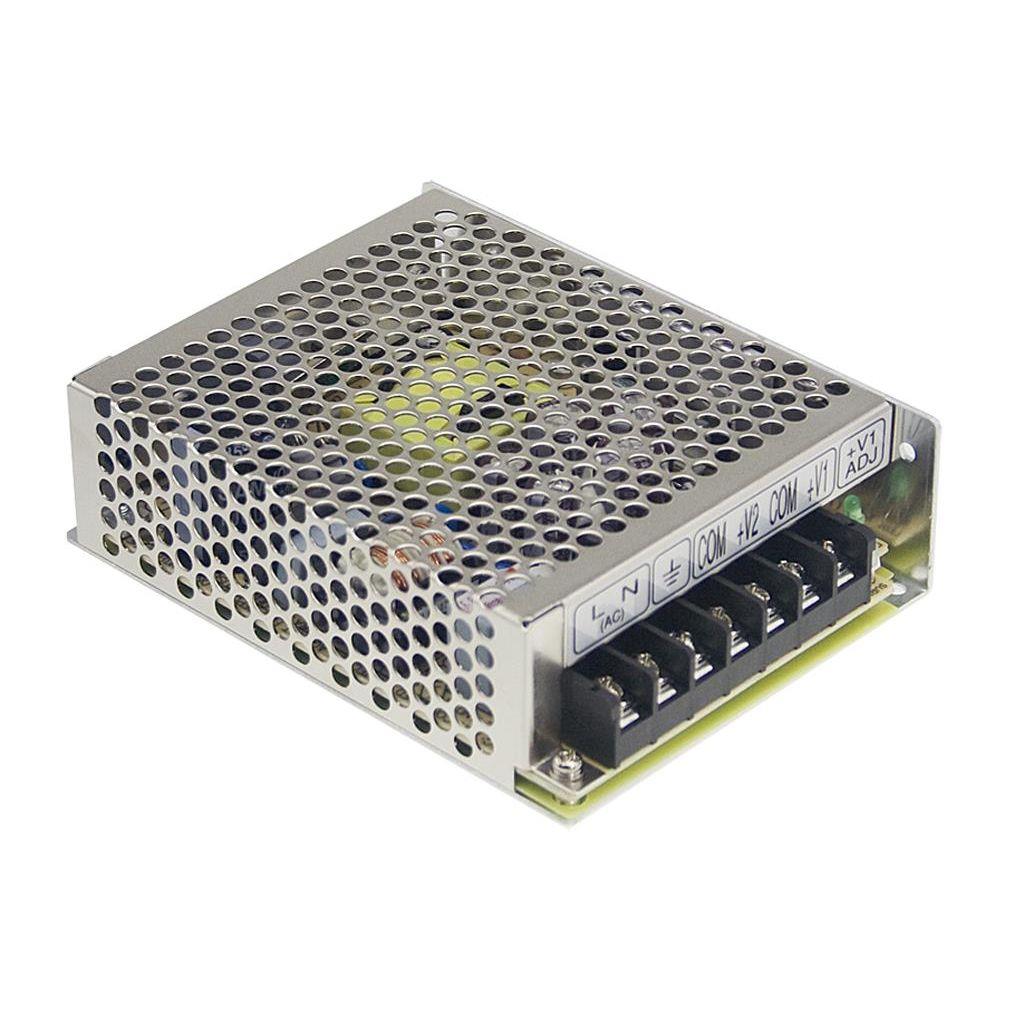

RS-50-15

AC-DC Single Output Enclosed power supply; Output 15VDC Single Output at 3.4A; free air convection

MEAN WELL

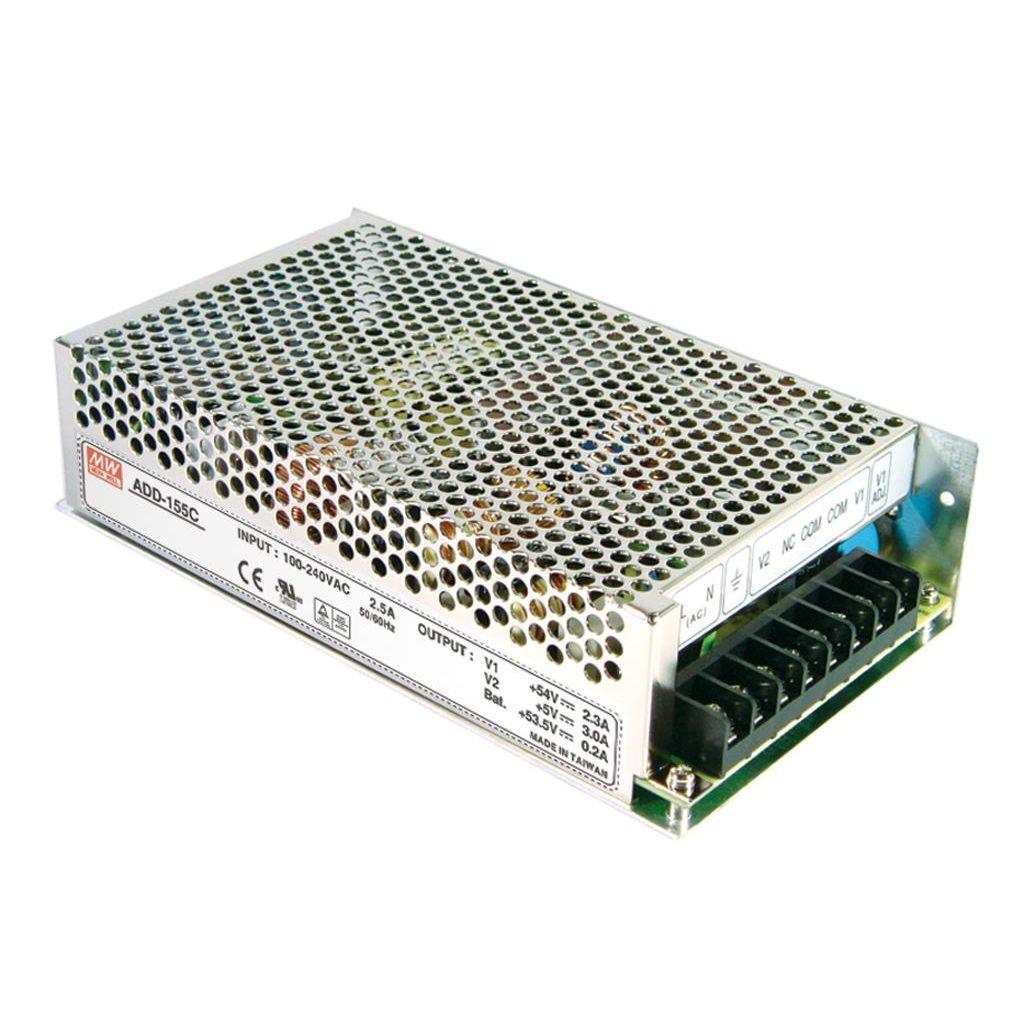

ADD-155A

AC-DC Enclosed power supply with UPS function; Output 13.8Vdc at 10.5A +5Vdc at 3A +13.3Vdc at 0.5A

MEAN WELL

NDR-120-12

AC-DC Single output Industrial DIN rail power supply; Output 12Vdc at 10A; metal case

MEAN WELL

MPM-30-12ST

AC-DC Single output Medical Encapsulated power supply; Output 12Vdc at 2.5A; Screw terminal block; 2xMOPP

MEAN WELL

LRS-50-24

AC-DC Single output enclosed power supply; Universal AC input; Output 24Vdc at 2.2A; Up to 5G vibration; 1U low profile

MEAN WELL

SDR-480-48

AC-DC Industrial DIN rail power supply; Output 48Vdc at 10A; Metal casing; Ultra slim width 85.5mm

MEAN WELL

S8JX-P30024C

S8JXP Switch Mode Power Supply

Omron

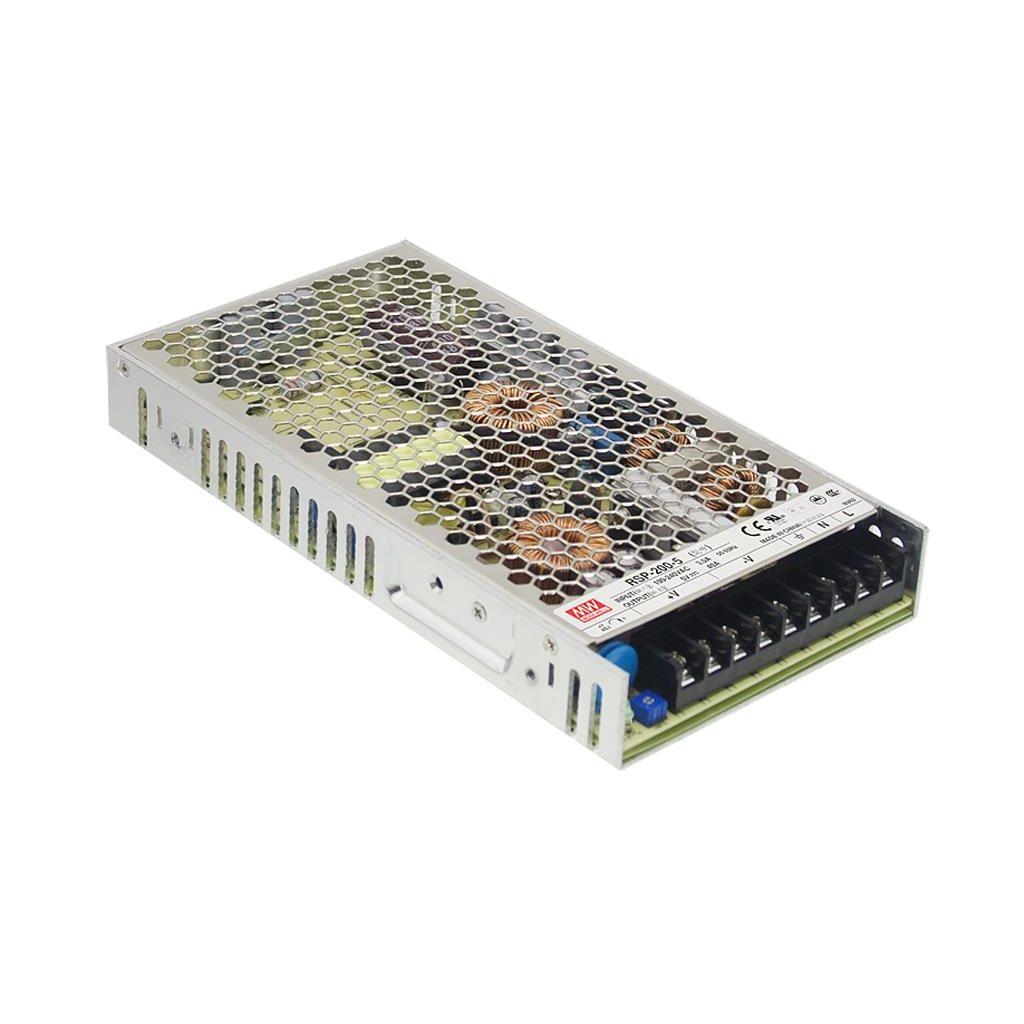

RSP-200-5

AC-DC Single Output Enclosed power supply; Output 5VDC Single Output at 40A; PFC; free air convection

MEAN WELL

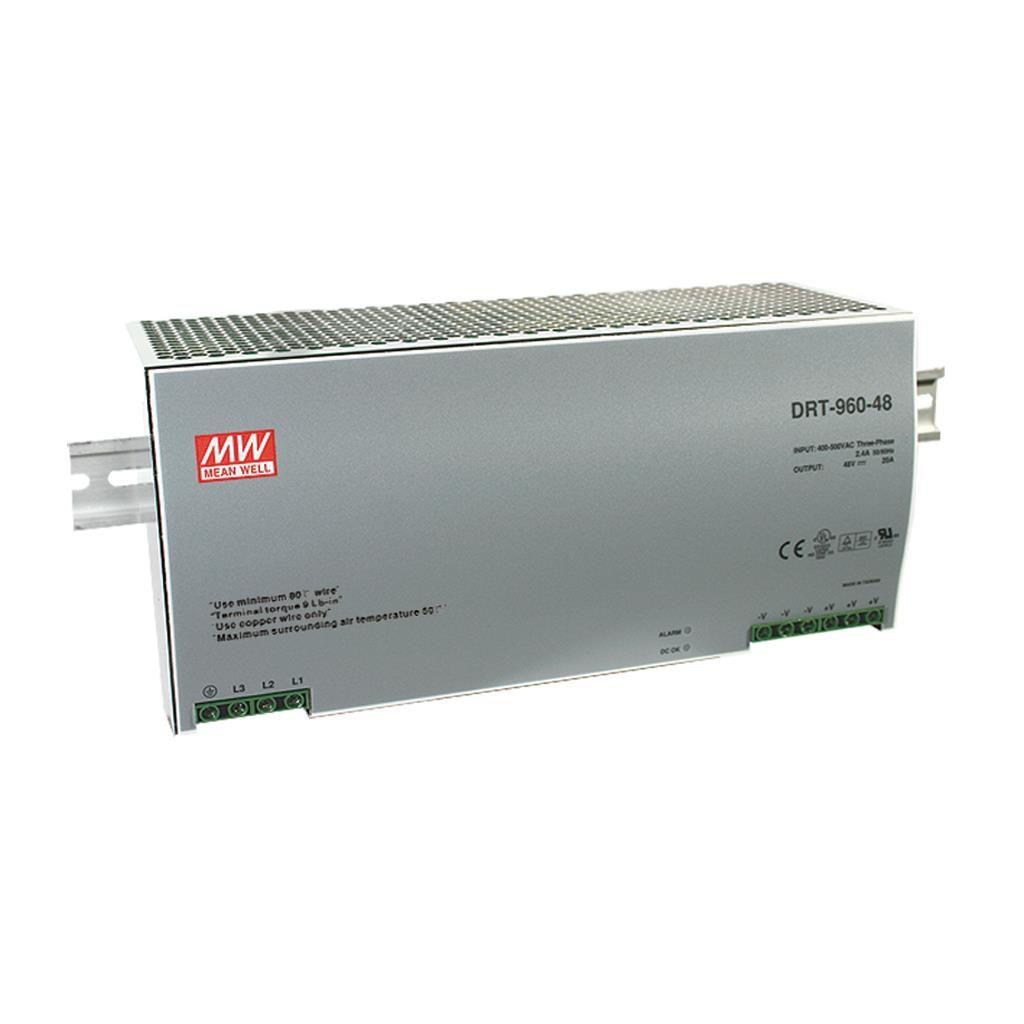

DRT-960-48

AC-DC Industrial DIN rail power supply; Output 48Vdc at 20A; metal case; 3-phase input; DRT-960-48 is succeeded by TDR-960-48.

MEAN WELL

HRP-300-12

AC-DC Single output enclosed power supply; Output 12Vdc at 27A; 1U low profile; fan cooling

MEAN WELL

ADS-15512

AC-DC Enclosed power supply with UPS function; Output 12Vdc at 12.5A +5Vdc at 3A

MEAN WELL

RSP-320-27

AC-DC Single Output Enclosed power supply; Output 27VDC Single Output at 11.9A; PFC; forced air cooling; 1U low profile

MEAN WELL

HDR-15-24

AC-DC Ultra slim DIN rail power supply; Input range 85-264VAC; Output 24VDC at 0.63A; Pass LPS

MEAN WELL

ML30.241-70

ML30.241-70 Schmersal - 1-phase DIN rail power supplies; AC 100-240V Wide-range input; DC Output 24-28VDC / 1,3-1,1A / 30W; Efficiency up to 89,4%; Width only 22,5mm

Schmersal
