AC/DC Power Supplies

S8VK-G24024

Power Supply, Switch Mode, 240W, 24V, 10 A, In 20-10AWG, 14-10AWG, S8VK Series

Omron

S8JX-P30024CD

S8JXP Switch Mode Power Supply

Omron

S8FS-G15005CD

S8FS-G Switch Mode Power Supply

Omron

S8FS-G15024C-500

Omron S8FS-G15024C-500 - 150W PS, 24VDC, Cover

Omron

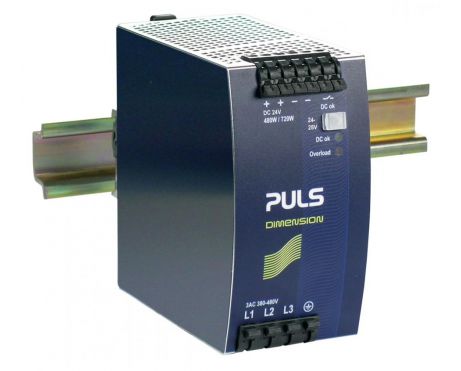

QT20.241

PULS QT20.241 is a power supply unit designed for DIN rail mounting, featuring AC/DC conversion with a 50% power reserve. It operates within an ambient air temperature range of -25 to +70°C and offers a design that includes a DC-OK relay contact output. The rated current is 20A at 24Vdc and 17.5A at 28Vdc, with a power derating from 12W at +60°C to +70°C. Connection is facilitated through spring-clamp connections. The supply voltage accommodates a wide range with 3-phase input from 323Vac to 576Vac, including nominal voltages of 380Vac, 400Vac, 415Vac, 440Vac, 480Vac, 500Vac, and 525Vac at 47-63Hz, with a turn-ON voltage of 3 x 263Vac and a shutdown voltage of 3 x 242Vac. Its dimensions are W65mm x H124mm x D127mm, housed in aluminium for durability. The QT20.241 supports a 3-phase network, has a net width of 65mm, and provides a rated power of 480W, with a short-term capacity of 720W for up to 4 seconds. The output voltage is adjustable between 24Vdc and 28Vdc, with a maximum output overvoltage protection set between 32Vdc (typical) and 35Vdc (maximum). It includes protection against overvoltage, overload, and short-circuit conditions, and allows for series or parallel operation to increase output power. The unit is designed to handle back-feeding loads up to 34V without malfunctioning. Efficiency rates are 0.948 with a 3x480Vac input and 0.95 with a 3x400Vac input. Peak inrush current consumption is capped at 10A, with a start-up delay between 290-350ms and a hold time of 22ms. Power dissipation losses are 26.4W and 25.3W for 3x480Vac and 3x400Vac inputs, respectively, under full load conditions. Electrical durability spans up to 345000 hours at 25°C with a 10A output and 3AC 400Vac input, with varying durability under different conditions. The ripple is maintained at 100mVpp across a 20Hz to 20MHz range, and the output stage capacitance is 950µF.

Puls

S8FS-G01524C

S8FS-G Switch Mode Power Supply

Omron

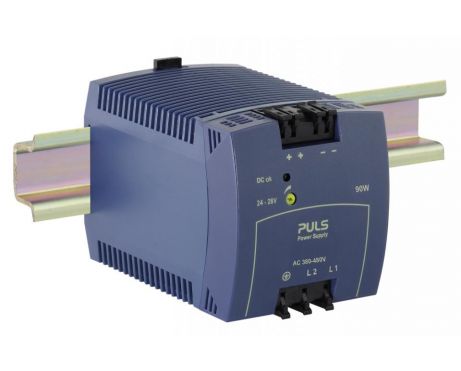

ML90.200

PULS ML90.200 is a power supply unit (PSU) / converter designed for AC/DC applications with DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and adheres to NEC Class 2 design specifications. This unit offers a rated current of 3.75A at 24Vdc with a derating of 2W from +60°C to +70°C. It features spring-clamp connections for secure and efficient connectivity. The supply voltage accommodates a wide range from 323Vac to 576Vac, supporting various nominal voltages such as 380Vac, 400Vac, 415Vac, 440Vac, 480Vac, 500Vac, and 525Vac, with a frequency range of 47-63Hz and a 2-phase input. The dimensions of the ML90.200 are W72.5mm x H75mm x D103mm, constructed from a PC / ABS blend housing for durability. It is designed for a 2-phase AC network, with a net width of 72.5 mm. The rated power is 90W, and the output voltage is adjustable between 24Vdc and 28Vdc. Protection functions include an NTC for input inrush current limiting. The efficiency rates are 0.89 at 480Vac input and 0.895 at 400Vac input. Current consumption can reach up to 36A max inrush at 2x400Vac input and 45A peak max inrush at 2x480Vac input. Power dissipation/losses are calculated at 10.5 W, with a ripple of 50mVpp across a frequency range of 20Hz to 20MHz at 50Ω.

Puls

2903149

Primary-switched TRIO POWER power supply with push-in connection for DIN rail mounting, input: single phase, output: 24 V DC/10 A

Phoenix Contact

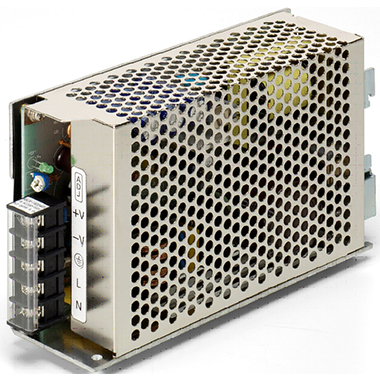

S8JX-P60024CD

S8JXP Switch Mode Power Supply

Omron

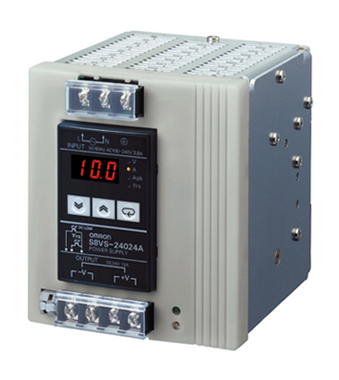

S8VS-24024

S8VS Switch Mode Power Supply

Omron

S8FS-G01505C

S8FS-G Switch Mode Power Supply

Omron

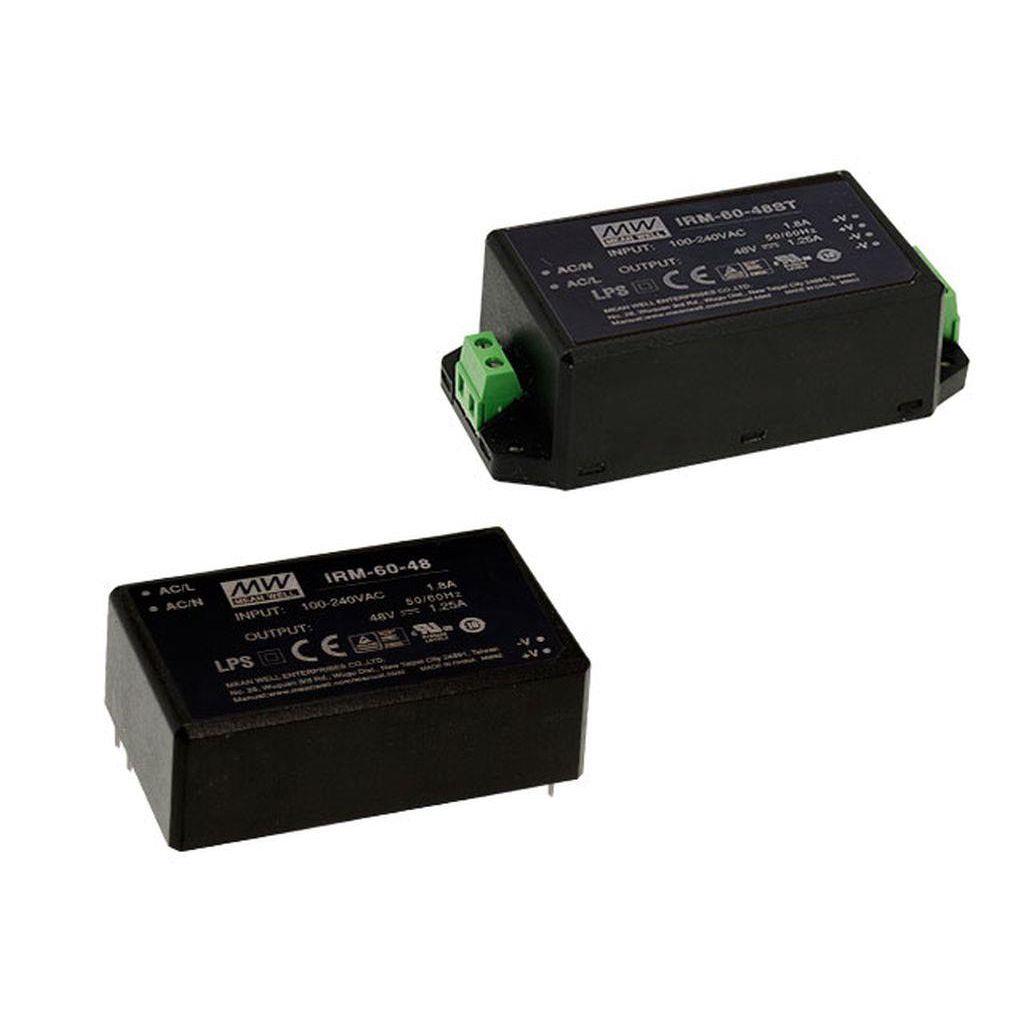

IRM-60-48ST

AC-DC Single output Encapsulated power supply; Output 48Vdc at 1.25A; Screw Terminal style; miniature size

MEAN WELL

2903156

Primary-switched TRIO power supply for DIN rail mounting, input: 3-phase, output: 24 V DC/40 A, dynamic boost, tool-free fast connection technology for solid and stranded conductors with ferrule

Phoenix Contact

2903159

Primary-switched TRIO power supply for DIN rail mounting, input: 1-phase, output: 48 V DC / 5 A, dynamic boost, tool-free fast connection technology for solid and stranded conductors with ferrule

Phoenix Contact

2904611

Primary-switched QUINT POWER power supply for DIN rail mounting with free choice of output characteristic curve and SFB (Selective Fuse Breaking) technology, input: 1-phase, output: 48 V DC / 10 A

Phoenix Contact

SDN4024100CX

SDN4024100CX SolaHD - SolaHD™ SDN-C Performance DIN Rail Series Power Supplies - PN SDN4024100CX

SolaHD

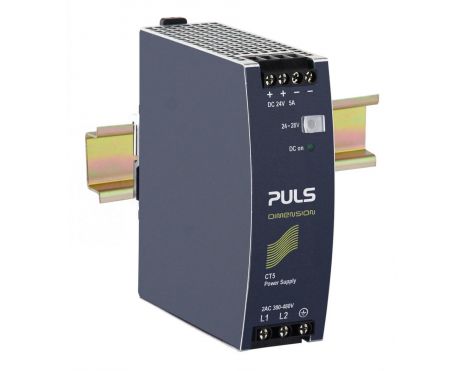

CT5.241

PULS CT5.241 is a DIN rail mounting power supply unit with an aluminium housing, designed for an ambient air temperature range of -25 to +70°C. It features a net width of 40mm and dimensions of W40mm x H124mm x D117mm. The unit consumes 0.68A with a 480Vac input and 0.75A with a 400Vac input for a full 24Vdc output, with a peak inrush current of 10A at both 480Vac and 400Vac inputs. It boasts an efficiency of 0.9 at 480Vac input and 0.904 at 400Vac input. The CT5.241 offers a 75ms start-up delay and a rise time of 35-36ms under nominal input with a constant full current load and 0mF load capacitance, extending to 64-68ms with 5mF load capacitance. It includes protection functions such as output overvoltage protection and an active input inrush current limiter, with overload/short-circuit protection up to 13A continuous current. The unit supports series/parallel operation for increased output power and is resistant to back-feeding loads up to 35V. Power dissipation/losses are 13.3W and 12.7W for 480Vac and 400Vac inputs, respectively, under full output load. The output stage capacitance is 3800µF, and the electrical durability ranges from 72,000 to 526,000 hours depending on the operating conditions. The ripple is specified at 50mVpp (20Hz...20MHz; 50Ω). This AC/DC power supply unit/converter, part of the CT-series, is designed with a 20% power reserve and includes a DC-OK relay contact output. It features screw-clamp connections and accepts a wide range supply voltage of 323Vac-576Vac (2-phase input) with various shutdown voltages based on load conditions. The rated current is 6A at 24Vdc from -25 to +45°C and 3.75A at 24Vdc from -25 to +70°C, with a rated power of 120W. The output voltage is adjustable from 24Vdc to 28Vdc, with a hold time of 60ms at 480Vac input and 40ms at 400Vac input.

Puls

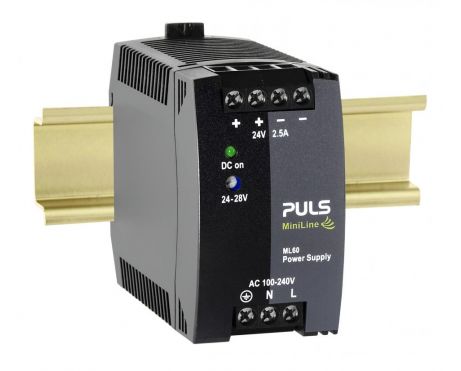

ML60.242

PULS ML60.242 is a power supply unit designed for AC/DC conversion with DIN rail mounting. It operates within an ambient air temperature range of -40 to +70°C and is designed for NEC Class 2 operation in cold environments down to -40°C. This unit provides a rated current of 2.5A at 24Vdc and features screw-clamp connections. It supports a supply voltage range of 85Vac-264Vac for AC (with specific nominal values and a 75Vac turn-ON voltage and 65Vac shutdown voltage) and 88Vdc-375Vdc for DC, accommodating a variety of network configurations including single-phase (1AC) or DC. The ML60.242 measures 45mm in width, 75mm in height, and 91mm in depth, housed in a PC / ABS blend. It delivers a rated power of 60W with an adjustable output voltage of 24Vdc-28Vdc and includes protection functions such as an active input inrush current limiter. The unit boasts an efficiency of 0.904 at 230Vac input, 0.885 at 120Vac input, and 0.874 at 100Vac input, with a peak current consumption of 6A at 230Vac input. It features a 170ms start-up delay, a rise time of 50-60ms under nominal input with a constant full current load and 0mF load capacitance, and a rise time of 110-140ms with 2.5mF load capacitance. Power dissipation/losses are rated at 6.4W, and it has an electrical durability of 90kh (minimum at +40°C) or 90,000 hours, with a ripple of 50mVpp across 20Hz to 20MHz at 50Ω and an output stage capacitance of 1600μF.

Puls

2904372

Primary-switched UNO power supply for DIN rail mounting, input: single-phase, output: 24 V DC/240 W

Phoenix Contact

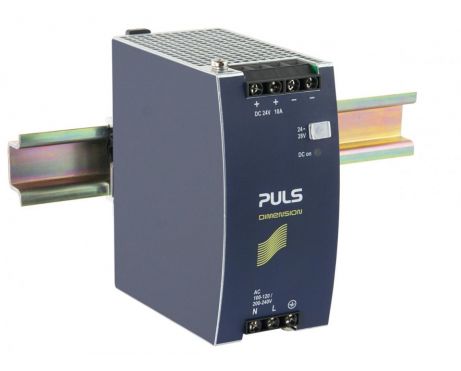

CS10.242

PULS CS10.242 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C. The unit consumes 2A with a 230Vac input for a full 24Vdc output, 3.73A with a 120Vac input, and 4.34A with a 100Vac input, with a peak inrush current of 10A across all input voltages. It boasts an efficiency of 0.912 at 230Vac input, 0.91 at 120Vac input, and 0.907 at 100Vac input. The dimensions are W60mm x H124mm x D117mm. It has a start-up delay of 850ms across 100-230Vac inputs, with a rise time of 35ms under nominal input and full current load without load capacitance, and 75ms with 10mF load capacitance. The unit includes protection functions such as output overvoltage protection, active input inrush current limiting, and overload/short-circuit protection. It supports series/parallel operation for redundancy and is resistant to back-feeding loads up to 35V. Power dissipation is 23.2W at 230Vac input and full output load, and 23.7W at 120Vac input. The output stage capacitance is 7000µF. Electrical durability ranges from 50,000 to 305,000 hours depending on conditions. Ripple is maintained at 50mVpp. This AC/DC power supply unit is part of the C-Line series, featuring passive PFC, a 20% power reserve, and a DC-OK relay contact output. Connections are made via screw-clamp connections. It accepts a supply voltage of 85Vac-132Vac / 184Vac-264Vac with auto-selection and has a rated current of 10A at 24Vdc and 8.6A at 28Vdc. Designed for single-phase networks, it offers a rated power of 288W at ambient temperatures below 45°C and 240W below 60°C. The output voltage is adjustable between 24Vdc and 28Vdc, with a 100mV turn-ON overshoot. Hold time is 42ms at 230Vac input and 46ms at 120Vac input.

Puls
