Pneumatic Fittings

8030243

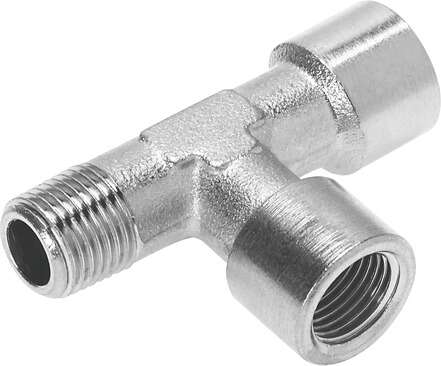

t-fitting NPFC-T-R38-2G38-MFF Material threaded fitting: Nickel-plated brass, Container size: 10, Operating pressure: -0,95 - 50 bar, Operating medium: Compressed air in accordance with ISO8573-1:2010 [-:-:-], Corrosion resistance classification CRC: 1 -

Festo

8030211

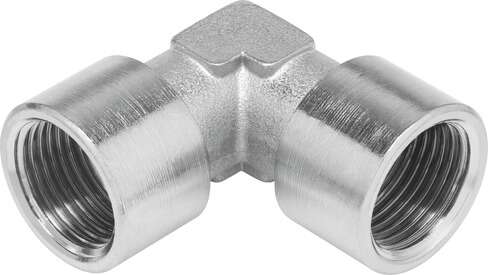

elbow fitting NPFC-L-2G38-F Material threaded fitting: Nickel-plated brass, Container size: 10, Operating pressure: -0,95 - 50 bar, Operating medium: Compressed air in accordance with ISO8573-1:2010 [-:-:-], Corrosion resistance classification CRC: 1 - Lo

Festo

8030281

double nipple NPFC-D-2R14-M Material threaded fitting: Nickel-plated brass, Container size: 10, Operating pressure: -0,95 - 50 bar, Operating medium: Compressed air in accordance with ISO8573-1:2010 [-:-:-], Corrosion resistance classification CRC: 1 - Lo

Festo

8030297

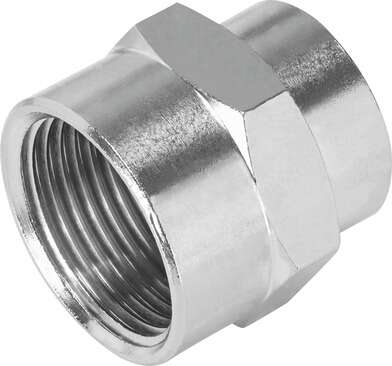

reducing sleeve NPFC-R-G34-G12-F Material threaded fitting: Nickel-plated brass, Container size: 10, Operating pressure: -0,95 - 50 bar, Operating medium: Compressed air in accordance with ISO8573-1:2010 [-:-:-], Corrosion resistance classification CRC: 1

Festo

8030234

y-fitting NPFC-Y-R12-2G12-MFF Material threaded fitting: Nickel-plated brass, Container size: 10, Operating pressure: -0,95 - 50 bar, Operating medium: Compressed air in accordance with ISO8573-1:2010 [-:-:-], Corrosion resistance classification CRC: 1 -

Festo

8030268

double nipple NPFC-D-M7-G18-M Material threaded fitting: Nickel-plated brass, Container size: 10, Operating pressure: -0,95 - 50 bar, Operating medium: Compressed air in accordance with ISO8573-1:2010 [-:-:-], Corrosion resistance classification CRC: 1 -

Festo

153021

push-in fitting QS-1/2-12-I male thread with internal hexagon socket. Size: Standard, Nominal size: 8,4 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Container size: 1

Festo

15631

barbed hose fitting N-1/4-P-6-MS Brass version Nominal size: 4,5 mm, Type of seal on screw-in stud: Sealing ring, Operating pressure complete temperature range: -0,95 - 16 bar, Operating medium: Compressed air in accordance with ISO8573-1:2010 [7:-:-], No

Festo

11973

barbed bulkhead fitting SCN-PK-4 For plastic tubing PAN, PUN, PL, PP, PU. Nominal size: 2,8 mm, Operating pressure complete temperature range: -0,95 - 10 bar, Operating medium: Compressed air in accordance with ISO8573-1:2010 [7:-:-], Note on operating an

Festo

153967

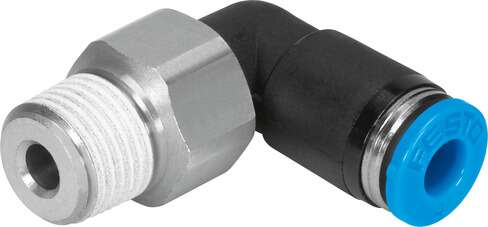

push-in L-fitting QSRL-1/4-1/4-U 360° rotatable, with ball bearing, male thread with external hexagon. Size: Standard, Type of seal on screw-in stud: coating, Assembly position: Any, Container size: 1, Design structure: Push/pull principle

Festo

8030282

double nipple NPFC-D-R14-R38-M Material threaded fitting: Nickel-plated brass, Container size: 10, Operating pressure: -0,95 - 50 bar, Operating medium: Compressed air in accordance with ISO8573-1:2010 [-:-:-], Corrosion resistance classification CRC: 1 -

Festo

153956

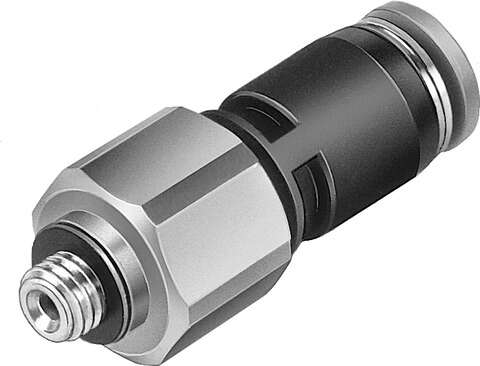

rotary push-in fitting QSR-1/8-5/16-U 360° rotatable, with ball bearing, male thread with external hexagon. Size: Standard, Nominal size: 5 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Container size: 1

Festo

133105

push-in L-connector NPQP-L-Q4-E-FD-P10 Size: Standard, Nominal size: 2,3 mm, Container size: 10, Design structure: Push/pull principle, Temperature dependent operating pressure: -0,95 - 10 bar

Festo

8030313

reducing nipple NPFC-R-G34-G12-MF Material threaded fitting: Nickel-plated brass, Container size: 10, Operating pressure: -0,95 - 50 bar, Operating medium: Compressed air in accordance with ISO8573-1:2010 [-:-:-], Corrosion resistance classification CRC:

Festo

8030280

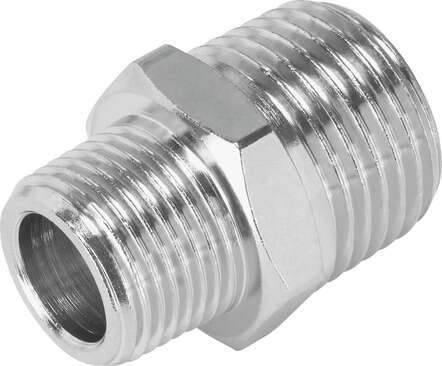

double nipple NPFC-D-R18-R38-M Material threaded fitting: Nickel-plated brass, Container size: 10, Operating pressure: -0,95 - 50 bar, Operating medium: Compressed air in accordance with ISO8573-1:2010 [-:-:-], Corrosion resistance classification CRC: 1 -

Festo

153822

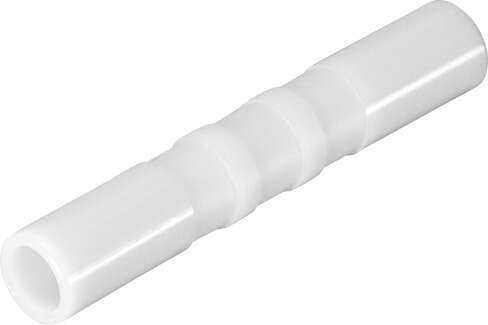

push-in sleeve QSH-1/2-U Assembly position: Any, Container size: 1, Design structure: Push/pull principle, Operating pressure complete temperature range: -0,95 - 10 bar, Maritime classification: see certificate

Festo

8030247

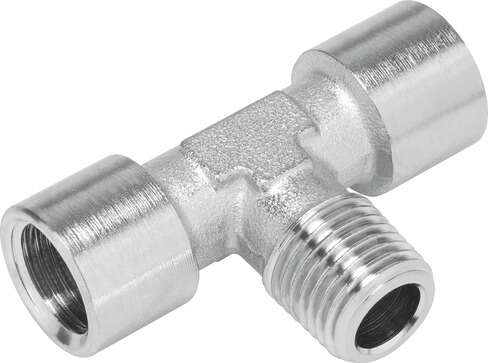

t-fitting NPFC-T-2G14-R14-FMF Material threaded fitting: Nickel-plated brass, Container size: 10, Operating pressure: -0,95 - 50 bar, Operating medium: Compressed air in accordance with ISO8573-1:2010 [-:-:-], Corrosion resistance classification CRC: 1 -

Festo

8030228

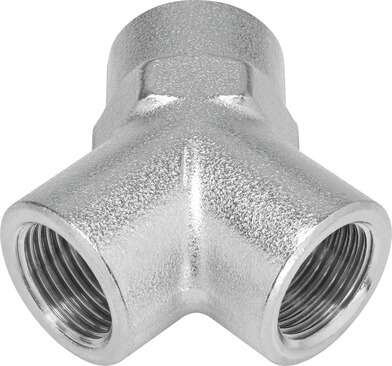

y-fitting NPFC-Y-3G14-F Material threaded fitting: Nickel-plated brass, Container size: 10, Operating pressure: -0,95 - 50 bar, Operating medium: Compressed air in accordance with ISO8573-1:2010 [-:-:-], Corrosion resistance classification CRC: 1 - Low co

Festo

153954

rotary push-in fitting QSR-1/8-1/4-U 360° rotatable, with ball bearing, male thread with external hexagon. Size: Standard, Nominal size: 3,4 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Container size: 1

Festo

153037

push-in connector QS-6-4 reducing. Size: Standard, Nominal size: 2,6 mm, Assembly position: Any, Container size: 10, Design structure: Push/pull principle

Festo
