Pneumatic Fittings

133105

push-in L-connector NPQP-L-Q4-E-FD-P10 Size: Standard, Nominal size: 2,3 mm, Container size: 10, Design structure: Push/pull principle, Temperature dependent operating pressure: -0,95 - 10 bar

Festo

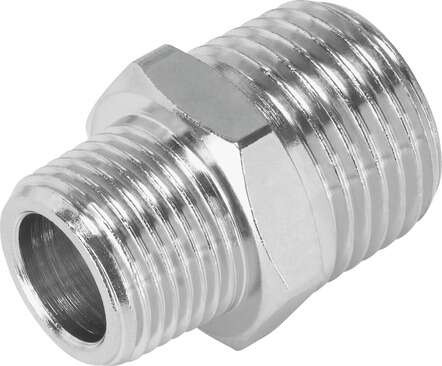

8030313

reducing nipple NPFC-R-G34-G12-MF Material threaded fitting: Nickel-plated brass, Container size: 10, Operating pressure: -0,95 - 50 bar, Operating medium: Compressed air in accordance with ISO8573-1:2010 [-:-:-], Corrosion resistance classification CRC:

Festo

8030231

y-fitting NPFC-Y-R18-2G18-MFF Material threaded fitting: Nickel-plated brass, Container size: 10, Operating pressure: -0,95 - 50 bar, Operating medium: Compressed air in accordance with ISO8573-1:2010 [-:-:-], Corrosion resistance classification CRC: 1 -

Festo

8030278

double nipple NPFC-D-2R18-M Material threaded fitting: Nickel-plated brass, Container size: 10, Operating pressure: -0,95 - 50 bar, Operating medium: Compressed air in accordance with ISO8573-1:2010 [-:-:-], Corrosion resistance classification CRC: 1 - Lo

Festo

8030280

double nipple NPFC-D-R18-R38-M Material threaded fitting: Nickel-plated brass, Container size: 10, Operating pressure: -0,95 - 50 bar, Operating medium: Compressed air in accordance with ISO8573-1:2010 [-:-:-], Corrosion resistance classification CRC: 1 -

Festo

8030246

t-fitting NPFC-T-2G18-R18-FMF Material threaded fitting: Nickel-plated brass, Container size: 10, Operating pressure: -0,95 - 50 bar, Operating medium: Compressed air in accordance with ISO8573-1:2010 [-:-:-], Corrosion resistance classification CRC: 1 -

Festo

153822

push-in sleeve QSH-1/2-U Assembly position: Any, Container size: 1, Design structure: Push/pull principle, Operating pressure complete temperature range: -0,95 - 10 bar, Maritime classification: see certificate

Festo

8030279

double nipple NPFC-D-R18-R14-M Material threaded fitting: Nickel-plated brass, Container size: 10, Operating pressure: -0,95 - 50 bar, Operating medium: Compressed air in accordance with ISO8573-1:2010 [-:-:-], Corrosion resistance classification CRC: 1 -

Festo

536934

solenoid coil MSFW-230-50/60-EX With knurled nut and spring washer. Assembly position: Any, Min. pickup time: 10 ms, Duty cycle: 100 %, Power factor cos {phi}: 0,7, Characteristic coil data: 230 V AC: 50/60 Hz, pick-up power 9 VA, holding power 7 VA

Festo

8030247

t-fitting NPFC-T-2G14-R14-FMF Material threaded fitting: Nickel-plated brass, Container size: 10, Operating pressure: -0,95 - 50 bar, Operating medium: Compressed air in accordance with ISO8573-1:2010 [-:-:-], Corrosion resistance classification CRC: 1 -

Festo

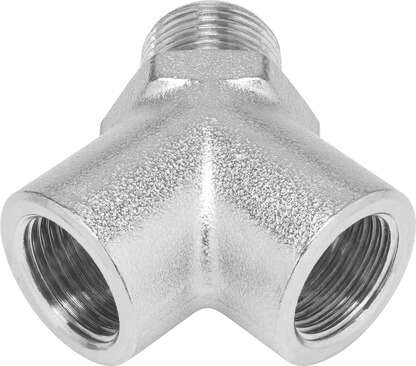

8030228

y-fitting NPFC-Y-3G14-F Material threaded fitting: Nickel-plated brass, Container size: 10, Operating pressure: -0,95 - 50 bar, Operating medium: Compressed air in accordance with ISO8573-1:2010 [-:-:-], Corrosion resistance classification CRC: 1 - Low co

Festo

153954

rotary push-in fitting QSR-1/8-1/4-U 360° rotatable, with ball bearing, male thread with external hexagon. Size: Standard, Nominal size: 3,4 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Container size: 1

Festo

153037

push-in connector QS-6-4 reducing. Size: Standard, Nominal size: 2,6 mm, Assembly position: Any, Container size: 10, Design structure: Push/pull principle

Festo

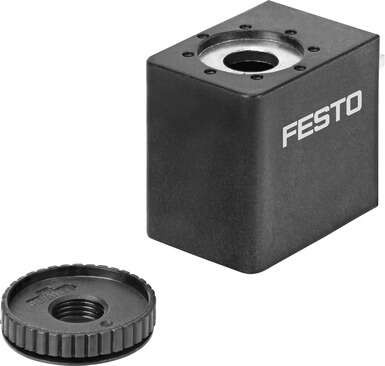

8030813

solenoid coil VACF-B-C1-1A Type C connection pattern, to EN 175 301, 24 V AC/50-60 Hz Assembly position: Any, Duty cycle: 100 %, Insulation class: H, Characteristic coil data: 24 V AC: 50/60 Hz, pick-up power 3.9 VA, holding power 2.6 VA, Permissible volt

Festo

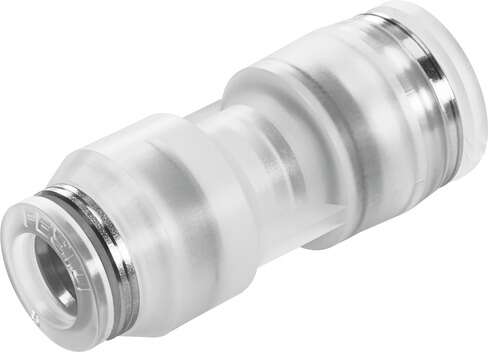

133099

push-in connector NPQP-D-Q12-Q10-FD-P10 Size: Standard, Nominal size: 6,7 mm, Container size: 10, Design structure: Push/pull principle, Temperature dependent operating pressure: -0,95 - 10 bar

Festo

8030212

elbow fitting NPFC-L-2G12-F Material threaded fitting: Nickel-plated brass, Container size: 10, Operating pressure: -0,95 - 50 bar, Operating medium: Compressed air in accordance with ISO8573-1:2010 [-:-:-], Corrosion resistance classification CRC: 1 - Lo

Festo

549905

solenoid coil MD-2-230VAC-PA For AC voltage, without plug socket. Assembly position: Any, Duty cycle: 100 %, Power factor cos {phi}: 0,7, Characteristic coil data: 230 V AC: 50/60 Hz, pick-up power 14.5 VA, holding power 10.5 VA, Permissible frequency flu

Festo

536933

solenoid coil MSFW-110-50/60-EX With knurled nut and spring washer. Assembly position: Any, Min. pickup time: 10 ms, Duty cycle: 100 %, Power factor cos {phi}: 0,7, Characteristic coil data: 110 V AC: 50/60 Hz, pick-up power 9 VA, holding power 7 VA

Festo

8030296

reducing sleeve NPFC-R-G38-G18-F Material threaded fitting: Nickel-plated brass, Container size: 10, Operating pressure: -0,95 - 50 bar, Operating medium: Compressed air in accordance with ISO8573-1:2010 [-:-:-], Corrosion resistance classification CRC: 1

Festo

8030295

sleeve NPFC-S-2G34-F Material threaded fitting: Nickel-plated brass, Container size: 10, Operating pressure: -0,95 - 50 bar, Operating medium: Compressed air in accordance with ISO8573-1:2010 [-:-:-], Corrosion resistance classification CRC: 1 - Low corro

Festo
