Variable Frequency Drives (VFD)

ATV61HD55Y

Schneider Electric ATV61HD55Y is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 61 series designed for three-phase networks with a supply voltage range of 425-759Vac, including nominal voltages of 480Vac, 500Vac, 600Vac, and 690Vac. It features variable speed/frequency drive capabilities with U/F ratio adjustment (2 points / 5 points / energy saving), sensorless flux vector control (standard / energy saving), and vector control without speed feedback, capable of delivering 120% of the nominal motor torque. The design incorporates a built-in EMC filter (class C3), a built-in heatsink, and a coated version for enhanced chemical resistance, conforming to a reinforced version. It has an IP20 UL type 1 degree of protection and supports wall mounting. The rated current is specified as 68A at 500Vac and 2.5kHz, 62A at 575Vac and 2.5kHz, 62A at 690Vac and 2.5kHz, with a maximum current of 81.6A for 60 seconds. Communication is facilitated through Modbus and CANopen protocols. The output network frequency ranges from 0.1 to 500 Hz. It includes 1 analog output (0-10Vdc / 0-20mA), 5 digital inputs (24Vdc; sink/source) plus 1 additional digital input programmable as discrete or PTC input and another for PWR safety, along with 2 digital outputs (1 C/O SPDT relay contact and 1 NO relay contact). Analog inputs include 1 for -10...+10Vdc and another for 0-10Vdc / 0-20mA signals. The current consumption is 68A for 500Vac, 57A for 600Vac, and 63A for 690Vac, with rated active power of 55kW at 690Vac and 45kW at 500Vac, equivalent to 60HP. The dimensions are H630mm x W320mm x D290mm.

Schneider Electric

ATV61HD75Y

Schneider Electric ATV61HD75Y is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 61 series designed for three-phase networks with a supply voltage range of 425-759Vac, including nominal voltages of 480Vac, 500Vac, 600Vac, and 690Vac. It features a built-in EMC filter of class C3, a built-in heatsink, and a coated version for enhanced chemical resistance, conforming to a reinforced version. The device offers a degree of protection of IP20 and UL type 1, with dimensions of H630mm x W320mm x D290mm. It supports a variety of control methods, including U/F ratio adjustment (2 points / 5 points / energy saving), sensorless flux vector control, and vector control without speed feedback, capable of delivering 120% of the nominal motor torque. The rated current is specified at 85A for 500Vac at 2.5kHz, 77A for 575Vac at 2.5kHz, 84A for 690Vac at 2.5kHz, and it can handle up to 102A max. current for 60 seconds. For connectivity, it includes Modbus and CANopen communication protocols, with 5 digital inputs, 1 additional digital input programmable as discrete or PTC input, another digital input for PWR safety, 1 digital output as C/O SPDT relay contact, another digital output as NO relay contact, and two analog inputs. The output frequency range is 0.1-500 Hz, and it also features 1 analog output. The device is designed for wall mounting and operates with a current consumption of 79A at 500Vac, 67A at 600Vac, and 82A at 690Vac, with rated active power of 75kW at 690Vac and 55kW at 500Vac, equivalent to 75HP.

Schneider Electric

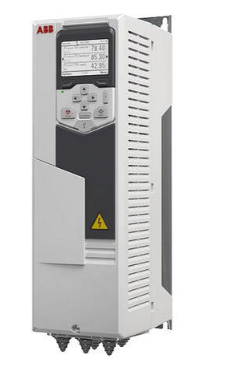

ACS580-01-065A-4

50 HP ABB ACS580 Series NEMA 1 Enclosed Variable Frequency Drive | 400 – 480 VAC 3 Phase Input | 480 VAC 3 Phase Output | 65 Amps | ACS580-01-065A-4

ABB Control

ESV752N02TXD

ESV752N02TXD Lenze Variable Frequency Drive (VFD) - The SMV 10.0 hp (7.5 kW) drive features a 208 / 240 VAC 3Ø input in a fan cooled NEMA 4X (IP65) indoor enclosure. The SMVector NEMA 4X (IP65) offers exemplary performance even in harsh environments. These decentralized drives are suitable for wall mounting and are available in two enclosure materials suitable for either indoor or outdoor use. This drive is also available with an integral disconnect switch and integrated line filter ideal for Eu

Lenze

M702-08401570A10101AB100

NIDEC M702-08401570A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M702 series designed with a built-in brake transistor and dual Safe Torque Off (STO) featuring air cooling. It has dimensions of frame size 8, measuring H29.65" x W12.21" x D11.42" (H753mm x W310mm x D290mm). This model supports communication protocols including Ethernet, Ethernet/IP, Modbus TCP, and PROFINET RT. It operates with a rated current of 184A under normal duty and 157A under heavy-duty conditions. The supply voltage required is 380Vac-480Vac (400Vac / 415Vac), and it is designed to function within an ambient air temperature range of -20°C to +40°C. The degree of protection provided is IP20, NEMA 1, UL open. It is suitable for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-599 Hz. The device includes 2 x digital inputs (0-24Vdc, with terminal 8 configurable as a motor protection thermistor), 2 x digital outputs (100mA / 0-24Vdc; source), and 1 x digital output (2A / 240Vac; source; relay contact type). Its rated active power is 90kW under normal duty and 75kW under heavy-duty, with a rated power of 125HP for both conditions.

Nidec

M702-08500630A10101AB100

NIDEC M702-08500630A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M702 series designed with a built-in brake transistor and dual Safe Torque Off (STO) for air cooling. It features dimensions of frame size 8, measuring H29.65" x W12.21" x D11.42" (H753mm x W310mm x D290mm). This model supports multiple communication protocols, including Ethernet, Ethernet/IP, Modbus TCP, and PROFINET RT. It operates with a rated current of 86A under normal duty and 63A under heavy-duty conditions, with a supply voltage range of 500Vac-575Vac. The ambient air temperature for operation is specified from -20°C to +40°C. It offers a degree of protection rated at IP20, NEMA 1, and UL open. Designed for a 3-phase input network with a frequency range of 45-66 Hz for supply input and 0-599 Hz for output, it includes 2 x digital inputs (0-24Vdc, with terminal 8 configurable as a motor protection thermistor) and 3 x digital outputs (2 x 100mA / 0-24Vdc source and 1 x 2A / 240Vac source, relay contact type). The rated active power is 75kW under normal duty and 45kW under heavy-duty, with corresponding rated power of 75HP and 60HP, respectively.

Nidec

ATV61HD90Y

Schneider Electric ATV61HD90Y is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 61 series designed for three-phase networks with a supply voltage range of 425-759Vac, including nominal voltages of 480Vac, 500Vac, 600Vac, and 690Vac. It features a built-in EMC filter of class C3, a built-in heatsink, and a coated version for enhanced chemical resistance, conforming to a reinforced version. The device offers a degree of protection of IP20 UL type 1 and supports wall mounting. It is capable of delivering 120% of the nominal motor torque with functions such as U/F ratio control (2 points / 5 points / energy saving), sensorless flux vector control, and vector control without speed feedback. The ATV61HD90Y has dimensions of H630mm x W320mm x D290mm and provides a variety of communication and control options, including Modbus and CANopen protocols. It features 5 digital inputs (24Vdc; sink/source), an additional programmable digital input, a PWR safety input, 2 digital outputs (including relay contacts), and 2 analog inputs for comprehensive connectivity. The output network frequency ranges from 0.1-500 Hz, and it includes an analog output (0-10Vdc / 0-20mA). The rated current varies with voltage: 110A at 500Vac, 99A at 575Vac, 104A at 690Vac, with a maximum current of 132A for 60 seconds. Its rated active power is 90kW at 690Vac (75kW at 500Vac), equivalent to 100HP.

Schneider Electric

M702-08500860A10101AB100

NIDEC M702-08500860A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M702 series designed with a built-in brake transistor and dual Safe Torque Off (STO) for air cooling. It features dimensions of frame size 8, measuring H29.65" x W12.21" x D11.42" (H753mm x W310mm x D290mm). This model supports various communication protocols including Ethernet, Ethernet/IP, Modbus TCP, and PROFINET RT. It operates with a rated current of 108A under normal duty and 86A under heavy-duty conditions, and it is designed for a supply voltage range of 500Vac-575Vac. The ambient air temperature for operation is specified from -20°C to +40°C. It offers a degree of protection rated at IP20, NEMA 1, and UL open. The device is suitable for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-599 Hz. It includes 2 x digital inputs (0-24Vdc, with terminal 8 configurable as a motor protection thermistor) and 3 x digital outputs (2 x 100mA / 0-24Vdc; source and 1 x 2A / 240Vac; source; relay contact type). The rated active power is 90kW under normal duty and 55kW under heavy-duty, corresponding to a rated power of 100HP and 75HP, respectively.

Nidec

M702-08600630A10101AB100

NIDEC M702-08600630A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M702 series designed with a built-in brake transistor and dual Safe Torque Off (STO) featuring air cooling. It has dimensions of frame size 8, measuring H29.65" x W12.21" x D11.42" (H753mm x W310mm x D290mm). This model supports multiple communication protocols including Ethernet, Ethernet/IP, Modbus TCP, and PROFINET RT. It operates with a rated current of 86A under normal duty and 63A under heavy-duty conditions, and it is designed for a supply voltage range of 500Vac-690Vac (600Vac). The ambient air temperature for operation is specified from -20°C to +40°C. It offers a degree of protection rated at IP20, NEMA 1, and UL open. The device is suitable for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-599 Hz. It includes 2 x digital inputs (0-24Vdc, with terminal 8 configurable as a motor protection thermistor) and 3 x digital outputs (2 x 100mA / 0-24Vdc; source and 1 x 2A / 240Vac; source; relay contact type). The rated active power is 75kW under normal duty and 55kW under heavy-duty, corresponding to a rated power of 100HP and 75HP, respectively.

Nidec

ATV61HU15N4S337

Schneider Electric ATV61HU15N4S337 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 61 series designed for three-phase motors. It features a built-in DC choke, an EMC filter of class C2, and a built-in heatsink, all within a coated version for enhanced chemical resistance. The device operates on a supply voltage range of 323-528Vac, accommodating 380Vac, 400Vac, 480Vac, and 500Vac nominal values. It measures H230mm x W130mm x D175mm and offers an IP20 UL type 1 degree of protection. The rated current is 4.1A at 380Vac and 3.4A at 460Vac with a 12kHz frequency, peaking at 4.9A max current for 60 seconds. Wall mounting is the prescribed installation method. Communication is facilitated via Modbus and CANopen protocols, supporting a 3-phase network with an output frequency range of 0.1-599 Hz. It includes 1 analog output (0-10Vdc / 0-20mA), 5 digital inputs (24Vdc; sink/source), an additional programmable digital input, and a PWR safety input, alongside 1 digital output (C/O SPDT relay contact) and another (NO relay contact). The unit also features 1 analog input (-10...+10Vdc) and another (0-10Vdc / 0-20mA). Its current consumption is 5.8A at 380Vac and 5.3A at 480Vac, with a rated active power of 1.5kW and a rated power of 2HP.

Schneider Electric

M702-08401340A10101AB100

NIDEC M702-08401340A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M702 series designed with a built-in brake transistor and dual Safe Torque Off (STO) for air cooling. It features dimensions of frame size 8, measuring H29.65" x W12.21" x D11.42" (H753mm x W310mm x D290mm). This model supports various communication protocols including Ethernet, Ethernet/IP, Modbus TCP, and PROFINET RT. It operates with a rated current of 155A under normal duty and 134A under heavy-duty conditions. The supply voltage required is 380Vac-480Vac (400Vac / 415Vac), and it is designed to function within an ambient air temperature range of -20°C to +40°C. The degree of protection provided is IP20, NEMA 1, UL open. It is suitable for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-599 Hz. The device includes 2 x digital inputs (0-24Vdc, with terminal 8 configurable as a motor protection thermistor), 2 x digital outputs (100mA / 0-24Vdc; source), and 1 x digital output (2A / 240Vac; source; relay contact type). Its rated active power is 75kW under normal duty and 55kW under heavy-duty, with a rated power of 100HP for both conditions.

Nidec

M702-08201320A10101AB100

NIDEC M702-08201320A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M702 series designed with a built-in brake transistor and dual Safe Torque Off (STO) for air cooling. It features frame size 8 with dimensions of H29.65" x W12.21" x D11.42" (H753mm x W310mm x D290mm). This model supports multiple communication protocols including Ethernet, Ethernet/IP, Modbus TCP, and PROFINET RT. It operates with a rated current of 180A under normal duty and 132A under heavy-duty conditions. The supply voltage required is 200Vac-240Vac (220Vac / 230Vac), and it is designed to function within an ambient air temperature range of -20°C to +40°C. The degree of protection provided is IP20, NEMA 1, UL open. It is suitable for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-599 Hz. The device includes 2 x digital inputs (0-24Vdc, with terminal 8 configurable as a motor protection thermistor) and 3 x digital outputs (2 x 100mA / 0-24Vdc; source and 1 x 2A / 240Vac; source; relay contact type). Its rated active power is 45kW under normal duty and 37kW under heavy-duty, corresponding to 60HP and 50HP, respectively.

Nidec

M702-08201160A10101AB100

NIDEC M702-08201160A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M702 series designed with a built-in brake transistor and dual Safe Torque Off (STO) for air cooling. It features dimensions of frame size 8, measuring H29.65" x W12.21" x D11.42" (H753mm x W310mm x D290mm). This model supports various communication protocols including Ethernet, Ethernet/IP, Modbus TCP, and PROFINET RT. It operates with a rated current of 149A under normal duty and 116A under heavy-duty conditions. The supply voltage required is AC 200Vac-240Vac (220Vac / 230Vac), and it is designed to function within an ambient air temperature range of -20°C to +40°C. The degree of protection offered is IP20, NEMA 1, UL open. It is suitable for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-599 Hz. The device includes 2 x digital inputs (0-24Vdc, with terminal 8 configurable as a motor protection thermistor) and 3 x digital outputs (2 x 100mA / 0-24Vdc source and 1 x 2A / 240Vac source; relay contact type). The rated active power is 37kW under normal duty and 30kW under heavy-duty, corresponding to a rated power of 50HP and 40HP, respectively.

Nidec

M702-07600540A10101AB100

NIDEC M702-07600540A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M702 series designed with a built-in brake transistor and dual Safe Torque Off (STO) featuring air cooling. It has dimensions of frame size 7, measuring H20" x W10.63" x D11.02" (H508mm x W270mm x D280mm). This model supports multiple communication protocols including Ethernet, Ethernet/IP, Modbus TCP, and PROFINET RT. It operates with a rated current of 73A under normal duty and 54A under heavy-duty conditions. The supply voltage required is 500Vac-690Vac (600Vac), and it is designed to function within an ambient air temperature range of -20°C to +40°C. The degree of protection provided is IP20, NEMA 1, UL open. It is suitable for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-599 Hz. The device includes 2 x digital inputs (0-24Vdc, with terminal 8 configurable as a motor protection thermistor) and 3 x digital outputs (2 x 100mA / 0-24Vdc; source and 1 x 2A / 240Vac; source; relay contact type). Its rated active power is 55kW under normal duty and 45kW under heavy-duty, corresponding to a rated power of 75HP and 60HP, respectively.

Nidec

ACS35503U31A02J404

MACHINERY DRIVE, 10 HP, 31 A, 240 VAC, Voltage Range: 200-240V, UL TYPE OPEN (IP20), Cabinet-mounted, Basic Panel, 3-Phase Input, 3-Phase Output, Frame: R4

ABB Control

M702-07600290A10101AB100

NIDEC M702-07600290A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M702 series designed with a built-in brake transistor and dual Safe Torque Off (STO) featuring air cooling. It has dimensions of frame size 7, measuring H20" x W10.63" x D11.02" (H508mm x W270mm x D280mm). This model supports multiple communication protocols including Ethernet, Ethernet/IP, Modbus TCP, and PROFINET RT. It operates with a rated current of 36A under normal duty and 29A under heavy-duty conditions, and it requires a supply voltage of 500Vac-690Vac (600Vac). The ambient air temperature for operation ranges from -20°C to +40°C. It offers a degree of protection of IP20, NEMA 1, UL open, and is designed for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency of 0-599 Hz. The device includes 2 x digital inputs (0-24Vdc, with terminal 8 configurable as a motor protection thermistor), 2 x digital outputs (100mA / 0-24Vdc; source), and 1 x digital output (2A / 240Vac; source; relay contact type). It has a rated active power of 30kW under normal duty and 22kW under heavy-duty, equivalent to 40HP and 30HP respectively.

Nidec

M702-07600240A10101AB100

NIDEC M702-07600240A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M702 series designed with a built-in brake transistor and dual Safe Torque Off (STO) for air cooling. It features dimensions of frame size 7, measuring H20" x W10.63" x D11.02" (H508mm x W270mm x D280mm). This model supports various communication protocols including Ethernet, Ethernet/IP, Modbus TCP, and PROFINET RT. It operates with a rated current of 30A under normal duty and 24A under heavy-duty conditions, and it requires a supply voltage of 500Vac-690Vac (600Vac). The ambient air temperature for operation ranges from -20°C to +40°C. It offers a degree of protection of IP20, NEMA 1, and UL open. The device is designed for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-599 Hz. It includes 2 x digital inputs (0-24Vdc, with terminal 8 configurable as a motor protection thermistor) and 3 x digital outputs (2 x 100mA / 0-24Vdc; source and 1 x 2A / 240Vac; source; relay contact type). The rated active power is 22kW under normal duty and 18.5kW under heavy-duty, corresponding to a rated power of 30HP and 25HP, respectively.

Nidec

M702-07600380A10101AB100

NIDEC M702-07600380A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M702 series designed with a built-in brake transistor and dual Safe Torque Off (STO) featuring air cooling. It has dimensions of frame size 7, measuring H20" x W10.63" x D11.02" (H508mm x W270mm x D280mm). This model supports various communication protocols including Ethernet, Ethernet/IP, Modbus TCP, and PROFINET RT. It operates with a rated current of 46A under normal duty and 38A under heavy-duty conditions. The supply voltage required is 500Vac-690Vac (600Vac), and it is designed to function within an ambient air temperature range of -20°C to +40°C. The degree of protection provided is IP20, NEMA 1, UL open. It is suitable for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-599 Hz. The device includes 2 x digital inputs (0-24Vdc, with terminal 8 configurable as a motor protection thermistor), 2 x digital outputs (100mA / 0-24Vdc; source), and 1 x digital output (2A / 240Vac; source; relay contact type). Its rated active power is 37kW under normal duty and 30kW under heavy-duty, corresponding to a rated power of 50HP and 40HP, respectively.

Nidec

M702-08600860A10101AB100

NIDEC M702-08600860A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M702 series designed with a built-in brake transistor and dual Safe Torque Off (STO) for air cooling. It features dimensions of frame size 8, measuring H29.65" x W12.21" x D11.42" (H753mm x W310mm x D290mm). This model supports multiple communication protocols including Ethernet, Ethernet/IP, Modbus TCP, and PROFINET RT. It operates with a rated current of 108A under normal duty and 86A under heavy-duty conditions, with a supply voltage range of 500Vac-690Vac (600Vac). The ambient air temperature for operation is specified from -20°C to +40°C. It offers a degree of protection rated at IP20, NEMA 1, UL open, and is designed for a 3-phase input network with a frequency range of 45-66 Hz (supply input) and 0-599 Hz (output). The device includes 2 x digital inputs (0-24Vdc, with terminal 8 configurable as a motor protection thermistor), 2 x digital outputs (100mA / 0-24Vdc; source), and 1 x digital output (2A / 240Vac; source; relay contact type). Its rated active power is 90kW under normal duty and 75kW under heavy-duty, corresponding to 125HP and 100HP, respectively.

Nidec

M702-09201760A10101AB100

NIDEC M702-09201760A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M702 series designed with a built-in brake transistor and dual Safe Torque Off (STO) for air cooling. It features dimensions of frame size 9A, measuring H41.3" x W12.21" x D11.42" (H1049mm x W310mm x D290mm). This model supports multiple communication protocols including Ethernet, Ethernet/IP, Modbus TCP, and PROFINET RT. It operates with a rated current of 216A under normal duty and 176A under heavy-duty conditions. The supply voltage required is AC 200Vac-240Vac (220Vac / 230Vac), and it is designed to function within an ambient air temperature range of -20°C to +40°C. The degree of protection offered is IP20, NEMA 1, UL open. It is suitable for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-599 Hz. The device includes 2 x digital inputs (0-24Vdc), with terminal 8 configurable as a motor protection thermistor, and 3 x digital outputs (2 x 100mA / 0-24Vdc; source and 1 x 2A / 240Vac; source; relay contact type). The rated active power is 55kW under normal duty and 45kW under heavy-duty, corresponding to 75HP and 60HP, respectively.

Nidec
