Variable Frequency Drives (VFD)

ESV223N04TXB

ESV223N04TXB Lenze Variable Frequency Drive (VFD) - The SMV 30.0 hp (22.0 kW) drive features a 400 / 480 VAC 3Ø input in a fan cooled NEMA 1 (IP31) indoor enclosure. The SMVector NEMA 1 (IP31) is a compact and cost effective drive for a wide range of AC motor applications demanding dynamic speed and torque control. The SMVector NEMA 1 (IP31) is available in power ranges from 0.33...60.0 hp (0.25 kW...45.0 kW) and global voltages from 120 VAC...600 VAC.

Lenze

ESV152N02TXB

ESV152N02TXB Lenze Variable Frequency Drive (VFD) - The SMV 2.0 hp (1.5 kW) drive features a 208 / 240 VAC 3Ø input in a convection cooled NEMA 1 (IP31) indoor enclosure. The SMVector NEMA 1 (IP31) is a compact and cost effective drive for a wide range of AC motor applications demanding dynamic speed and torque control. The SMVector NEMA 1 (IP31) is available in power ranges from 0.33...60.0 hp (0.25 kW...45.0 kW) and global voltages from 120 VAC...600 VAC.

Lenze

ESV112N02YXC

ESV112N02YXC Lenze Variable Frequency Drive (VFD) - The SMV 1.5 hp (1.1 kW) drive features a 208 / 240 VAC 1Ø or 3Ø input in a convection cooled NEMA 4X (IP65) indoor enclosure. The SMVector NEMA 4X (IP65) offers exemplary performance even in harsh environments. These decentralized drives are suitable for wall mounting and are available in two enclosure materials suitable for either indoor or outdoor use. This drive is also available with an integral disconnect switch and integrated line filter

Lenze

ATV61HD18N4S337

Schneider Electric ATV61HD18N4S337 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 61 series designed for variable speed and frequency control with U/F ratio adjustment options (2 points / 5 points / energy saving), sensorless flux vector control (standard / energy saving), and vector control without speed feedback capable of delivering 120% of the nominal motor torque. It features a built-in DC choke, an EMC filter (class C2), a built-in heatsink, and a coated version for enhanced durability. The supply voltage ranges from 323-528Vac, supporting 380Vac, 400Vac, 480Vac, and 500Vac nominal values. Its dimensions are H400mm x W230mm x D213mm, and it has a conformal coating for chemical resistance, classified as a reinforced version. The degree of protection is IP20 UL type 1. The rated current is 41A at 380Vac (12kHz), 34A at 460Vac (12kHz), with a maximum current of 49.2A for 60 seconds. It is designed for wall mounting and supports Modbus and CANopen communication protocols. This 3-phase (3P) network device outputs frequencies from 0.1 to 599 Hz. It includes 1 analog output (0-10Vdc / 0-20mA), 5 digital inputs (24Vdc; sink/source) plus 1 additional digital input programmable as discrete or PTC input, and 1 PWR safety input. There are also 2 digital outputs (1 C/O SPDT relay contact and 1 NO relay contact), along with 2 analog inputs (-10...+10Vdc and 0-10Vdc / 0-20mA). The current consumption is 45.5A at 380Vac and 37.5A at 480Vac, with a rated active power of 18.5kW and a rated power of 25HP.

Schneider Electric

ATV61HD18Y

Schneider Electric ATV61HD18Y is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 61 series. It features variable speed/frequency drive capabilities with U/F ratio adjustments (2 points / 5 points / energy saving), sensorless flux vector control (standard / energy saving), and vector control without speed feedback, delivering up to 120% of the nominal motor torque. This model includes a built-in EMC filter (class C3), a built-in heatsink, and a coated version for enhanced durability. It operates on a supply voltage of 425-759Vac, accommodating 480Vac, 500Vac, 600Vac, and 690Vac nominal voltages. The dimensions are H420mm x W240mm x D236mm, with a conformal coating for chemical resistance, and it offers an IP20 UL type 1 degree of protection. The rated current is 24A at 500Vac and 690Vac, 22A at 575Vac, with a maximum current of 28.8A for 60 seconds. Designed for wall mounting, it supports Modbus and CANopen communication protocols, operates on a 3-phase network, and outputs frequencies from 0.1 to 599 Hz. It includes 1 analog output (0-10Vdc / 0-20mA), 5 digital inputs (24Vdc; sink/source), an additional programmable digital input, a PWR safety input, 2 digital outputs (1 C/O SPDT relay contact and 1 NO relay contact), and 2 analog inputs (-10...+10Vdc and 0-10Vdc / 0-20mA). The current consumption is specified at 24.6A for 500Vac, 20.7A for 600Vac, and 24A for 690Vac, with rated active power of 18.5kW at 690Vac and 15kW at 500Vac, equivalent to 20HP.

Schneider Electric

ATV71HU75Y

Schneider Electric ATV71HU75Y is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 71 series. It features variable speed/frequency drive capabilities, U/F ratio adjustment (2 points / 5 points), sensorless flux vector control, ENA System, and vector control with or without speed feedback. It can deliver 220% of the nominal motor torque for 2 seconds and 170% of the nominal motor torque for 60 seconds. The design includes a built-in EMC filter, a built-in heatsink, and a coated version for enhanced durability. It operates on a supply voltage of 425-759Vac (480Vac / 500Vac / 600Vac / 690Vac nom.) and has dimensions of H420mm x W240mm x D236mm. The product offers chemical resistance with a conformal coating (reinforced version), and degrees of protection IP20, IP21, and UL type 1. Rated current specifications are 10A (500Vac; 4kHz), 9A (575Vac; 4kHz), 10A (690Vac; 4kHz), with a maximum current of 16.5A for 2 seconds and 15A for 60 seconds. It supports wall mounting, uses Modbus and CANopen communication protocols, and is designed for a 3-phase (3P) network with an output frequency range of 0.1-599 Hz. The unit includes 1 analog output (0-10Vdc / 0-20mA), 5 digital inputs (24Vdc; sink/source) plus 1 programmable digital input and 1 PWR safety input, 3 digital outputs, and 2 analog inputs for comprehensive connectivity. Current consumption is rated at 11.2A (500Vac; 5.5kW), 9.5A (600Vac; 7.5 HP), and 11.2A (690Vac; 7.5kW), with rated active power of 7.5kW (690Vac) and 5.5kW (500Vac), equivalent to 7.5HP / 7-1/2HP.

Schneider Electric

ATV61HD22Y

Schneider Electric ATV61HD22Y is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 61 series designed for three-phase networks with a supply voltage range of 425-759Vac, including nominal voltages of 480Vac, 500Vac, 600Vac, and 690Vac. It features variable speed/frequency drive capabilities with U/F ratio adjustments (2 points / 5 points / energy saving), sensorless flux vector control (standard / energy saving), and vector control without speed feedback, capable of delivering 120% of the nominal motor torque. The design includes a built-in EMC filter (class C3), a built-in heatsink, and a coated version for enhanced chemical resistance, conforming to a reinforced version. It offers an IP20 UL type 1 degree of protection and has dimensions of H420mm x W240mm x D236mm. The rated current is specified as 29A at 500Vac and 4kHz, 27A at 575Vac and 4kHz, 27A at 690Vac and 4kHz, with a maximum current of 34.8A for 60 seconds. For mounting, it supports wall mounting and communicates via Modbus and CANopen protocols. The output network frequency ranges from 0.1-599 Hz. It includes 1 analog output (0-10Vdc / 0-20mA), 5 digital inputs (24Vdc; sink/source) plus 1 additional digital input programmable as discrete or PTC input and another for PWR safety, along with 2 digital outputs. Analog inputs include 1 for -10...+10Vdc and another for 0-10Vdc / 0-20mA. The current consumption is 29A at 500Vac, 24A at 600Vac, and 27A at 690Vac, with rated active power of 22kW at 690Vac and 18.5kW at 500Vac, equivalent to 25HP.

Schneider Electric

ATV61HD30M3X337

Schneider Electric ATV61HD30M3X337 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 61 series designed for variable speed and frequency control with a U/F ratio that can be set at 2 points, 5 points, or for energy saving. It features sensorless flux vector control in standard or energy-saving modes and vector control without speed feedback, capable of delivering 120% of the nominal motor torque. This model comes with a built-in heatsink in a coated version for enhanced durability, operates on a supply voltage of 170-264Vac (200Vac / 220Vac / 230Vac / 240Vac nom.), and offers dimensions of H550mm x W320mm x D266mm. It has a conformal coating for chemical resistance, an IP20 UL type 1 degree of protection, and supports a rated current of 120A at 230Vac with a 12kHz frequency, reaching up to 144A max. current for 60 seconds. Designed for wall mounting, it utilizes Modbus and CANopen communication protocols, operates on a 3-phase network with an output frequency range of 0.1-599 Hz, and includes 1 analog output (0-10Vdc / 0-20mA), 5 digital inputs (24Vdc; sink/source) plus 1 additional digital input programmable as discrete or PTC input and another for PWR safety, along with 2 digital outputs. It also features 2 analog inputs for versatile connectivity. The current consumption is rated at 124A for 200Vac and 110A for 240Vac, with a rated active power of 30kW or 40HP.

Schneider Electric

ACS255-01U-05A8-1+B063+F278

1.5 HP ABB ACS255 Micro Series NEMA 4X/IP66 Indoor Variable Frequency Drive | 100 – 120 VAC 1 Phase Input | 240 VAC 3 Phase Output | 5.8 Amps | Integrated Disconnect | Speed Pot | Fwd / Rev Switch | ACS255-01U-05A8-1+B063+F278

ABB Control

ATV61HD30Y

Schneider Electric ATV61HD30Y is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 61 series designed for three-phase networks with a supply voltage range of 425-759Vac, including nominal voltages of 480Vac, 500Vac, 600Vac, and 690Vac. It features variable speed/frequency drive capabilities with U/F ratio customization (2 points / 5 points / energy saving), sensorless flux vector control, and vector control without speed feedback, capable of delivering 120% of the nominal motor torque. The design incorporates a built-in EMC filter (class C3), a built-in heatsink, and a coated version for enhanced chemical resistance. The ATV61HD30Y offers an IP20 UL type 1 degree of protection and has dimensions of H420mm x W240mm x D236mm. It supports a rated current of 35A at 500Vac and 690Vac, 32A at 575Vac with a 42A max current capability for 60 seconds. Wall mounting is the prescribed mounting mode. Communication is facilitated through Modbus and CANopen protocols. The output network frequency ranges from 0.1-599 Hz. It includes 1 analog output (0-10Vdc / 0-20mA), 5 digital inputs (24Vdc; sink/source), an additional programmable digital input, and a PWR safety input, along with 2 digital outputs. Analog inputs include 1 for -10...+10Vdc and another for 0-10Vdc / 0-20mA signals. Current consumption is specified at 33A for 500Vac, 28A for 600Vac, and 34A for 690Vac, with a rated active power of 30kW at 690Vac and 22kW at 500Vac, equivalent to 30HP.

Schneider Electric

ATV61HD37M3X337

Schneider Electric ATV61HD37M3X337 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 61 series designed for variable speed and frequency control with a U/F ratio that can be set at 2 points, 5 points, or for energy saving. It features sensorless flux vector control in standard or energy-saving modes and vector control without speed feedback, capable of delivering 120% of the nominal motor torque. This model comes with a built-in heatsink in a coated version for enhanced durability, operates on a supply voltage of 170-264Vac (nominally at 200Vac, 220Vac, 230Vac, 240Vac), and offers dimensions of H550mm x W320mm x D266mm. It has a conformal coating for chemical resistance, an IP20 UL type 1 degree of protection, and supports a rated current of 144A at 230Vac with a 12kHz frequency, peaking at 172.8A max. current for 60 seconds. Designed for wall mounting, it utilizes Modbus and CANopen communication protocols, operates on a 3-phase network, and outputs frequencies ranging from 0.1-599 Hz. The device includes 1 analog output (0-10Vdc / 0-20mA), 5 digital inputs (24Vdc; sink/source) plus 1 additional digital input programmable as discrete or PTC input and another for PWR safety, along with 2 digital outputs (1 C/O SPDT relay contact and 1 NO relay contact), and 2 analog inputs (-10...+10Vdc and 0-10Vdc / 0-20mA). It has a current consumption of 141A at 200Vac and 127A at 240Vac, with a rated active power of 37kW and rated power of 50HP.

Schneider Electric

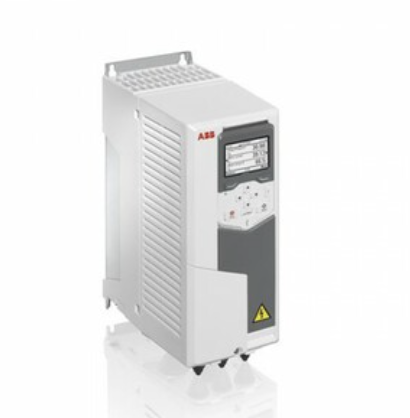

ACS580-01-124A-4

Variable Speed/Frequency Drive (VSD/VFD) / Inverter - ABB (ACS580 series) 100 HP 380-480 VAC 124 AMP 3 PH IP21

ABB Control

ATV61HD37Y

Schneider Electric ATV61HD37Y is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 61 series, designed for variable speed and frequency control with a U/F ratio that can be set at 2 points, 5 points, or for energy saving. It features sensorless flux vector control in standard or energy-saving modes and vector control without speed feedback, capable of delivering 120% of the nominal motor torque. This model comes with a built-in EMC filter (class C3), a built-in heatsink, and a coated version for enhanced durability. It operates on a supply voltage of 425-759Vac, accommodating 480Vac, 500Vac, 600Vac, and 690Vac nominal voltages. The dimensions are H630mm x W320mm x D290mm, and it has a conformal coating for chemical resistance. The degree of protection is IP20 UL type 1, with rated currents of 47A at 500Vac, 41A at 575Vac, 43A at 690Vac, and a maximum current of 56.4A for 60 seconds. It is designed for wall mounting and supports Modbus and CANopen communication protocols. The network is 3-phase (3P) with an output frequency range of 0.1-599 Hz. It includes 1 analog output (0-10Vdc / 0-20mA), 5 digital inputs (24Vdc; sink/source), 1 digital input programmable as discrete or PTC input, 1 PWR safety input, 1 digital output (C/O SPDT relay contact), 1 digital output (NO relay contact), and 2 analog inputs for versatile connectivity. The current consumption is specified at 48A for 500Vac, 41A for 600Vac, and 47A for 690Vac, with rated active power of 37kW at 690Vac and 30kW at 500Vac, equivalent to 40HP.

Schneider Electric

ATV61HD45M3X337

Schneider Electric ATV61HD45M3X337 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 61 series designed for variable speed and frequency control with a U/F ratio that can be set at 2 points, 5 points, or for energy saving. It features sensorless flux vector control in standard or energy-saving modes and vector control without speed feedback, capable of delivering 120% of the nominal motor torque. This model comes with a built-in heatsink in a coated version for enhanced durability, operates on a supply voltage of 170-264Vac (200Vac / 220Vac / 230Vac / 240Vac nom.), and offers dimensions of H550mm x W320mm x D266mm. It has a conformal coating for chemical resistance, an IP20 UL type 1 degree of protection, and supports a rated current of 176A at 230Vac with a 12kHz frequency, peaking at 211.2A max. current for 60 seconds. Designed for wall mounting, it utilizes Modbus and CANopen communication protocols, operates on a 3-phase network, and outputs frequencies ranging from 0.1-599 Hz. The device includes 1 analog output (0-10Vdc / 0-20mA), 5 digital inputs (24Vdc; sink/source) plus 1 additional digital input programmable as discrete or PTC input and another for PWR safety, along with 2 digital outputs. It also features 2 analog inputs for comprehensive control. The current consumption is rated at 167A for 200Vac and 147A for 240Vac, with a rated active power of 45kW and a rated power of 60HP.

Schneider Electric

ESV752N02TXF

ESV752N02TXF Lenze Variable Frequency Drive (VFD) - The SMV 10.0 hp (7.5 kW) drive features a 208 / 240 VAC 3Ø input in a fan cooled NEMA 4X (IP65) indoor/outdoor enclosure. The SMVector NEMA 4X (IP65) offers exemplary performance even in harsh environments. These decentralized drives are suitable for wall mounting and are available in two enclosure materials suitable for either indoor or outdoor use. This drive is also available with an integral disconnect switch and integrated line filter idea

Lenze

ESV222N04TXB

ESV222N04TXB Lenze Variable Frequency Drive (VFD) - The SMV 3.0 hp (2.2 kW) drive features a 400 / 480 VAC 3Ø input in a fan cooled NEMA 1 (IP31) indoor enclosure. The SMVector NEMA 1 (IP31) is a compact and cost effective drive for a wide range of AC motor applications demanding dynamic speed and torque control. The SMVector NEMA 1 (IP31) is available in power ranges from 0.33...60.0 hp (0.25 kW...45.0 kW) and global voltages from 120 VAC...600 VAC.

Lenze

ATV61HD45N4S337

Schneider Electric ATV61HD45N4S337 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 61 series designed for variable speed and frequency control with a U/F ratio that can be set at 2 points, 5 points, or for energy saving. It features sensorless flux vector control in standard or energy-saving modes and vector control without speed feedback, capable of delivering 120% of the nominal motor torque. This model includes a DC choke, an EMC filter (class C2), a built-in heatsink, and a coated version for enhanced durability. It operates on a supply voltage of 323-528Vac (380Vac / 400Vac / 480Vac / 500Vac nom.) and has dimensions of H630mm x W320mm x D290mm. The drive is chemically resistant with a conformal coating (reinforced version) and has an IP20 UL type 1 degree of protection. It supports a rated current of 94A (380Vac; 12kHz), 77A (460Vac; 12kHz), and can handle a maximum current of 112.8A for 60 seconds. Designed for wall mounting, it uses Modbus and CANopen communication protocols and is suitable for a 3-phase (3P) network with an output frequency range of 0.1-599 Hz. The drive includes 1 analog output (0-10Vdc / 0-20mA), 5 digital inputs (24Vdc; sink/source) plus 1 additional digital input programmable as discrete or PTC input and another for PWR safety, along with 2 digital outputs. It also features 2 analog inputs for comprehensive control. The current consumption is rated at 104A (380Vac) and 85A (480Vac), with a rated active power of 45kW and a rated power of 60HP.

Schneider Electric

ATV61HD45Y

Schneider Electric ATV61HD45Y is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 61 series designed for variable speed and frequency control with a U/F ratio that can be set at 2 points, 5 points, or for energy saving. It features sensorless flux vector control in standard or energy-saving modes and vector control without speed feedback, capable of delivering 120% of the nominal motor torque. This model comes with a built-in EMC filter (class C3), a built-in heatsink, and a coated version for enhanced durability. It operates on a supply voltage of 425-759Vac, accommodating 480Vac, 500Vac, 600Vac, and 690Vac nominal voltages, and has dimensions of H630mm x W320mm x D290mm. The drive is chemically resistant with a conformal coating (reinforced version) and has an IP20 UL type 1 degree of protection. It supports a rated current of 59A at 500Vac, 52A at 575Vac, 54A at 690Vac, with a maximum current of 70.8A for 60 seconds. Wall mounting is the prescribed mounting mode, and it communicates via Modbus and CANopen protocols. Designed for a 3-phase network with an output frequency range of 0.1-599 Hz, it includes 1 analog output (0-10Vdc / 0-20mA), 5 digital inputs (24Vdc; sink/source), an additional programmable digital input, and a PWR safety input. It also features 1 digital output (C/O SPDT relay contact) and 1 digital output (NO relay contact), alongside 2 analog inputs for comprehensive control. The current consumption stands at 62A for 500Vac, 51A for 600Vac, and 55A for 690Vac, with rated active power of 45kW at 690Vac and 37kW at 500Vac, equivalent to 50HP.

Schneider Electric

ATV61HD55Y

Schneider Electric ATV61HD55Y is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 61 series designed for three-phase networks with a supply voltage range of 425-759Vac, including nominal voltages of 480Vac, 500Vac, 600Vac, and 690Vac. It features variable speed/frequency drive capabilities with U/F ratio adjustment (2 points / 5 points / energy saving), sensorless flux vector control (standard / energy saving), and vector control without speed feedback, capable of delivering 120% of the nominal motor torque. The design incorporates a built-in EMC filter (class C3), a built-in heatsink, and a coated version for enhanced chemical resistance, conforming to a reinforced version. It has an IP20 UL type 1 degree of protection and supports wall mounting. The rated current is specified as 68A at 500Vac and 2.5kHz, 62A at 575Vac and 2.5kHz, 62A at 690Vac and 2.5kHz, with a maximum current of 81.6A for 60 seconds. Communication is facilitated through Modbus and CANopen protocols. The output network frequency ranges from 0.1 to 500 Hz. It includes 1 analog output (0-10Vdc / 0-20mA), 5 digital inputs (24Vdc; sink/source) plus 1 additional digital input programmable as discrete or PTC input and another for PWR safety, along with 2 digital outputs (1 C/O SPDT relay contact and 1 NO relay contact). Analog inputs include 1 for -10...+10Vdc and another for 0-10Vdc / 0-20mA signals. The current consumption is 68A for 500Vac, 57A for 600Vac, and 63A for 690Vac, with rated active power of 55kW at 690Vac and 45kW at 500Vac, equivalent to 60HP. The dimensions are H630mm x W320mm x D290mm.

Schneider Electric

ATV61HD75Y

Schneider Electric ATV61HD75Y is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 61 series designed for three-phase networks with a supply voltage range of 425-759Vac, including nominal voltages of 480Vac, 500Vac, 600Vac, and 690Vac. It features a built-in EMC filter of class C3, a built-in heatsink, and a coated version for enhanced chemical resistance, conforming to a reinforced version. The device offers a degree of protection of IP20 and UL type 1, with dimensions of H630mm x W320mm x D290mm. It supports a variety of control methods, including U/F ratio adjustment (2 points / 5 points / energy saving), sensorless flux vector control, and vector control without speed feedback, capable of delivering 120% of the nominal motor torque. The rated current is specified at 85A for 500Vac at 2.5kHz, 77A for 575Vac at 2.5kHz, 84A for 690Vac at 2.5kHz, and it can handle up to 102A max. current for 60 seconds. For connectivity, it includes Modbus and CANopen communication protocols, with 5 digital inputs, 1 additional digital input programmable as discrete or PTC input, another digital input for PWR safety, 1 digital output as C/O SPDT relay contact, another digital output as NO relay contact, and two analog inputs. The output frequency range is 0.1-500 Hz, and it also features 1 analog output. The device is designed for wall mounting and operates with a current consumption of 79A at 500Vac, 67A at 600Vac, and 82A at 690Vac, with rated active power of 75kW at 690Vac and 55kW at 500Vac, equivalent to 75HP.

Schneider Electric
