WLS15CDW0360DSC2 Banner Pick-to-Light Sensors

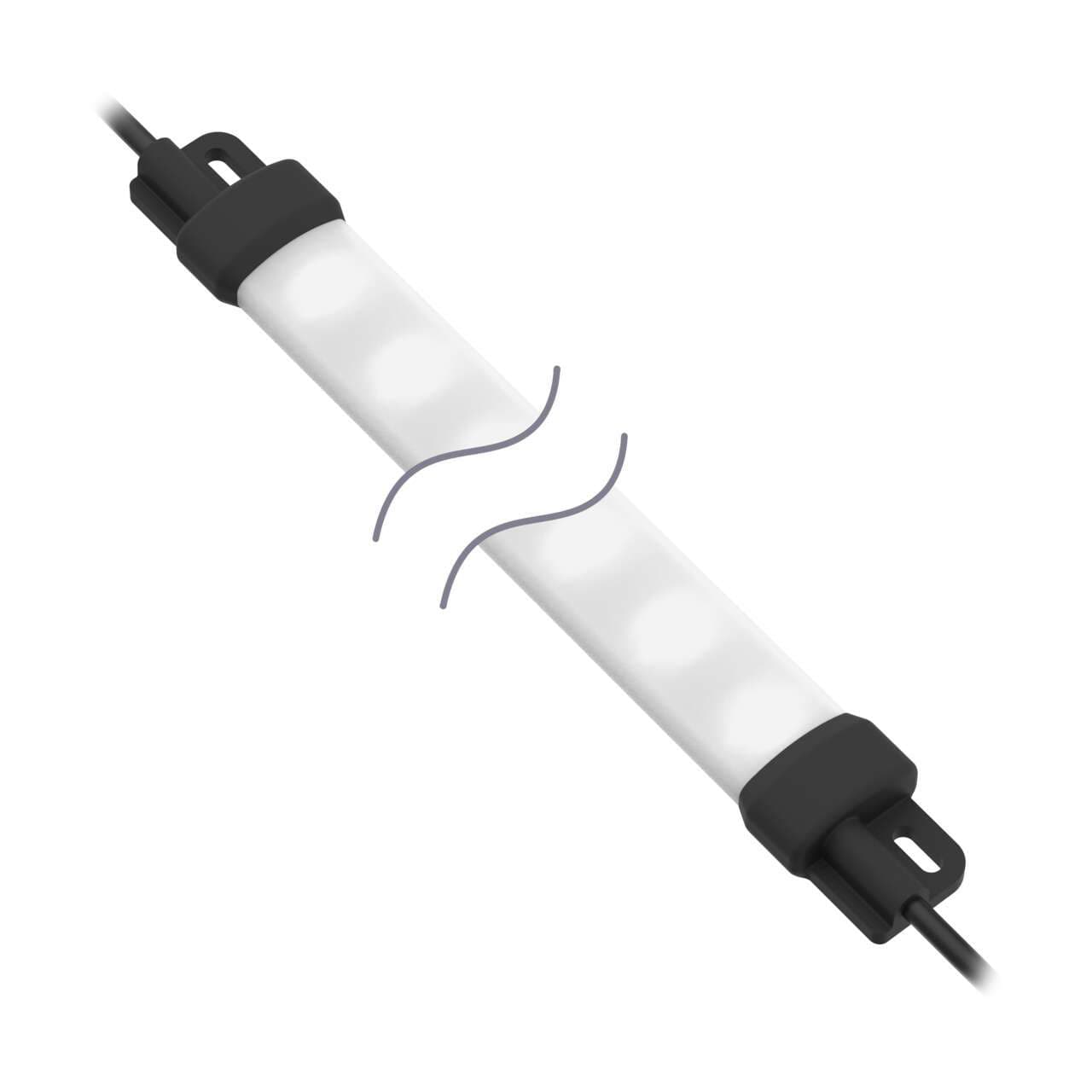

Banner WLS15CDW0360DSC2 WLS15 Work Light Strip; Diffused Window; Length: 360 mm; Voltage: 12 or 24 V dc; Environmental Rating: IP66,67; Color: Daylight White; Cascadable; 2 m (6.5 ft) Integral Cable
Banner

Part#:WLS15CDW0360DSC2

Manufacturer:Banner

Alt. Part#:802002

Product Lifecycle:Active

In-stock parts: 2

Nov 10, 2025

WLS15 Work Light Strip; Diffused Window; Length: 360 mm; Voltage: 12 or 24 V dc; Environmental Rating: IP66,67; Color: Daylight White; Cascadable; 2 m (6.5 ft) Integral Cable

About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the WLS15CDW0360DSC2 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight249.4756 g
  • Country Of OriginMX
  • Housing Style
    Linear Strip
  • Number of Input Pins/Conductors
    2
  • Cable Length (m)
    0.15
  • Mounting Thread
    No Thread
  • Illumination
    Yes
  • Color Technology
    Standard LED
  • Power Source
    DC
  • Lumens Color 1
    350
  • Color Option 1
    White
  • Number of Colors / Segments
    1
  • Feature: Audible
    No
  • Connection
    Cable
  • Secondary Material
    Polyamide
  • Pro-Editor Compatible (Discrete)
    No
  • Color 1 - Wavelength/Color Temp/Coordinates
    5000K (Daylight)
  • Illuminated Length (LxWxH mm)
    286.4
  • Feature: Cascade
    Yes
  • Feature: Hazardous Area
    No
  • Power
    DC
  • Product Size (mm)
    15
  • Physical Dimensions (LxWxH or DxH mm)
    360.0 x 30.6 x 15.5
  • Primary Window Material
    Polycarbonate Diffused
  • Environmental Rating
    IP66; IP67
  • IO Link
    No
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Max Current Color (mA)
    480
  • Min Op. Temperature (°C)
    -40
  • Wireless
    No
  • Primary Housing Material
    Polycarbonate
  • Dimming Option
    PWM
  • Supply Voltage
    12/24 V dc
  • Feature: Chemical Resistant
    No
  • Max Op. Temperature (°C)
    60
  • Feature: Quick Disconnect
    No
  • Storage Temp (°C)
    -40 to 70
  • Modbus RTU
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

WLS15CDW0360DSC2 Description

Banner Engineering WLS15CDW0360DSC2 is a task light designed as a cascadable sealed industrial low power LED light strip/bar. It features a diffused window for 1-color Daylight White (DW) LED illumination. This product operates on a supply voltage of either 12Vdc or 24Vdc and has dimensions of L360mm x W15mm. The material used for both the diffused window and the base is Polycarbonate (PC), ensuring durability. It comes pre-wired with a 2m / 6.5ft 2-wire cable terminated with bare end flying leads for easy installation. The linear light strip is designed to withstand harsh conditions, with a degree of protection rated at IP66 and IP67. It can operate in ambient air temperatures ranging from -40°C to +60°C. Additionally, it includes 1 x digital input (12Vdc / 24Vdc) for color control, consumes 480mA of current, and provides a luminous flux of 350 lm (lumens).

Related documents WLS15CDW0360DSC2 Specs

WLS15CDW0360DSC2 197492.pdf
