WLS15PXRGB0640DSSQP Banner Pick-to-Light Sensors
Part#:WLS15PXRGB0640DSSQP
Manufacturer:Banner
Alt. Part#:809939
Product Lifecycle:Active
In-stock parts: 12
Nov 10, 2025

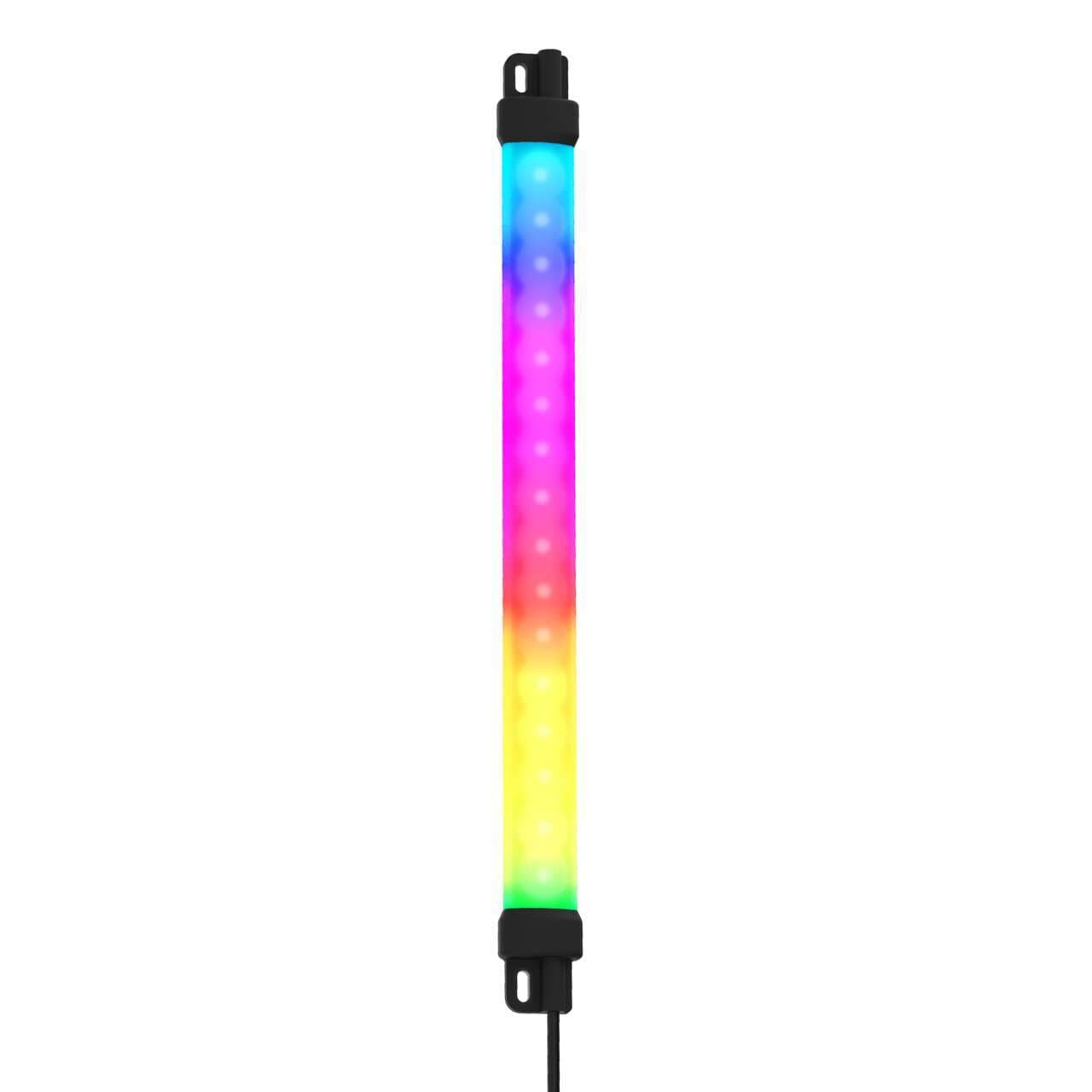

WLS15 Pro Light Strip with PICK-IQ Series; Diffuse Window; Length: 640 mm; Voltage: 12 -30 V dc; Environmental Rating: IP66; IP67; Color: RGB; Non-Cascadable; 150 mm (6 in) 4-pin M12 PVC Pigtail QD
About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLS15PXRGB0640DSSQP Banner price in the box on the right side or send a quick quote.
Product Details
- Weight204.1164 g
- Country Of OriginMX
- Color Technology RGB Configurable
- Animation Option 1 Modbus Controlled
- Max Op. Temperature (°C) 50
- Feature: Audible No
- Housing Style Linear Strip
- Color Input Control Communication Protocol
- Supply Voltage 12-30 V dc
- Feature: Hazardous Area No
- Power Source DC
- Color Option 1 RGB
- Environmental Rating IP66; IP67
- Feature: Chemical Resistant No
- Power DC
- Quick Disconnect Type M12 (Euro)
- Illuminated Length (LxWxH mm) 566.4
- IO Link No
- Primary Housing Material Polycarbonate
- Product Size (mm) 15
- Min Op. Temperature (°C) -40
- PICK-IQ (Modbus RTU) Yes
- Illumination Yes
- Connection Pigtail QD
- Input Type Communication Protocol
- Multi-Color Device Simultaneous Colors On
- Number of Colors / Segments Programmable
- Number of Input Pins/Conductors 4
- Primary Window Material Polycarbonate Diffused
- USB No
- Mounting Thread No Thread
- Dimming Option Modbus Controlled
- Storage Temp (°C) -40 to 70
- Modbus RTU Yes
- Number of Tower Light Segments Programmable
- Wire Selectable Function Programmable
- Secondary Material Polyamide
- Pro-Editor Compatible (Discrete) No
- Max Current Color (mA) 500
- Physical Dimensions (LxWxH or DxH mm) 640.0 x 30.6 x 15.5
- Wireless No
- Feature: Quick Disconnect Yes
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
WLS15PXRGB0640DSSQP Description
Banner Engineering WLS15PXRGB0640DSSQP is a task light designed as a sealed LED industrial strip light/bar with a diffused window and PICK IQ serial communication, compatible with RS-485 / Modbus RTU. It features 3-color RGB multicolor color pattern LED illumination and operates on a supply voltage of 12Vdc-30Vdc, with a nominal voltage of 24Vdc. The dimensions of this product are L640mm x W15mm, and it is constructed with a polycarbonate (PC) outer housing and clear anodized aluminum housing. It comes pre-wired with a 6" / 15cm pigtail terminated with a 4-pin M12 Euro-style QD connector. This linear light strip is designed with a degree of protection rated IP66 and IP67, making it suitable for operation in ambient air temperatures ranging from -40°C to +50°C. The current consumption of the device is 500mA.
