WLS15HXDW0360LS24QP Banner Pick-to-Light Sensors

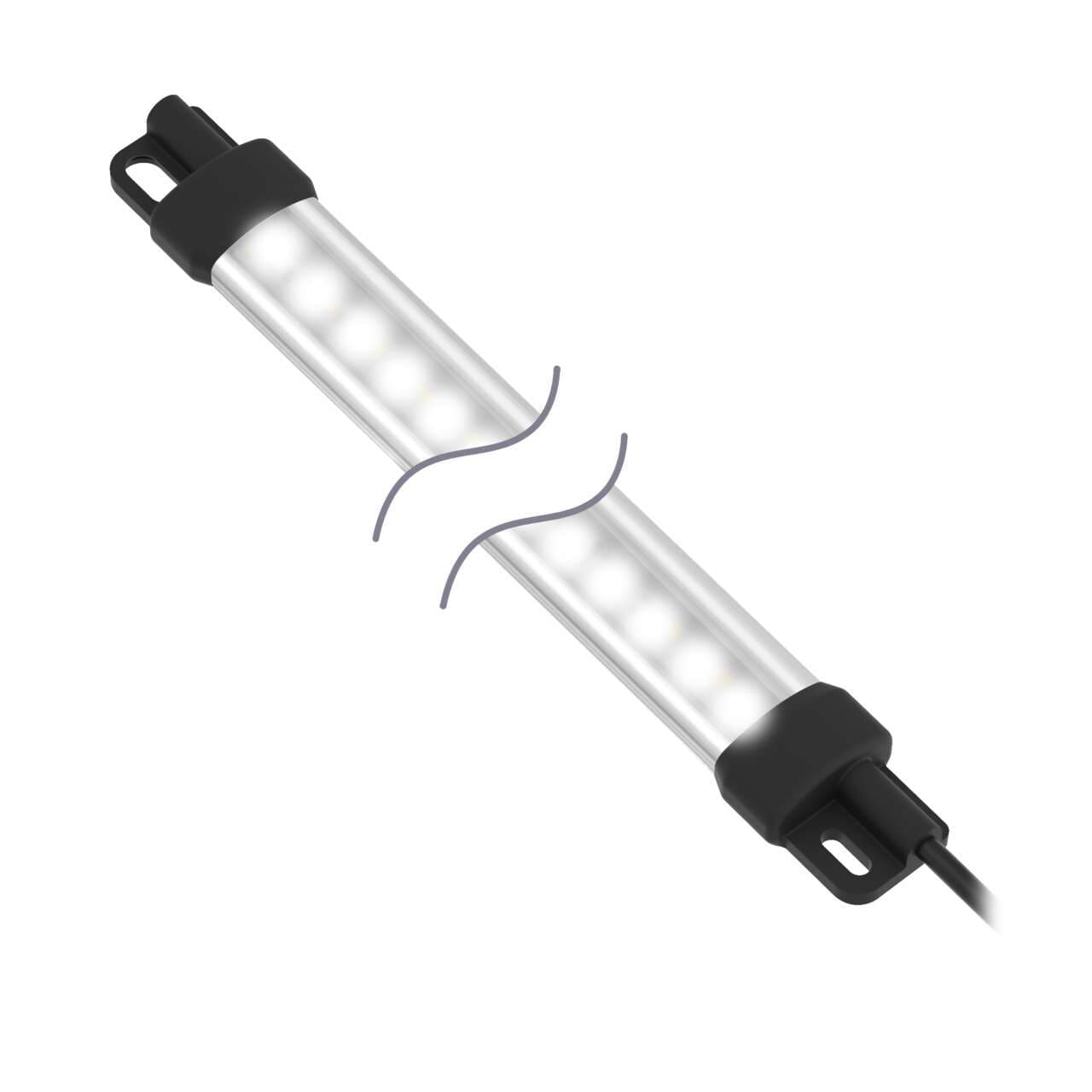

Banner WLS15HXDW0360LS24QP WLS15 High Intensity Light Strip; Light Diffuse Window; Length: 360 mm; Voltage: 24 V dc; Environmental Rating: IP66; IP67; Color: DW; Non-Cascadable; 150 mm (6 in) 4-pin M12 PVC Pigtail QD
Banner

Part#:WLS15HXDW0360LS24QP

Manufacturer:Banner

Alt. Part#:809881

Product Lifecycle:Active

In-stock parts: 11

Jan 3, 2026

WLS15 High Intensity Light Strip; Light Diffuse Window; Length: 360 mm; Voltage: 24 V dc; Environmental Rating: IP66; IP67; Color: DW; Non-Cascadable; 150 mm (6 in) 4-pin M12 PVC Pigtail QD

About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the WLS15HXDW0360LS24QP Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight113.398 g
  • Country Of OriginMX
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Quick Disconnect Type
    M12 (Euro)
  • Number of Input Pins/Conductors
    4
  • Housing Style
    Linear Strip
  • Color Option 1
    White
  • Min Op. Temperature (°C)
    -40
  • Pro-Editor Compatible (Discrete)
    No
  • Power Source
    DC
  • Connection
    Pigtail QD
  • Illuminated Length (LxWxH mm)
    286.4
  • Feature: Audible
    No
  • Number of Colors / Segments
    1
  • Color 1 - Wavelength/Color Temp/Coordinates
    5000K (Daylight)
  • Primary Window Material
    Polycarbonate Diffused
  • USB
    No
  • Mounting Thread
    No Thread
  • Max Current Color (mA)
    360
  • Environmental Rating
    IP66; IP67
  • IO Link
    No
  • Illumination
    Yes
  • Lumens Color 1
    750
  • Supply Voltage
    24 V dc
  • Feature: Hazardous Area
    No
  • Product Size (mm)
    15
  • Power
    DC
  • Max Op. Temperature (°C)
    50
  • Wireless
    No
  • Cable Length (m)
    2
  • Dimming Option
    High-Low-Off
  • Physical Dimensions (LxWxH or DxH mm)
    360.0 x 30.6 x 15.5
  • Feature: Chemical Resistant
    No
  • Primary Housing Material
    Polycarbonate
  • Color Technology
    Standard LED
  • Storage Temp (°C)
    -40 to 70
  • Secondary Material
    Polyamide
  • Modbus RTU
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

WLS15HXDW0360LS24QP Description

WLS15 High Intensity Light Strip; Light Diffuse Window; Length: 360 mm, Voltage: 24 V dc; Environmental Rating: IP66; IP67, Color: DW; Non-Cascadable, Euro 4-pin 150 mm (6 in) PVC Pigtail

Related documents WLS15HXDW0360LS24QP Specs

WLS15HXDW0360LS24QP 218059.pdf

This item can ship within 24h!

1-year warranty

$155.52

Stock:

11

Select Qty:

$155.52

$155.52 each
