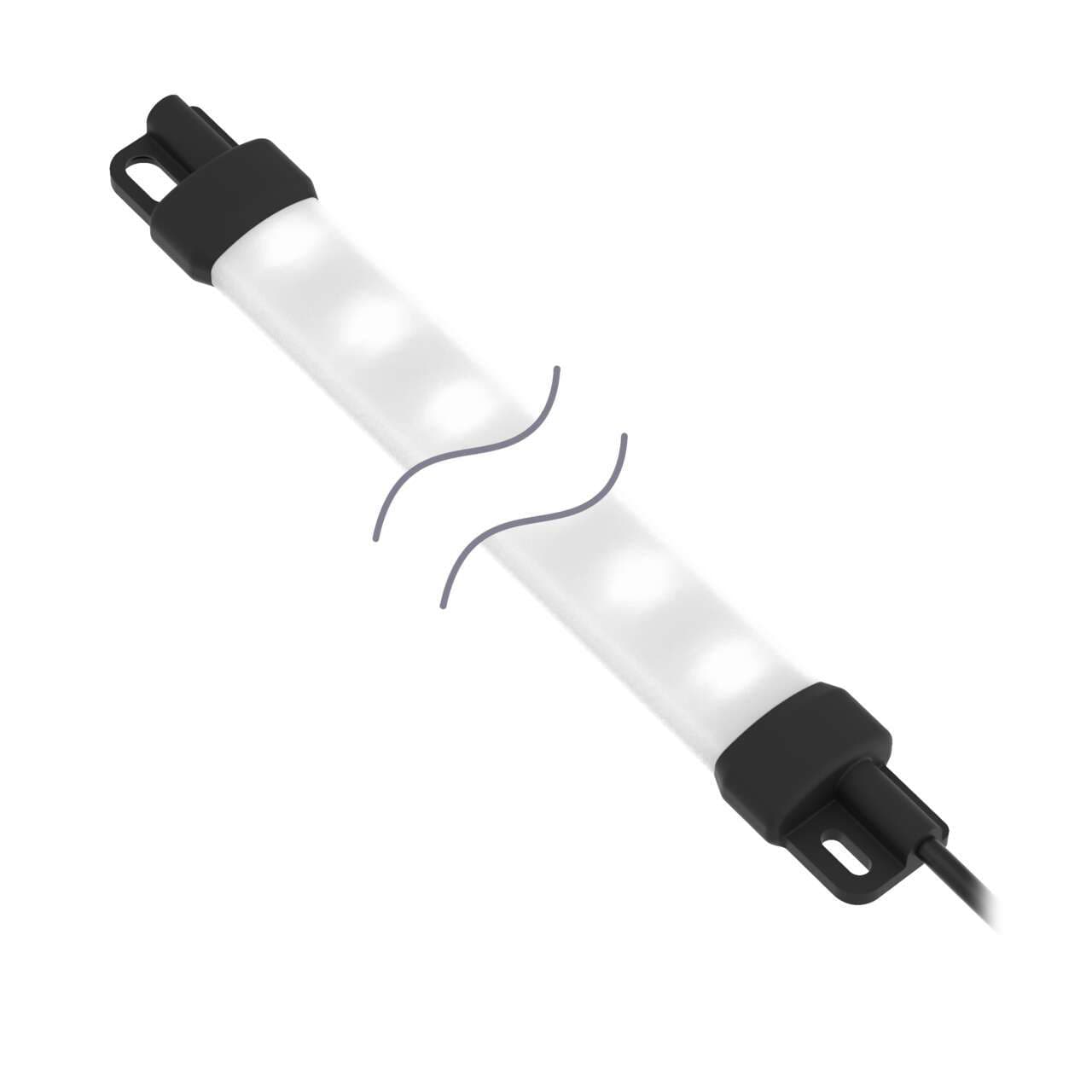

WLS15XDW0360DSC2 Banner Pick-to-Light Sensors

Banner WLS15XDW0360DSC2 WLS15 Work Light Strip; Diffused Window; Length: 360 mm; Voltage: 12 or 24 V dc; Environmental Rating: IP66,67; Color: Daylight White; 2 m (6.5 ft) Integral Cable
Banner

Part#:WLS15XDW0360DSC2

Manufacturer:Banner

Alt. Part#:802026

Product Lifecycle:Active

In-stock parts: 2

Nov 10, 2025

WLS15 Work Light Strip; Diffused Window; Length: 360 mm; Voltage: 12 or 24 V dc; Environmental Rating: IP66,67; Color: Daylight White; 2 m (6.5 ft) Integral Cable

About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the WLS15XDW0360DSC2 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight181.4368 g
  • Country Of OriginMX
  • Housing Style
    Linear Strip
  • Mounting Thread
    No Thread
  • Dimming Option
    PWM
  • Illuminated Length (LxWxH mm)
    286.4
  • Wireless
    No
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Power Source
    DC
  • Color Option 1
    White
  • Number of Input Pins/Conductors
    2
  • Feature: Audible
    No
  • Cable Length (m)
    0.15
  • Connection
    Cable
  • Supply Voltage
    12/24 V dc
  • Feature: Chemical Resistant
    No
  • Product Size (mm)
    15
  • Environmental Rating
    IP66; IP67
  • Secondary Material
    Polyamide
  • Number of Colors / Segments
    1
  • Primary Housing Material
    Polycarbonate
  • Max Op. Temperature (°C)
    60
  • Feature: Hazardous Area
    No
  • Power
    DC
  • Color 1 - Wavelength/Color Temp/Coordinates
    5000K (Daylight)
  • Primary Window Material
    Polycarbonate Diffused
  • Illumination
    Yes
  • Color Technology
    Standard LED
  • Storage Temp (°C)
    -40 to 70
  • Pro-Editor Compatible (Discrete)
    No
  • Lumens Color 1
    350
  • Physical Dimensions (LxWxH or DxH mm)
    360.0 x 30.6 x 15.5
  • Modbus RTU
    No
  • Max Current Color (mA)
    480
  • IO Link
    No
  • Min Op. Temperature (°C)
    -40

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

WLS15XDW0360DSC2 Description

Banner Engineering WLS15XDW0360DSC2 is a task light designed as a sealed industrial low power LED light strip/bar with diffused window 1-color Daylight White (DW) LED illumination. It operates on a supply voltage of 12Vdc or 24Vdc and measures L360mm x W15mm. The material used for both the diffused window and the base is Polycarbonate (PC). This product is pre-wired with a 2m / 6.5ft 2-wire cable terminated with bare end flying leads, featuring a linear light strip shape. It offers a degree of protection rated at IP66 and IP67, making it suitable for operation in ambient air temperatures ranging from -40°C to +60°C. It includes 1 x digital input (12Vdc / 24Vdc) for color control, consumes 480mA of current, and provides a luminous flux of 350 lm (lumens).

Related documents WLS15XDW0360DSC2 Specs

WLS15XDW0360DSC2 197492.pdf
